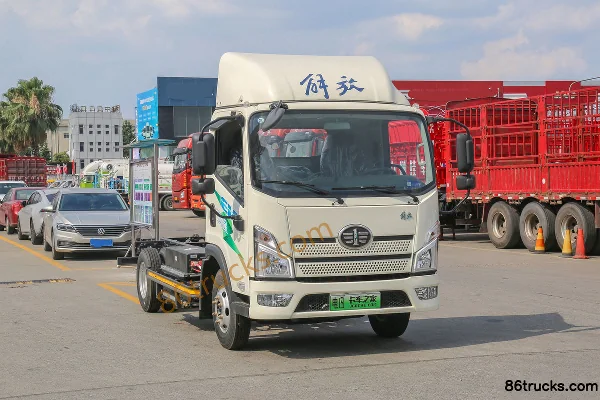

FAW Jiefang Lingtu 4.16m Single Row Pure Electric Stake Light Truck CATL 98.04kWh 4X2(6 wheels)
EXW
From $29,222
Export quote
FAW Jiefang Lingtu Light-duty Truck electric cargo
Main model photos
838 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Lingtu 4.16m Single Row Pure Electric Stake Light Truck CATL 98.04kWh 4X2(6 wheels) | 4x2 | From $29,222 | |
| FAW Jiefang Lingtu 4.16m Single Row Fuel Cell Van Light Truck Mengguli 30.13kWh 4X2(6 wheels) | 4x2 | From $91,667 | |

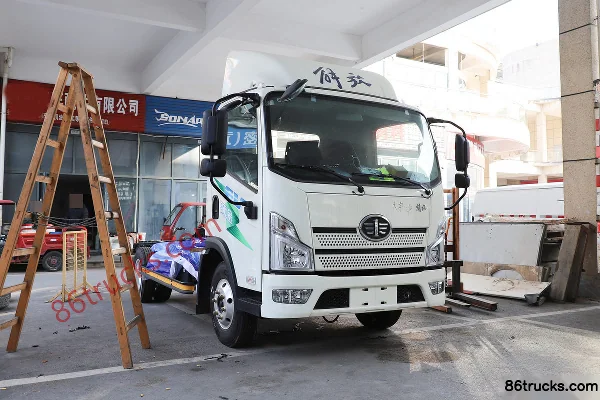

| FAW Jiefang Lingtu 4.16m Single-Row Electric Flatbed Light Truck CATL 81.14kWh 4X2(6 wheels) | 4x2 | From $33,333 | |
| FAW Jiefang Lingtu 4.16m single-row pure electric flatbed light truck CATL 81.1kWh 4X2(6 wheels) | 4x2 | From $30,000 | |

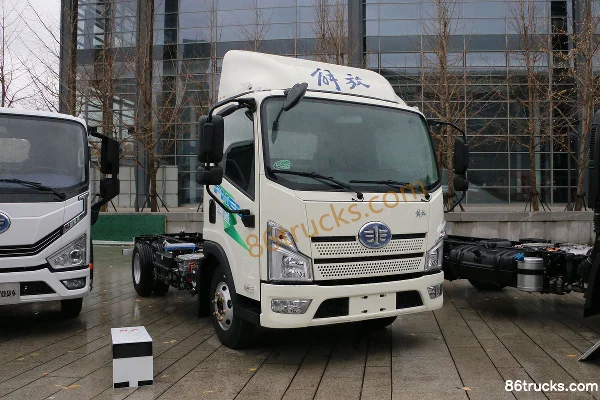

| FAW Jiefang Lingtu Hydraulic Brake 4.2m Single Row Plug-in Hybrid Flatbed Light Truck MGL 14kWh 4X2(6 wheels) | 4x2 / 130hp / China VI | From $29,167 |
FAW Jiefang Lingtu 4.16m Single Row Fuel Cell Van Light Truck Mengguli 30.13kWh 4X2(6 wheels)
EXW
From $91,667
Export quote
FAW Jiefang Lingtu 4.16m Single-Row Electric Flatbed Light Truck CATL 81.14kWh 4X2(6 wheels)
EXW
From $33,333
Export quote
FAW Jiefang Lingtu 4.16m single-row pure electric flatbed light truck CATL 81.1kWh 4X2(6 wheels)
EXW
From $30,000
Export quote
FAW Jiefang Lingtu Hydraulic Brake 4.2m Single Row Plug-in Hybrid Flatbed Light Truck MGL 14kWh 4X2(6 wheels)
EXW
From $29,167
Export quote
Series Specs
Basic Info
Model code (announced): CA5040CCYP40L3BEVA85 / CA5045XXYP40L2FCEVA84 / CA1046P40L1BEVA80 / CA1042P40L3BEVA84 / CA1046P40K51L2E6PHEVA84 / CA5046XXYP40L1BEVA80 / CA5042XXYP40L3BEVA84 / CA5048CCYP40L2BEVA85 / CA1044P40L2BEVA84 / CA1040P40L3BEVA84 / CA5046CCYP40L1BEVA80 / CA5042CCYP40L3BEVA84 / CA5045XXYP40K51L2E6PHEVA84 / CA5040XXYP40L3BEVA84 / CA1040P40K51L2BE6PHEVA84 / CA5046CCYP40K51L2E6PHEVA84
Type: enclosed cargo truck / Cargo Trucks / stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2 / 2.22 / 1895m
Cab height: 3.31 / 3.13 / 2.37 / 2.41 / 3.12 / 3.11 / 3.37 / 2.475m
CLTC range: 230 / 240 / 350 / 50km
Curb Weight: 3.3 / 3.6 / 2.97 / 3.02 / 3.2 / 3.15 / 2.92 / 3.45ton
Rated payload: 1 / 0.7 / 1.33 / 1.28 / 1.1 / 1.15 / 1.38 / 0.85ton
GVWR: 4.495ton
Max. speed: 90 / 105 / 95km/h
Origin: Qingdao, Shandong / Qingdao
tonnage class: Light Truck
Remarks: Standard: FAW Jiefang CAM310PT1 transmission, 120L aluminum alloy fuel tank, heated rearview mirrors
Version: Standard Load Edition
electric motor
Motor 1 Brand: FAW Jiefang / Lv Kong / CRRC Zhuzhou
Motor 1 Model: CAM310PT51 / CAM230PT1 / CA230PT51 / CAM310PT1 / CAM230PT52 / TZ230XS-LKM0382 / TZ180XS016A
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric / Hybrid / Hydrogen
total rated power: 60 / 65 / 64 / 34 / 68 / 40kW
Peak power: 110 / 140 / 120 / 72 / 147 / 60kW
Battery/Charging
Charging method: Fast charge, slow charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery / NMC lithium battery pack / Lithium manganate battery
fast charge time: 1.5h
Battery capacity: 98.04 / 30.13 / 81.14 / 81.1 / 14 / 100.46 / 14.02kWh
Engine parameters
Engine Model: CA4DB1-13E6 / XichaiCA4DB1-13E6 / XichaiCA4DB1-14E68
Number of cylinders: 4cylinder
Displacement: 2.2L
Emission standard: China VI
Max output power: 95 / 100kW
Max hp: 130 / 140Horsepower
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Stake type / Van body / stake body
Cargo box length: 4.16 / 4.2m
Cargo box width: 2.1 / 2m
Cargo box height: 2.1 / 0.41 / 0.55m
Cab parameters
Cab: Single Row / Single row medium-width cab / FAW Jiefang Lingtu / Lingtu Single Row Medium Body
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Lingtu Light-duty Truck electric cargo truck?
FAW Jiefang FAW Jiefang Lingtu Light-duty Truck is an export-oriented electric cargo truck lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Lingtu Light-duty Truck electric cargo?
FAW Jiefang Lingtu Light-duty Truck electric cargo export reference is about $20,722 – $91,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Lingtu Light-duty Truck electric cargo cover?
FAW Jiefang Lingtu Light-duty Truck electric cargo mainly covers: Drive: 4x2; Horsepower: 130 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Lingtu Light-duty Truck electric cargo?
For FAW Jiefang Lingtu Light-duty Truck electric cargo: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does FAW Jiefang Lingtu Light-duty Truck electric cargo include?
FAW Jiefang Lingtu Light-duty Truck electric cargo currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Lingtu Light-duty Truck electric cargo?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
