FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.15ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: CA5046XXYP40L1BEVA80
Type:: enclosed cargo truck
Box length class:: 4.2m
FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) exterior
View more photos (9)
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: FAW Jiefang
Curb Weight: 3.15ton

Overview

The FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) is a Light Truck featuring 230km battery/range, FAW Jiefang motor, 4X2 (6 wheels) drive and 1.15t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5046XXYP40L1BEVA80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.12m
CLTC range: 230km
Curb Weight: 3.15ton
Rated payload: 1.15ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM230PT1
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 140kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.16m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 1895mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

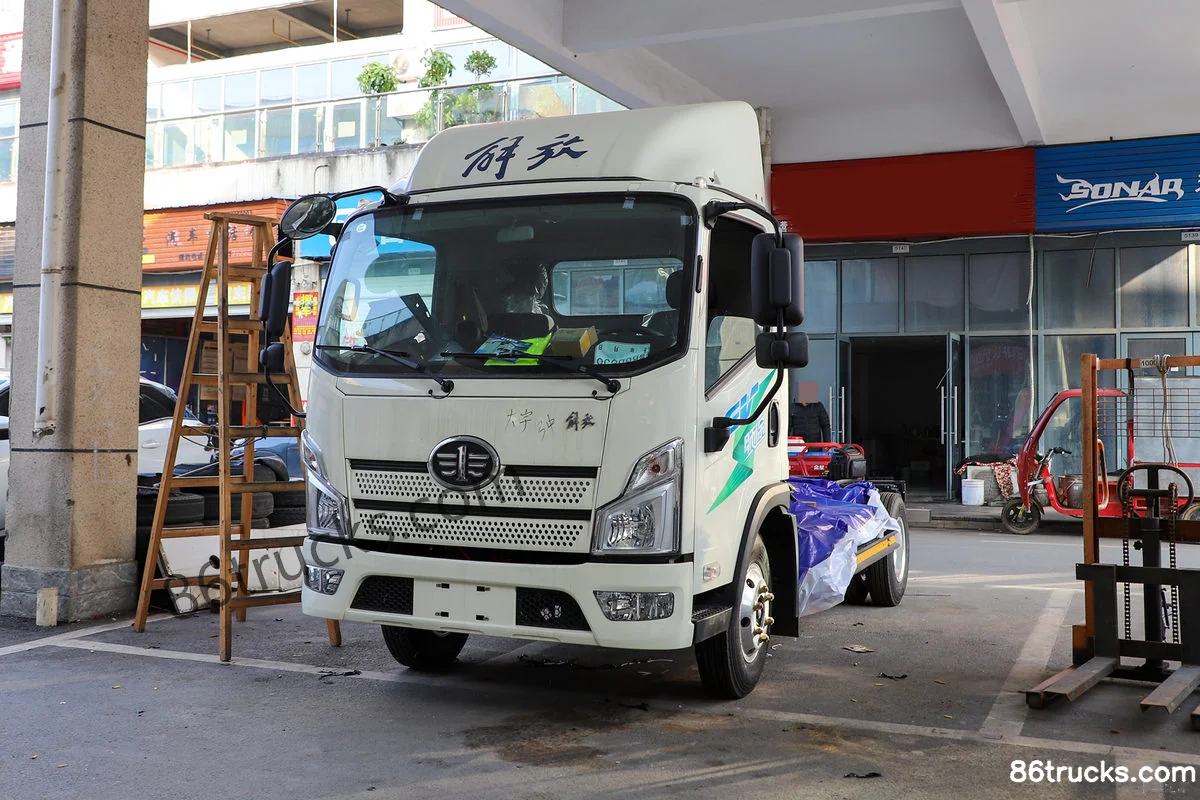

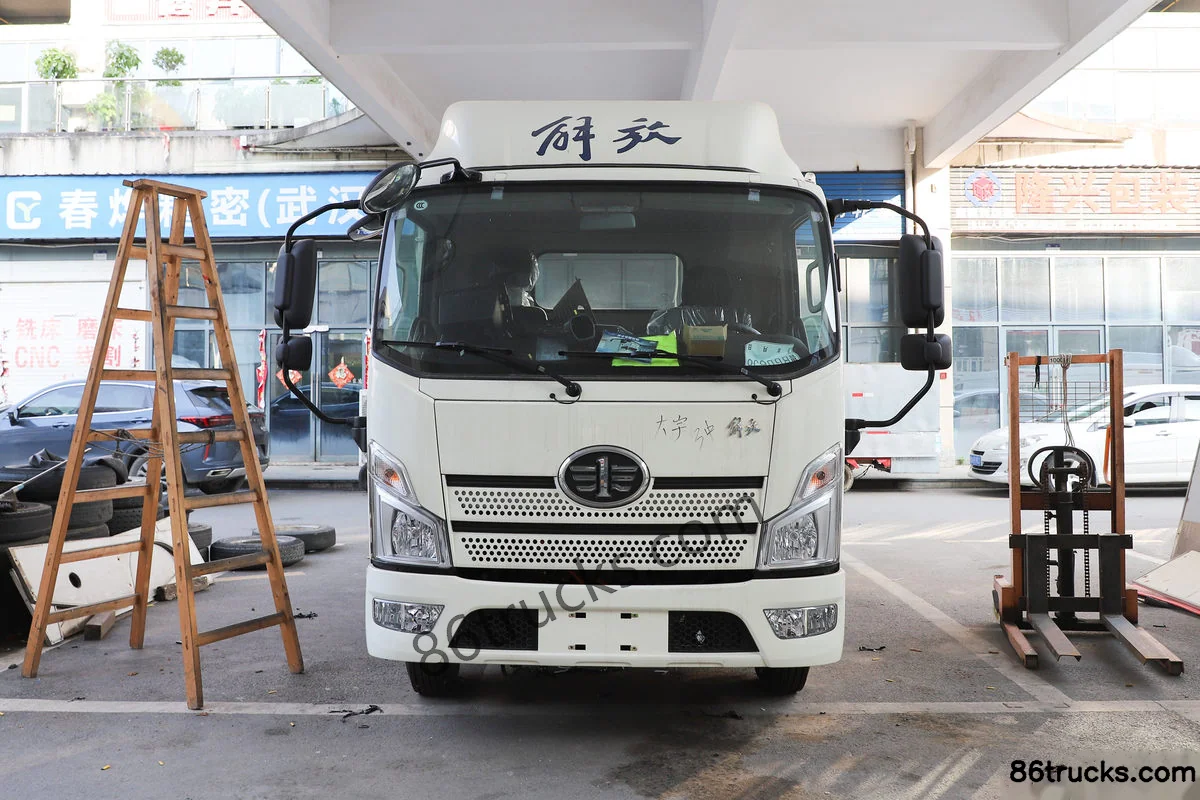

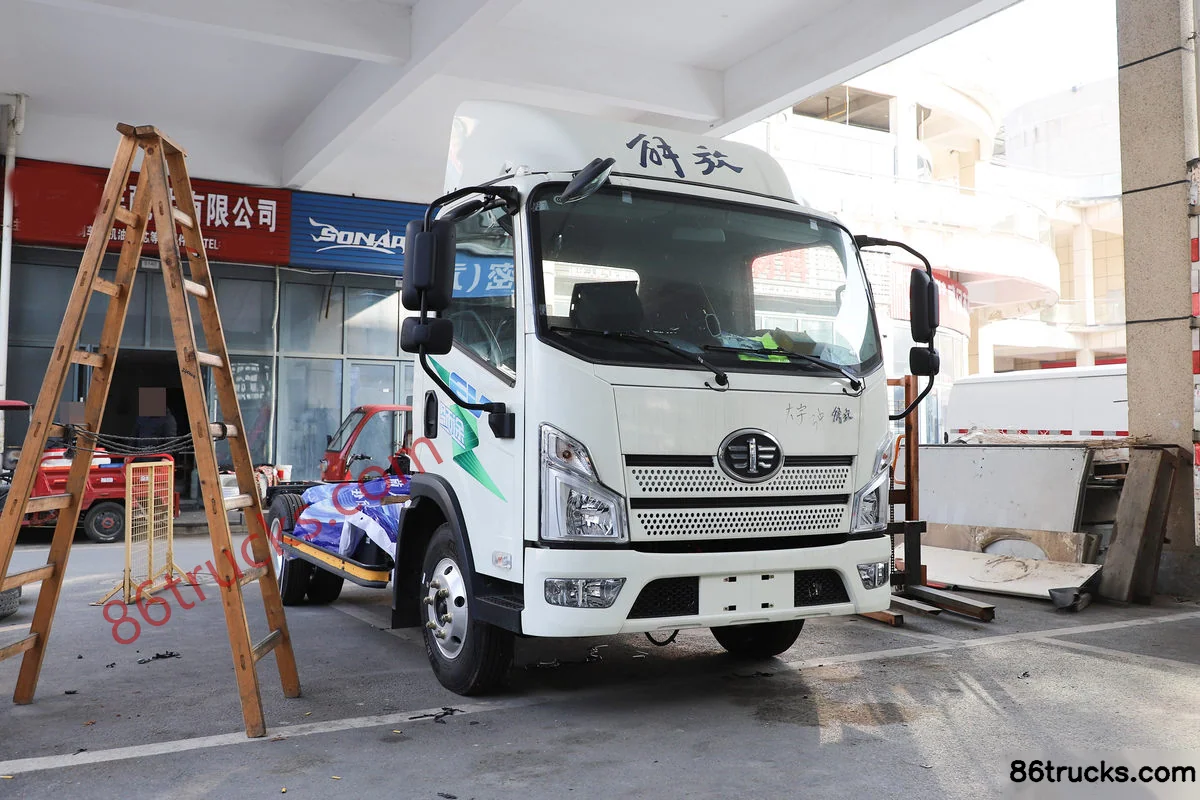

Exterior3

FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Exterior (1) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Exterior (2) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Exterior (3) | 86Trucks

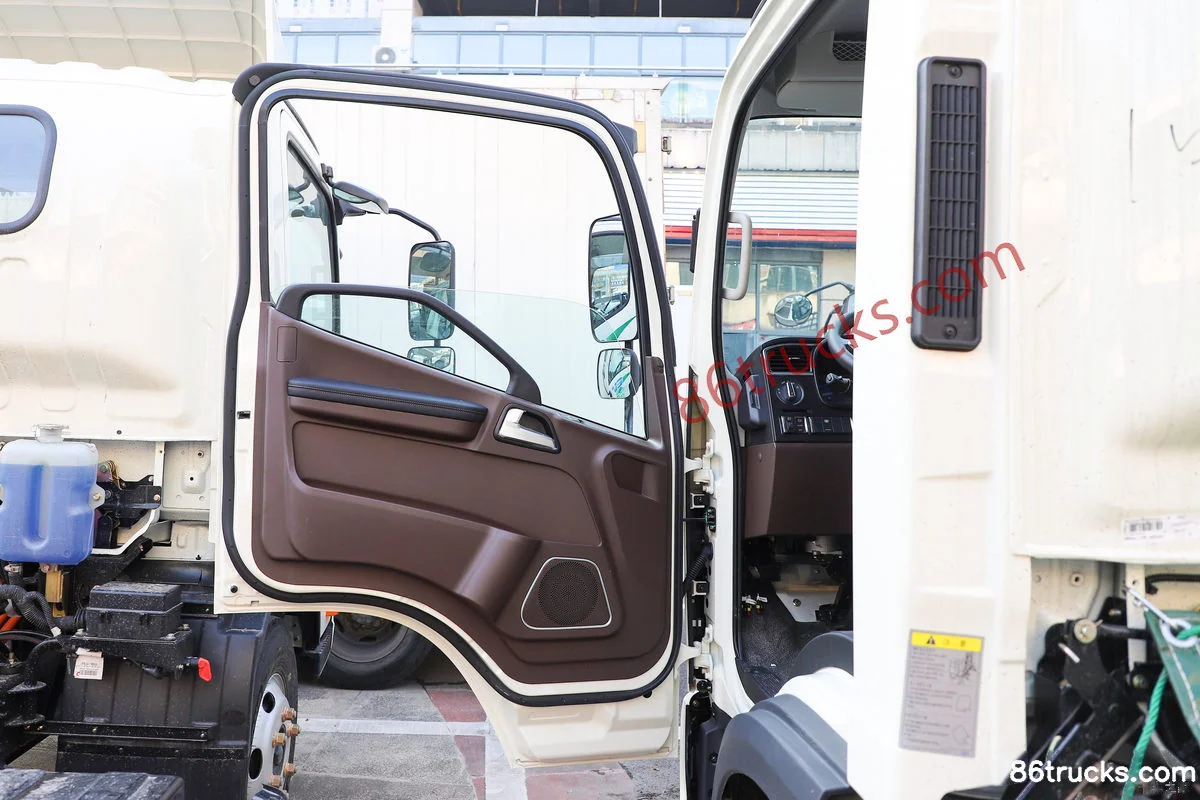

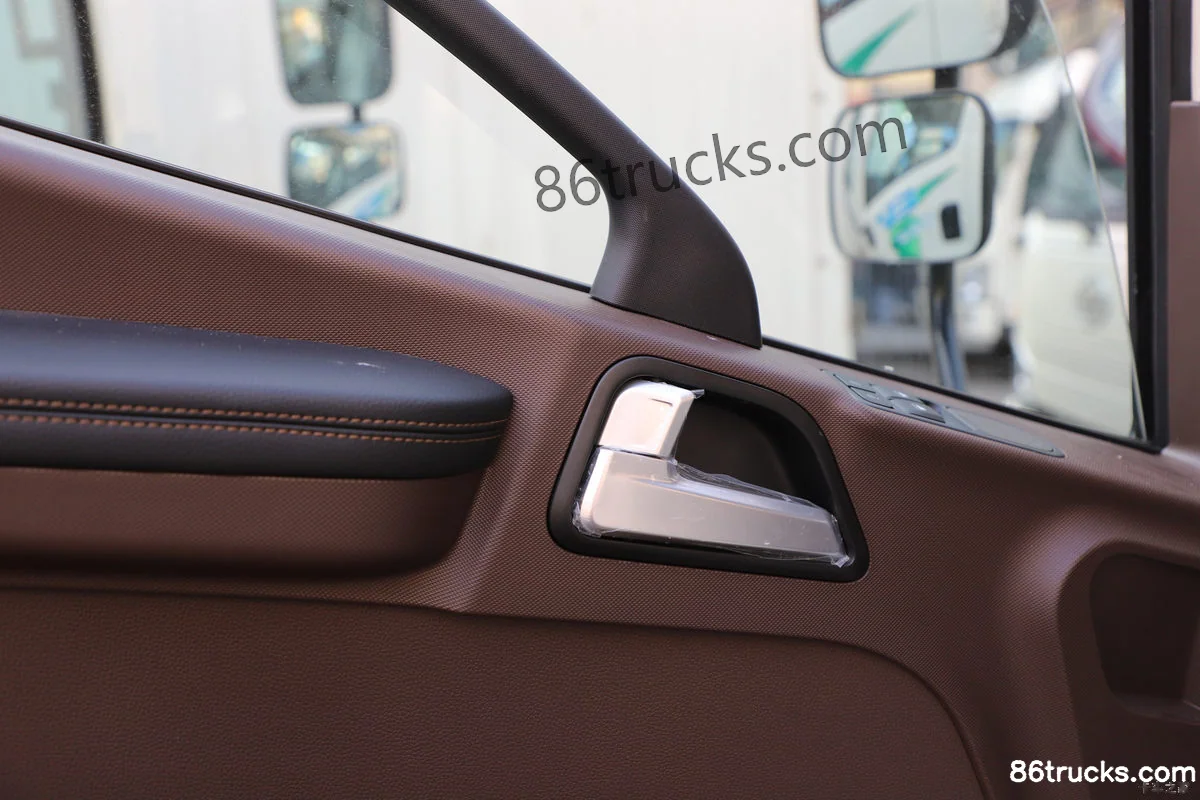

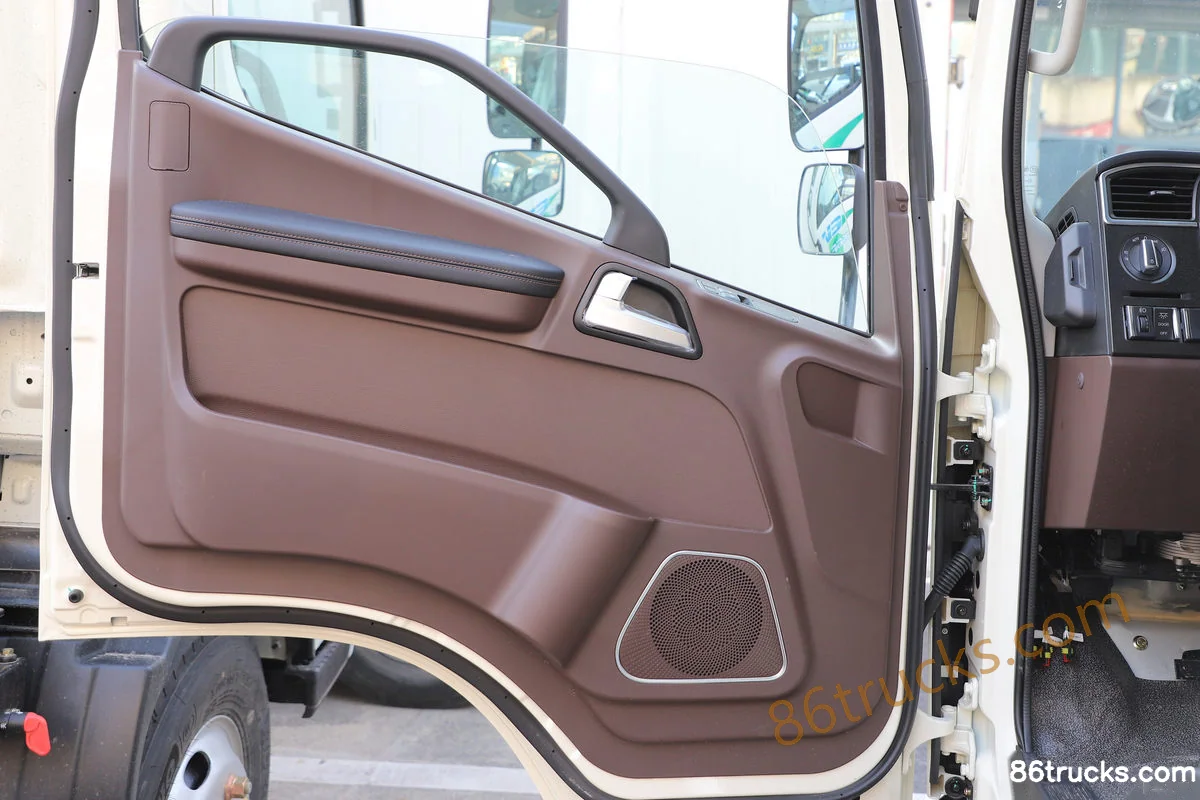

Interior3

FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Interior (1) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Interior (2) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Interior (3) | 86Trucks

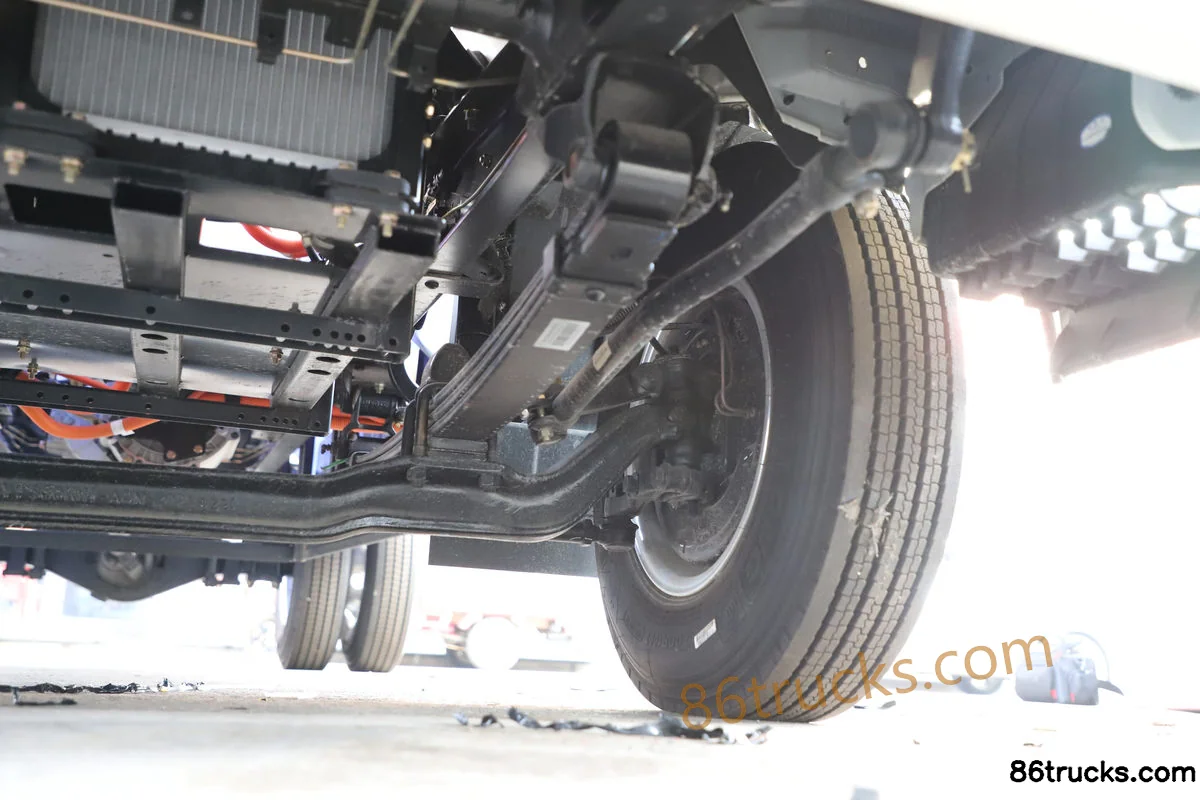

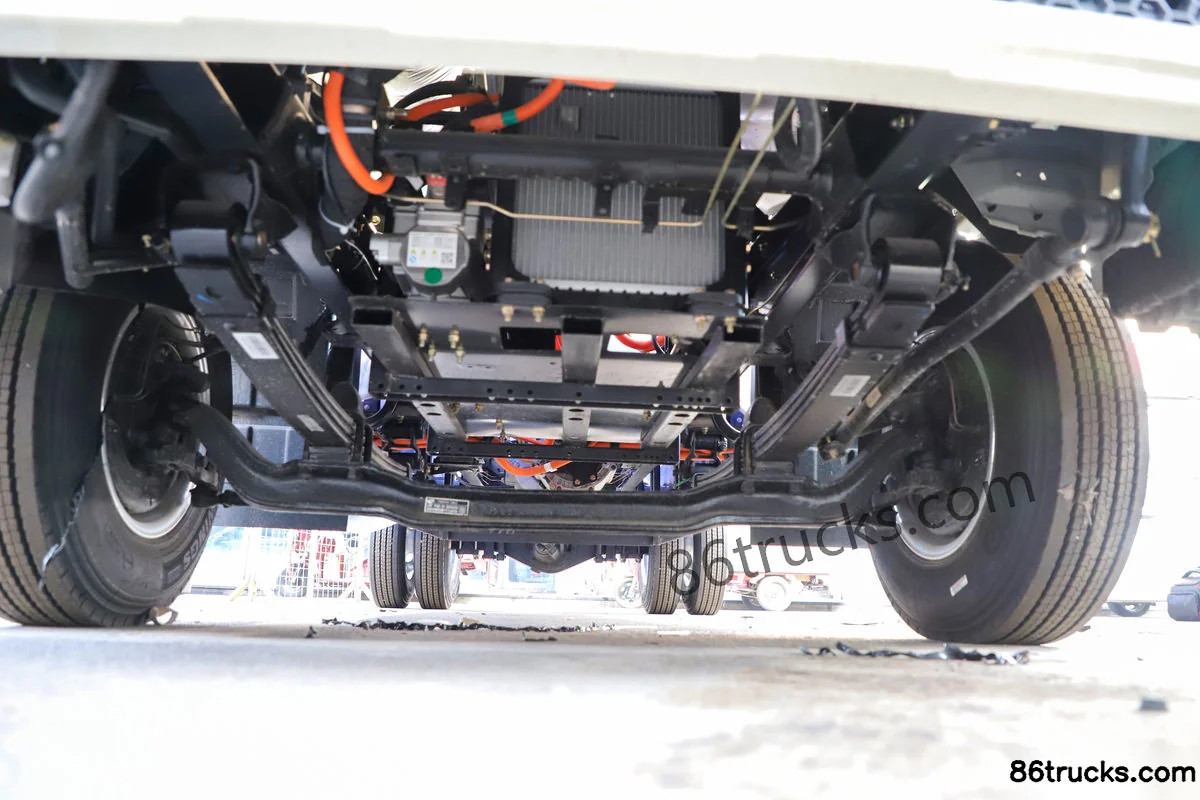

Chassis3

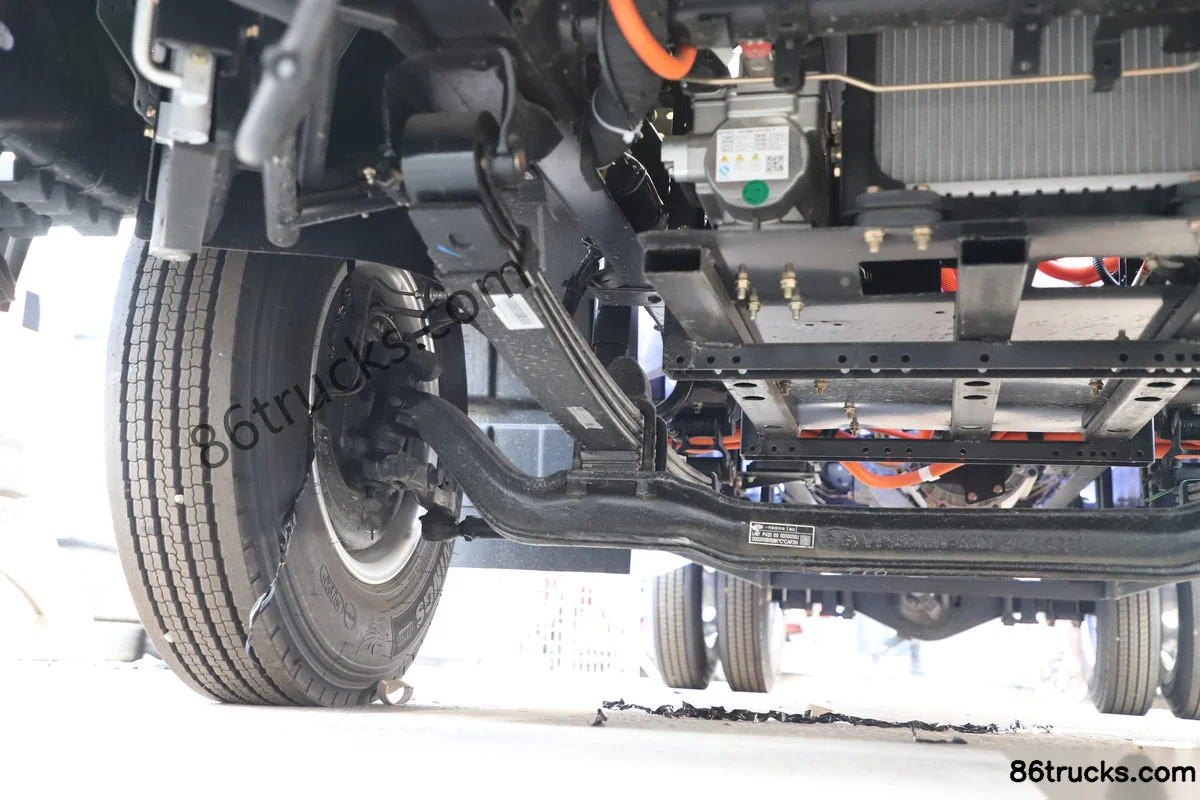

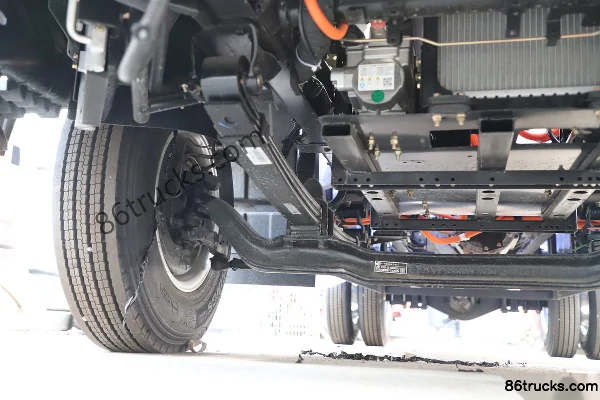

FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Chassis (1) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Chassis (2) | 86Trucks FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels)?

Key specs of FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) suited for?

FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) differ from other variants in the same series?

FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels) belongs to FAW Jiefang Lingtu Light-duty Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Lingtu 4.5T 4.16m Single Row Pure Electric Box Light Truck 81.14kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
