JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels)
EXW
From $19,417
Export quote
JACEV5 electric cargo truck
Main model photos
145 photos
Models
On sale
JAC EV5 4.18m Single Row Pure Electric Cargo Box Light Truck CATL 89.12kWh 4X2(6 wheels)
EXW
From $24,236
Export quote
JAC New Energy No.1 Junling EV5 4X2(6 wheels) 4.15m Single Row Pure Electric Van Light Truck Guoxuan High-Tech 96.768kWh
EXW
From $33,319
Export quote
JAC New Energy No.1 Junling EV5 4X2(6 wheels) 4.22m Single Row Battery Swap Pure Electric Flatbed Light Truck Vision 76.19kWh
EXW
From $19,417
Export quote
JAC Xinneng 1 Hao Junling EV5 4X2(6 wheels) 4.18m Single-row Pure Electric Flatbed Light Truck Fudi 76.18kWh
EXW
From $19,417
Export quote
Inventory
JAC Shuailing i5 4.5T 4.15m Single Row Electric Cargo Truck with Cage 93.97kWh 4X2(6 wheels)
EXW
From $31,944
Export quote
JAC Shuailing i5 4.5T 4.15m Pure Electric Van Light Truck 96.77kWh 4X2(6 wheels)
EXW
Export quote
JAC Shuailing i5 4.5T 4.15m Van Electric Light Truck Chassis 4X2(6 wheels)
EXW
Export quote
JAC Shuailing i5 4.5T 4.15m Van Electric Light Truck 4X2(6 wheels)
EXW
Export quote

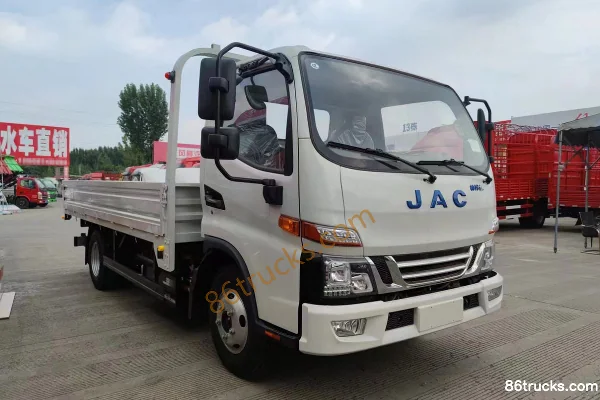

JAC Shuailing i5 4.5T 4.18m single-row pure electric panel light truck 89.12kWh 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC5042XXYSEV1-1 / HFC5043CCYEV1N / HFC5045XXYEV3 / HFC1042SEV1 / HFC1042SEV2 / HFC5042CCYSEV1 / HFC5042XXYSEV2 / HFC1045EV9 / HFC5042XXYSEV1 / HFC5043XXYBEV1N / HFC5045XXYEV18 / HFC5045CCYEV18 / HFC1045EV18 / HFC5040XXYEV1N / HFC1040EV1N / HFC5045XXYEV20 / HFC5045CCYEV20 / HFC5045CCYEV9 / HFC1043EV1N / HFC5043XXYEV1N / HFC5045XXYSEV1 / HFC5045XXYEV13 / HFC5045XXYEV14 / HFC5045XXYEV5-1 / HFC1045EV13 / HFC5045XXYEV1-2 / HFC5045XXYEV9 / HFC5045XYZEV10 / HFC5045CCYEV1 / HFC5045XYZEV1 / HFC5045XXYEV6 / HFC5045XXYEV1N
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3365 / 3308 / 2850mm
Box length class: 4.2 / 3.7 / 3.8m
Cab length: 5.995 / 5.51m
Cab width: 2.2 / 2.18 / 2.205 / 2.16 / 2.165/2.195 / 2.12 / 2.11 / 2 / 2.21 / 2.31 / 2.005 / 2.17 / 2.15 / 1.96 / 2.115 / 1.91/2/1.96/2.05 / 1.91/2 / 2.17/2.12 / 2.015 / 2.17/2.12/2.015/1.96 / 1900 / 1995 / 1695m
Cab height: 3.14 / 3.11 / 2.43 / 2.45 / 3.13 / 2.32 / 3.24 / 3.22 / 3.28 / 2.475 / 2.93 / 2.31 / 2.445 / 2.94 / 2.84 / 3.04 / 3 / 2.78/2.89/2.99 / 2.155 / 3.15/2.99 / 3.24/2.8m
CLTC range: 180 / 220 / 200 / 210 / 160 / 204 / 420 / 440 / 470 / 360 / 425 / 170 / 150km
Curb Weight: 3.065 / 3.03 / 2.99 / 2.96 / 2.655 / 3.12 / 2.92 / 3.11 / 3.59 / 3 / 2.85 / 2.7 / 2.55 / 3.05 / 3.08 / 2.78 / 3.02 / 2.97 / 2.89 / 3.09ton
Rated payload: 1.19 / 1.27 / 1.31 / 1.34 / 1.645 / 1.245 / 1.38 / 0.71 / 1.45 / 1.665 / 1.815 / 1.25 / 1.235 / 1.22 / 1.52 / 1.28 / 1.33 / 1.41 / 1.21 / 1.18ton
GVWR: 4.45 / 4.495ton
Max. speed: 90 / 80km/h
Origin: Hefei, Anhui / Suining, Sichuan / Suining
tonnage class: Light Truck / mini truck
Remarks: Standard: Hydraulic tailgate. / Optional: FinDreams Battery (Wuhan)
electric motor
Motor 1 Brand: Prestolite / Jingjin / JAC / Shanghai Electric Drive / Daoyi Power / Lv Kong
Motor 1 Model: TZ230XSWF3 / TZ220XSA06 / TZ220XSJH01 / TZ220XSJ200 / TZ368XSSH3 / TZ230XS62FE / TZ260XSJHE / TZ368XSD16 / TZ370XS-LKM0901
Max torque: 320 / 1000 / 310N·m
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 60 / 65 / 75 / 45kW
Peak power: 125 / 120 / 130 / 100 / 110kW
total rated torque: 150 / 400 / 1432 / 350 / 100 / 140N·m
total peak torque: 320 / 900 / 1000 / 4500 / 310N·m
Electronic Control
ECU Brand: Shengtaike
Battery/Charging
Battery Brand: Vision Power / CATL / Guoxuan High-Tech / Vision / FinDreams / Zhechu / Full electric / Suzhou Green Control / Oupeng
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.5 / 1.6h
Battery rated voltage: 515.2 / 537.6 / 386.4V
Battery capacity: 76.18 / 89.12 / 96.768 / 76.19 / 93.97 / 91.65 / 67 / 96.77 / 103.42 / 80.64 / 66.84kWh
Energy Density: 140.49 / 106.78 / 154.59 / 140.45 / 140.53 / 136.24 / 135.38 / 154.84
Battery Model: L173TB1 / GXB3-G7A-6P42S-30X / 512V202Ah160S1P / GXB3-G7B-5P42S / ADBPB17-01 / GXB3-G7A-6P42S-30
Cargo box parameters
Cargo box volume: 18.3 / 14.19 / 15.68 / 18.81m³
Cargo box type: Van body / Stake type / stake body
Cargo box length: 4.15 / 4.18 / 4.22 / 3.7 / 3.8 / 4.125m
Cargo box width: 2.1 / 1.81 / 2.2 / 1.9 / 2.075 / 2.01 / 2.08 / 1.81/1.9 / 2.06 / 2.06/1.9m
Cargo box height: 2.1 / 0.4 / 2.2 / 1.85 / 0.37 / 1.9 / 2 / 1.95 / 2.11/1.95 / 2.2/1.8m
Cab parameters
Cab: Junling EV5 / mid-body / Narrow cab / Shuailing i5
FAQ
What kind of truck is JAC JACEV5 electric cargo truck?
JAC JACEV5 is an export-oriented electric cargo truck lineup with about 54 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACEV5 electric cargo truck?
JACEV5 electric cargo truck export reference is about $19,417 – $37,472. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACEV5 electric cargo truck cover?
JACEV5 electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACEV5 electric cargo truck?
For JACEV5 electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JACEV5 electric cargo truck include?
JACEV5 electric cargo truck currently lists about 54 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACEV5 electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
