JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels)

Export reference
From $19,417
MSRP ¥13.98M CNY
Rated payload:: 1.19ton
Wheelbase:: 3365mm
Cargo box type:: Van body
Model code (announced):: HFC5042XXYSEV1-1
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 180km
Motor 1 Brand: Prestolite
Curb Weight: 3.065ton

Overview

The JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) is a Light Truck featuring 180km battery/range, Prestolite motor, 4X2 (6 wheels) drive and 1.19t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5042XXYSEV1-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.14m
CLTC range: 180km
Curb Weight: 3.065ton
Rated payload: 1.19ton
GVWR: 4.45ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Prestolite
Motor 1 Model: TZ230XSWF3
Motor Type: Permanent magnet synchronous motor
Peak power: 125kW
Battery/Charging
Battery Brand: Vision Power
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 76.18kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

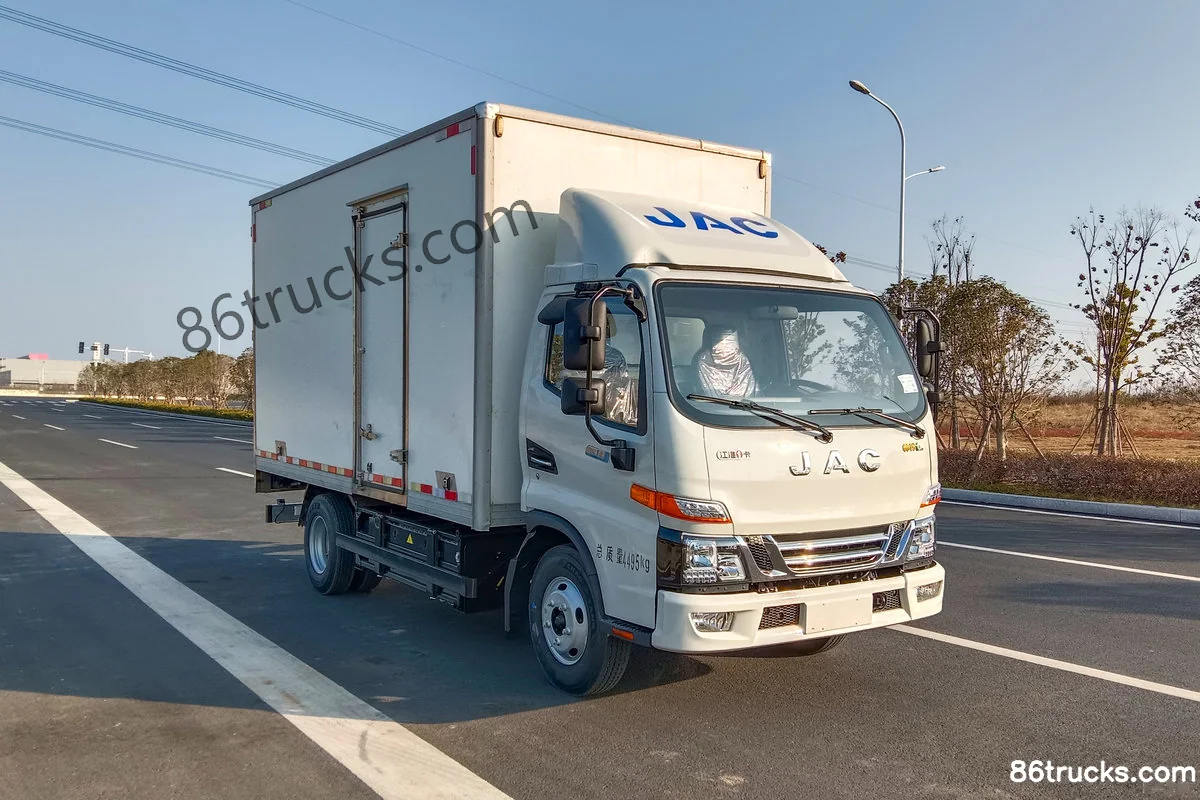

Exterior1

1 photos

FAQ

What is the export price of JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels), and what does it include?

JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) export reference is about From $19,417; MSRP is ¥13.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels)?

Key specs of JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) suited for?

JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) differ from other variants in the same series?

JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels) belongs to JACEV5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC EV5 Hydraulic Brake 4.15m Single Row Battery Swap Electric Box Light Truck Vision Power 76.18kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
