JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck

Export reference
From $24,306
MSRP ¥17.5M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.805ton
Wheelbase:: 3308mm
Tire Size:: 7.00R16
Cab dimensions:: 5.995×2.25×3.1m
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.03×2.01×2m
Horsepower 143

Overview

The JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck is a Refrigerated Truck featuring 4.03×2.01×2m cargo body, 1.495t payload, H5 cab and 3308mm wheelbase. On the powertrain side, it comes with 143 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.25×3.1m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3308mm
Vehicle origin: Hefei, Anhui
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
Max. speed: 98km/h
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Model: Yunnei PowerD25TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 360N·m
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Cargo box parameters
Cargo box dimensions: 4.03×2.01×2m
Cargo box width: 2.01m
Cargo box height: 2m
Body Parameters
Vehicle certification code: HFC5045XLCP92K1C2V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling H5
Chassis Model: HFC5045XLCP92K1C2V
rear axle description: 5T
Axle ratio: 4.875
Leaf spring count: 5/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed
Cab parameters
Cab: H5
Tire
Tire Size: 7.00R16
Number of tires: 6pcs

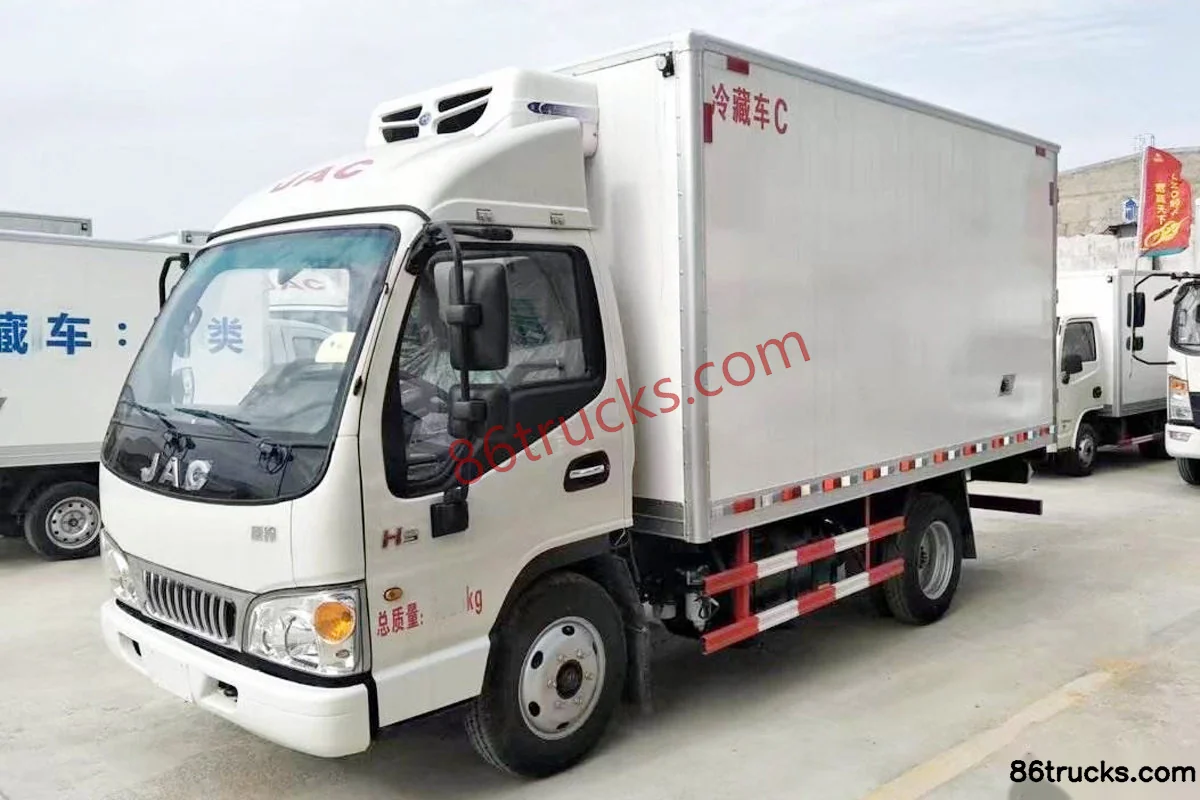

Photos

Exterior1

1 photos

FAQ

What is the export price of JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck, and what does it include?

JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck export reference is about From $24,306; MSRP is ¥17.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck?

Key specs of JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck: Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck suited for?

JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck differ from other variants in the same series?

JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck belongs to JAC H5 light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
