JAC Fortune Star H5 137hp 4X2(6 wheels) 4.015m refrigerated truck
EXW
From $25,000
Export quote

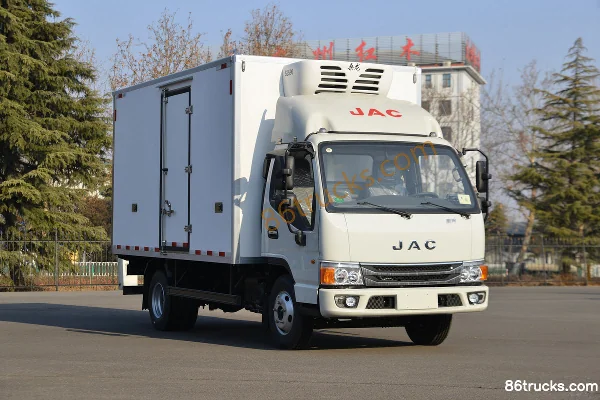

JAC H5 light truck Refrigerated Truck
Main model photos
332 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Fortune Star H5 137hp 4X2(6 wheels) 4.015m refrigerated truck | 4x2 / 137hp / China VI | From $25,000 | |
| JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) | 4x2 / 132hp / China VI | From $17,167 | |
| JAC Kangling H5 120hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) | 4x2 / 120hp / China VI | From $18,444 |
JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)
EXW
From $17,167
Export quote
JAC Kangling H5 120hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)
EXW
From $18,444
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m refrigerated truck (4T rear axle) | 4x2 / 143hp / China V | From $24,306 | |
| JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck | 4x2 / 143hp / China V | From $24,306 | |
| JAC Kangling H5 120hp 4X2(6 wheels) 4.03m refrigerated truck | 4x2 / 120hp / China V | From $26,111 | |
| JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck | 4x2 / 156hp / China V | From $24,028 |
JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m refrigerated truck (4T rear axle)
EXW
From $24,306
Export quote
JAC Kangling H5 143 hp 4X2(6 wheels) 4.03 m Refrigerated Truck
EXW
From $24,306
Export quote
JAC Kangling H5 120hp 4X2(6 wheels) 4.03m refrigerated truck
EXW
From $26,111
Export quote
JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck
EXW
From $24,028
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.17×3.26 / 5.995×2.11×3.1 / 5.995×2.25×3.1 / 5.995×2.55×3.39m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Suining, Sichuan / Hefei, Anhui
Wheelbase: 3365 / 3308mm
Front track width: 1595 / 1580 / 1695/1720mm
rear track: 1560 / 1395 / 1705/1785mm
Curb Weight: 3.2 / 3.21 / 2.805ton
Rated payload: 1.09 / 1.495ton
GVWR: 4.485 / 4.495ton
Max. speed: 95 / 100 / 98km/h
Remarks: Standard: electric preheating, MP3, I-beam front axle; ratio 5.375, Optional: 6.50R16 tubeless tires, roof vent, ETC device, 2075mm wide cargo box, 2100mm cargo box, tread plate, five-door opening, aluminum side guard, 100L plastic fuel tank.
Front/rear suspension: 1.075/1.555 / 1.1/1.53 / 1.1/1.587 / 1.075/1.612m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: Yunnei PowerYN25PLUS2 / QuanchaiQ23-132E60 / QuanchaiH20-120E60 / Yunnei PowerD25TCIE1 / JACHFC4DA1-2D / Yunnei PowerD30TCIE1
Number of cylinders: 4cylinder
Displacement: 2.499 / 2.3 / 2 / 2.771 / 2.977L
Emission standard: China VI / China V
Max output power: 101 / 97 / 90 / 105 / 88 / 115kW
Max hp: 137 / 132 / 120 / 143 / 156Horsepower
Max torque: 320 / 325 / 360 / 285 / 400N·m
Rated speed: 3000 / 3200 / 3600rpm
Engine Type: Common Rail / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection / Electronically controlled strong-cooling EGR
Cargo box parameters
Cargo box dimensions: 4.015×2.1×2.2 / 4.03×2.01×2 / 4.03×2.1×2 / 4.03×2.3×2.2m
Cargo box width: 2.1 / 2.01 / 2.3m
Cargo box height: 2.2 / 2m
Body Parameters
Vehicle certification code: HFC5043XLCP31K1C4NS / HFC5045XLCP22K1C7S / HFC5045XLCP92K1C2V / HFC5043XLCP91K2C2V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Chuangfuxing H5 / Kangling H5
Chassis Model: HFC1043P31K1C4NS / HFC1045P22K1C7S / HFC5045XLCP92K1C2V / HFC1043P91K2C2V
Front axle description: 2T
Frame Dimensions: 180*65*4.5mm
rear axle description: 4T / 5T
Axle ratio: 4.875 / 5.571
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: JACML540A / JACML532A / Xingrui ML532C / Xingrui LC6T450M1 / 6-speed / Lu'an LC5T28 / Lu'an LC6T450M1
Cab parameters
Cab: H5 / Flat roof
fuel tank
Fuel tank capacity: 100L
FAQ
What kind of truck is JAC JAC H5 light truck Refrigerated Truck?
JAC JAC H5 light truck is an export-oriented Refrigerated Truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC H5 light truck Refrigerated Truck?
JAC H5 light truck Refrigerated Truck export reference is about $17,167 – $26,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC H5 light truck Refrigerated Truck cover?
JAC H5 light truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 120 hp / 132 hp / 137 hp / 143 hp / 156 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC H5 light truck Refrigerated Truck?
For JAC H5 light truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC H5 light truck Refrigerated Truck include?
JAC H5 light truck Refrigerated Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC H5 light truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
