JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck

Export reference
From $24,028
MSRP ¥17.3M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 3.21ton
Wheelbase:: 3308mm
Tire Size:: 8.25R16LT 6PR
Cab dimensions:: 5.995×2.55×3.39m
Rated payload: 1.09ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.03×2.3×2.2m
Horsepower 156

Overview

The JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck is a Refrigerated Truck featuring 4.03×2.3×2.2m cargo body, 1.09t payload, Flat roof cab and 3308mm wheelbase. On the powertrain side, it comes with 156 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.55×3.39m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3308mm
Vehicle origin: Hefei, Anhui
Front track width: 1695/1720mm
rear track: 1705/1785mm
Curb Weight: 3.21ton
Rated payload: 1.09ton
Max. speed: 95km/h
Front/rear suspension: 1.075/1.612m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: Yunnei PowerD30TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Cargo box parameters
Cargo box dimensions: 4.03×2.3×2.2m
Cargo box width: 2.3m
Cargo box height: 2.2m
Body Parameters
Vehicle certification code: HFC5043XLCP91K2C2V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling H5
Chassis Model: HFC1043P91K2C2V
Leaf spring count: 9/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Lu'an LC6T450M1
Cab parameters
Cab: Flat roof
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs

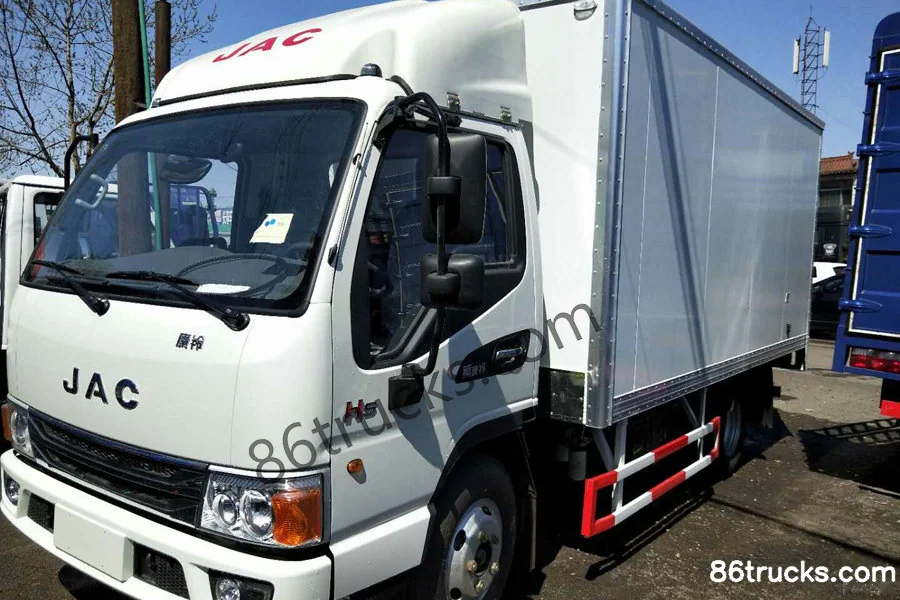

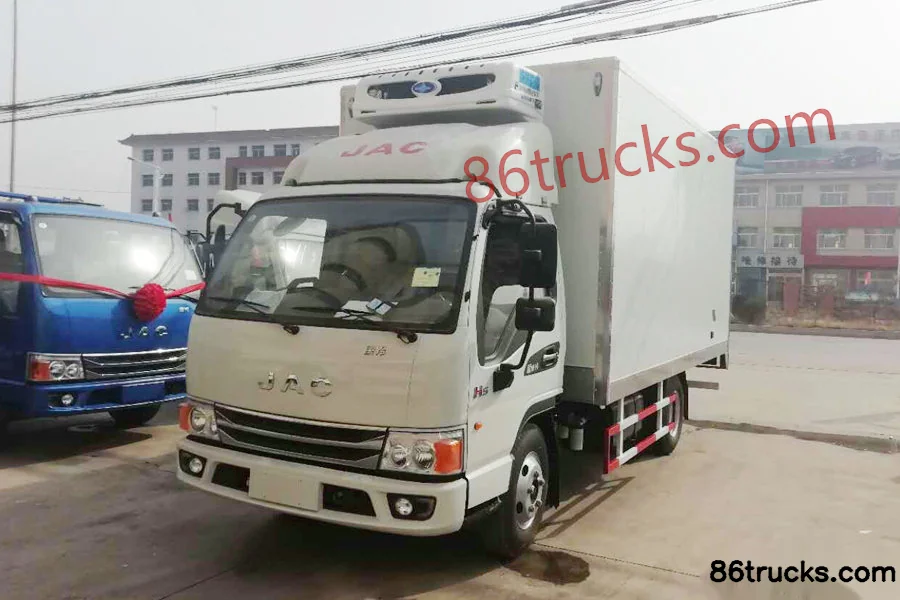

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck, and what does it include?

JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck export reference is about From $24,028; MSRP is ¥17.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck?

Key specs of JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck suited for?

JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck differ from other variants in the same series?

JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck belongs to JAC H5 light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC New Kangling H5 156 hp 4X2(6 wheels) 4.03m single-row refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
