JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)

Export reference
From $17,167
MSRP ¥12.36M CNY
Horsepower: 132
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.21ton
Wheelbase:: 3365mm
Tire Size:: 7.00R16LT 8PR
Fuel tank capacity: 100L
Rated payload: 1.09ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.03×2.01×2m

Overview

The JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) is a Refrigerated Truck featuring 4.03×2.01×2m cargo body, 100L volume, 1.09t payload and 5.995×2.11×3.1m cab. On the powertrain side, it comes with 132 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.11×3.1m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Hefei, Anhui
Wheelbase: 3365mm
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 3.21ton
Rated payload: 1.09ton
GVWR: 4.495ton
Max. speed: 100km/h
Remarks: Standard: electric preheating, MP3, I-beam front axle; ratio 5.375, Optional: 6.50R16 tubeless tires, roof vent, ETC device, 2075mm wide cargo box, 2100mm cargo box, tread plate, five-door opening, aluminum side guard, 100L plastic fuel tank.
Front/rear suspension: 1.1/1.53m
Energy Type: Diesel
Engine parameters
Engine Model: QuanchaiQ23-132E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 320N·m
Rated speed: 3000rpm
Engine Type: Common Rail
Cargo box parameters
Cargo box dimensions: 4.03×2.01×2m
Cargo box width: 2.01m
Cargo box height: 2m
Body Parameters
Vehicle certification code: HFC5045XLCP22K1C7S
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling H5
Chassis Model: HFC1045P22K1C7S
Front axle description: 2T
Frame Dimensions: 180*65*4.5mm
rear axle description: 4T
Axle ratio: 4.875
Leaf spring count: 4/5+6,4/4+2
Transmission Parameters
Number of gears: 5Gear
Transmission Model: JACML532A
fuel tank
Fuel tank capacity: 100L
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

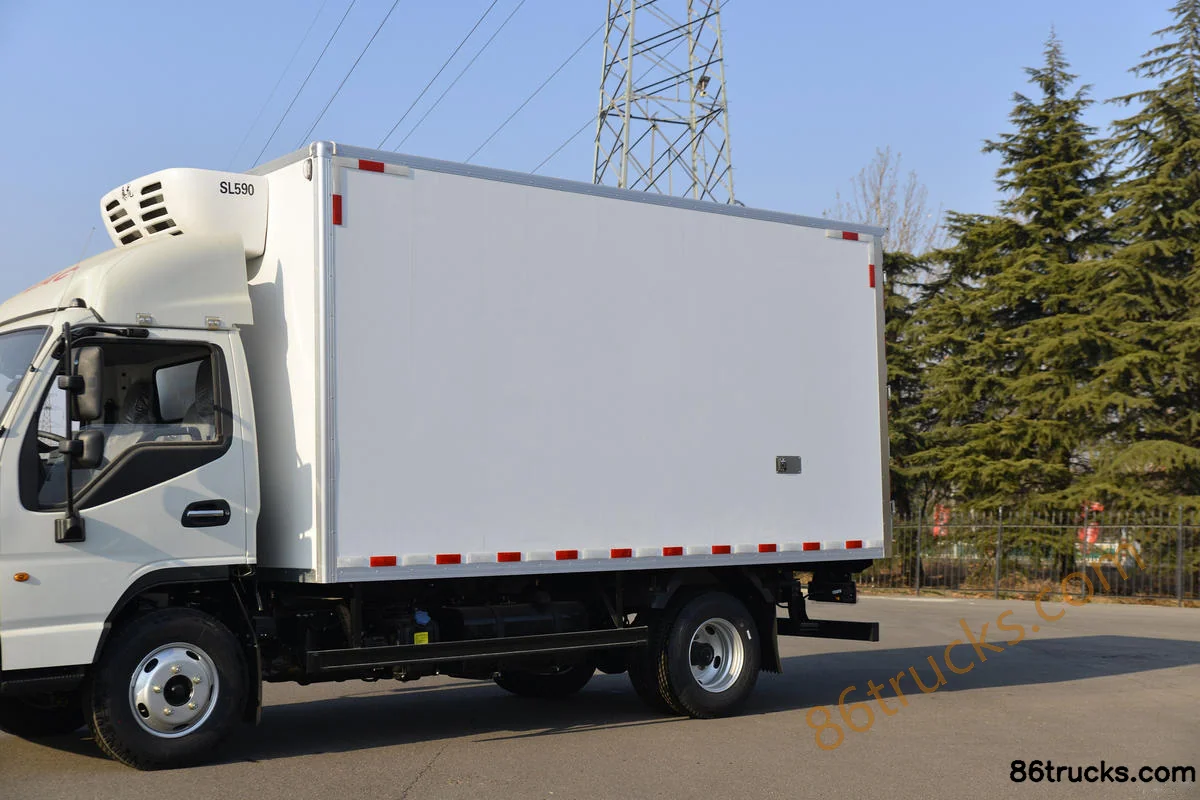

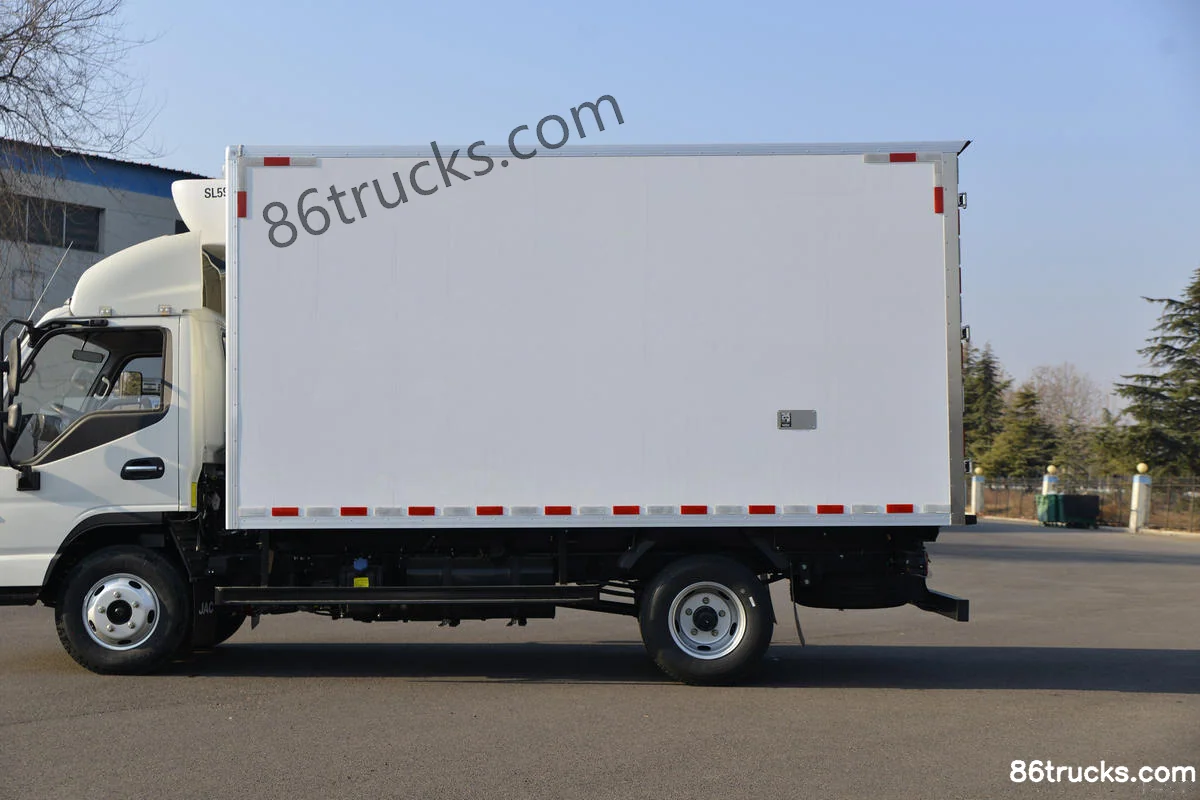

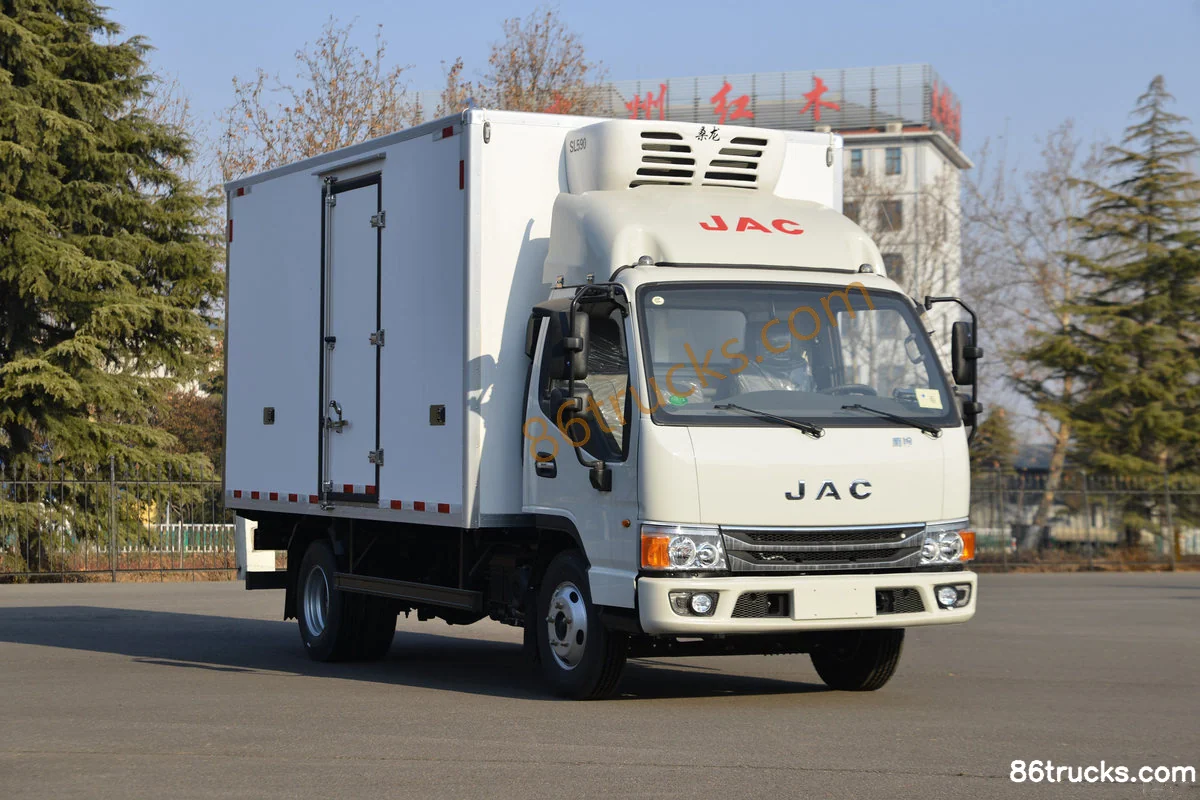

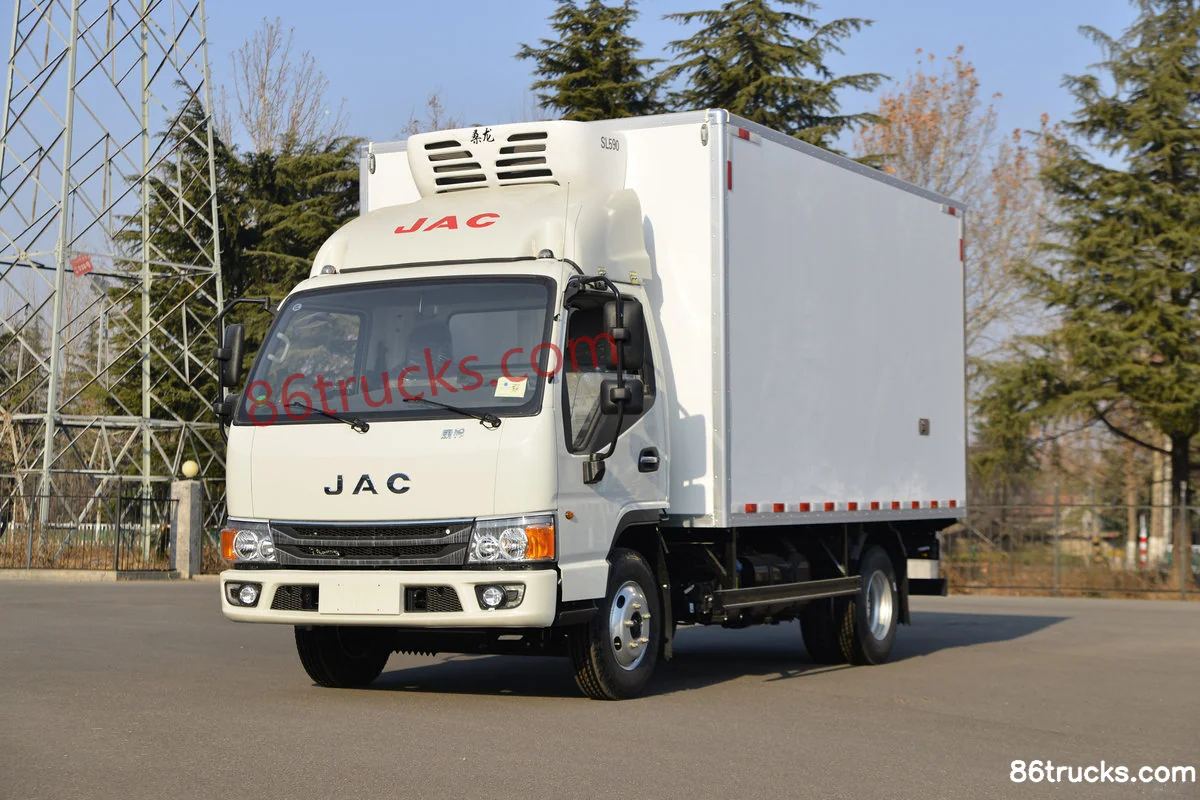

Exterior3

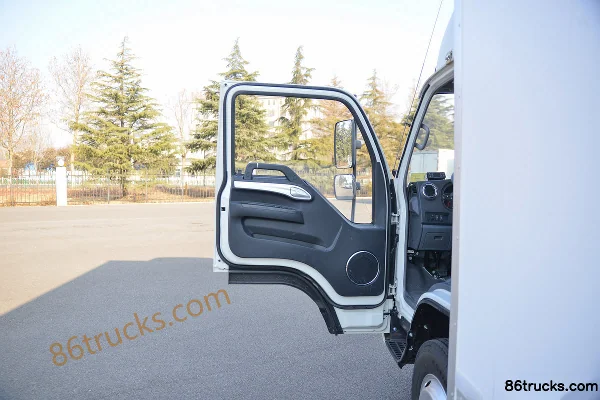

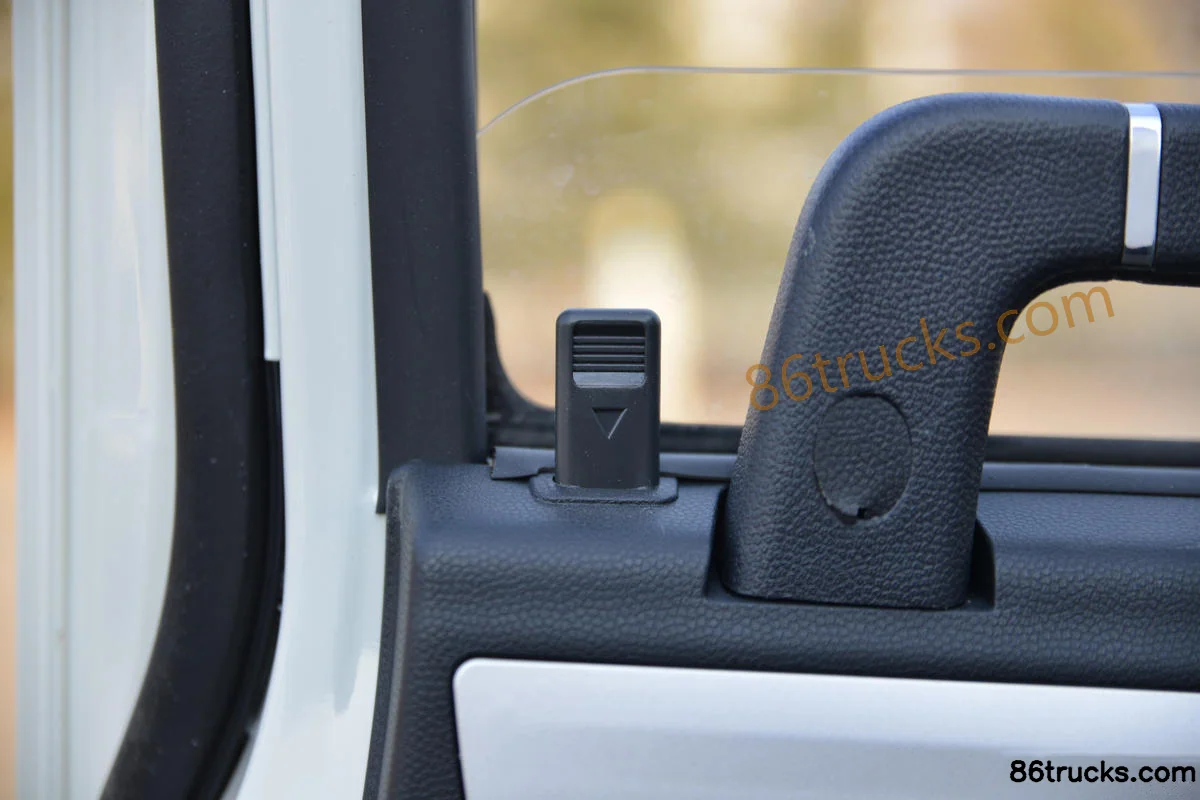

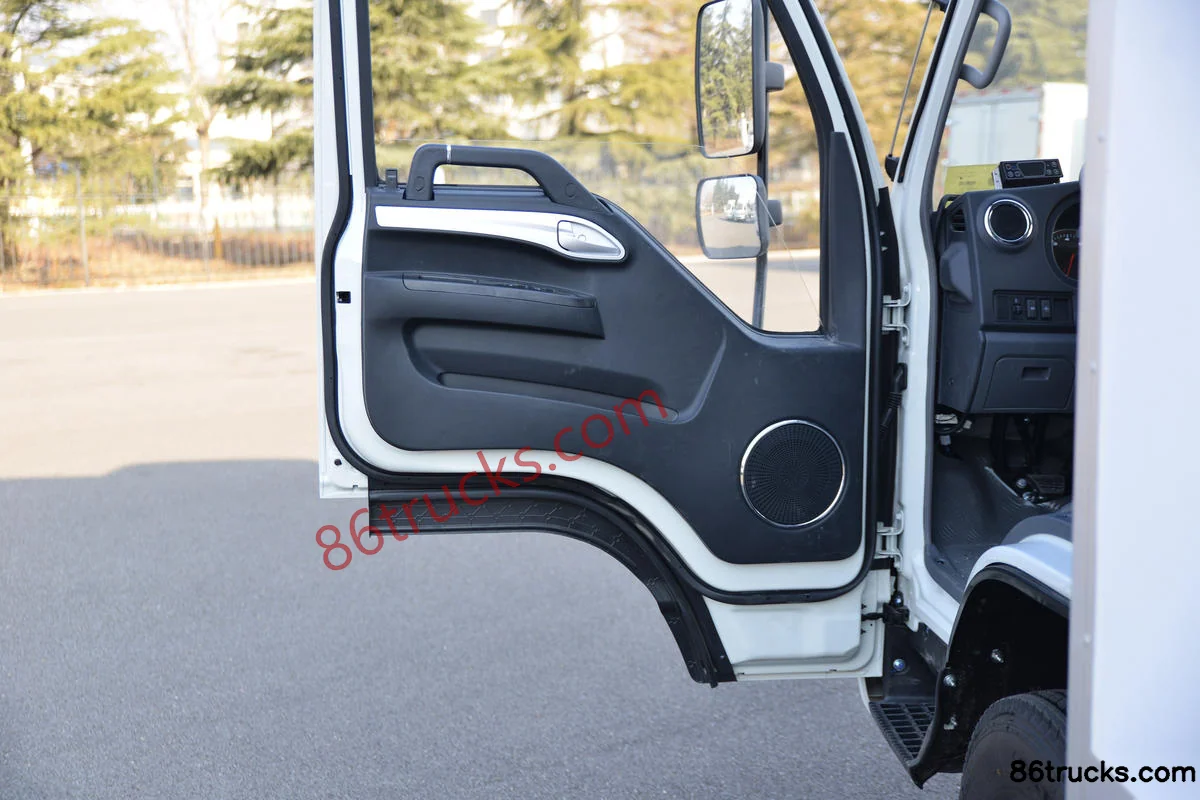

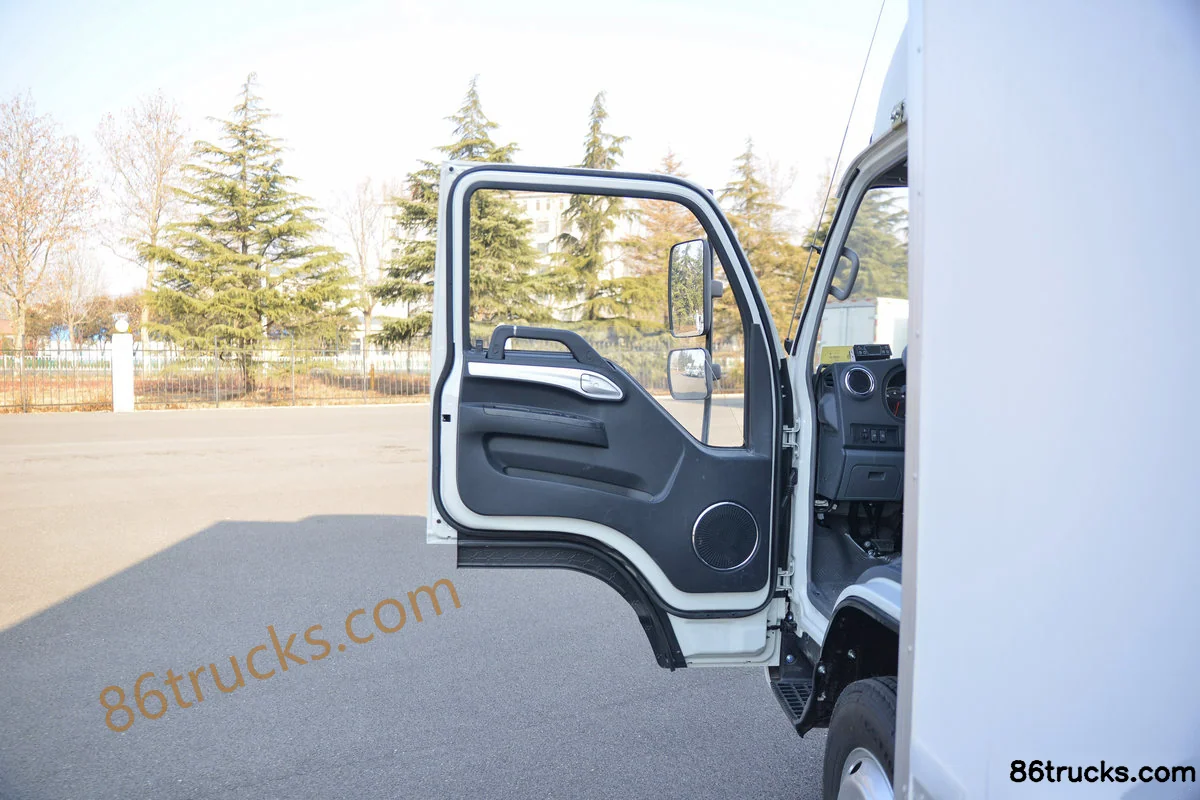

Cab3

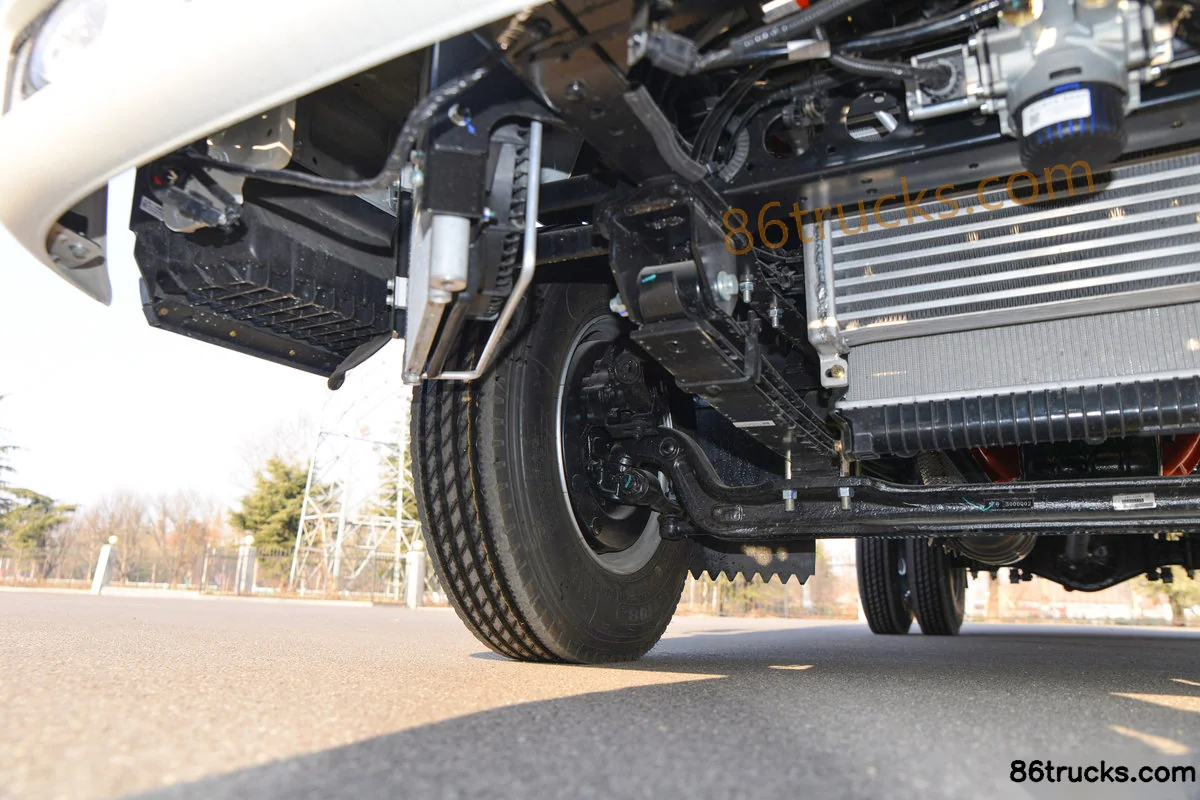

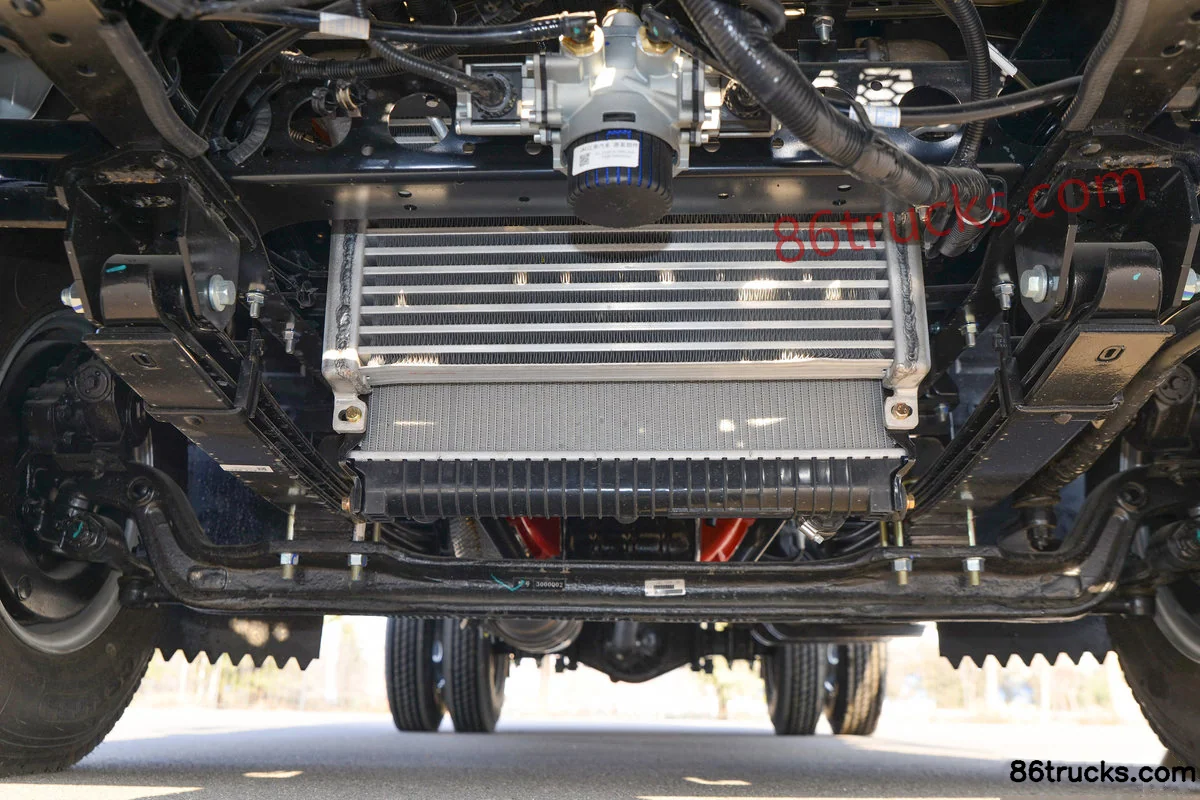

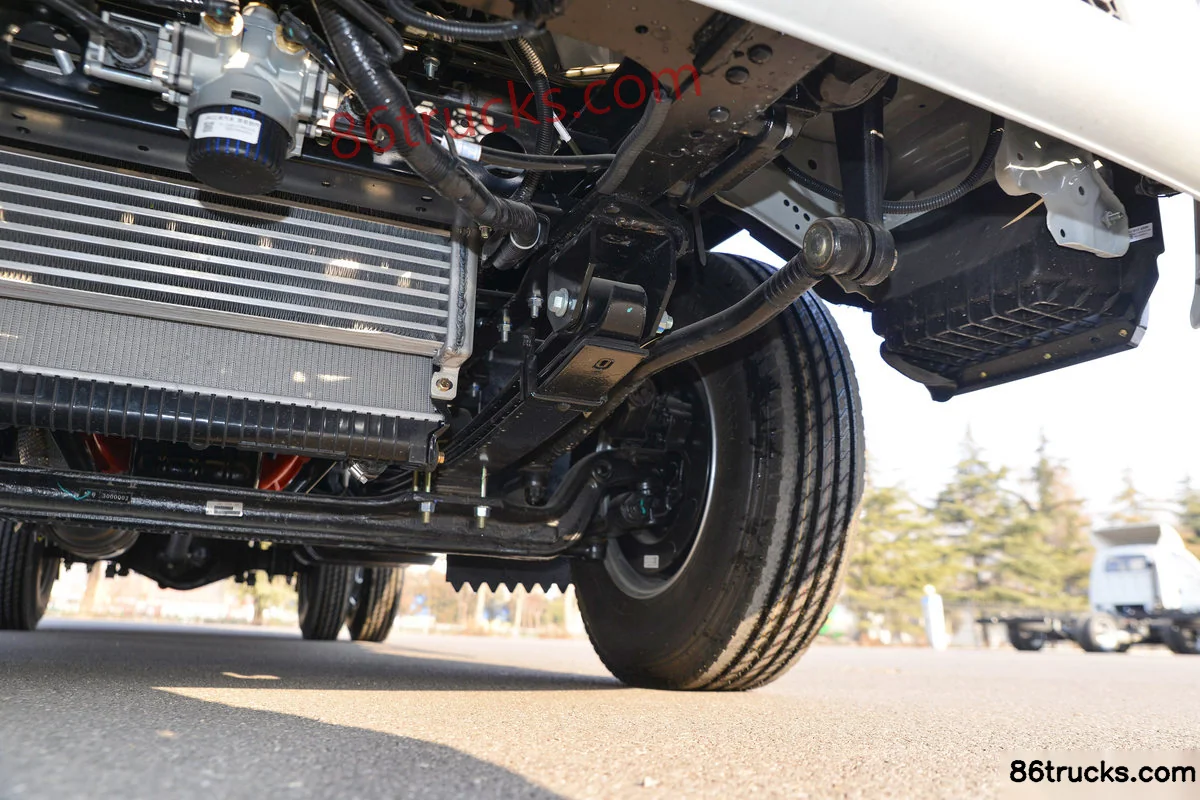

Chassis3

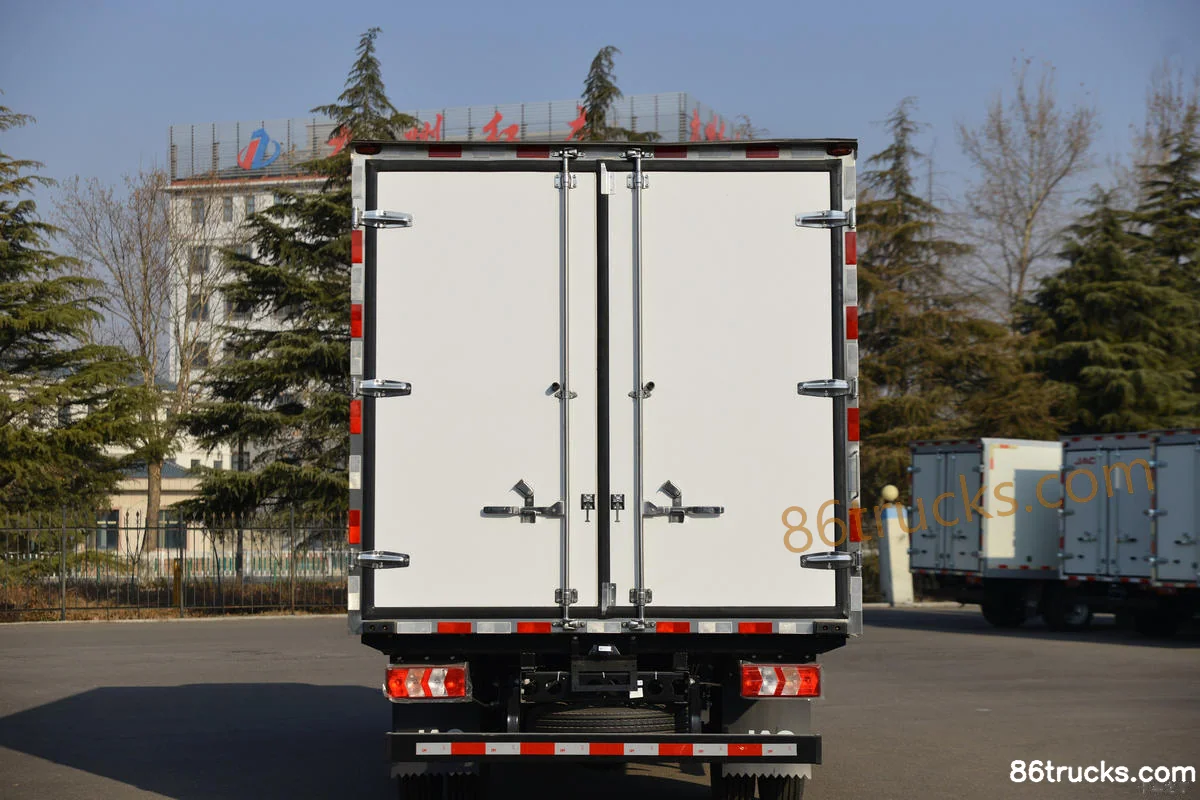

Body3

12 photos

FAQ

What is the export price of JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI), and what does it include?

JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) export reference is about From $17,167; MSRP is ¥12.36M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)?

Key specs of JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI): Drive: 4x2; Horsepower: 132 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) suited for?

JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) differ from other variants in the same series?

JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) belongs to JAC H5 light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H5 132 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
