Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck

Export reference

MSRP N/A

Emission: China V

Fuel: LNG (liquefied natural gas)

Transmission: Fast Gear

Curb Weight:: 12.05ton

Wheelbase:: 3825+1350mm

Tire Size:: 12.00R20 16PR

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck exterior

View more photos (12)

Rated payload: 12.82ton

Drive 6X4 (10 wheels)

Horsepower 340

Cargo box type: Dump type

Overview

The Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Heavy truck featuring 12.82t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a United PowerYC6K1034N-50 engine, 340 hp, China V emissions and Fast Gear transmission.

China V 340 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): QCC3252N654

Drive type: 6X4

Wheelbase: 3825+1350mm

engine: United PowerYC6K1034N-50

transmission: Fast Gear12JSD160

Rear Axle Ratio: 5.921

Cab length: 8.457m

Cab width: 2.5m

Cab height: 3.56m

Front track width: 2038mm

rear track: 1860/1860mm

Curb Weight: 12.05ton

Rated payload: 12.82ton

GVWR: 25ton

Origin: Wuhu, Anhui

tonnage class: Heavy truck

Approach angle: 23°

departure angle: 25°

Version: LNG Edition

Energy Type: LNG (liquefied natural gas)

Engine parameters

Engine Brand: United Power

Engine Model: United PowerYC6K1034N-50

Number of cylinders: 6cylinder

fuel type: LNG (liquefied natural gas)

Displacement: 10.338L

Emission standard: China V

Max output power: 250kW

Max hp: 340Horsepower

Max torque: 1350N·m

Max torque speed: 1200-1500rpm

Rated speed: 2100rpm

Engine Type: Inline, water-cooled, four-stroke, electronically controlled direct injection

Transmission Parameters

Transmission Model: Fast Gear12JSD160

Transmission Brand: Fast Gear

shift method: Manual

Forward gears: 12Gear

Number of Reverse Gears: 2pcs

Cargo box parameters

Unloading Type: Dump type

Cargo box type: Dump type

Cargo box length: 5.6m

Cargo box width: 2.3m

Cargo box height: 1.16m

Cab parameters

Cab suspension: Front: rigid connection; Rear: mechanical

Driver seat type: Mechanical suspension seat

fuel tank

Fuel tank capacity: 450L

Chassis Specs

Front axle allowable load: 7000kg

rear axle description: HandeMAN

rear axle allowable load: 18000 (tandem axle group)kg

Axle ratio: 5.921

Leaf spring count: 12/13

Suspension (front/rear): Front multi-leaf, rear multi-leaf

Tire

Tire Size: 12.00R20 16PR

Number of tires: 10pcs

Control configuration

ABS:

Photos

Exterior3

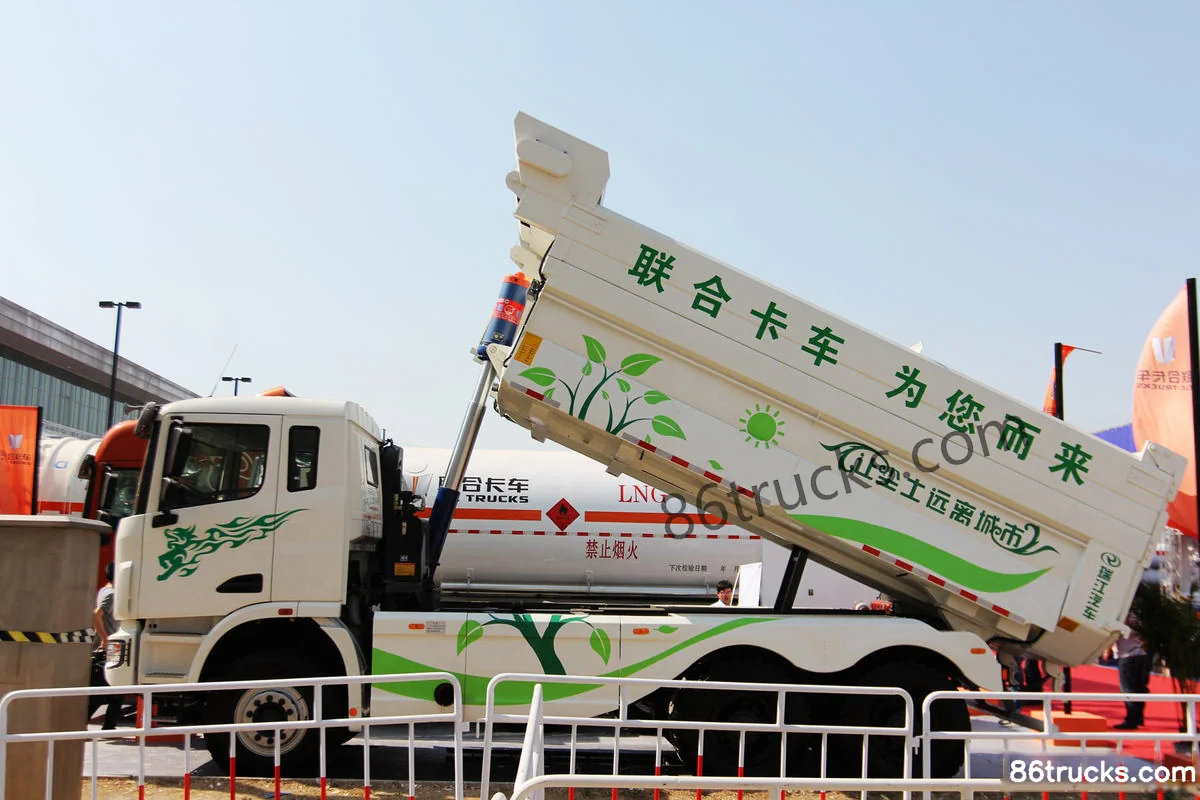

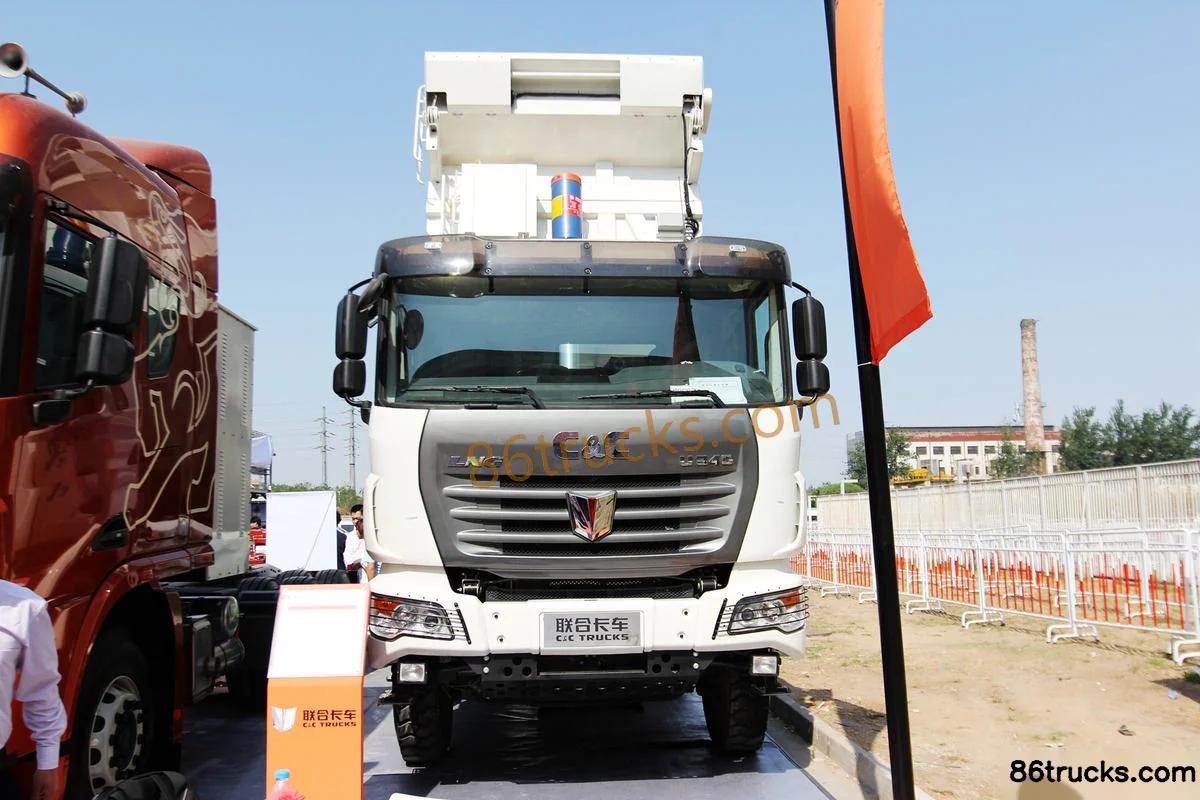

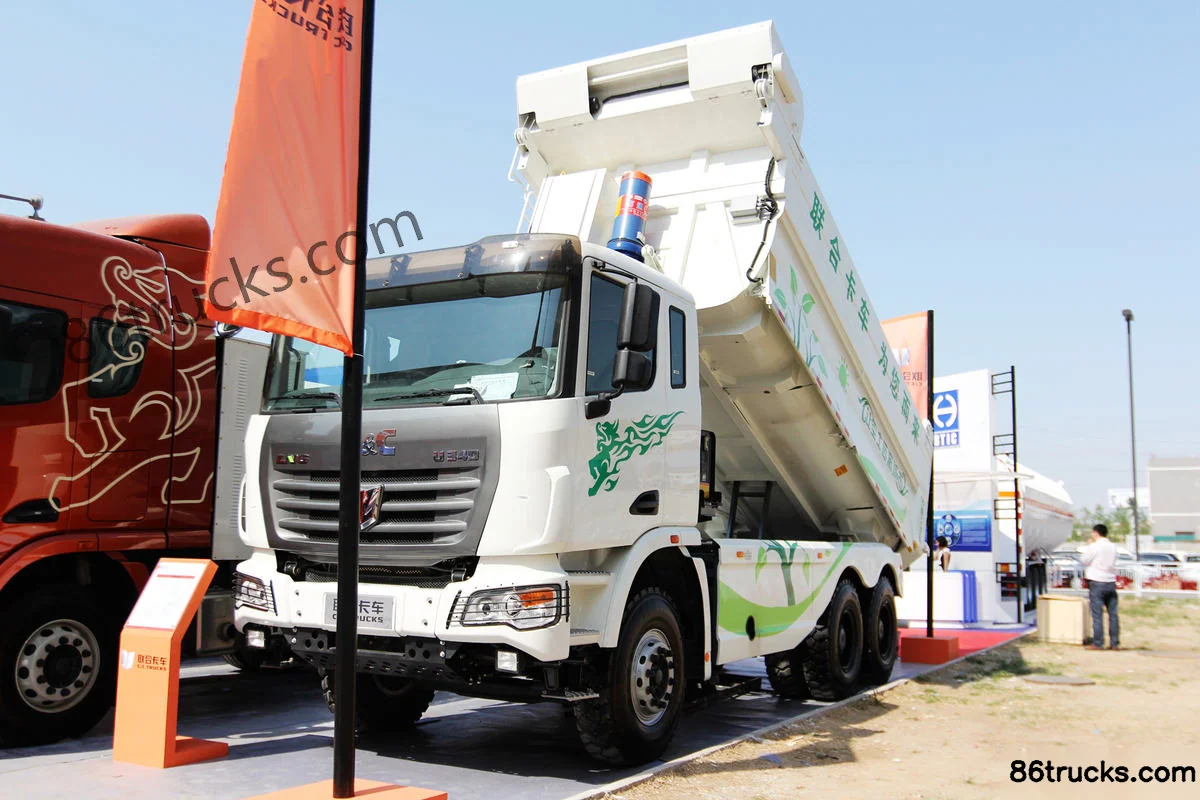

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Exterior (1) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Exterior (2) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Exterior (3) | 86Trucks

Cab3

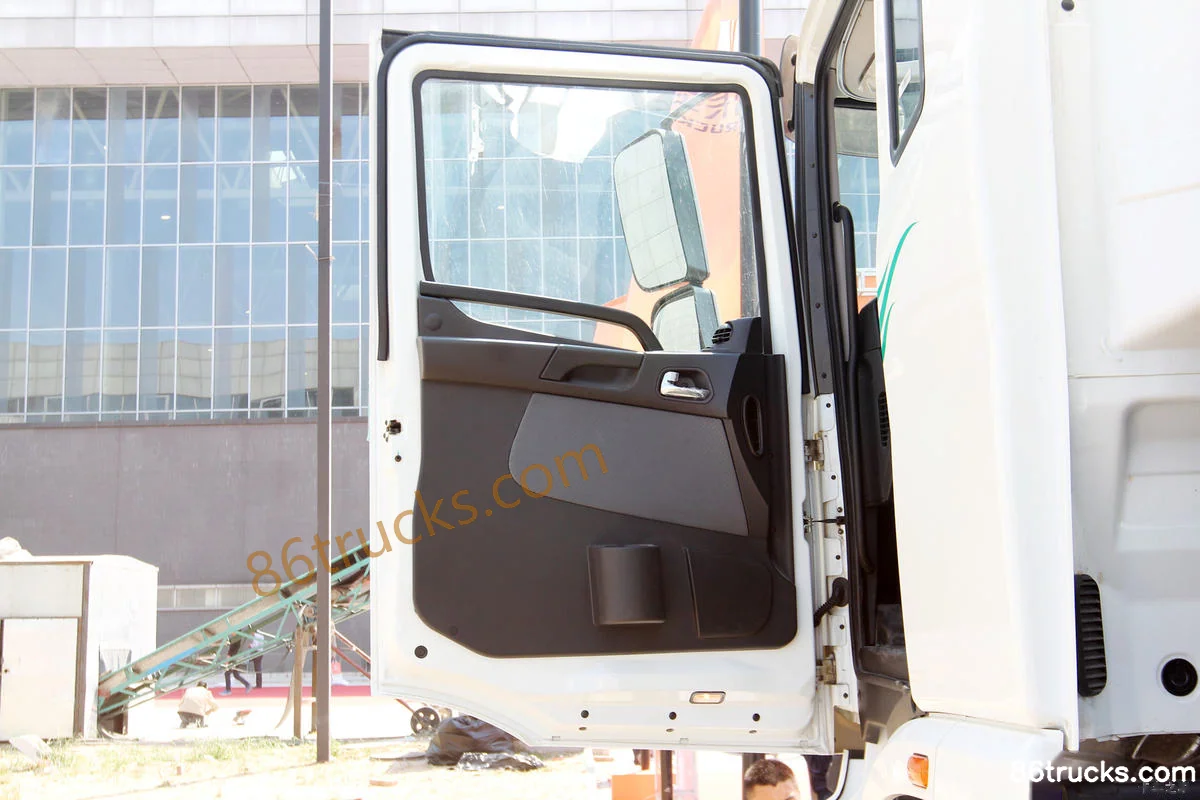

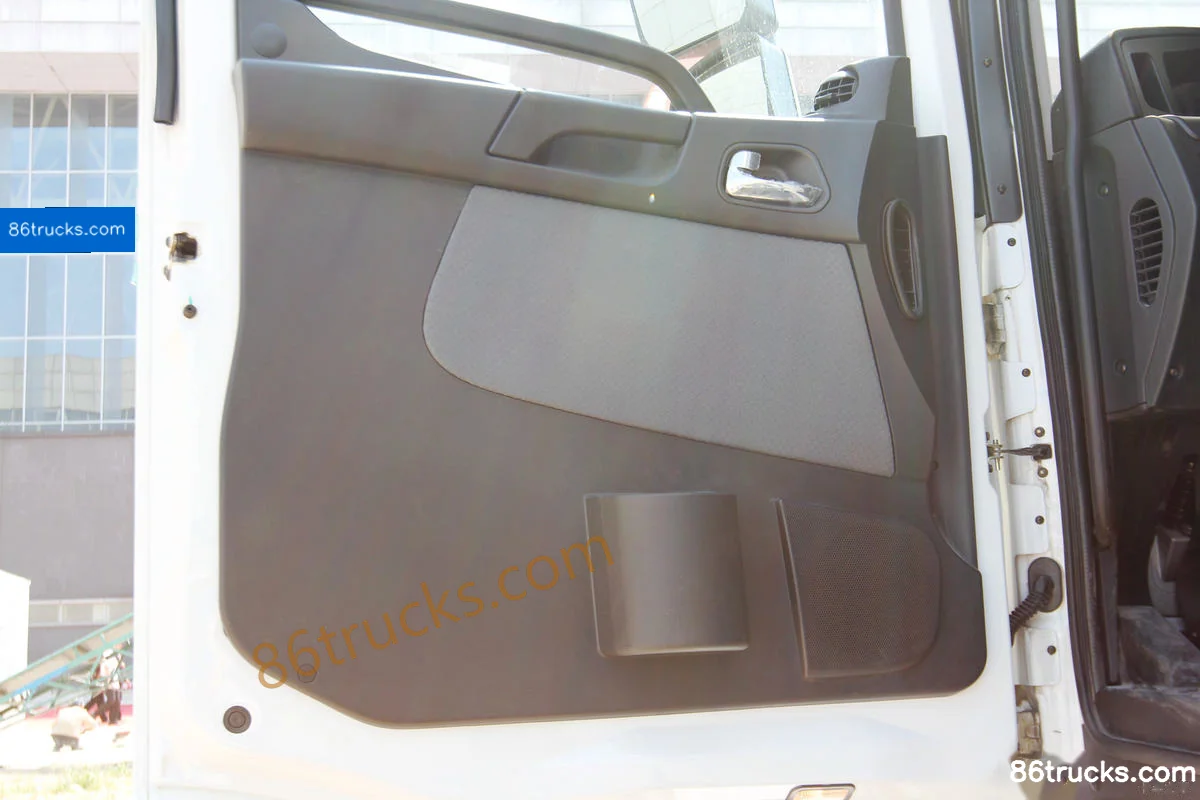

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Cab (1) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Cab (2) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Cab (3) | 86Trucks

Chassis3

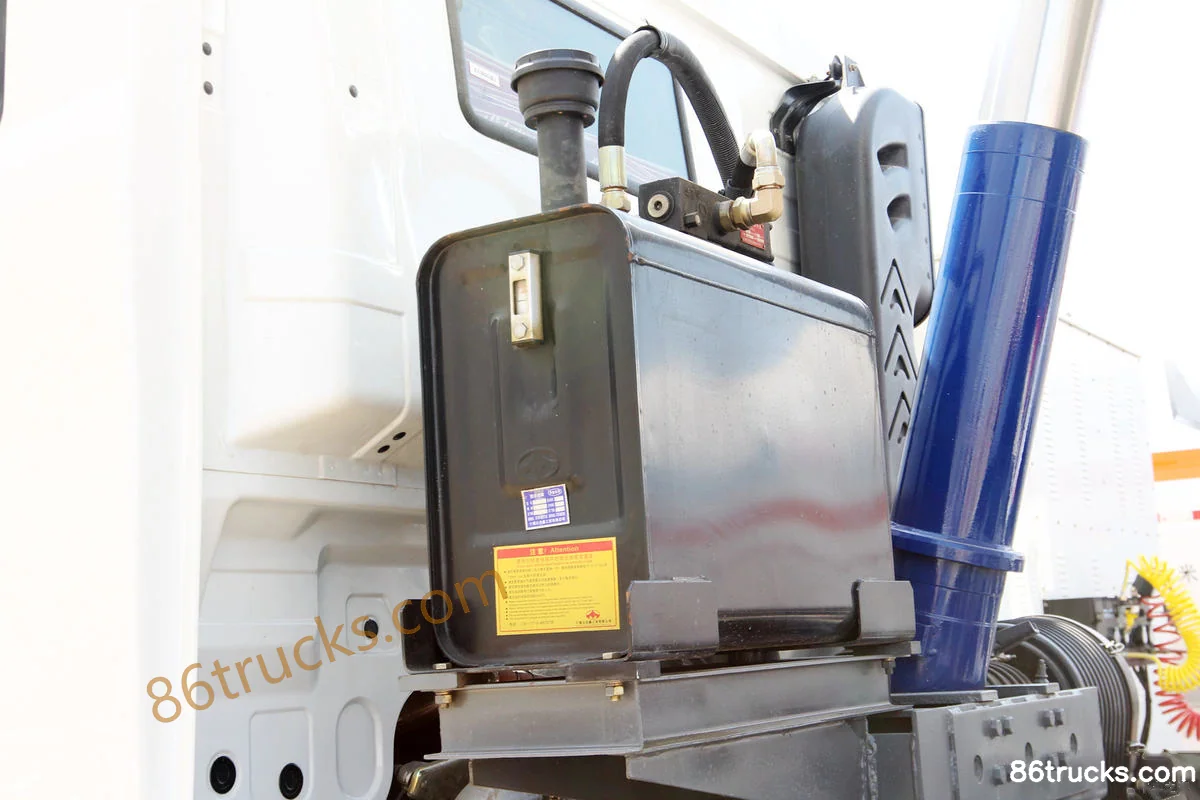

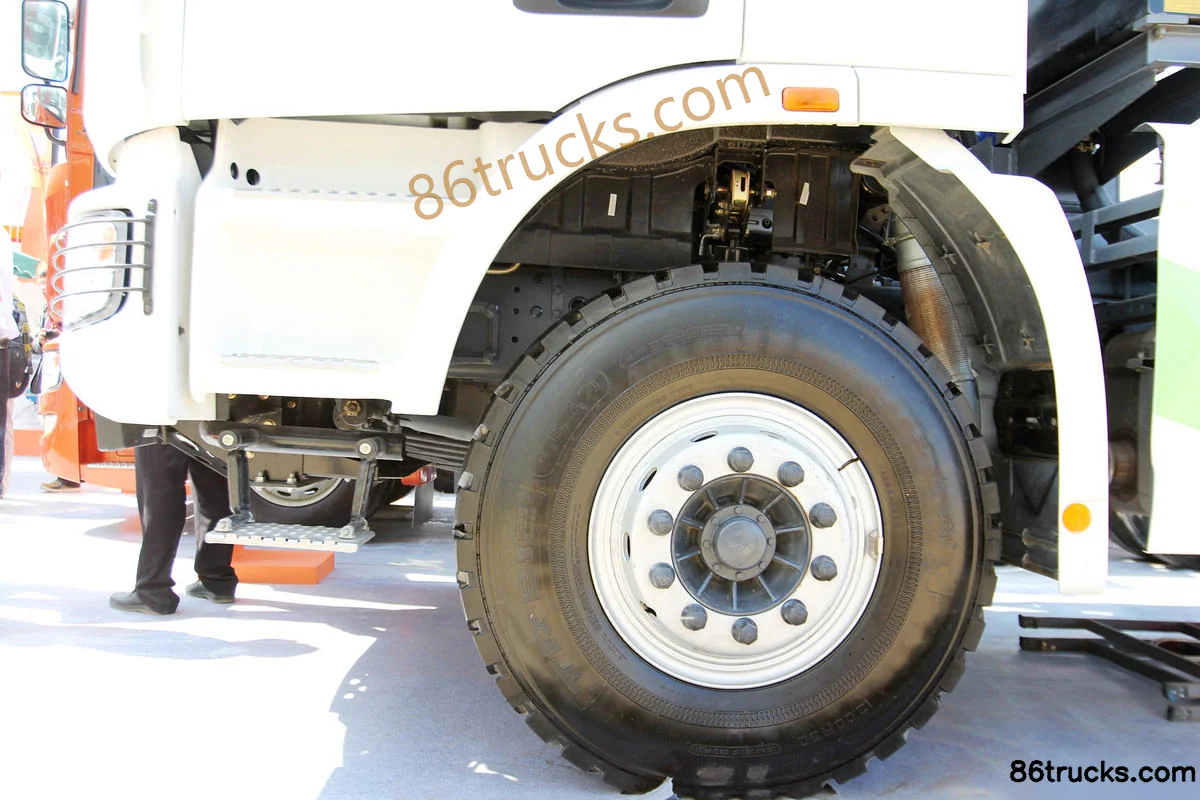

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Chassis (1) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Chassis (2) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Chassis (3) | 86Trucks

Body3

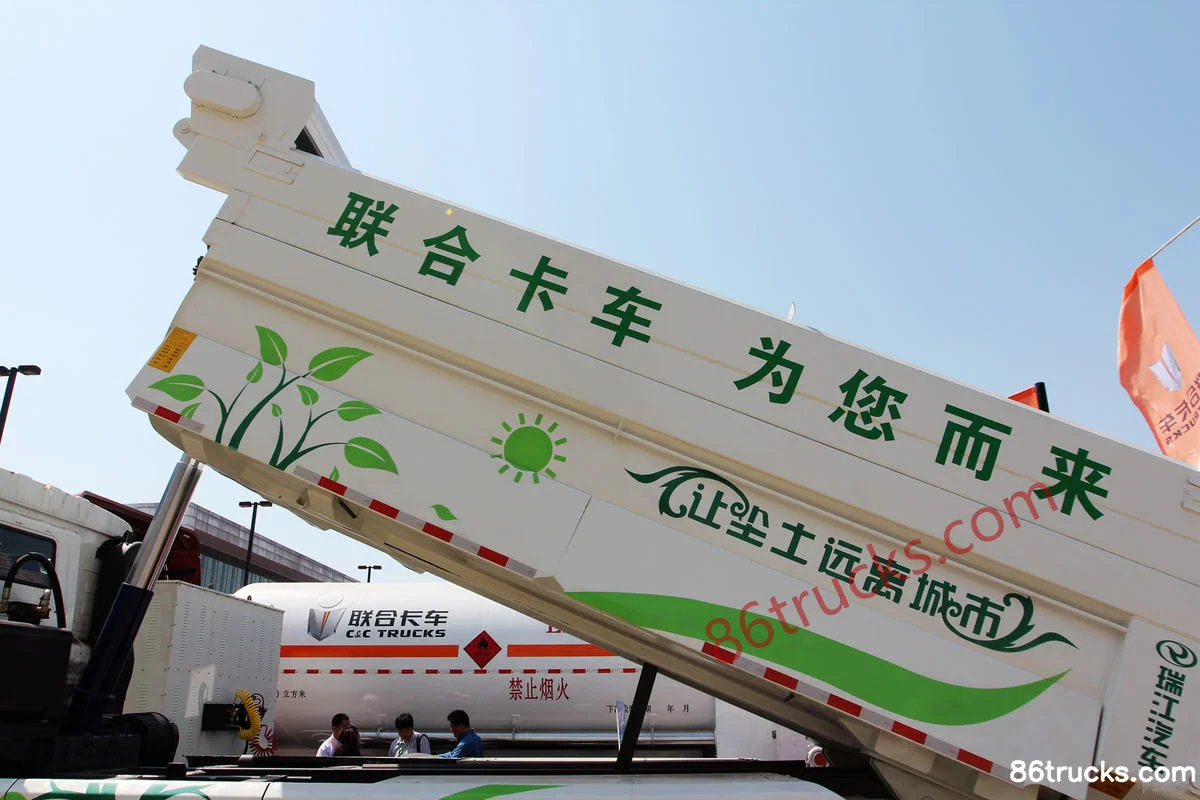

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Body (1) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Body (2) | 86Trucks

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Key specs of Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck suited for?

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck differ from other variants in the same series?

Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U340 340 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
