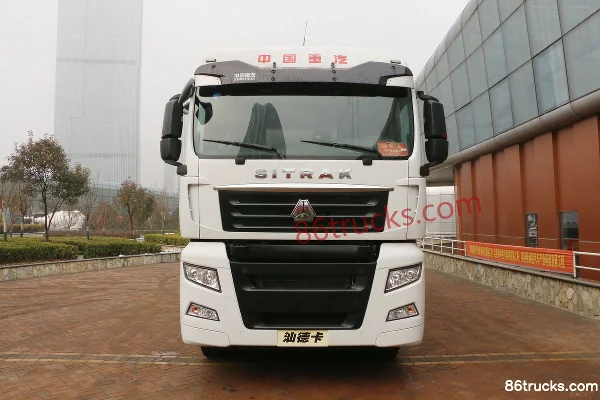

Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck

Export reference
From $54,167
MSRP ¥39M CNY
Horsepower: 480
Emission: China V
Fuel: Diesel
Engine: Sinotruk13L
Transmission: ZF
Curb Weight:: 13.6ton
seating capacity: 3Personnel
Rated payload: 17.27ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck is a Heavy-duty cargo trucks featuring 9.52m cargo length, Stake type cargo body, 3Personnel volume and 17.27t payload. Its segment focus covers Cold chain transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Sinotruk13L engine, 480 hp, 8X4 (12 wheels) drive and China V emissions.

China V 480 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5316CCYV466HE1
Type: stake truck
Drive type: 8X4
Wheelbase: 1950+4600+1400mm
Box length class: 9.5m
engine: SinotrukMC13.48-50
transmission: ZF12TX2620TD
Rear Axle Ratio: 3.7
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2041/2041mm
rear track: 1830/1830mm
Curb Weight: 13.6ton
Rated payload: 17.27ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 17°
market segment: Cold chain transport, green channel
Front/rear suspension: 1.475/2.58m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13.48-50
Engine info: Sinotruk13L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China V
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2300N·m
Max torque speed: 1050-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: ZF12TX2620TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.52m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 1000L
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: MCY12BGS
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 3.7
Leaf spring count: 3/3/4
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck, and what does it include?

Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck export reference is about From $54,167; MSRP is ¥39M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck?

Key specs of Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck: Drive: 8x4; Horsepower: 480 hp; Emission: China V; Fuel: Diesel; Engine: Sinotruk13L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck suited for?

Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck differ from other variants in the same series?

Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck belongs to Sitrak SITRAK C7H heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H Heavy Truck 480 hp 8X4(12 wheels) 9.52m Cage Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
