Shantui Excavator JCM906D Crawler Excavator

Export reference
MSRP N/A
Model:: JCM906D
Engine Model:: crawler excavator
Tonnage:: 6ton
Bucket capacity:: 0.22cubic meter
Arm Length:: 1600mm
Machine dimensions:: 5.851×1.88×2.621mm
Shantui Excavator JCM906D Crawler Excavator exterior
View more photos (3)
Operating weight: 5.85ton
Bucket type: backhoe
Fuel Tank Capacity: 110L
Product power: Conventional Power

Overview

The SUNWARD Shantui Excavator JCM906D Crawler Excavator is a excavator featuring 5.85ton GVW, backhoe bucket capacity, 110L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: JCM906D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 6ton
Operating weight: 5.85ton
Bucket capacity: 0.22cubic meter
Arm Length: 1600mm
Machine dimensions: 5.851×1.88×2.621mm
Track shoe width: 400mm
Track gauge: 1480mm
Counterweight ground clearance: 708mm
Min ground clearance: 302cm
Rear Overhang Radius: 1655mm
hydraulic system
Max flow of main pump: 2×60.5L/min
travel hydraulic circuit: 22Mpa
Swing Hydraulic Circuit: 21.5Mpa
Oil capacity
Fuel Tank Capacity: 110L
coolant: 10L
hydraulic oil tank: 90L
Engine Oil Capacity: 12L
performance specs
Travel speed: 2.23/4.62km/h
Bucket digging force: 29.3kN
Arm Digging Force: 39kN
Operating Range
Max digging radius: 6195mm
Max digging depth: 3858mm
Max digging height: 5784mm
Max unloading height: 3986mm
Max vertical digging depth: 3786mm
Engine parameters
Engine Model: YANMAR4TNV94L
Max output power: 35.5kW

Photos

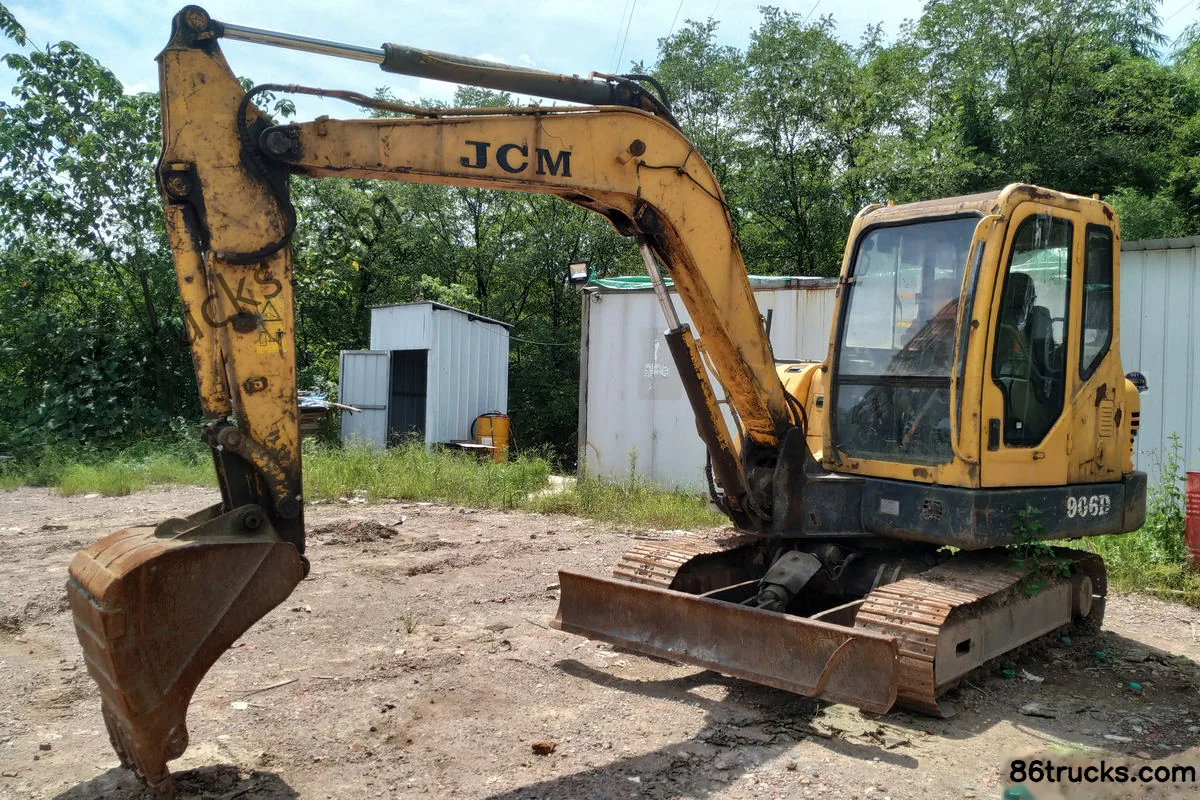

Exterior3

Shantui Excavator JCM906D Crawler Excavator Exterior (1) | 86Trucks Shantui Excavator JCM906D Crawler Excavator Exterior (2) | 86Trucks Shantui Excavator JCM906D Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Shantui Excavator JCM906D Crawler Excavator suited for?

Shantui Excavator JCM906D Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Shantui Excavator JCM906D Crawler Excavator differ from other variants in the same series?

Shantui Excavator JCM906D Crawler Excavator belongs to SUNWARD crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shantui Excavator JCM906D Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shantui Excavator JCM906D Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
