Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup

Export reference
From $11,639
MSRP ¥8.38M CNY
Curb Weight:: 1.55ton
Wheelbase:: 3025mm
Front tire specification:: 215/75R15
Rated payload:: 0.495ton
Displacement:: 2.8L
Model code (announced):: SQR1020H98D
Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup exterior
View more photos (2)
Drive 2WD
Horsepower 109
Emission China IV
Fuel gasoline

Overview

The Chery Commercial Vehicle Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup is a pickup truck featuring 2WD drive, 109 hp, 2.505t GVW and China IV emissions. On the powertrain side, it comes with gasoline fuel.

China IV 109 gasoline 2WD

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR1020H98D
Drive type: 2WD
Wheelbase: 3025mm
Front/rear track width: Front track: 1470; Rear track: 1465mm
Min. turning diameter: 11.3m
Cab length: 5.12m
Cab width: 1.74m
Cab height: 1.73m
Approach/departure angle: 28°
Curb Weight: 1.55ton
Min ground clearance: 190cm
Rated payload: 0.495ton
Constant-speed fuel consumption per 100 km: 8.2L/100km
GVWR: 2.505ton
Max. speed: 120km/h
Origin: 20
Front/rear suspension: 0.805/1.29m
Version: Linghang Edition
Energy Type: gasoline
Engine parameters
Engine Model: Chengdu Chengfa 4JB1T-4B1
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 230N·m
Max torque speed: 1800-2400rpm
Rated speed: 3600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed transmission
Chassis Specs
Front axle suspension type: Unequal-length double wishbone torsion bar independent suspension with stabilizer bar and hydraulic bidirectional telescopic shock absorbers
rear axle suspension type: Parallel leaf spring non-independent suspension, 5 leaves, with hydraulic double-acting telescopic shock absorbers
Chassis Structure: Body-on-frame
power steering type: hydraulic power steering
Aluminum wheels:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.38m
Cargo box width: 1.46m
Cargo box height: 0.465m
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: 215/75R15
Rear Wheel Specification: 215/75R15
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Safety features
Remote key:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
AC control type: Manual
Power Windows:
Seat material: leather
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Front fog lamp:
daytime running lights:

Photos

Exterior2

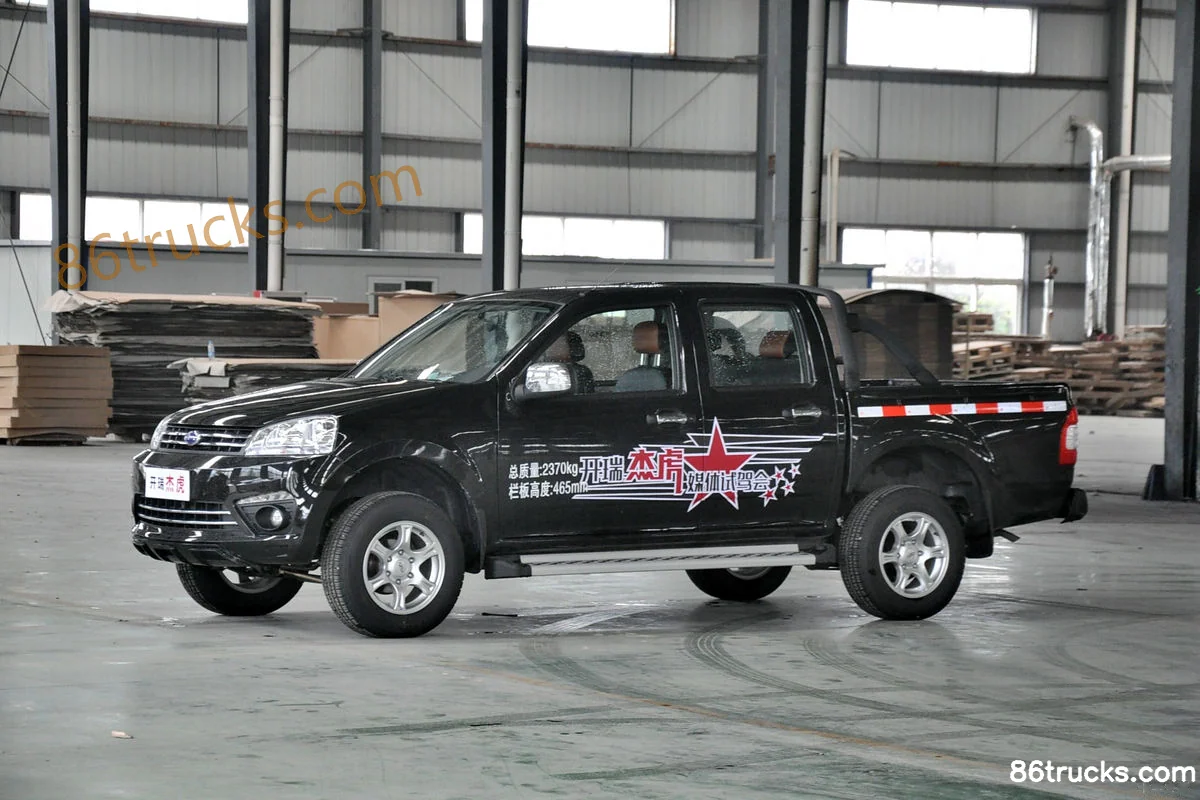

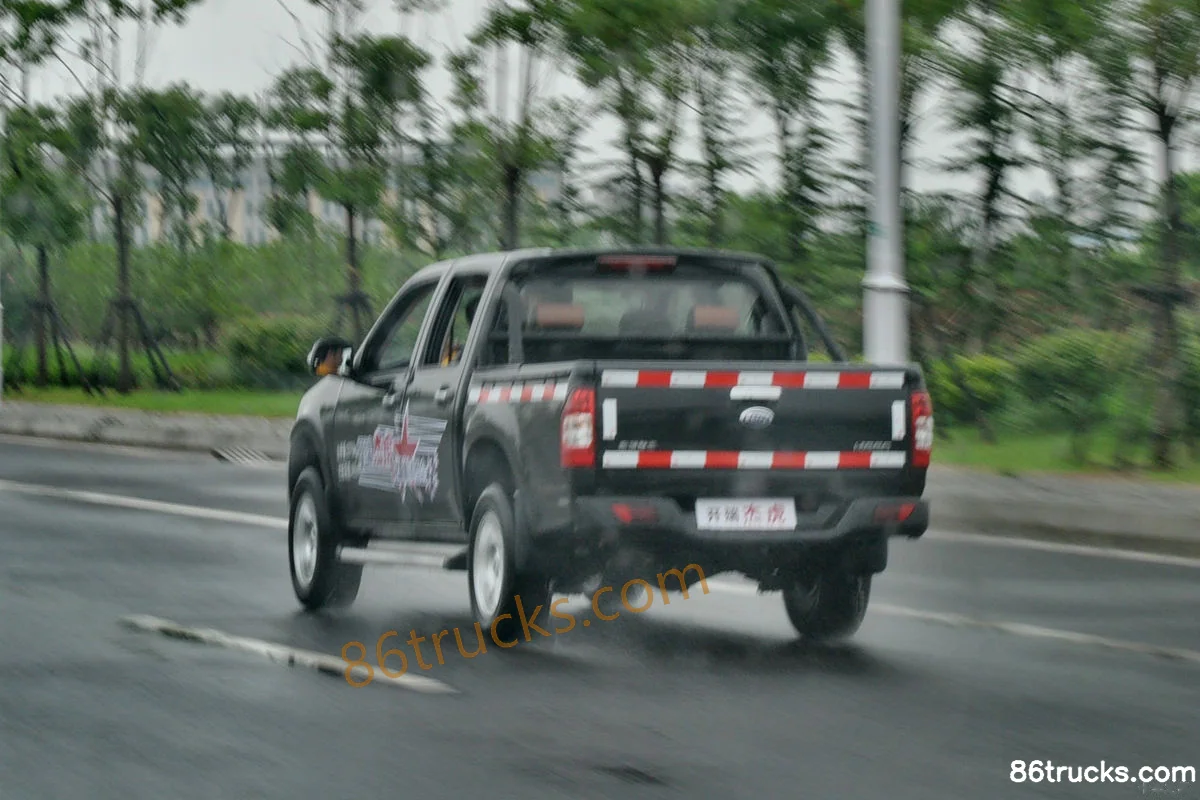

Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup Exterior (1) | 86Trucks Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup Exterior (2) | 86Trucks

2 photos

FAQ

What is the export price of Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup, and what does it include?

Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup export reference is about From $11,639; MSRP is ¥8.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup?

Key specs of Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup: Drive: 2WD; Horsepower: 109 hp; Emission: China IV; Fuel: gasoline. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup suited for?

Match Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup differ from other variants in the same series?

Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup belongs to Karry Jiehu (pickup truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
