Karry Jetfox Navigator Edition 2.8L Diesel 2WD Double Row Pickup Truck
EXW
From $11,917
Export quote

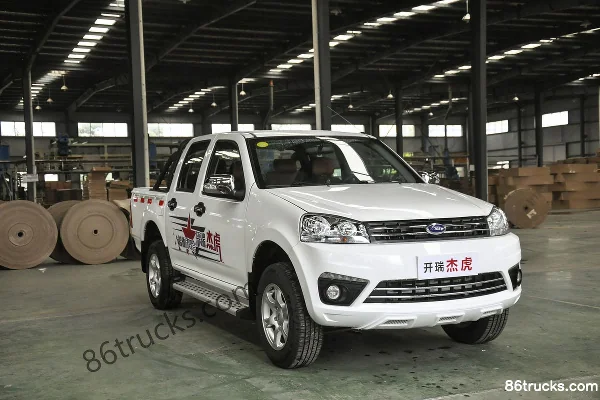

Chery Commercial Vehicle Karry Jiehu pickup truck
Main model photos
14 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Karry Jetfox Navigator Edition 2.8L Diesel 2WD Double Row Pickup Truck | 2WD / 109hp / China IV | From $11,917 | |
| Karry Jetfox Elite Edition 2.8L Diesel 2WD Double Row Pickup Truck | 2WD / 109hp / China IV | From $11,500 | |
| Karry Jetfox Wealth Edition 2.8L Diesel 2WD Double Row Pickup Truck | 2WD / 109hp / China IV | From $10,667 | |
| Karry Jetfox Fortune Edition 2.8L Diesel 2WD Double Row Pickup Truck | 2WD / 109hp / China IV | From $11,083 | |
| Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup | 2WD / 109hp / China IV | From $11,639 |
Karry Jetfox Elite Edition 2.8L Diesel 2WD Double Row Pickup Truck
EXW
From $11,500
Export quote
Karry Jetfox Wealth Edition 2.8L Diesel 2WD Double Row Pickup Truck
EXW
From $10,667
Export quote
Karry Jetfox Fortune Edition 2.8L Diesel 2WD Double Row Pickup Truck
EXW
From $11,083
Export quote
Karry Jiehu Navigator Edition 2.8L Diesel 2WD Double Row Pickup
EXW
From $11,639
Export quote
Series Specs
Basic Info
Model code (announced): SQR1020H98D / SQR1020H98
Drive type: 2WD
Front/rear track width: Front track: 1470; Rear track: 1465mm
Min. turning diameter: 11.3m
Wheelbase: 3380 / 3025mm
Cab length: 5.475 / 5.12m
Cab width: 1.74m
Cab height: 1.73m
Approach/departure angle: 28°
Curb Weight: 1.55 / 1.685ton
Fuel tank capacity: 60L
Min ground clearance: 190cm
Rated payload: 0.495ton
Constant-speed fuel consumption per 100 km: 8.2 / 10.2L/100km
GVWR: 2.505 / 2.37ton
Max. speed: 120 / 146km/h
Origin: 20 / Wuhu, Anhui
Front/rear suspension: 0.805/1.29m
Version: Linghang Edition / Elite Edition / Fortune Edition
Energy Type: Diesel / gasoline
Engine parameters
Engine Model: Chengdu Chengfa 4JB1T-4B1 / Xinchen PowerJM491Q-ME
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.8 / 2.2L
Emission standard: China IV
Max output power: 80 / 76kW
Max hp: 109 / 103Horsepower
Max torque: 230 / 193N·m
Max torque speed: 1800-2400 / 2600-3200rpm
Rated speed: 3600 / 4200-4600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed transmission
Chassis Specs
Front axle suspension type: Unequal-length double wishbone torsion bar independent suspension with stabilizer bar and hydraulic bidirectional telescopic shock absorbers
rear axle suspension type: Parallel leaf spring non-independent suspension, 5 leaves, with hydraulic double-acting telescopic shock absorbers
Chassis Structure: Body-on-frame
power steering type: hydraulic power steering / No power steering
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.735 / 1.38m
Cargo box width: 1.46m
FAQ
What kind of truck is Chery Commercial Vehicle Karry Jiehu pickup truck?
Chery Commercial Vehicle Karry Jiehu is an export-oriented pickup truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chery Commercial Vehicle Karry Jiehu pickup truck?
Chery Commercial Vehicle Karry Jiehu pickup truck export reference is about $9,000 – $11,917. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chery Commercial Vehicle Karry Jiehu pickup truck cover?
Chery Commercial Vehicle Karry Jiehu pickup truck mainly covers: Drive: 2WD; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chery Commercial Vehicle Karry Jiehu pickup truck?
For Chery Commercial Vehicle Karry Jiehu pickup truck, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is pickup truck typically used for?
For pickup truck, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Chery Commercial Vehicle Karry Jiehu pickup truck include?
Chery Commercial Vehicle Karry Jiehu pickup truck currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chery Commercial Vehicle Karry Jiehu pickup truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
