JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck

Export reference
From $13,722
MSRP ¥9.88M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: Lu'an
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043CCYP91K2C2V
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIE1
transmission: Lu'an LC6T450
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.18/2.5m
Cab height: 2.42/3.3m
Front track width: 1695mm
rear track: 1705mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.075/1.612m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1545kg
rear axle allowable load: 2745kg
Axle ratio: 4.875
Leaf spring count: 9/9+7
Tire
Tire Size: 7.50-16LT 6PR,7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

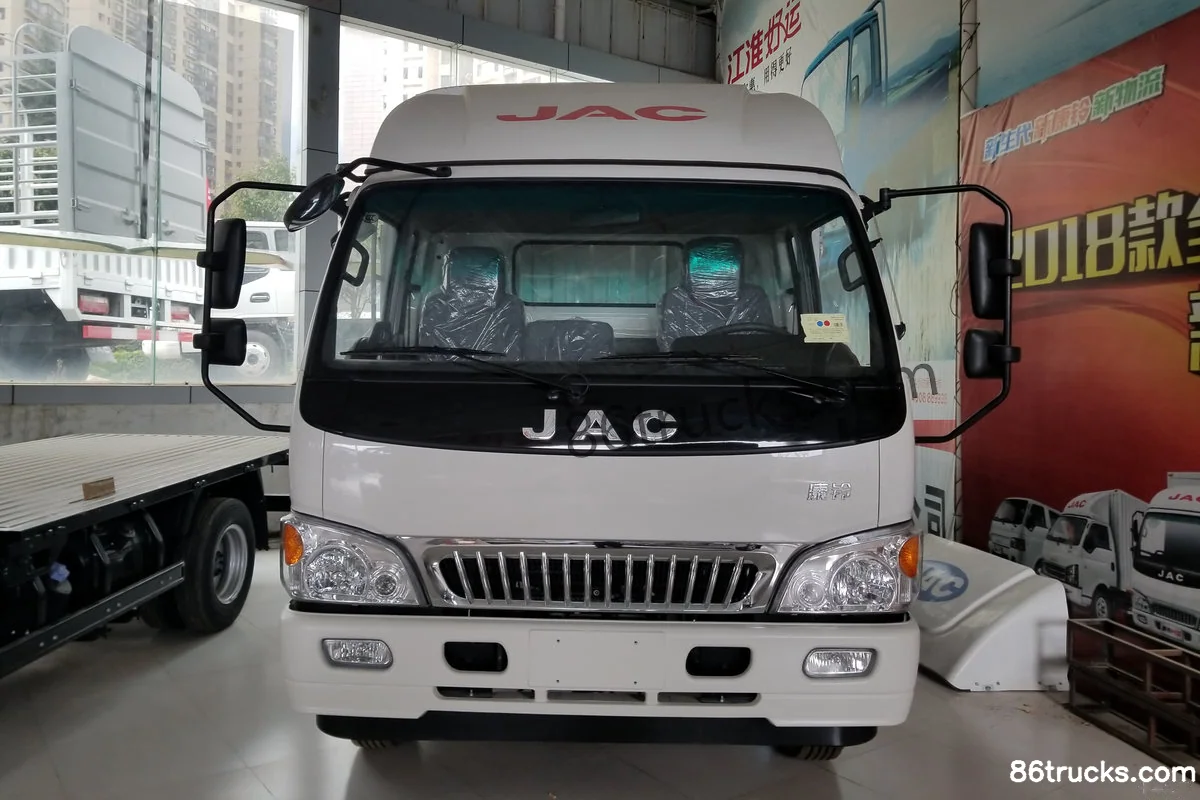

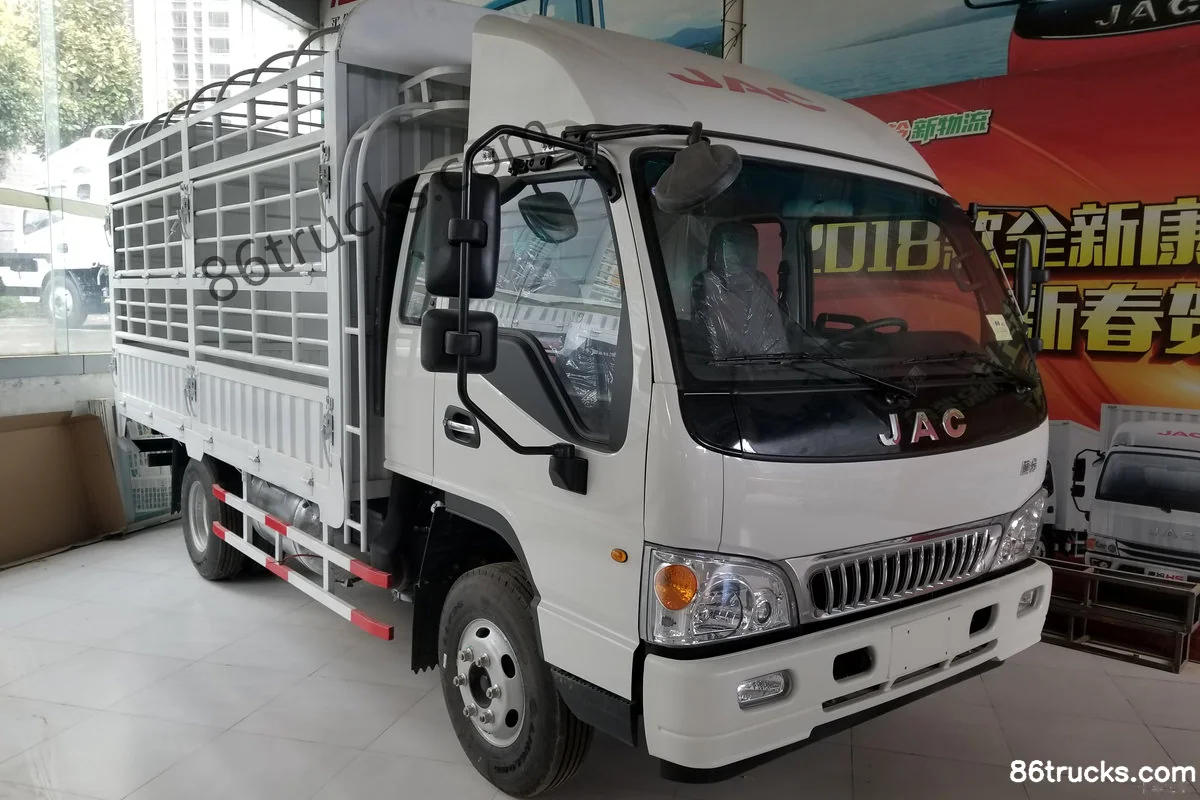

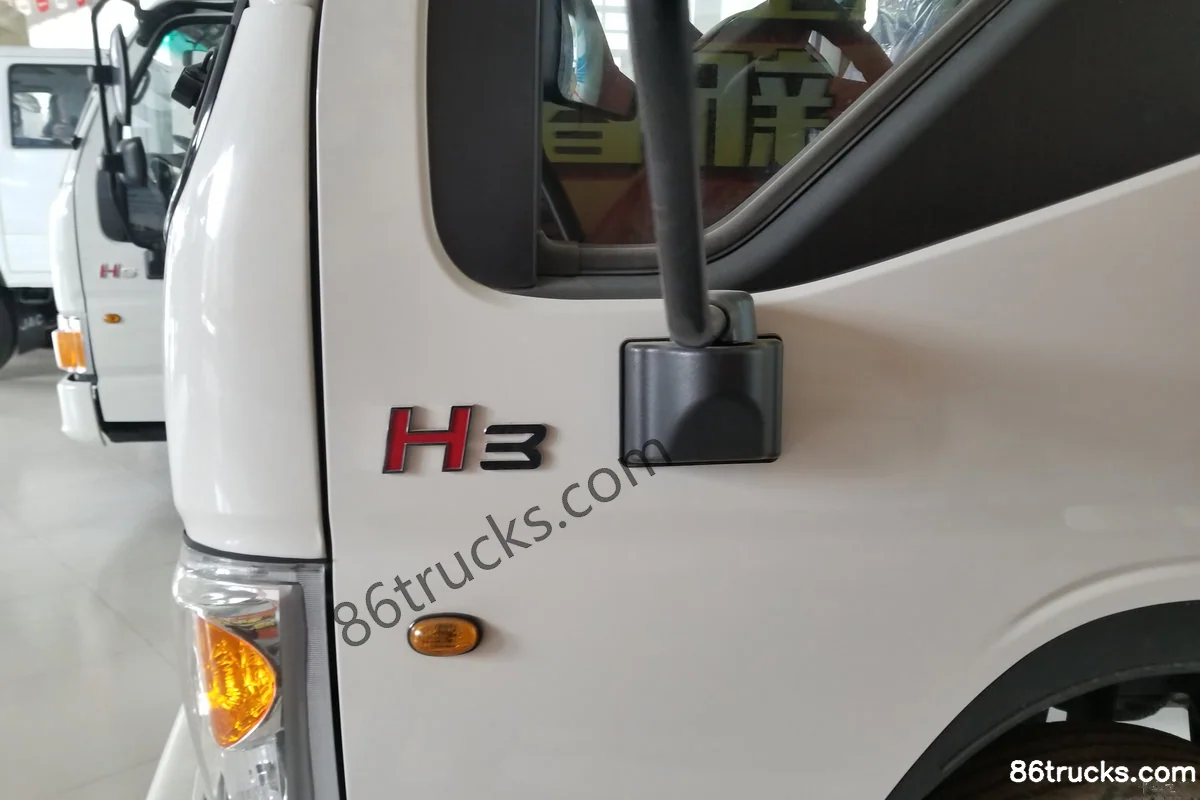

Exterior3

3 photos

FAQ

What is the export price of JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck, and what does it include?

JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck export reference is about From $13,722; MSRP is ¥9.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck?

Key specs of JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck suited for?

JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck differ from other variants in the same series?

JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H3 156hp 4X2(6 wheels) 3.85m Half Row Cage Cargo Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
