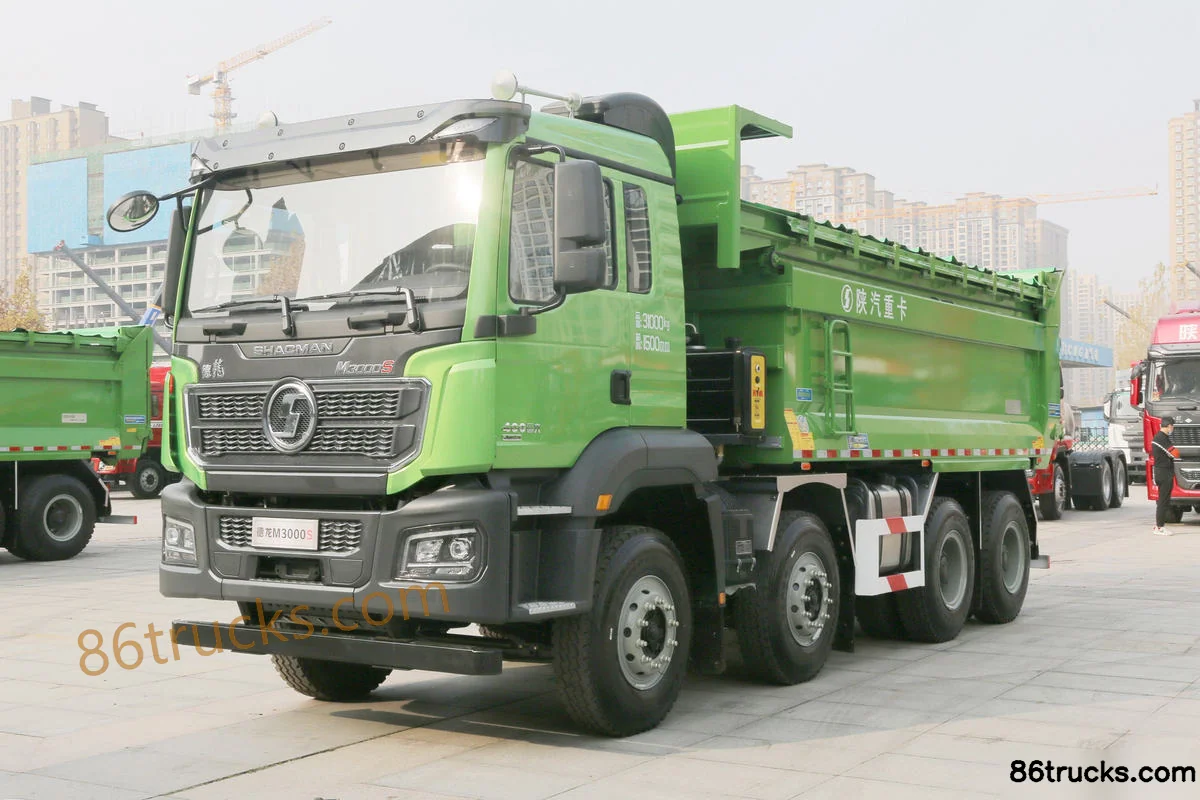

SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1800+2375+1400mm
Tire Size:: 12.00R20
Rated payload: 16.1ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box thickness: 8mm base, 5mm sides

Overview

The SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck is a Heavy truck featuring 16.1t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.400E50 engine, 400 hp, China V emissions and Fast Gear transmission.

China V 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3310MB246
Drive type: 8X4
Wheelbase: 1800+2375+1400mm
engine: WeichaiWP12.400E50
transmission: Fast Gear 12-speed
Cab length: 8.4m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2070/2070mm
rear track: 1860/1860mm
Curb Weight: 14.77ton
Rated payload: 16.1ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 20°
Remarks: Tianxingjian Zhiya Edition, hydraulic mount, transmission flexible shift, 180Ah maintenance-free battery, electric heated water heater
Version: Urban Construction Standard Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.400E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1920N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box thickness: 8mm base, 5mm sides
Unloading Type: Rear-dump body
Cargo box type: U-shaped box
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Standard cab M
Cab suspension: Four-point air suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: MAN7.5T
Front axle allowable load: 6500/6500kg
rear axle description: 16T MAN double reduction
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/10/12
Suspension (front/rear): Front and rear multi-leaf springs
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:
LED taillight:

Photos

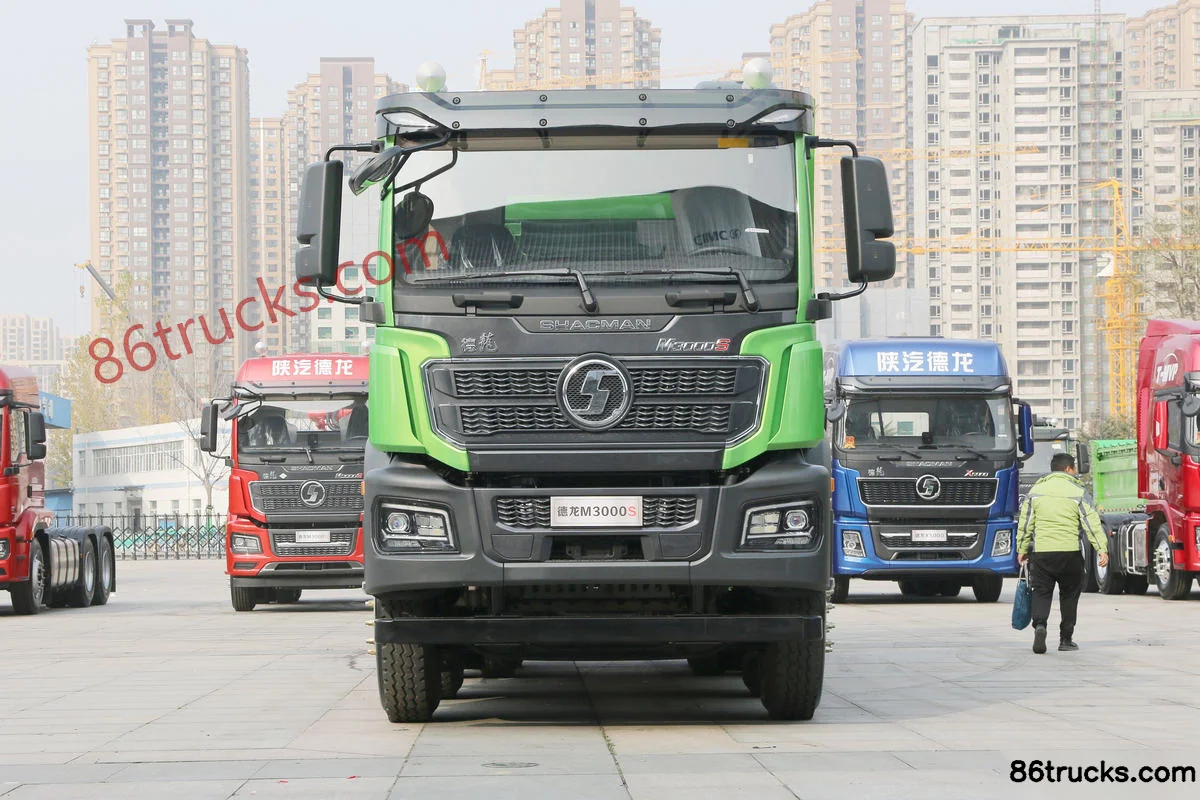

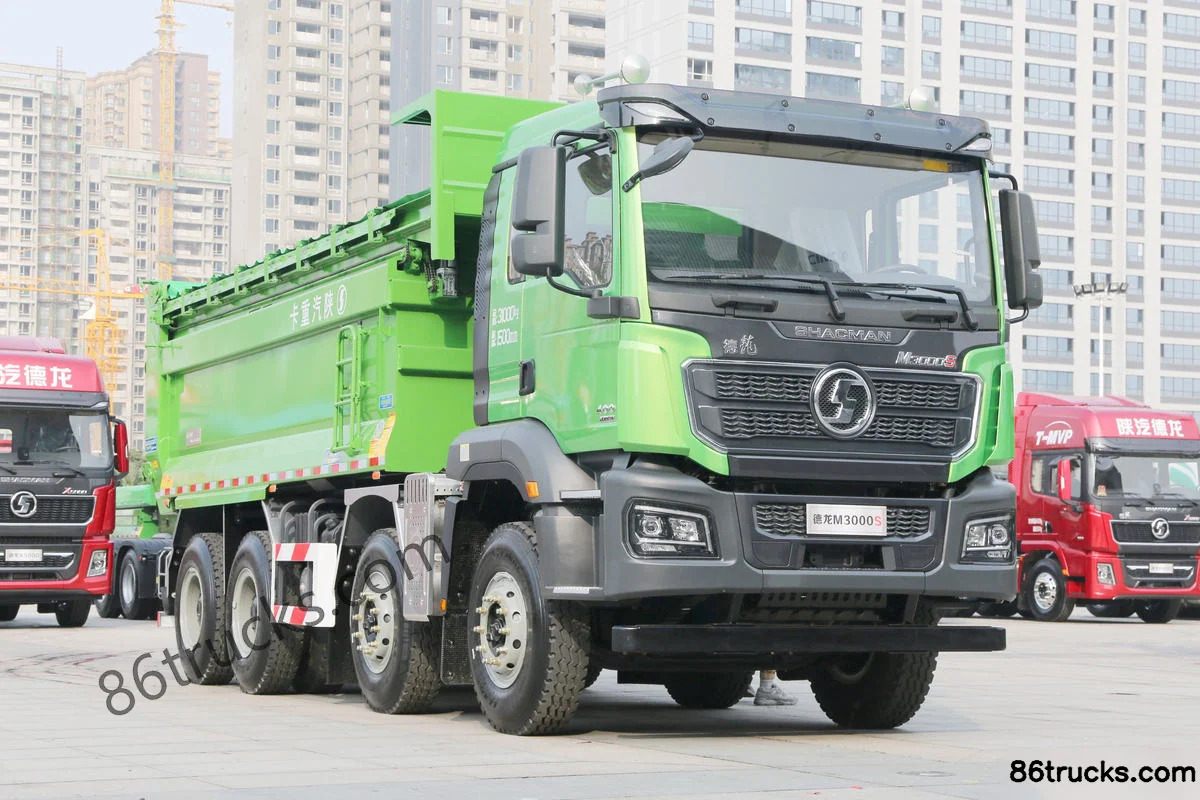

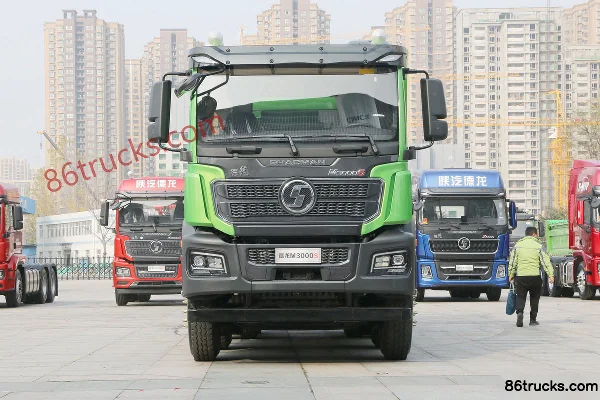

Exterior3

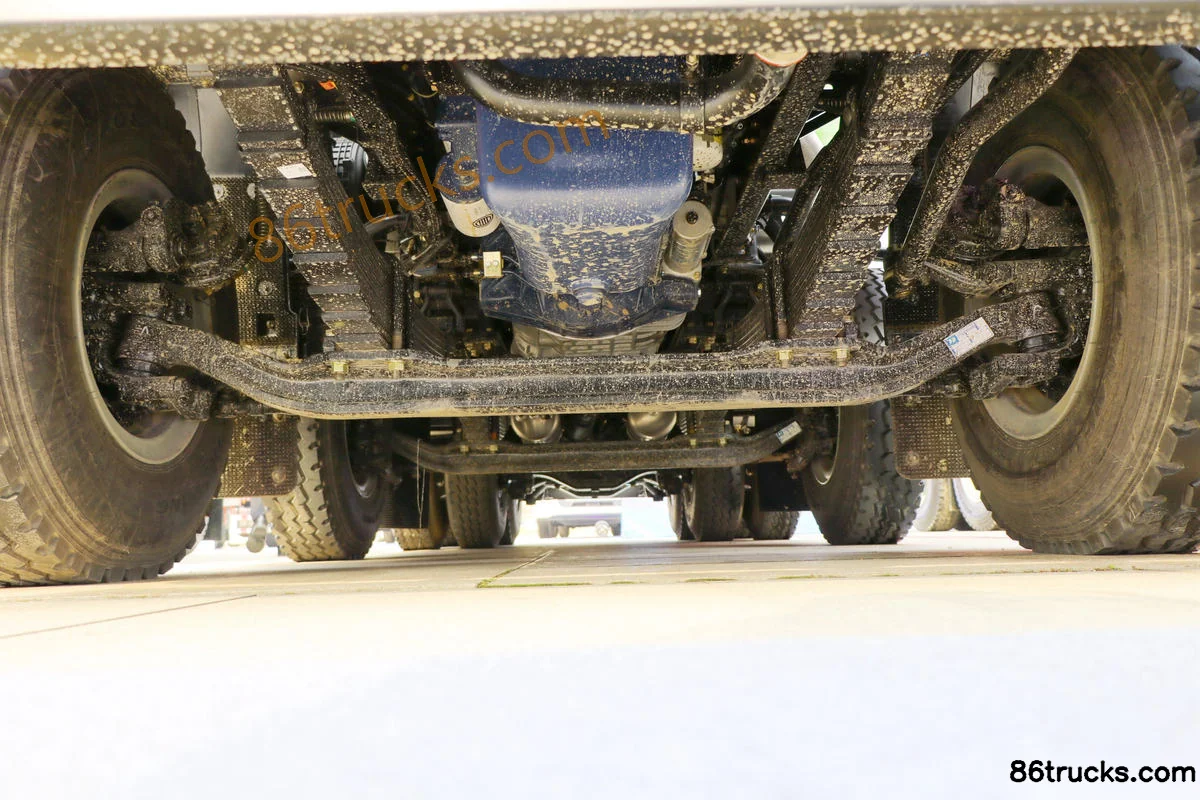

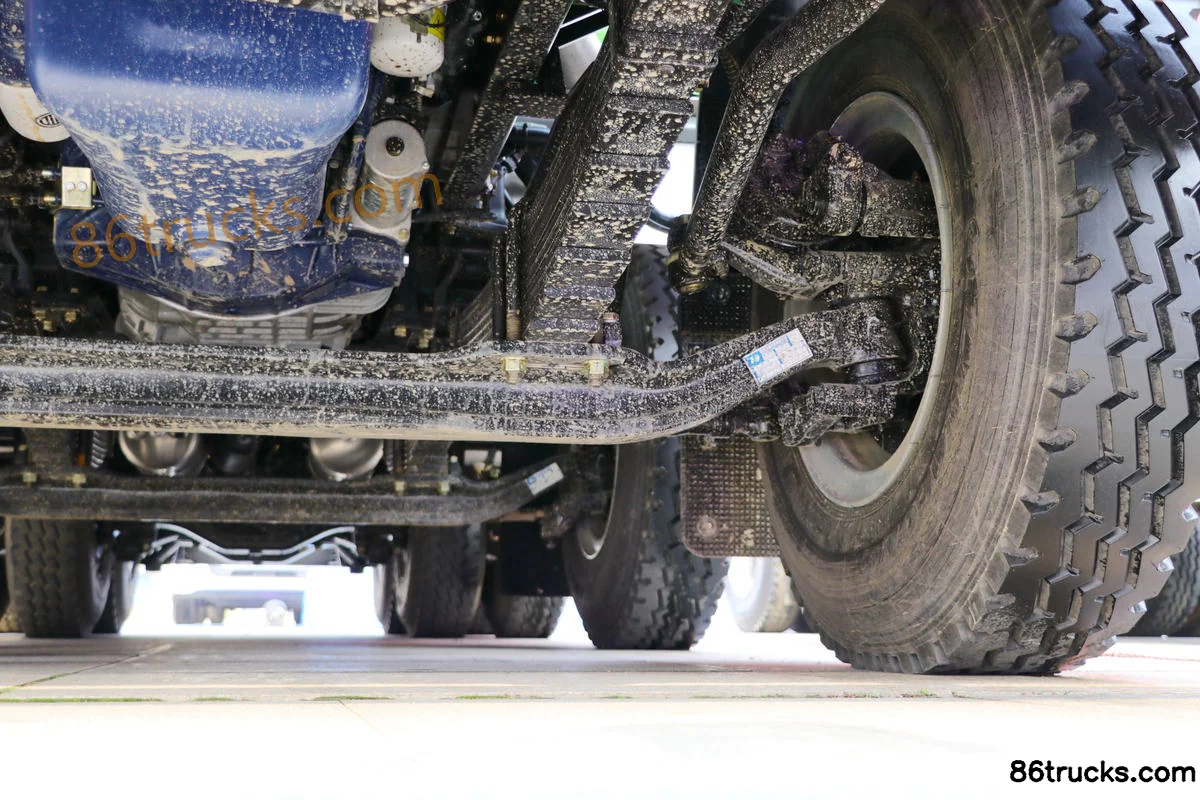

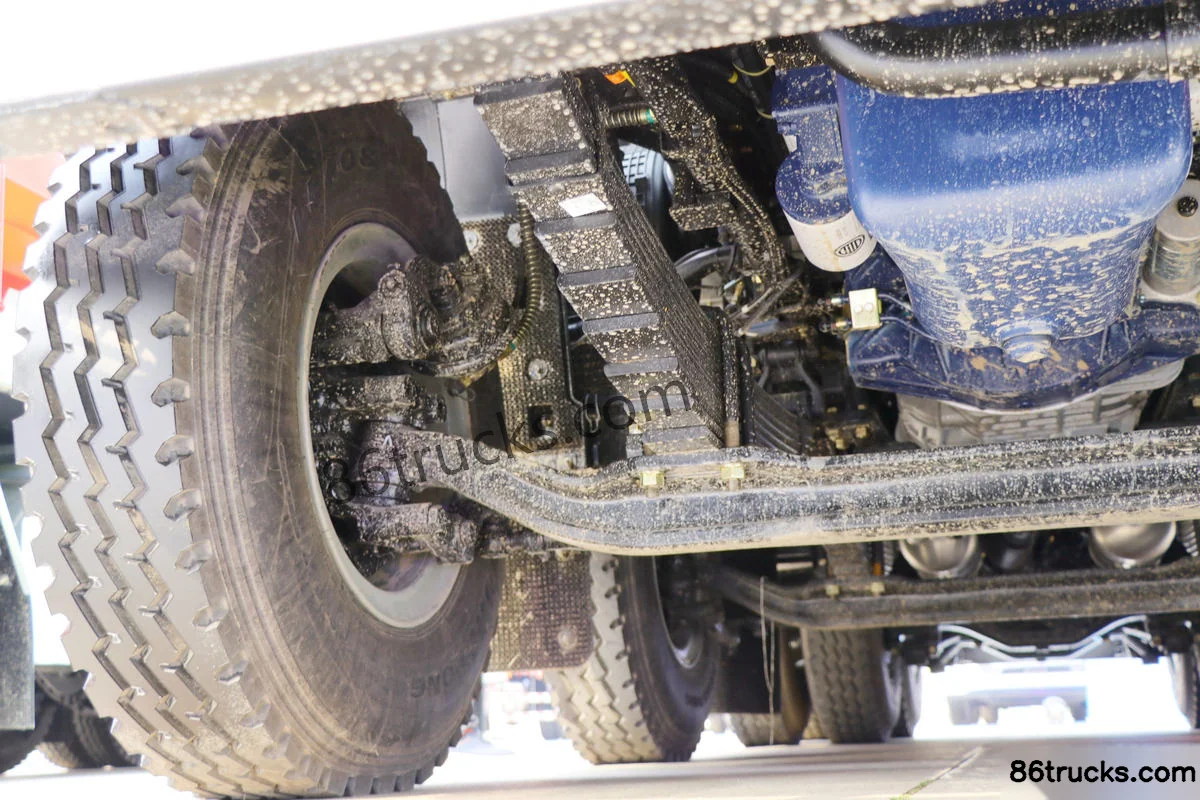

Chassis3

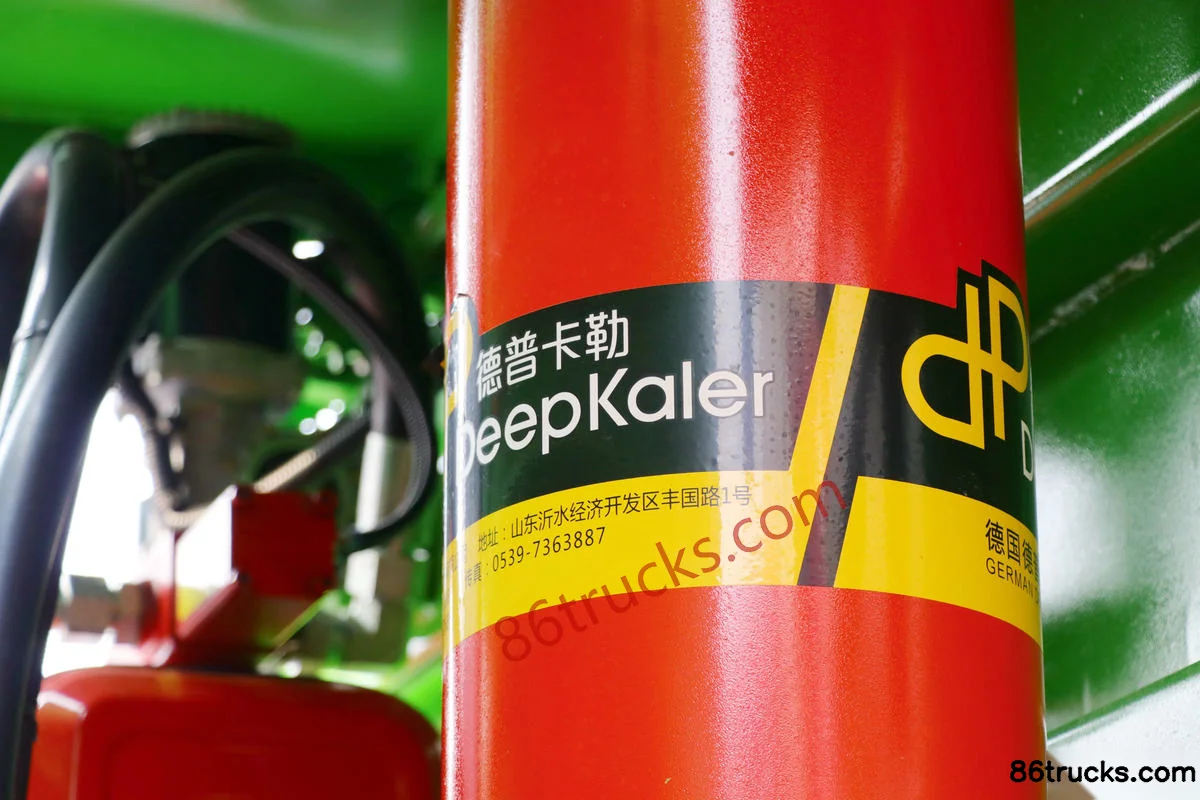

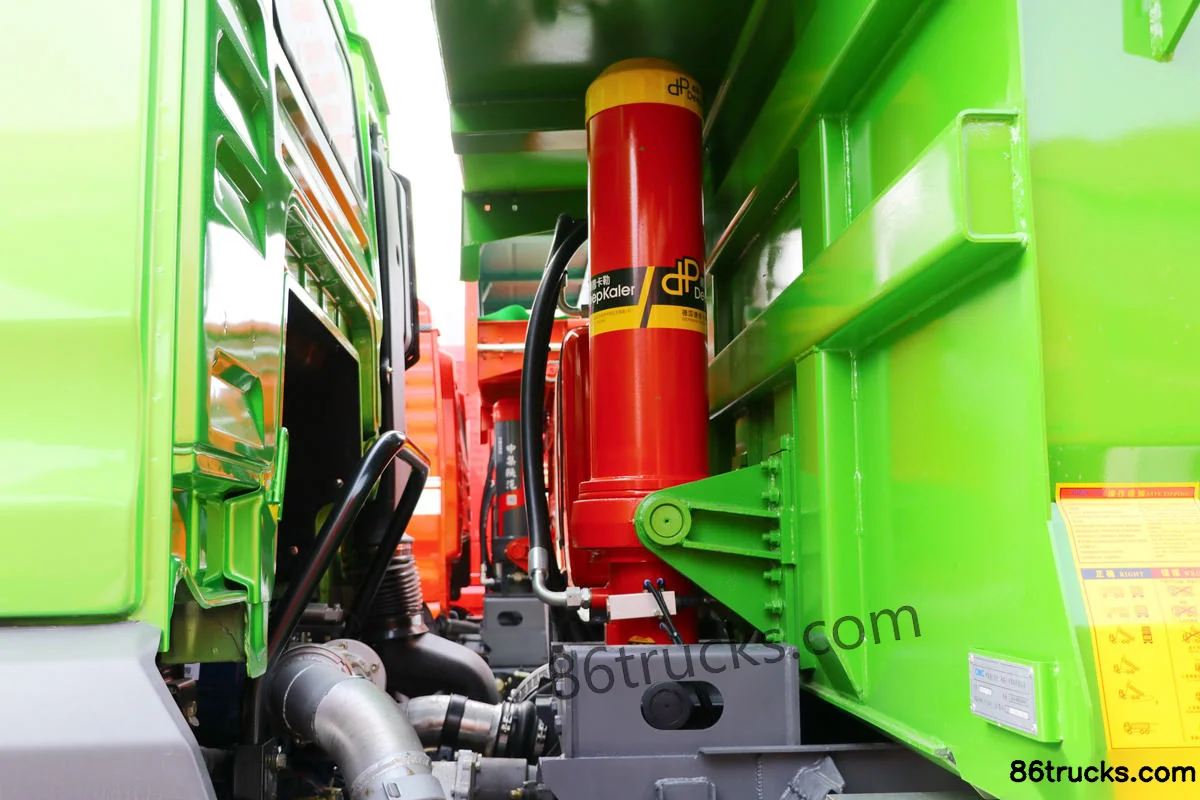

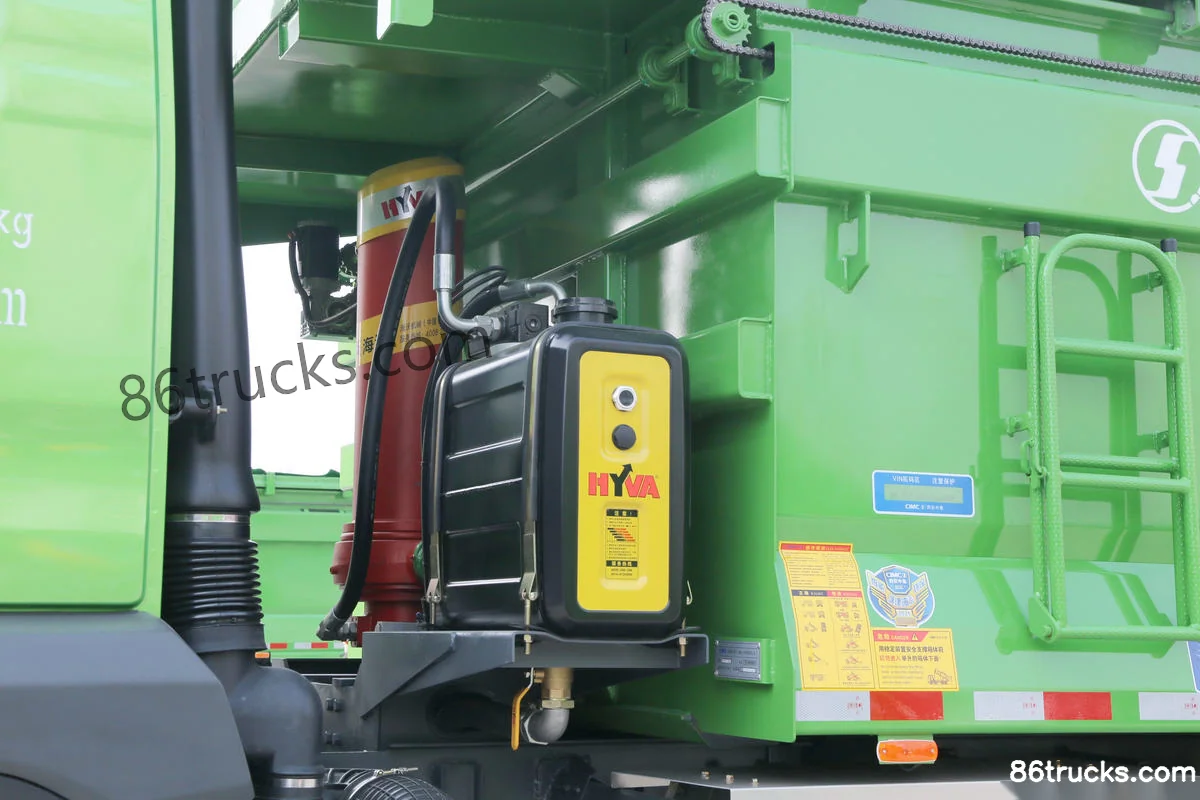

Body3

9 photos

FAQ

What emission standard does SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck?

Key specs of SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck: Drive: 8x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck suited for?

SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck differ from other variants in the same series?

SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck belongs to SHACMAN Delong M3000S (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000S Urban Standard Edition 400 hp 8X4(12 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
