Dongfeng 13t hub-reduction through-drive dual drive axle

Export reference
MSRP N/A
Applicable Tire:: 12.0-20/12.00R20
Front/rear track width:: 1820mm
Brake:: S-cam roller type
Axle Model: 13t hub reduction through-drive tandem axle
Brake size: Φ410×220
Axle Type: Drive axle

Overview

The Dongfeng 13t hub-reduction through-drive dual drive axle is a parts product with spec 13t hub reduction through-drive tandem axle and Φ410×220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: 13t hub reduction through-drive tandem axle
Axle Type: Drive axle
Applicable Tire: 12.0-20/12.00R20
Front/rear track width: 1820mm
Rated axle load: 2×13000ton
Brake: S-cam roller type
Transmission Ratio: 4.20/4.64/5.22/5.60/5.93/6.72
Brake size: Φ410×220
Max output torque: 2×45000N·m
Rim Used: 20inch
Wheel Bolts: 10×M22×1.5/Φ335mm
Remarks: Wheel-side drive through tandem axle; DF2601TD-300H

Photos

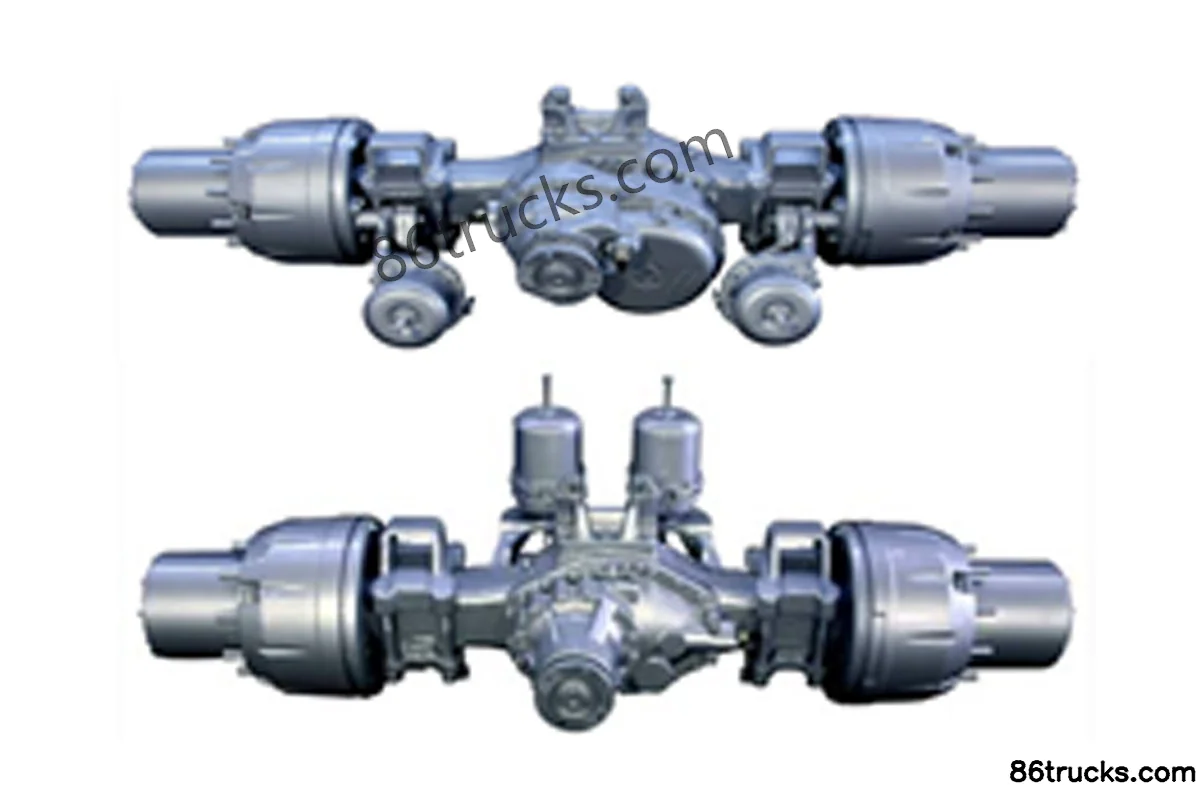

Exterior1

1 photos

FAQ

What transport jobs is Dongfeng 13t hub-reduction through-drive dual drive axle suited for?

Match Dongfeng 13t hub-reduction through-drive dual drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dongfeng 13t hub-reduction through-drive dual drive axle differ from other variants in the same series?

Dongfeng 13t hub-reduction through-drive dual drive axle belongs to Dongfeng drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng 13t hub-reduction through-drive dual drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng 13t hub-reduction through-drive dual drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
