Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck

Export reference
From $16,389
MSRP ¥11.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2710mm
Tire Size:: Front: 7.00R16LT12PR; Rear: 245/70R17.5 14PR*2
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25Pro engine, 160 hp, China VI emissions and WLY transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3043VEDCMZD
Drive type: 4X2
Wheelbase: 2710mm
engine: Yunnei PowerD25Pro
transmission: WLYWLY8G60
Rear Axle Ratio: 5.286
Cab length: 4.995m
Cab width: 1.97m
Cab height: 2.2m
Front track width: 1650mm
rear track: 1485mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 18°
departure angle: 16°
Remarks: Option: 1092 rear axle (ratio 6.333)
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25Pro
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 450N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY8G60
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.15m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1865kg
Frame Dimensions: 200 double-layer with sub-framemm
rear axle description: 1080B rear axle
rear axle allowable load: 2630kg
Axle ratio: 5.286
Leaf spring count: 8/10+6
Tire
Tire Size: Front: 7.00R16LT12PR; Rear: 245/70R17.5 14PR*2
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

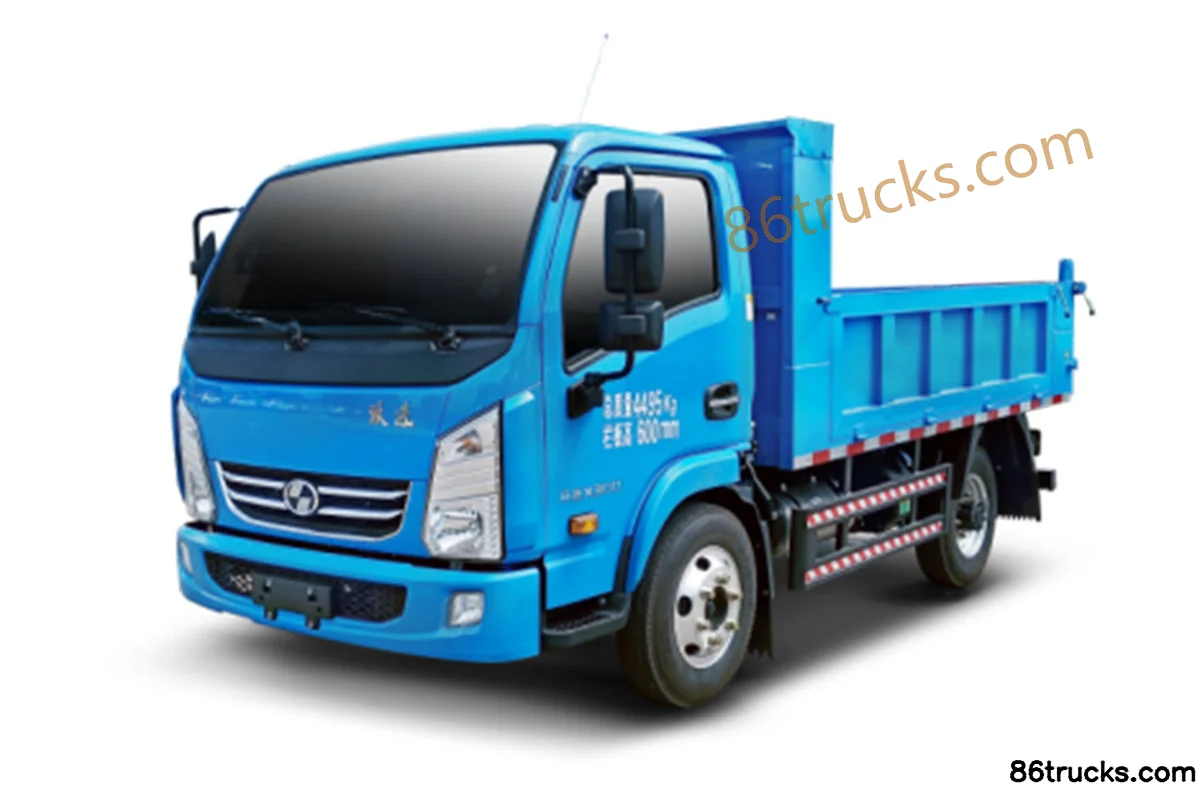

Exterior1

1 photos

FAQ

What is the export price of Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck, and what does it include?

Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck?

Key specs of Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck suited for?

Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck differ from other variants in the same series?

Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck belongs to Yuejin Small Kirin Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Xiaolinxing X3 160hp 4X2(6 wheels) 3.15m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
