Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 1950+4500+1350mm
Tire Size:: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Dump type

Overview

The Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG400E50 engine, 400 hp, China V emissions and Fast Gear transmission.

China V 400 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3311H7FL
Drive type: 8X4
Wheelbase: 1950+4500+1350mm
engine: WeichaiWP12NG400E50
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 5.262
Cab length: 10.655m
Cab width: 2.545m
Cab height: 3.85m
Front track width: 2060/2060mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 18°
Remarks: One-piece heavy-duty connecting axle, double U-bolts, heavy-duty drive shaft, European swirl dual-channel intake pipe, oil-bath air filter, domestic valves, 16mm reinforced steel rim, self-adjusting arm
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG400E50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1730N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Front axle description: MAN 7.5T dual front axle
Front axle allowable load: 7000kg
Frame Dimensions: 300(8+8)mm
rear axle description: 2*300 cast steel
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 11/11/13
Tire
Tire Size: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic

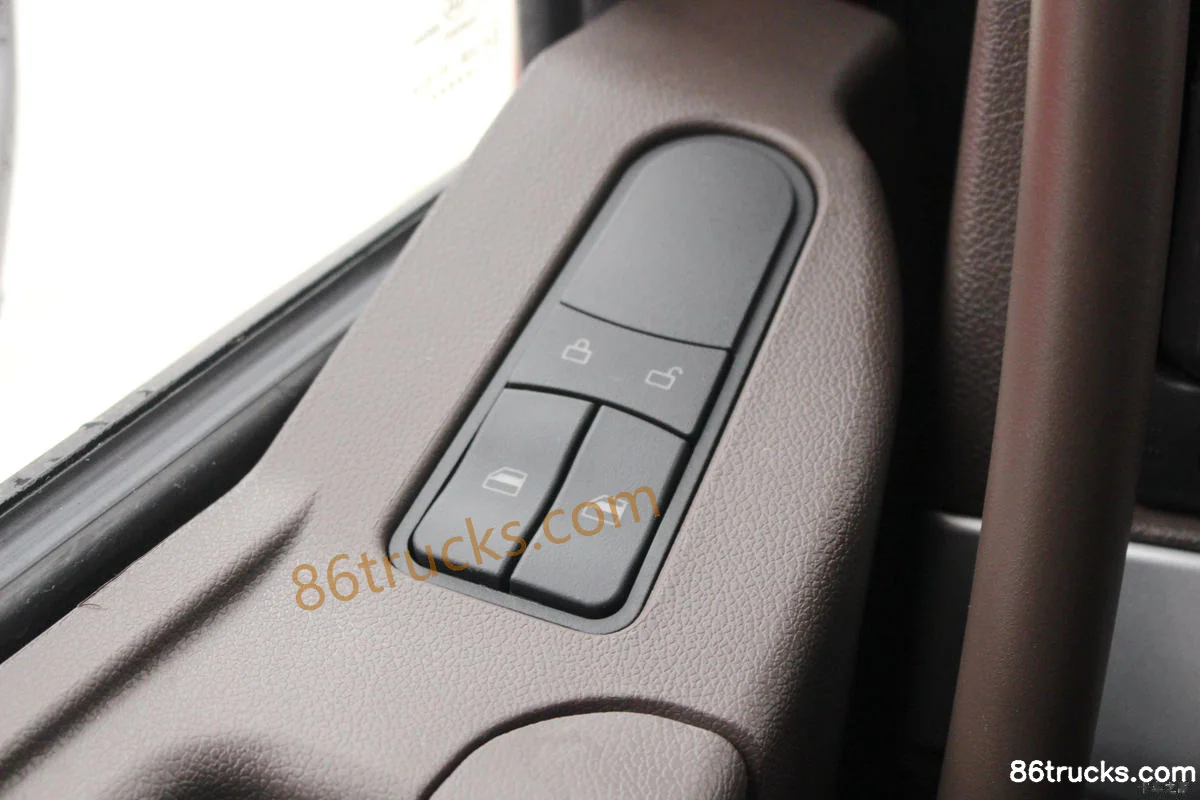

Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

Photos

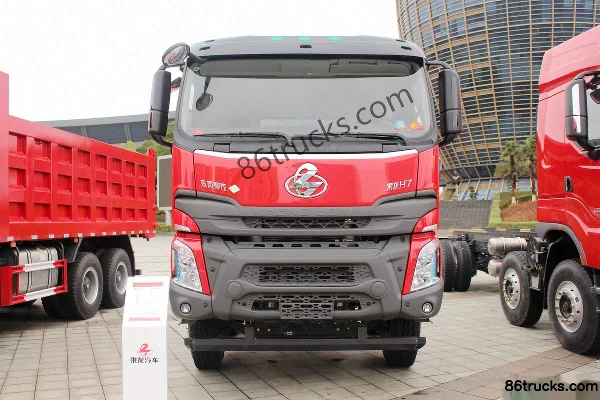

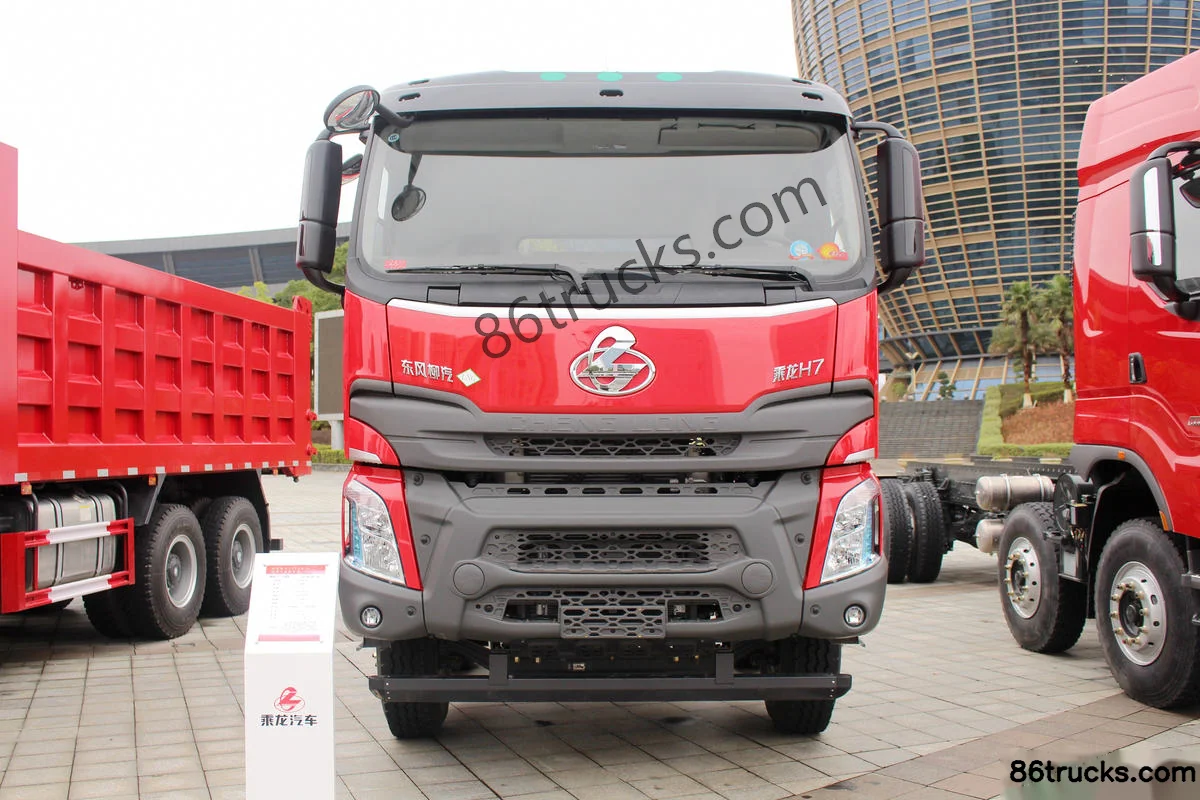

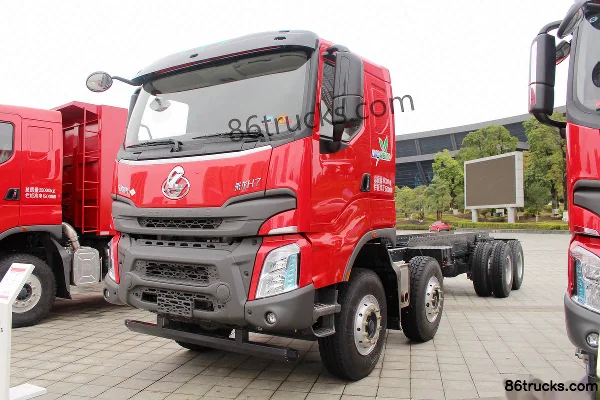

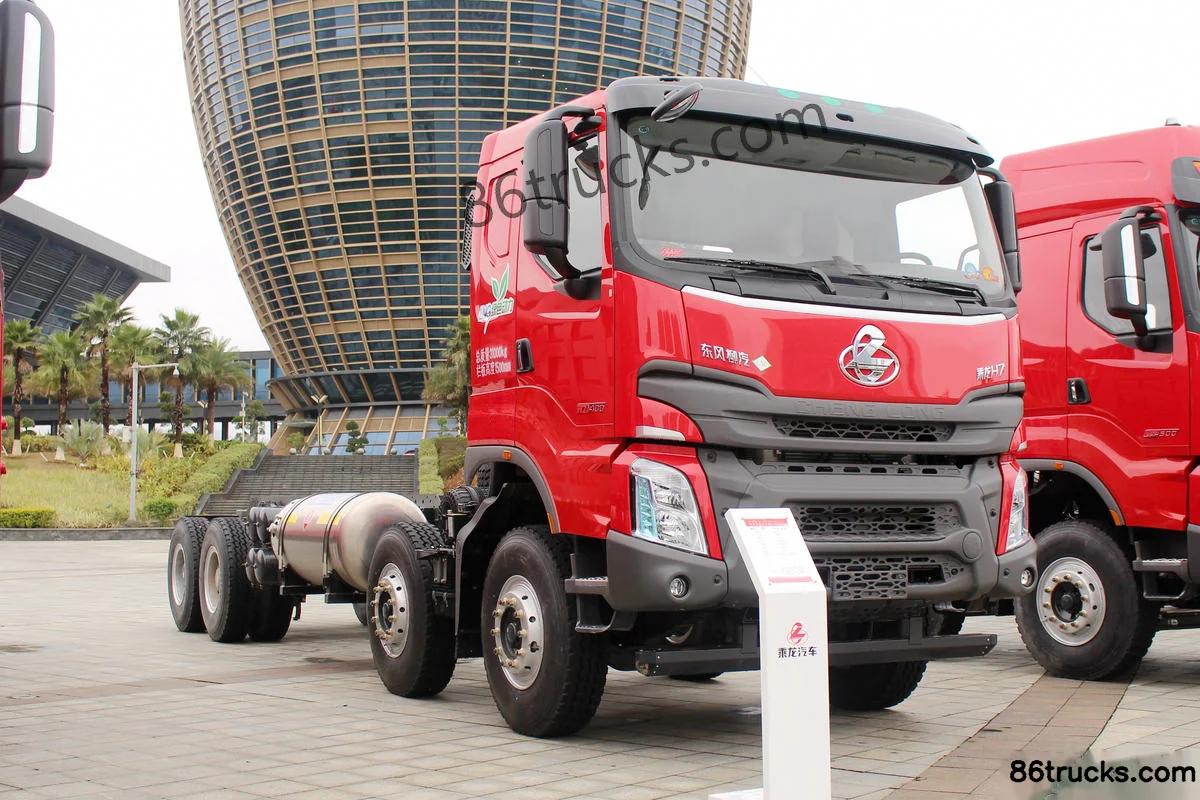

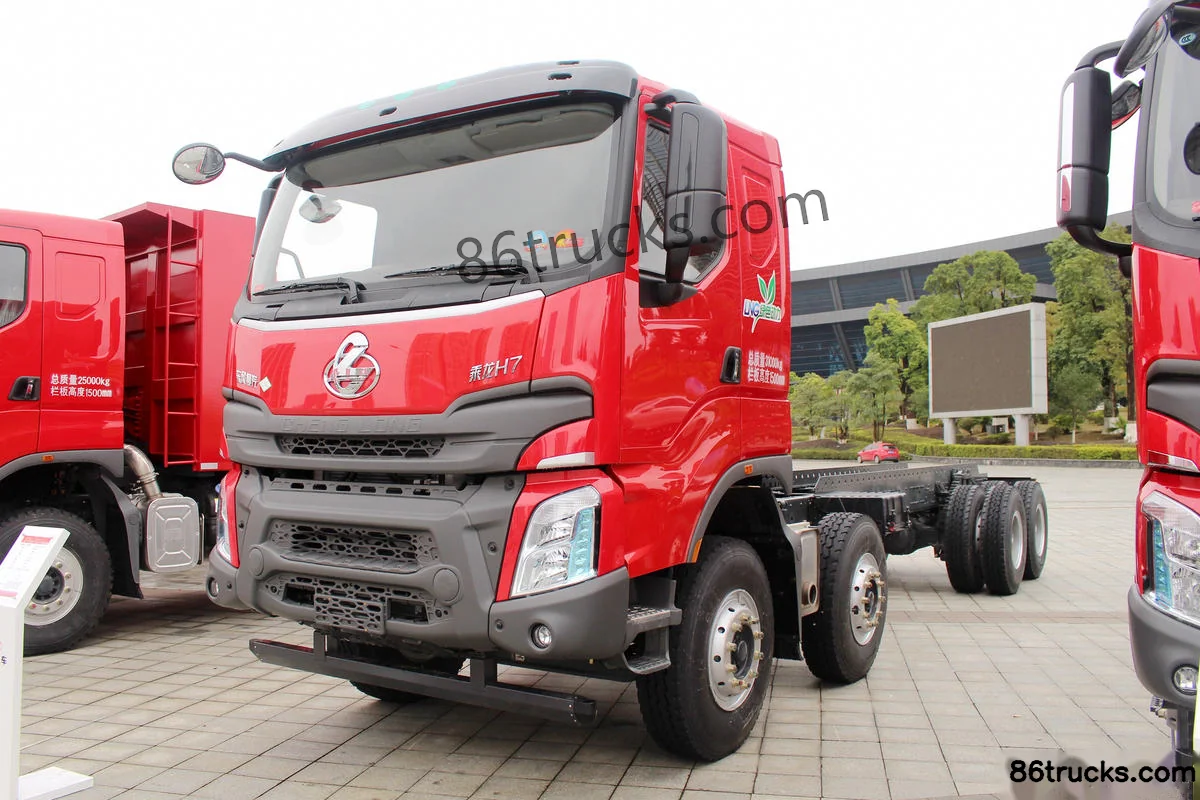

Exterior3

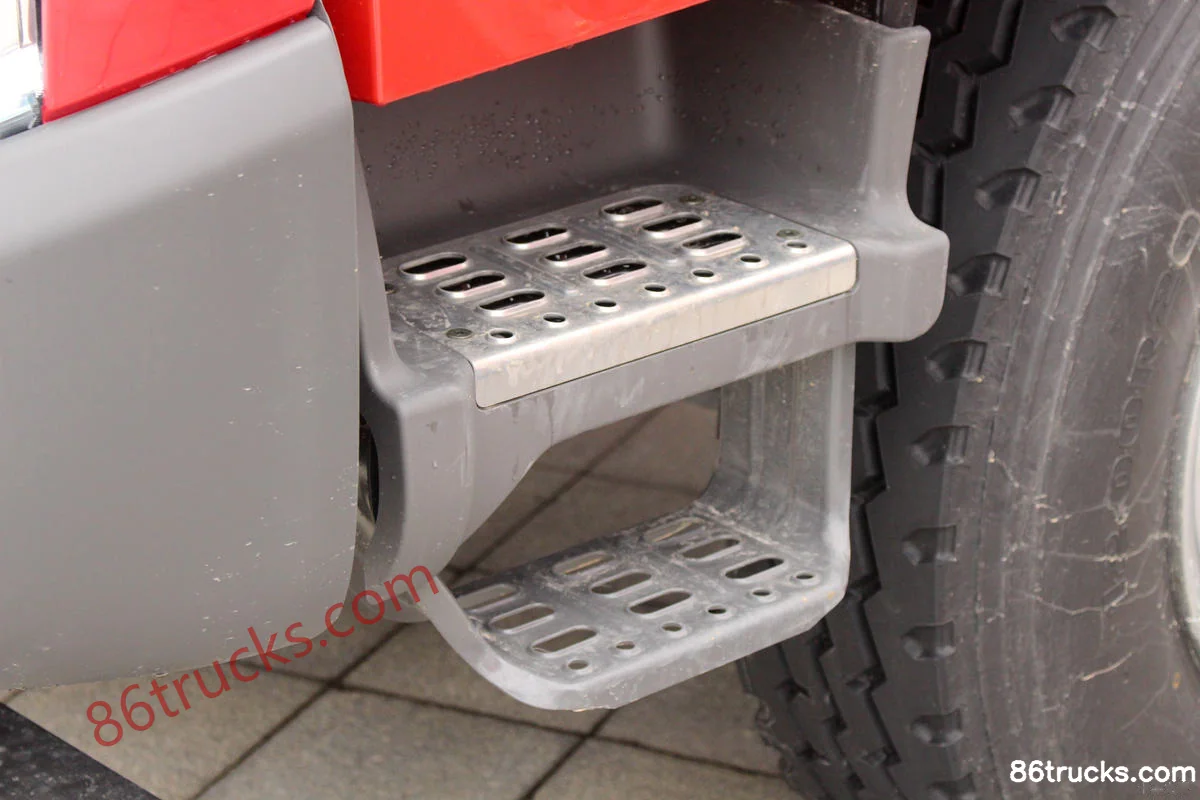

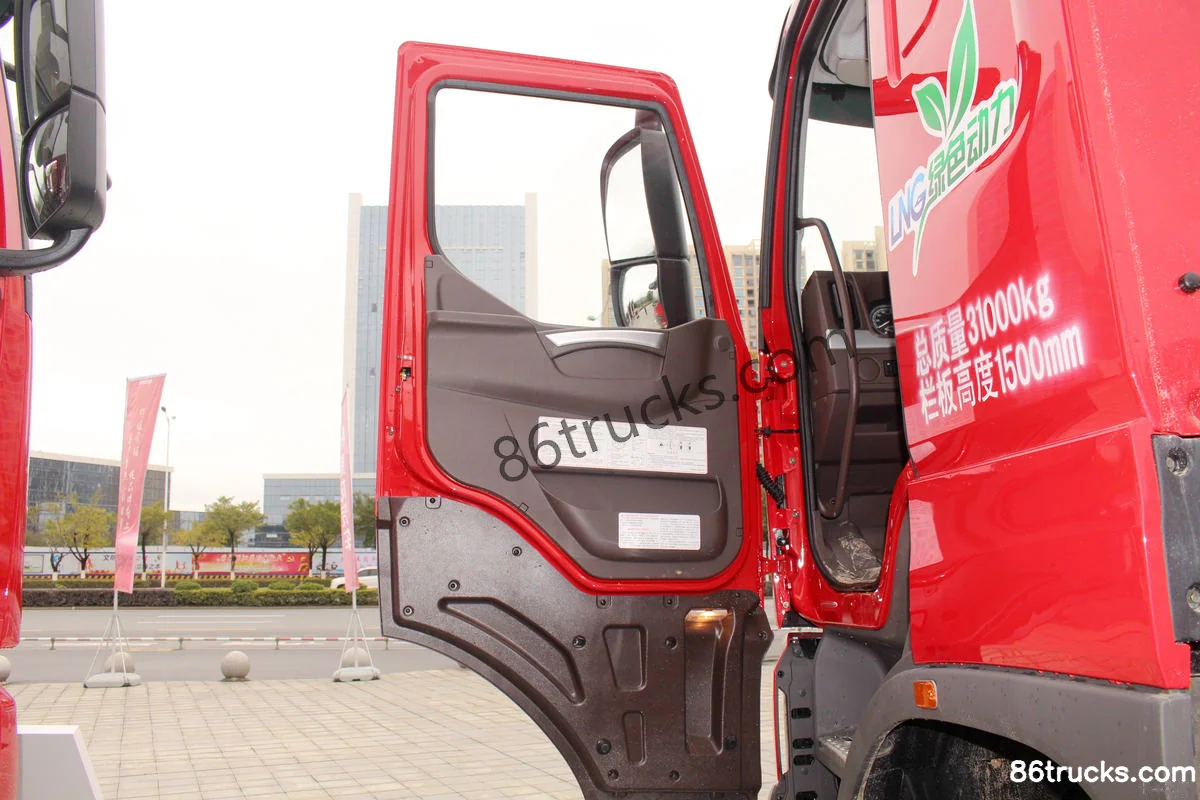

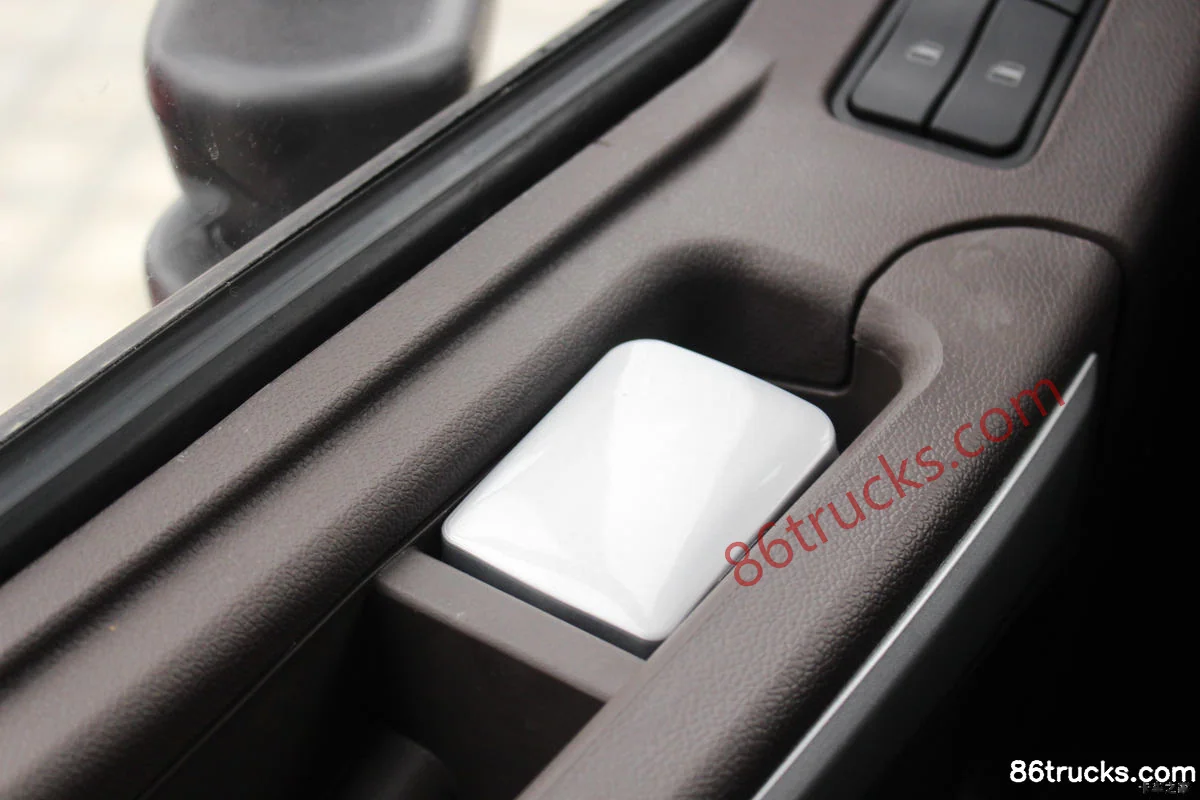

Cab3

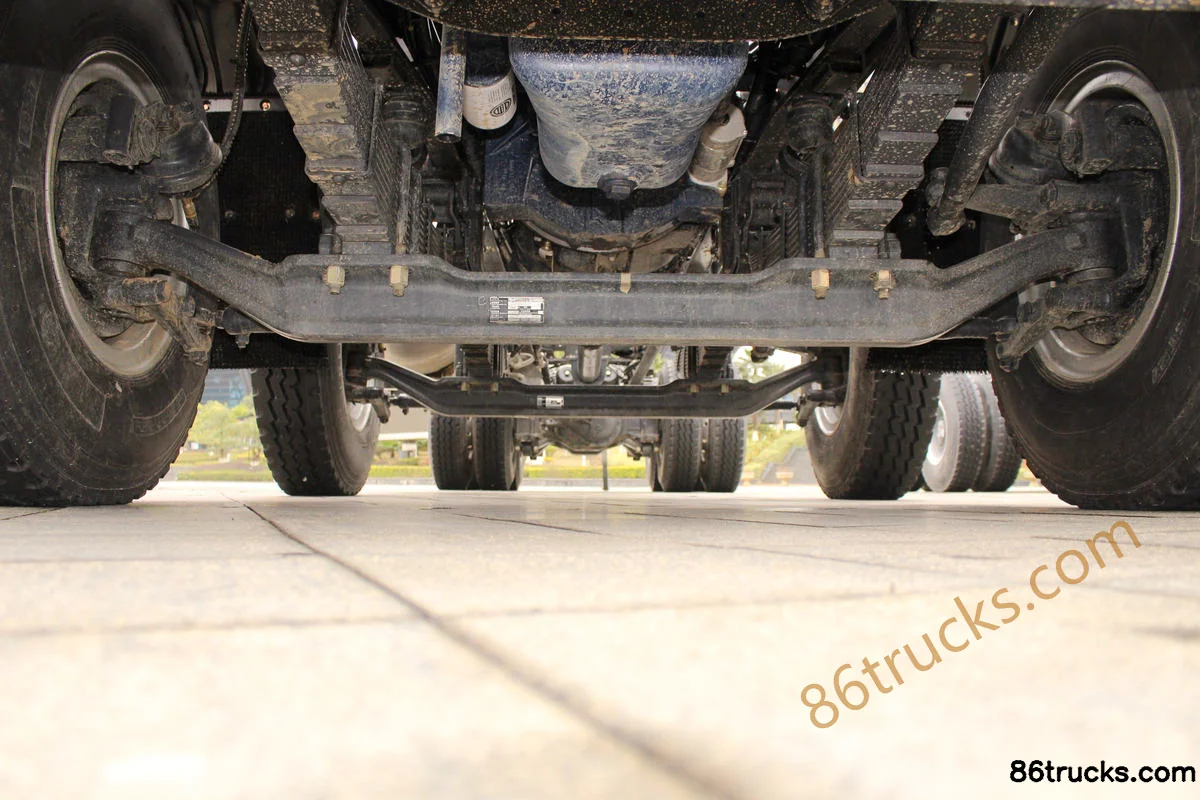

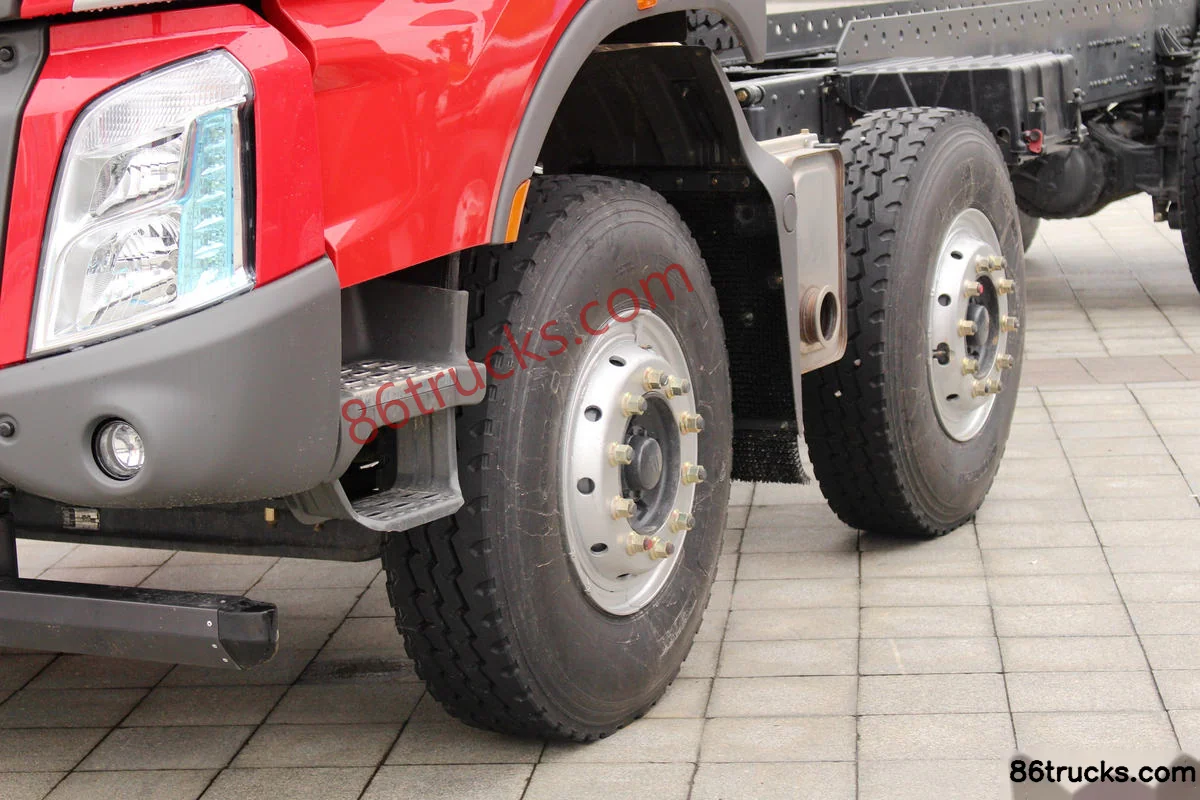

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis?

Key specs of Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis: Drive: 8x4; Horsepower: 400 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis suited for?

Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis belongs to Dongfeng Chenglong H7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) LNG Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
