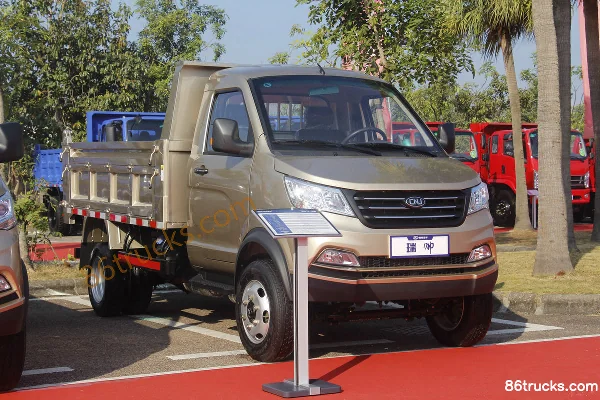

NanJun Ruishuai 2L Diesel 102 hp 4X2(6 wheels) Mengwo 5-speed 2.8m Single Row Dump Truck
EXW
From $12,472
Export quote
NanJun Ruishuai F-Series Mini Truck Dump Trucks
Main model photos
155 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruishuai 2L Diesel 102 hp 4X2(6 wheels) Mengwo 5-speed 2.8m Single Row Dump Truck | 4x2 / 102hp / China VI | From $12,472 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruishuai F Series 82hp 4X2(6 wheels) 2.515m Dump Truck | 4x2 / 82hp / China V | From $11,361 | |
| NanJun Ruishuai F2 Series Deluxe 82 hp 4X2(6 wheels) 2.515m dump truck | 4x2 / 82hp / China V | ||
| NanJun Ruishuai F2 series comfort version 82hp 4X2(6 wheels) 3.4m dump truck | 4x2 / 82hp / China V | ||
| NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck | 4x2 / 82hp / China V | ||
| NanJun Ruishuai F2 Series Comfort Edition 82hp 4X2(6 wheels) 2.515m Dump Truck | 4x2 / 82hp / China V |
NanJun Ruishuai F Series 82hp 4X2(6 wheels) 2.515m Dump Truck
EXW
From $11,361
Export quote
NanJun Ruishuai F2 Series Deluxe 82 hp 4X2(6 wheels) 2.515m dump truck
EXW
Export quote
NanJun Ruishuai F2 series comfort version 82hp 4X2(6 wheels) 3.4m dump truck
EXW
Export quote
NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck
EXW
Export quote
NanJun Ruishuai F2 Series Comfort Edition 82hp 4X2(6 wheels) 2.515m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): NJA3042 / NJA3040SSG34V / NJA3040SDC34V / NJA2040SSG34ZXV / NJA3040SDG34V / NJA2040SDG34ZXV
Drive type: 4X2
Wheelbase: 3200 / 3400mm
Engine Model: Yunnei PowerD20TCIF14 / Quanchai4A2-82C50 / Sokon PowerDK15-10 / D20TCIF14
Transmission Model: 5-speed transmission / Mengwo5H-28CY2QS / Mengwo5H-28CY1KQS / Mengwo5-28CY3QS / Fast Gear5H-28CY2QS / Fast Gear5H-28CY2KS / Mengwo5-26CY4S / 5-speed
Rear Axle Ratio: 4.87 / 3.909 / 4.875 / 4.333 / 5.375
Cab length: 4.995 / 5.56 / 4.75 / 4.965 / 4.8 / 5.365m
Cab width: 1.8 / 1.78 / 1.75m
Cab height: 2.09 / 2.13 / 2.05 / 2.12 / 2.165 / 2.1m
Front track width: 1490 / 1455 / 1410mm
rear track: 1343 / 1330 / 1280mm
Curb Weight: 2.3 / 2.08 / 1.7 / 2.45 / 2.44 / 2.49ton
Rated payload: 1.995 / 1.245 / 0.745 / 1.495 / 0.895ton
GVWR: 4.425 / 3.65 / 3.825 / 3.52 / 4.065 / 3.515ton
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 37 / 35 / 32°
departure angle: 25 / 15 / 23 / 16°
Remarks: EPS + active return-to-center, MP3, stabilizer bar, with auxiliary transmission / EPS + active return, MP3, fabric seat, with auxiliary transmission / EPS + active return, leather seat, with auxiliary transmission / EPS + active return, MP3, fabric seat, stabilizer bar, with auxiliary transmission, with PTO / EPS + active return, MP5, leather seat, stabilizer bar, with auxiliary transmission, with PTO / EPS + active return-to-center, MP3, fabric seats / EPS + active return, leather seat / No EPS, MP3, fabric seat, manual windows / EPS + active return, stabilizer bar, vacuum-assisted hydraulic brake
Version: Luxury Edition / Comfort Edition / Flagship Edition / Standard version / Dual-purpose
Energy Type: Diesel / gasoline
Engine parameters
Engine Brand: Yunnei Power / Quanchai / Sokon Power
Number of cylinders: 4cylinder
Displacement: 2 / 2.27 / 1.499L
Emission standard: China VI / China V
Max output power: 75 / 60 / 82kW
Max hp: 102 / 82 / 112Horsepower
Max torque: 250 / 220 / 143N·m
Max torque speed: 2000 / 4200rpm
Rated speed: 3600 / 3200 / 6000rpm
Engine Type: Longitudinal mounting
Transmission Parameters
Transmission Brand: Mengwo / Fast Gear
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 2TG/70×385 / 2TG / 2TG/70×350 / 3TG
Unloading Type: Rear dump / Dump type
Cargo box thickness: Floor 1.8mm side 1.5mm / floor 3mm side 2mm
Cargo box length: 2.8 / 2.515 / 3.4 / 3.1 / 3.2m
Cargo box width: 1.72 / 1.68 / 1.65m
FAQ
What kind of truck is NanJun NanJun Ruishuai F-Series Mini Truck Dump Trucks?
NanJun NanJun Ruishuai F-Series Mini Truck is an export-oriented Dump Trucks lineup with about 29 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for NanJun Ruishuai F-Series Mini Truck Dump Trucks?
NanJun Ruishuai F-Series Mini Truck Dump Trucks export reference is about $9,139 – $12,472. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does NanJun Ruishuai F-Series Mini Truck Dump Trucks cover?
NanJun Ruishuai F-Series Mini Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 82 hp / 102 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in NanJun Ruishuai F-Series Mini Truck Dump Trucks?
For NanJun Ruishuai F-Series Mini Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does NanJun Ruishuai F-Series Mini Truck Dump Trucks include?
NanJun Ruishuai F-Series Mini Truck Dump Trucks currently lists about 29 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for NanJun Ruishuai F-Series Mini Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
