SAIC Hongyan Genlyon Heavy Load Edition Tibet Edition 12.9L diesel 560hp 8X4(12 wheels) 13-speed 6.5m half-row dump truck
EXW
Export quote
SAIC Hongyan Genlyon Heavy Truck Dump Trucks
Main model photos
1,735 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Genlyon Heavy Load Edition Tibet Edition 12.9L diesel 560hp 8X4(12 wheels) 13-speed 6.5m half-row dump truck | 8x4 / 560hp | ||
| SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck | 8x4 / 460hp / China VI | From $77,597 | |
| SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.8m Dump Truck | 8x4 / 560hp / China VI | From $58,486 | |
| SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.4m Dump Truck | 8x4 / 560hp / China VI | From $58,486 | |
| SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.6m Dump Truck | 8x4 / 560hp / China VI | From $58,486 |

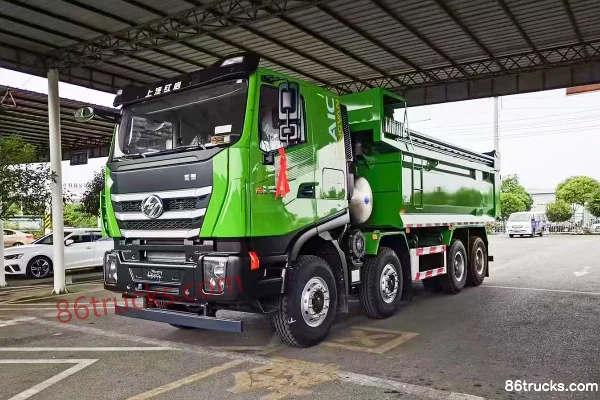

SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck
EXW
From $77,597
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.8m Dump Truck
EXW
From $58,486
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.4m Dump Truck
EXW
From $58,486
Export quote

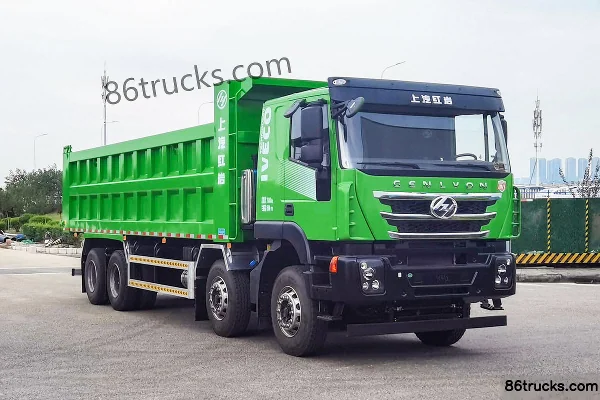

SAIC Hongyan Genlyon C6 Heavy-Duty 560hp 8X4(12 wheels) 8.6m Dump Truck
EXW
From $58,486
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Genlyon C6 Heavy-Duty Edition 460 hp 8X4(12 wheels) 8.8m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan) | 8x4 / 460hp / China VI | ||
| SAIC Hongyan Genlyon C6 Heavy-Duty Edition 460 hp 8X4(12 wheels) 8.8m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan) | 8x4 / 460hp / China VI | ||
| SAIC Hongyan Genlyon C6 Heavy-Duty 460 hp 8X4(12 wheels) 8.2m Dump Truck (China VI) | 8x4 / 460hp / China VI | ||
| SAIC Hongyan Genlyon C6 Heavy-Duty 460hp 8X4(12 wheels) 8m Dump Truck (China VI) | 8x4 / 460hp / China VI | ||
| SAIC Hongyan Genlyon C6 Heavy-Duty 460 hp 8X4(12 wheels) 8.2m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan) | 8x4 / 460hp / China VI |
SAIC Hongyan Genlyon C6 Heavy-Duty Edition 460 hp 8X4(12 wheels) 8.8m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan)
EXW
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty Edition 460 hp 8X4(12 wheels) 8.8m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan)
EXW
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty 460 hp 8X4(12 wheels) 8.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty 460hp 8X4(12 wheels) 8m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon C6 Heavy-Duty 460 hp 8X4(12 wheels) 8.2m Dump Truck (China VI) (SAIC Fiat Powertrain Hongyan)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CQ3317HV13406 / CQ3317HD12466N / CQ3317HV13466 / CQ3257HV13474 / CQ3257HV13444 / CQ3317HV13446 / CQ3317HD13466 / CQ3317HD13406
Drive type: 8X4 / 6X4
Wheelbase: 1800+3400+1400 / 2000+3000+1400 / 2000+4600+1400 / 4700+1400 / 4400+1400 / 2000+4400+1400 / 2000+4000+1400mm
Engine Model: SAIC Fiat Powertrain HongyanF3UCE611A*M / SDECSC13ET460Q6 / SDECSC13E560.1Q6 / SDECSC13E520.1Q6 / SAIC Fiat Powertrain HongyanF3UCE611B*M / F3UCE611A*M
Transmission Model: 13-speed transmission / Fast Gear12JSDX220TA-B / Fast Gear13JSDX260T / Fast Gear13JSDX240T / Fast Gear12TDS2610
Rear Axle Ratio: 5.92 / 5.262 / 5.214
Cab length: 9.685 / 9.635 / 11.735 / 11.635 / 9.785 / 9.585 / 9.385 / 11.535 / 9.285 / 11.485 / 11.285 / 9.085 / 11.385 / 11.085 / 11.035 / 10.985 / 11.305m
Cab width: 2.55 / 2500m
Cab height: 3.46m
Front track width: 2020/2020 / 2020mm
rear track: 1858/1858mm
Curb Weight: 14.1 / 12.5 / 15.5ton
Rated payload: 16.77 / 12.37 / 15.37ton
GVWR: 31 / 25ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 21 / 14 / 15 / 16 / 18°
Remarks: Optional: high-roof long cab, 9.5T front axle, HDZ300 drive axle, 350L/(300+100)L fuel tank. / Optional: Cab air seat (damping adjustable, ventilation & heating), HDZ300 drive axle, BOSCH steering gear, oil-bath air filter, 180 Ah battery, 220V power supply, 9.5T, front stabilizer bar, panoramic view system, (300+100)L fuel tank. / Option: High-roof standard-length cab, cab air seat (damping adjustable, ventilated & heated), 9.5T front axle, HDZ300 drive axle, BOSCH steering gear, front stabilizer bar, oil-bath air filter, 180Ah battery, 350L/(300+100)L fuel tank, 220V power supply, panoramic camera system, manual sunroof. / Optional: high-roof long cab, HDZ300 drive axle, 600L/(450+150)L fuel tank.
Version: Heavy-duty version, Tibet version / Heavy-duty version
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan / SDEC
Number of cylinders: 6cylinder
Displacement: 12.88 / 12.82L
Emission standard: China VI
Max output power: 415 / 338 / 412 / 382 / 385kW
Max hp: 560 / 460 / 520Horsepower
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 13 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 6.5 / 5.8 / 8.8 / 8.4 / 8.6 / 8.5 / 7 / 6.8 / 6.6 / 6.4 / 8.2 / 8.3 / 6.2 / 8 / 7.8 / 7.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof / low roof / Flat roof long cab
Cab suspension: 4-point mechanical suspension
Cab tilting: Electric
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 400L
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Genlyon Heavy Truck Dump Trucks?
SAIC Hongyan SAIC Hongyan Genlyon Heavy Truck is an export-oriented Dump Trucks lineup with about 2,842 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Genlyon Heavy Truck Dump Trucks?
SAIC Hongyan Genlyon Heavy Truck Dump Trucks export reference is about $39,264 – $77,597. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Genlyon Heavy Truck Dump Trucks cover?
SAIC Hongyan Genlyon Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 460 hp / 560 hp; Emission: China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Genlyon Heavy Truck Dump Trucks?
For SAIC Hongyan Genlyon Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SAIC Hongyan Genlyon Heavy Truck Dump Trucks include?
SAIC Hongyan Genlyon Heavy Truck Dump Trucks currently lists about 2,842 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Genlyon Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
