SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck

Export reference
From $77,597
MSRP ¥55.87M CNY
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 14.1ton
Wheelbase:: 2000+3000+1400mm
Tire Size:: 12.00R20 18PR
Rated payload: 16.77ton
Drive 8X4 (12 wheels)
Horsepower 460
Cargo box type: Dump type

Overview

The SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck is a Heavy truck featuring 16.77t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SDECSC13ET460Q6 engine, 460 hp, China VI emissions and Fast Gear transmission.

China VI 460 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3317HD12466N
Drive type: 8X4
Wheelbase: 2000+3000+1400mm
engine: SDECSC13ET460Q6
transmission: Fast Gear12JSDX220TA-B
Rear Axle Ratio: 5.262
Cab length: 9.635m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2020/2020mm
rear track: 1858/1858mm
Curb Weight: 14.1ton
Rated payload: 16.77ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 14°
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC13ET460Q6
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 12.82L
Emission standard: China VI
Max output power: 338kW
Max hp: 460Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: low roof
Cab width: 2500mm
seating capacity: 2Personnel
Cab tilting: Electric
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500/6500kg
rear axle description: HDZ300 double reduction cast axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 9/9/12
Tire
Tire Size: 12.00R20 18PR
Tire Type: mixed tread pattern
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

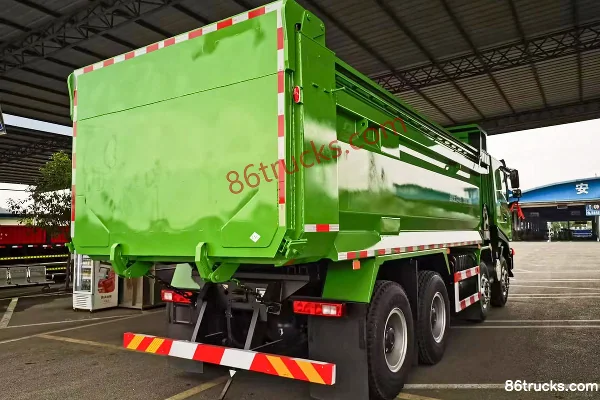

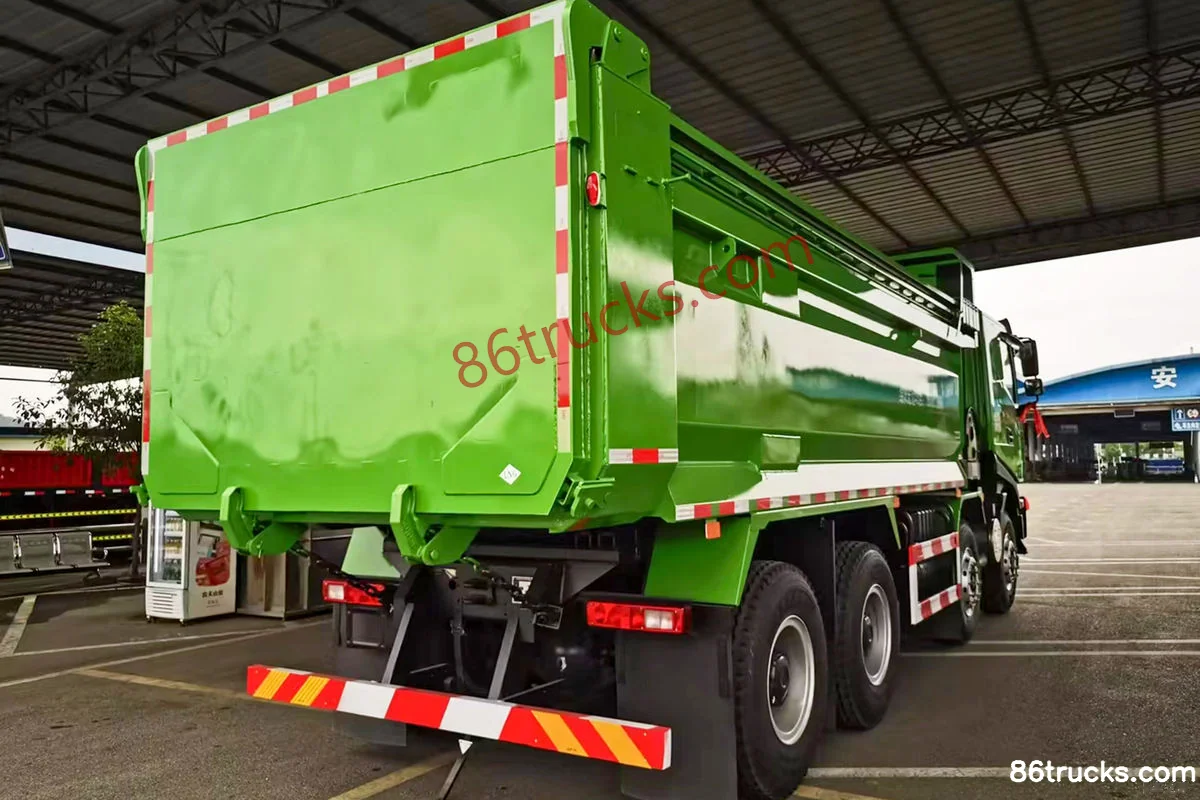

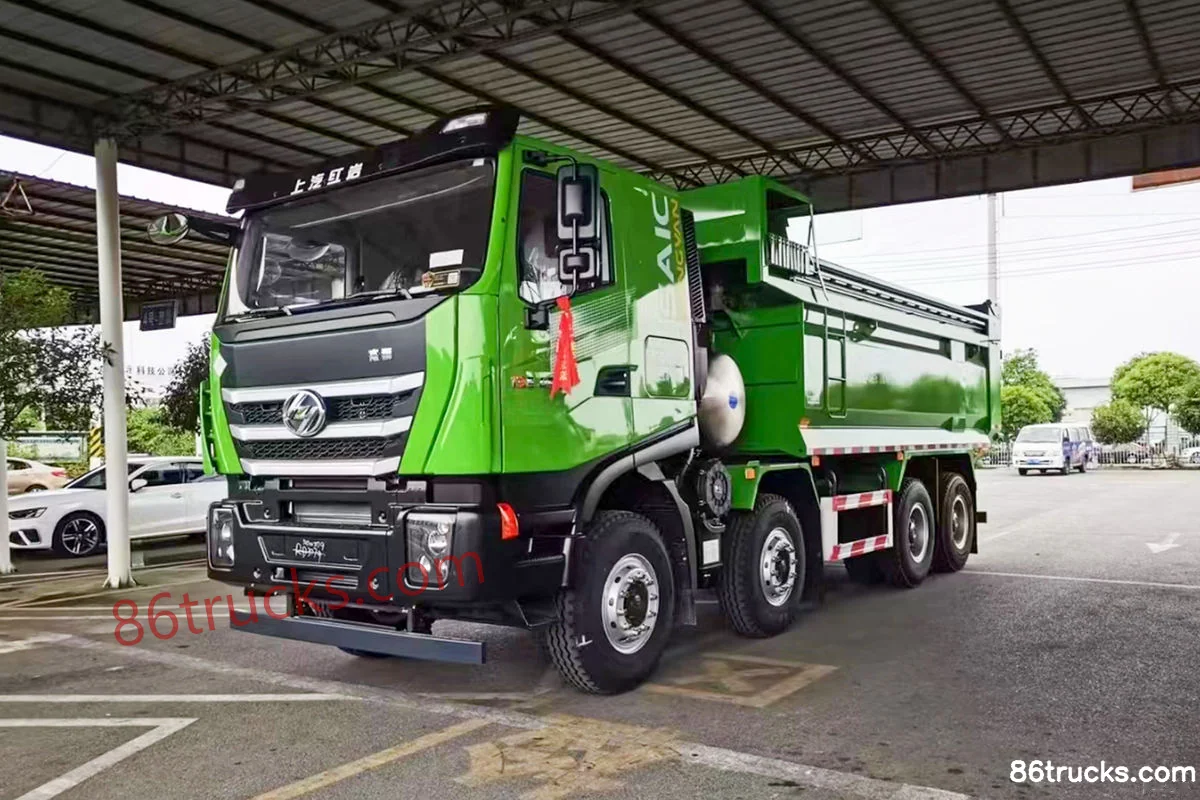

Photos

Exterior2

2 photos

FAQ

What is the export price of SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck, and what does it include?

SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck export reference is about From $77,597; MSRP is ¥55.87M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Key specs of SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck: Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck suited for?

SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck differ from other variants in the same series?

SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C6 460hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
