NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 1.7ton
Wheelbase:: 3400mm
Tire Size:: 185R14LT 8PR
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Horsepower 82
Cargo box type: Dump type

Overview

The NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck is a mini truck featuring 1.995t payload, 3.825t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-82C50 engine, 82 hp, China V emissions and Mengwo transmission.

China V 82 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040SDC34V
Drive type: 4X2
Wheelbase: 3400mm
engine: Quanchai4A2-82C50
transmission: Mengwo5H-28CY1KQS
Rear Axle Ratio: 3.909
Cab length: 4.75m
Cab width: 1.75m
Cab height: 2.05m
Front track width: 1410mm
rear track: 1280mm
Curb Weight: 1.7ton
Rated payload: 1.995ton
GVWR: 3.825ton
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 35°
departure angle: 23°
Remarks: EPS + active return, leather seat, with auxiliary transmission
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-82C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 220N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Longitudinal mounting
Transmission Parameters
Transmission Model: Mengwo5H-28CY1KQS
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 2TG
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.8m
Cargo box width: 1.65m
Cargo box height: 0.36m
Chassis Specs
Front axle description: 1028
Front axle allowable load: 1345kg
rear axle description: 1028
rear axle allowable load: 2480kg
Axle ratio: 3.909
Leaf spring count: 4/5
Tire
Tire Size: 185R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:

Photos

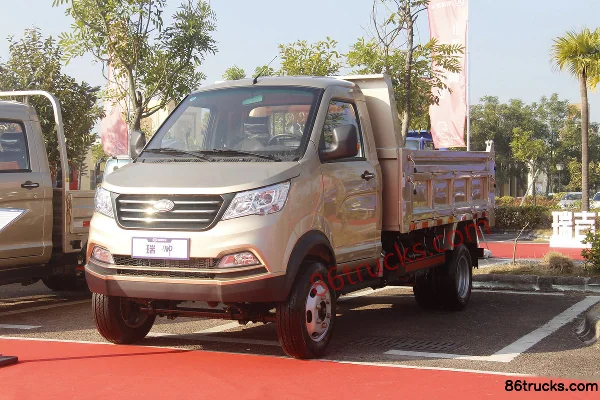

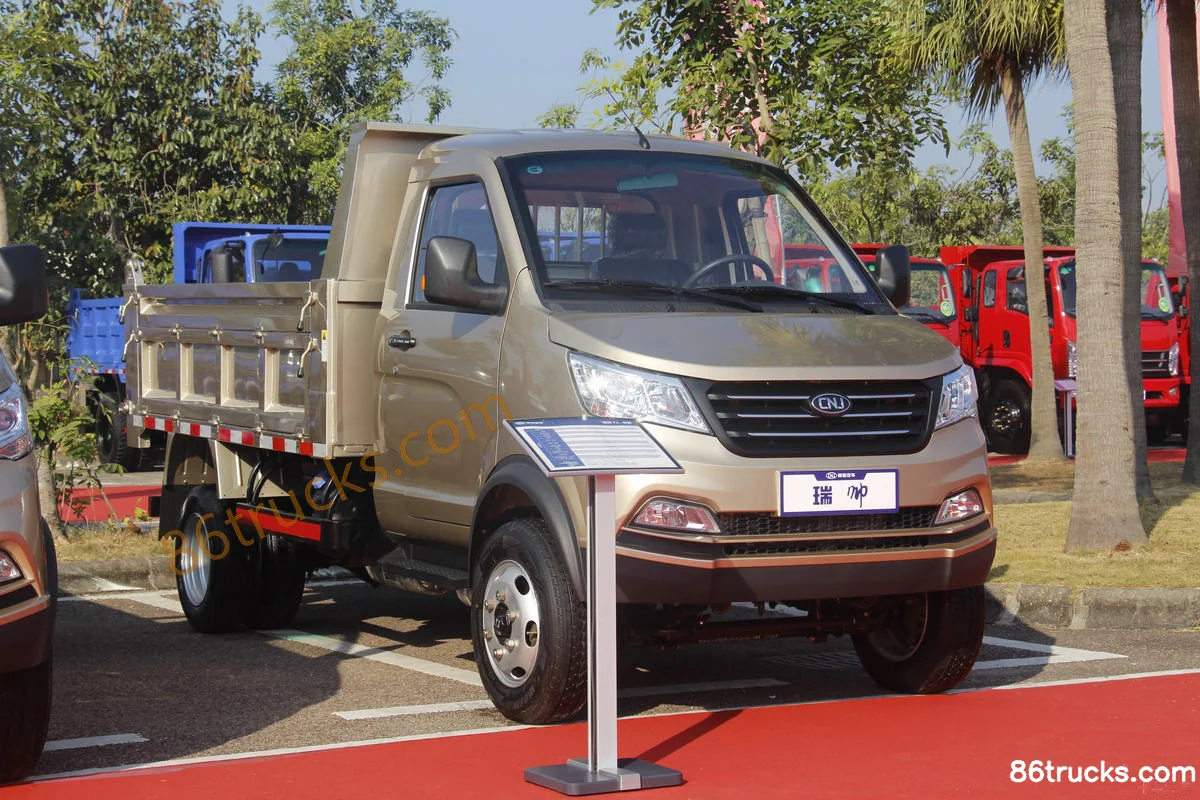

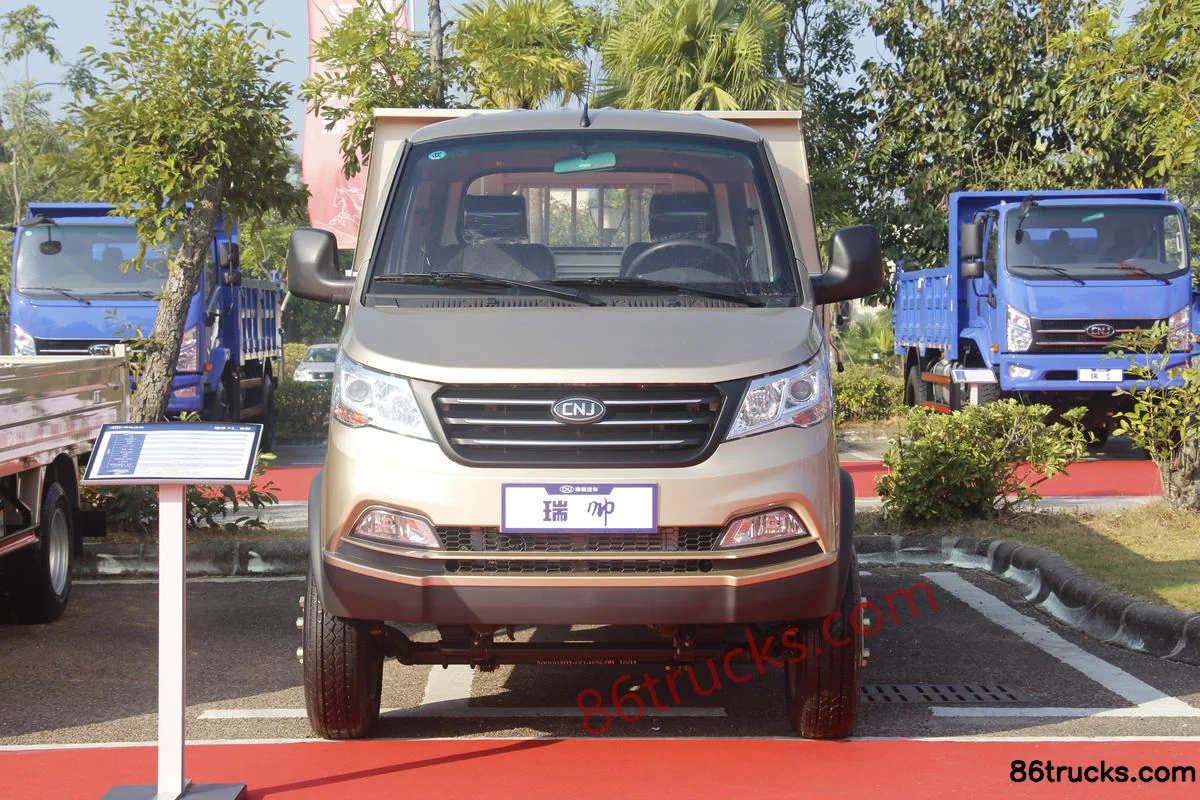

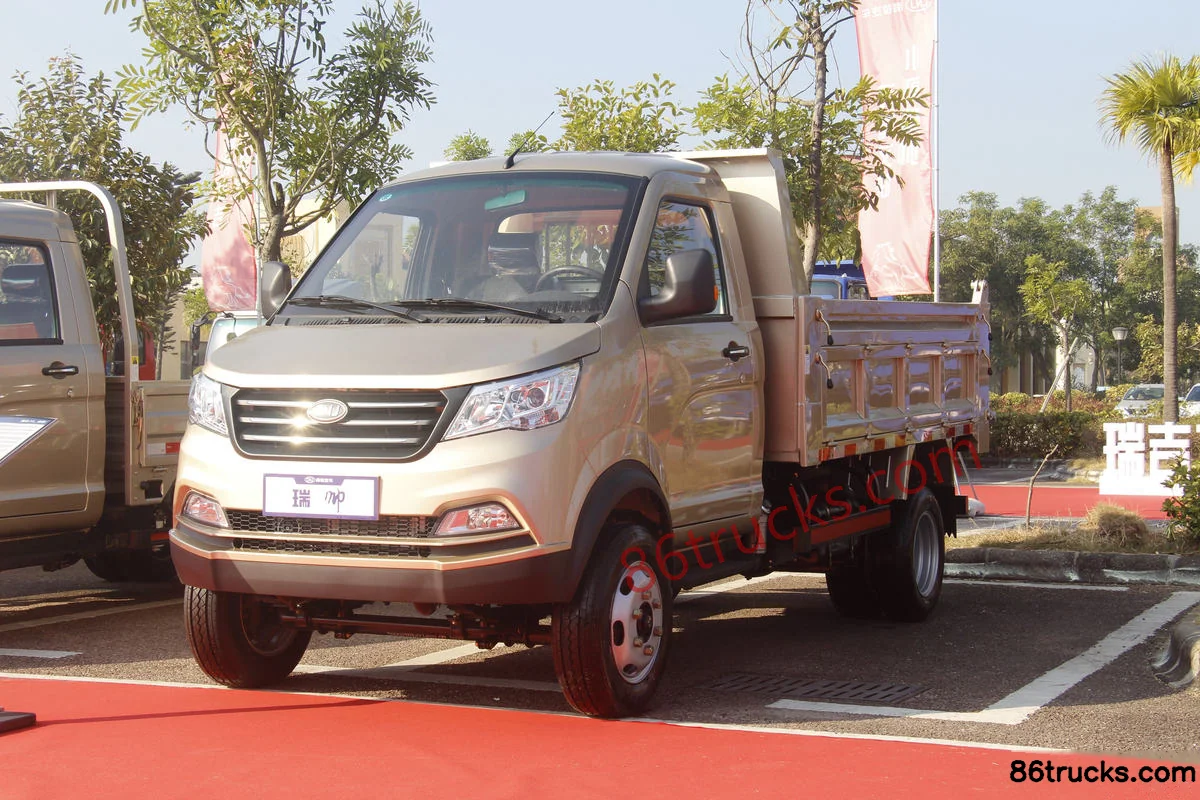

Exterior3

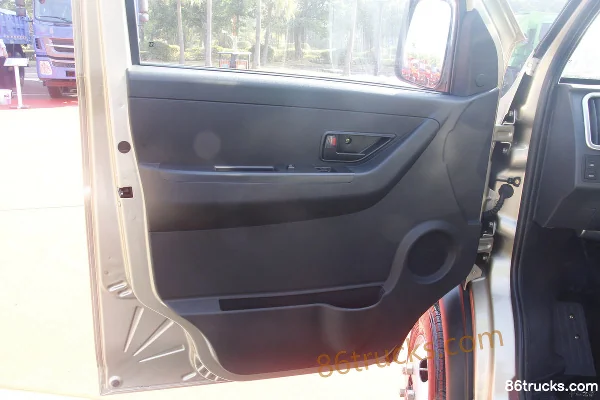

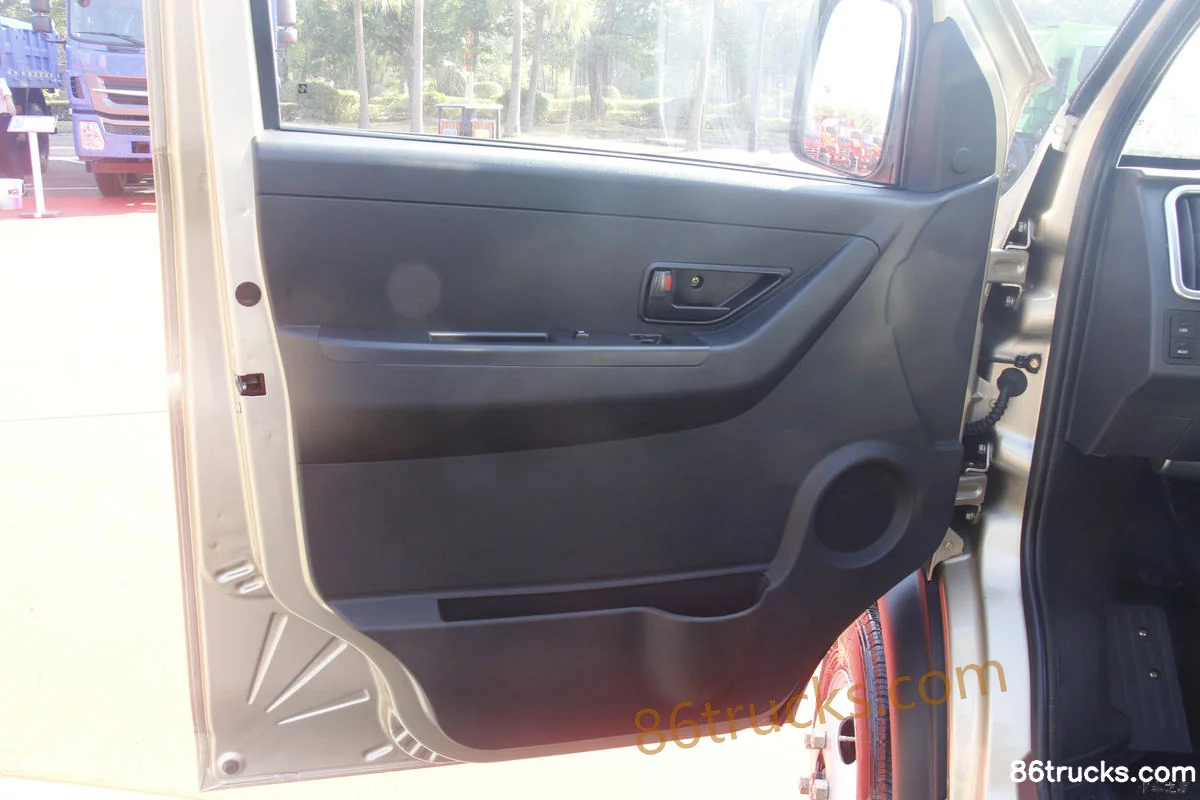

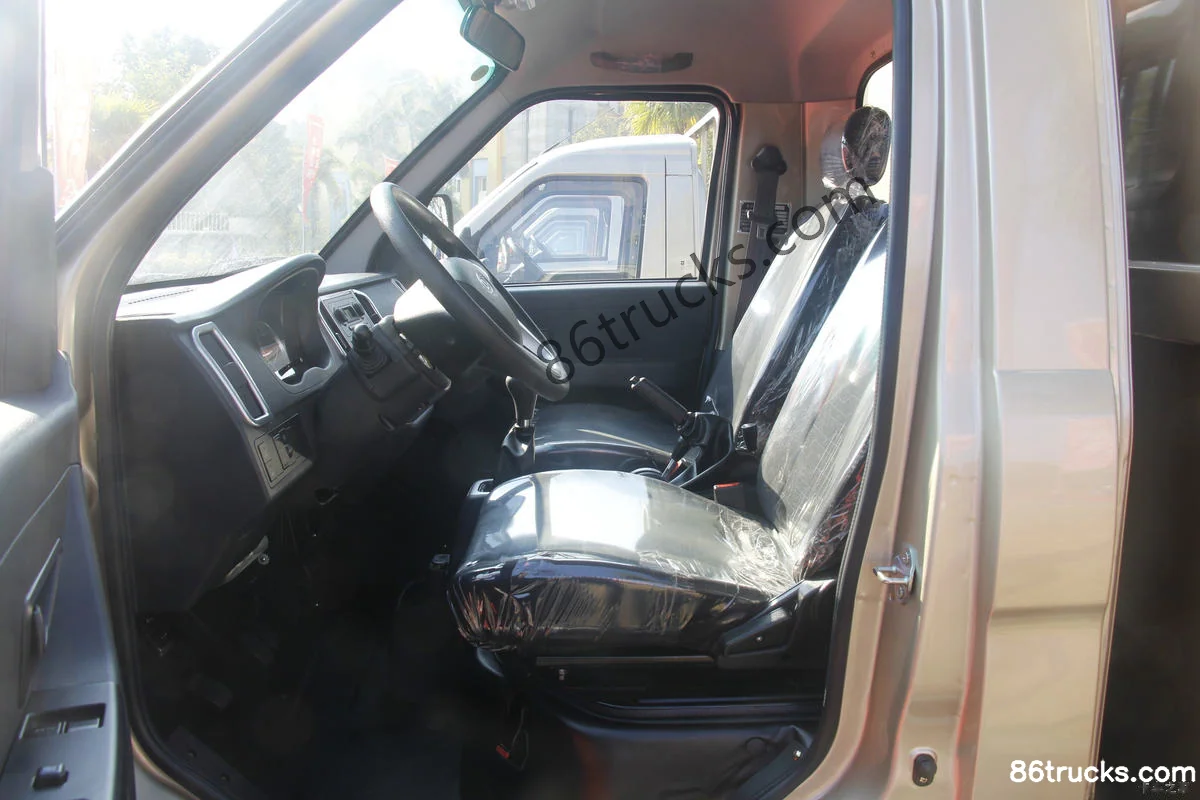

Cab3

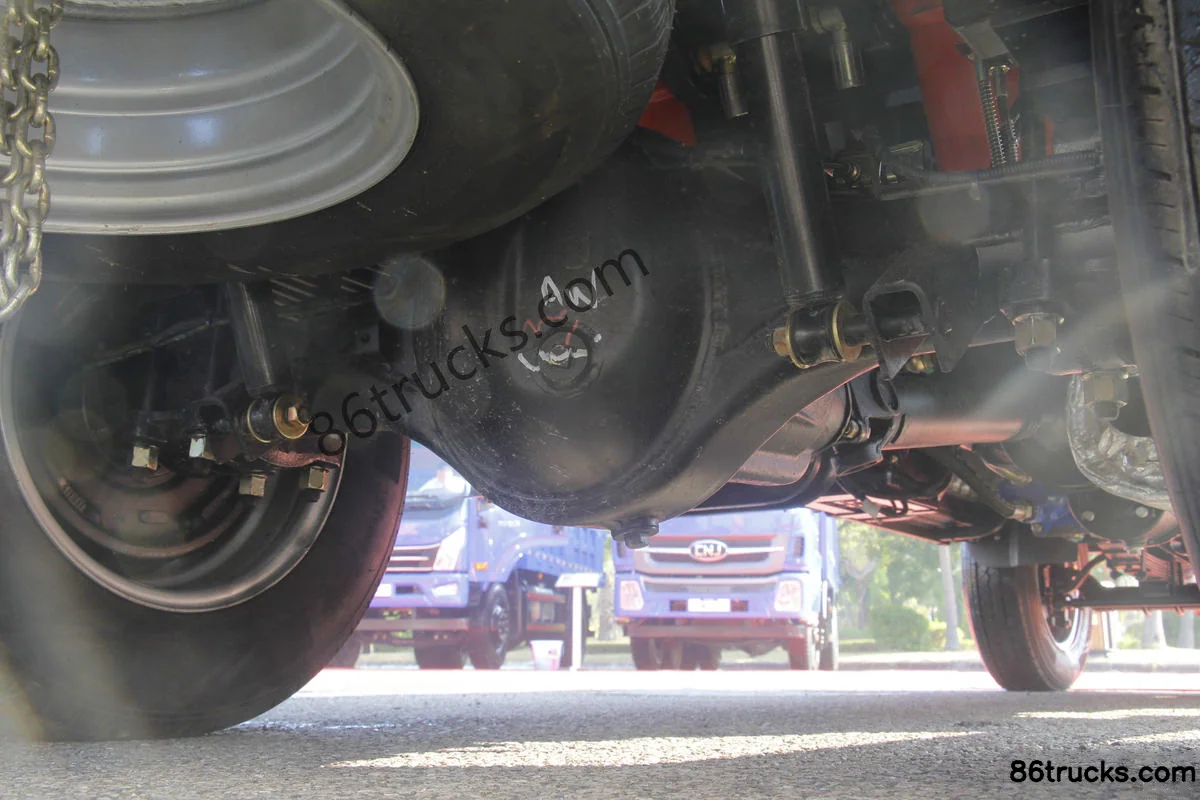

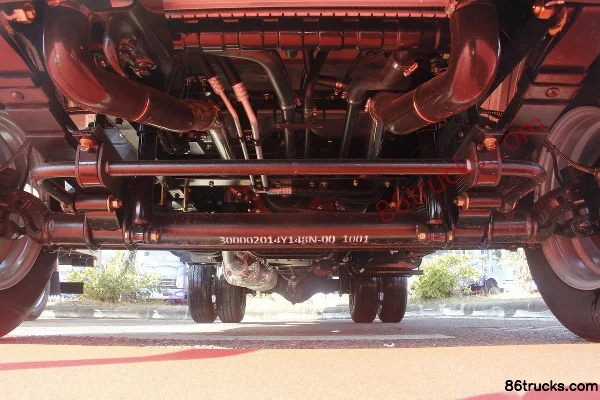

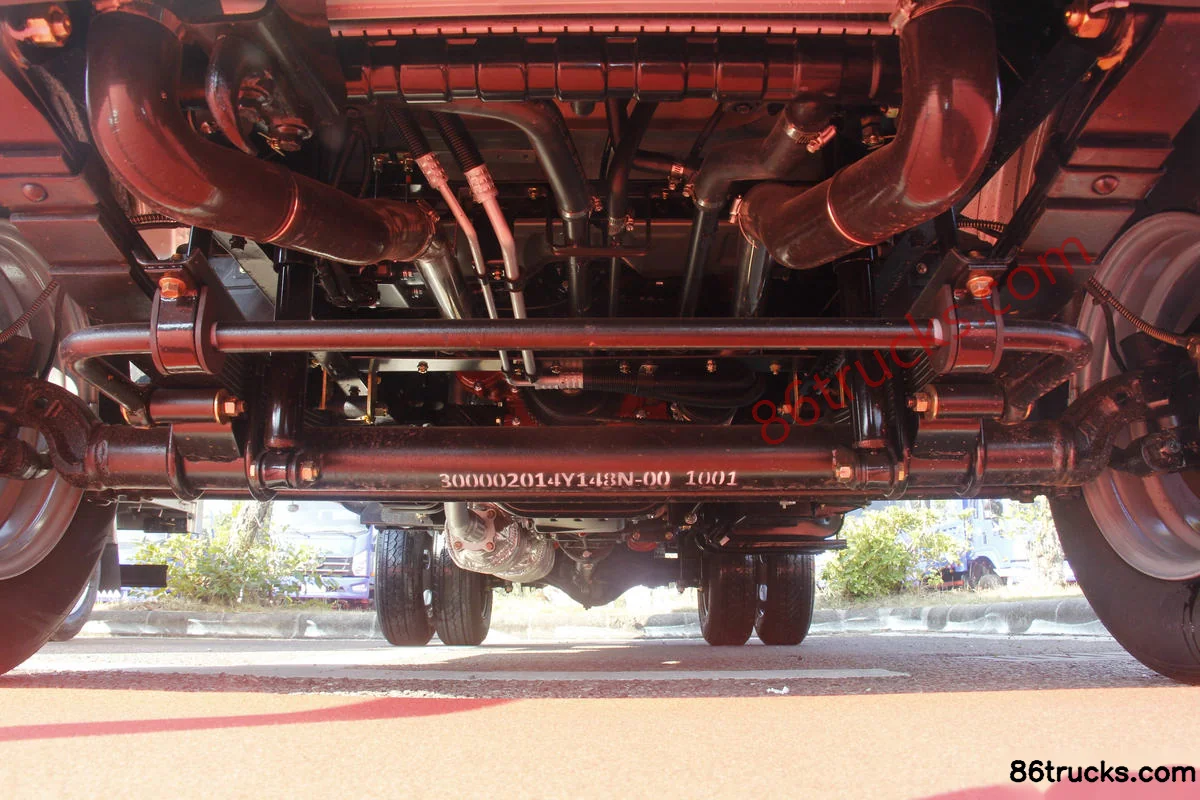

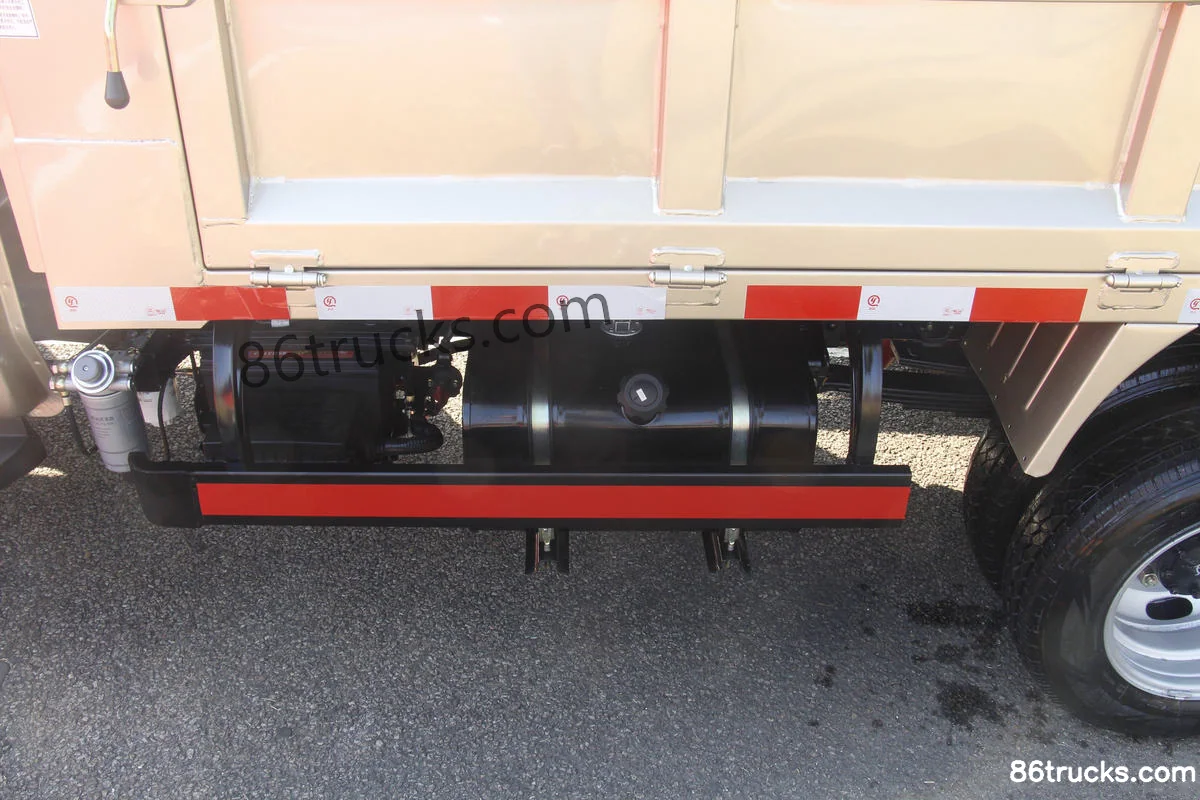

Chassis3

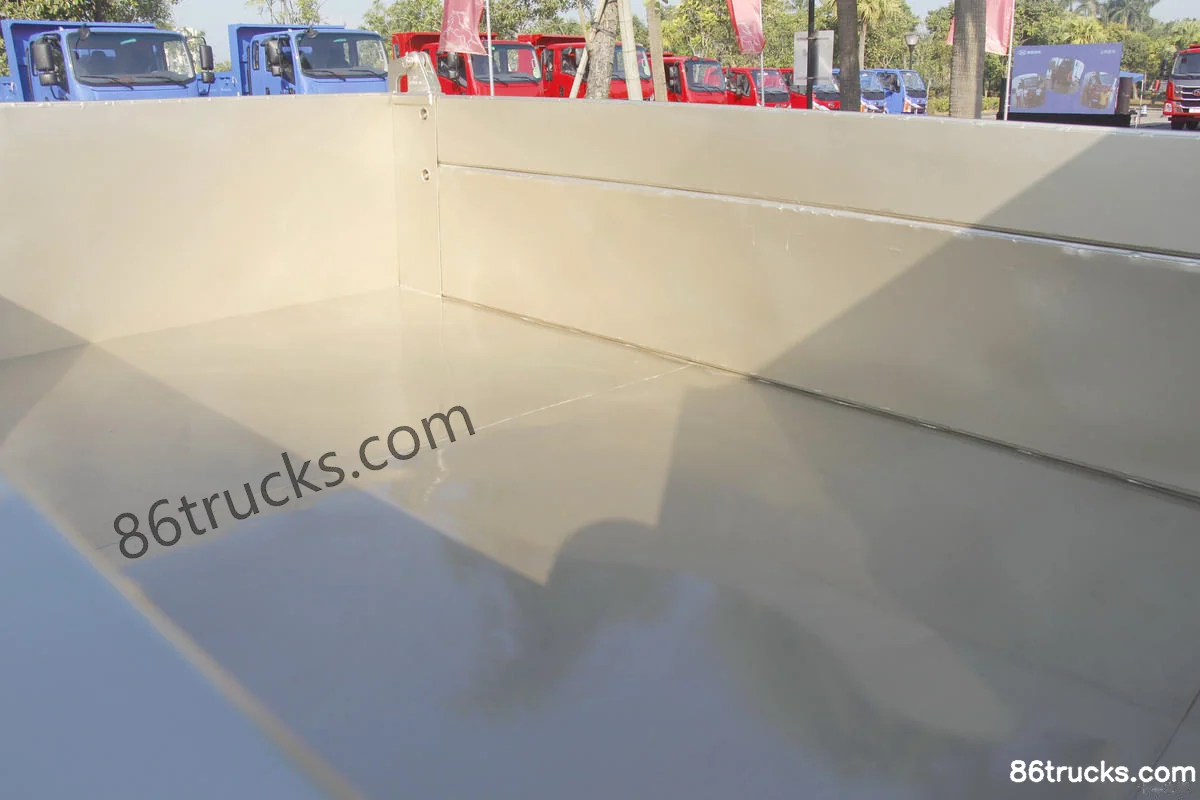

Body1

10 photos

FAQ

What emission standard does NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck?

Key specs of NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck: Drive: 4x2; Horsepower: 82 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck suited for?

NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck differ from other variants in the same series?

NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck belongs to NanJun Ruishuai F-Series Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruishuai F2 series flagship version 82hp 4X2(6 wheels) 3.4m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
