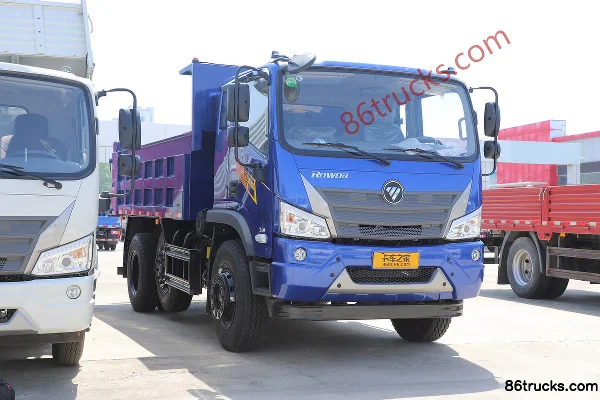

Foton KingKong 270hp 6X2(8 wheels) 4.05m Dump Truck (Lifting Axle)
EXW
From $37,000
Export quote
Foton Jingangpao Medium Truck Dump Trucks
Main model photos
21 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton KingKong 270hp 6X2(8 wheels) 4.05m Dump Truck (Lifting Axle) | 6x2 / 270hp / China VI | From $37,000 | |
| Foton KingKong 245hp 6X2(8 wheels) 4.8m Dump Truck (Lifting Axle) | 6x2 / 245hp / China VI | From $35,653 | |
| Foton KingKong 245hp 6X2(8 wheels) 4.5m Dump Truck (Lifting Axle) | 6x2 / 245hp / China VI | From $35,639 | |
| Foton KingKong 245hp 6X2(8 wheels) 4.35m Dump Truck (Lifting Axle) | 6x2 / 245hp / China VI | From $35,361 | |
| Foton Jingangpao 245 hp 6X2(8 wheels) 4.05m dump truck (suspension axle) | 6x2 / 245hp / China VI | From $35,306 |
Foton KingKong 245hp 6X2(8 wheels) 4.8m Dump Truck (Lifting Axle)
EXW
From $35,653
Export quote
Foton KingKong 245hp 6X2(8 wheels) 4.5m Dump Truck (Lifting Axle)
EXW
From $35,639
Export quote
Foton KingKong 245hp 6X2(8 wheels) 4.35m Dump Truck (Lifting Axle)
EXW
From $35,361
Export quote
Foton Jingangpao 245 hp 6X2(8 wheels) 4.05m dump truck (suspension axle)
EXW
From $35,306
Export quote
Series Specs
Basic Info
Model code (announced): BJ3254DMPHB-77 / BJ3244DNPFB-04
Drive type: 6X2
Wheelbase: 2400+1200 / 3000+1200 / 2700+1200 / 2550+1200 / 2800+1200mm
Engine Model: YuchaiYCS06270-60 / YuchaiYCS06245-60 / YuchaiYCK05240-60
Transmission Model: Fast Gear10JSD120T / Fast Gear10JS90-B / 10-speed transmission
Rear Axle Ratio: 4.875
Cab length: 6.44 / 7.04 / 6.74 / 6.59 / 7.14m
Cab width: 2.42 / 2.51 / 2.25 / 2200m
Cab height: 3.15 / 2.8m
Front track width: 1965 / 1872mm
rear track: 1810/1790 / 1810/1740mm
Curb Weight: 9 / 9.895 / 9.6 / 9.3 / 8.75 / 9.2ton
Rated payload: 15.805 / 14.91 / 15.205 / 15.505 / 15.555 / 14.805ton
GVWR: 25 / 24.5ton
Origin: Shandong Zhucheng
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 20 / 19°
departure angle: 13 / 14°
Remarks: Optional 5.286 ratio / Optional 4.44/5.286 ratio
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 6.23 / 5.13L
Emission standard: China VI
Max output power: 199 / 180 / 176kW
Max hp: 270 / 245 / 240Horsepower
Max torque: 1050 / 850 / 900N·m
Max torque speed: 1200-1700 / 1200-1600rpm
Rated speed: 2300 / 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.05 / 4.8 / 4.5 / 4.35 / 4.1m
Cargo box width: 2.35 / 2.3 / 2.2m
Cargo box height: 1 / 1.2 / 0.9m
Body Parameters
Lifting type: Double Lift Cylinder
FAQ
What kind of truck is Foton Foton Jingangpao Medium Truck Dump Trucks?
Foton Foton Jingangpao Medium Truck is an export-oriented Dump Trucks lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Jingangpao Medium Truck Dump Trucks?
Foton Jingangpao Medium Truck Dump Trucks export reference is about $30,083 – $37,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Jingangpao Medium Truck Dump Trucks cover?
Foton Jingangpao Medium Truck Dump Trucks mainly covers: Drive: 6x2; Horsepower: 245 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Jingangpao Medium Truck Dump Trucks?
For Foton Jingangpao Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Jingangpao Medium Truck Dump Trucks include?
Foton Jingangpao Medium Truck Dump Trucks currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Jingangpao Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
