Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck)

Export reference
From $25,000
MSRP ¥18M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 5.595ton
Wheelbase:: 3800mm
Tire Size:: 8.25R20
Rated payload: 6.2ton
Drive 4X2 (6 wheels)
Horsepower 154
Cargo box type: Dump type

Overview

The Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) is a Light Truck featuring 6.2t payload, 11.99t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a FotonISF3.8S4R154 engine, 154 hp, China IV emissions and WLY transmission.

China IV 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BZD3110BJKMS
Drive type: 4X2
Wheelbase: 3800mm
engine: FotonISF3.8S4R154
transmission: WLYWLY8S90A
Rear Axle Ratio: 5.286
Cab length: 6.8m
Cab width: 2.26m
Cab height: 2.54m
Front track width: 1710mm
rear track: 1680mm
Curb Weight: 5.595ton
Rated payload: 6.2ton
GVWR: 11.99ton
Origin: Beijing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 13°
Version: Urban Construction & Muck
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8S4R154
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 500N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
Transmission Parameters
Transmission Model: WLYWLY8S90A
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cargo box material: high-strength plate
Cab parameters
Cab: Flat roof
Cab suspension: 4-point mechanical suspension
Cab width: 2200mm
Cab tilting: Manual
Driver seat type: Mechanical suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 4200kg
rear axle description: Dongfeng
rear axle allowable load: 7790kg
Axle ratio: 5.286
Leaf spring count: 9/11+7
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

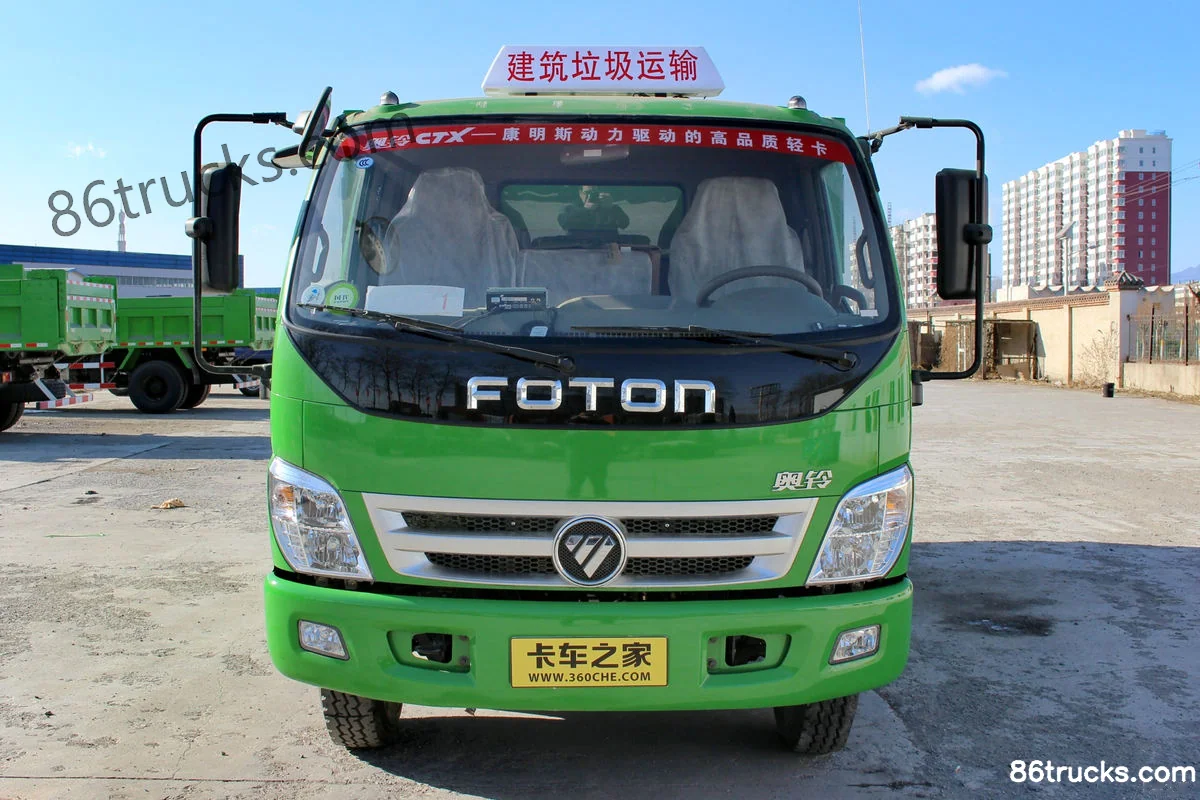

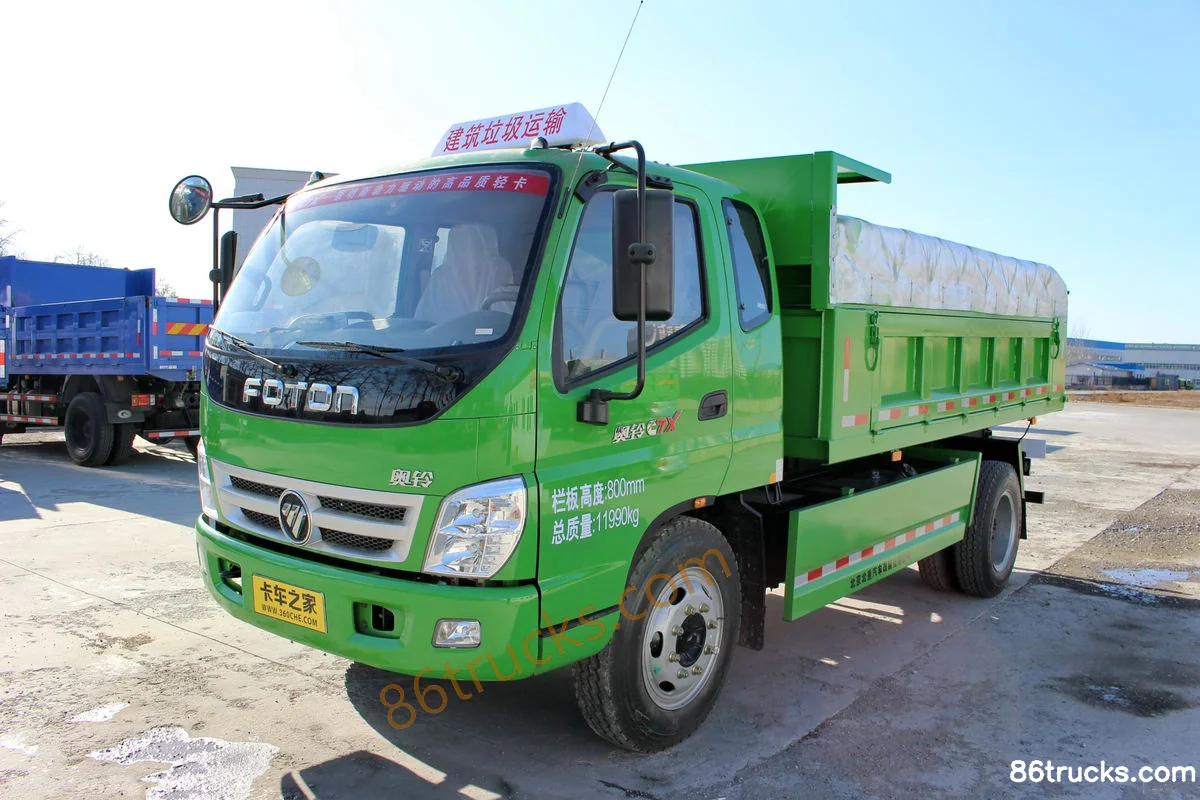

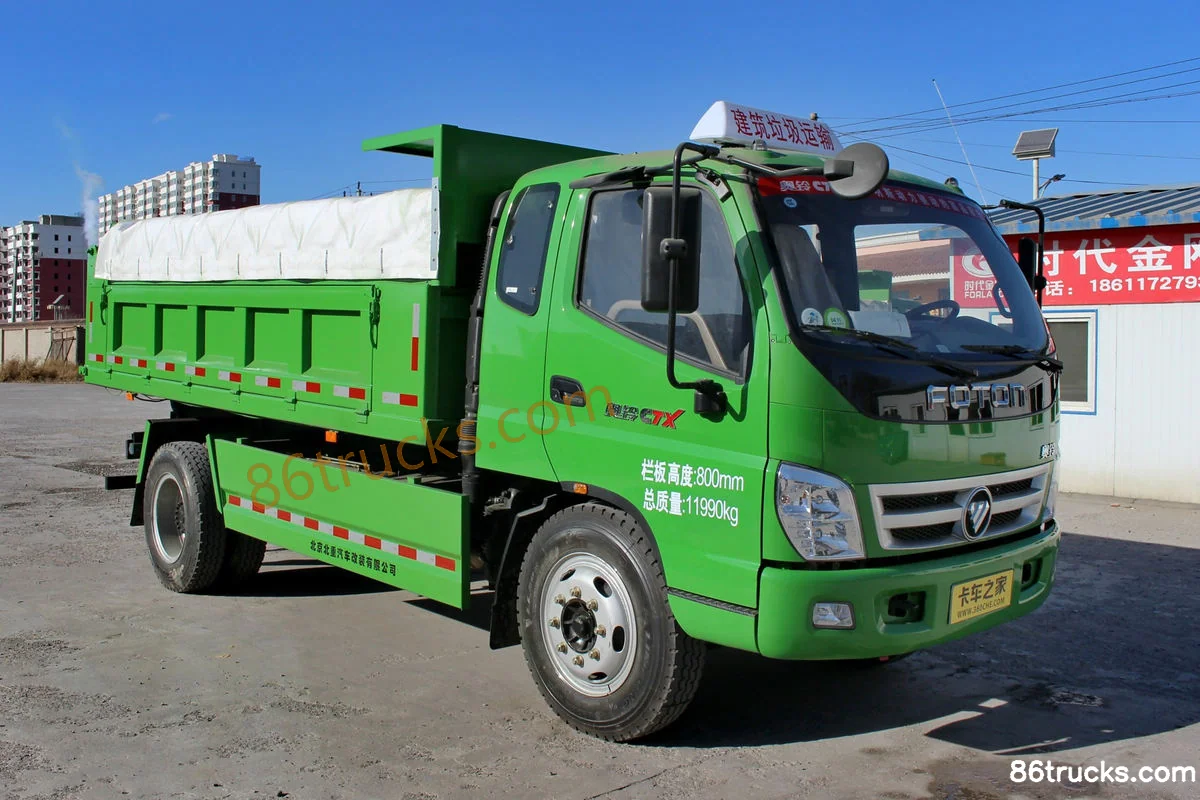

Exterior3

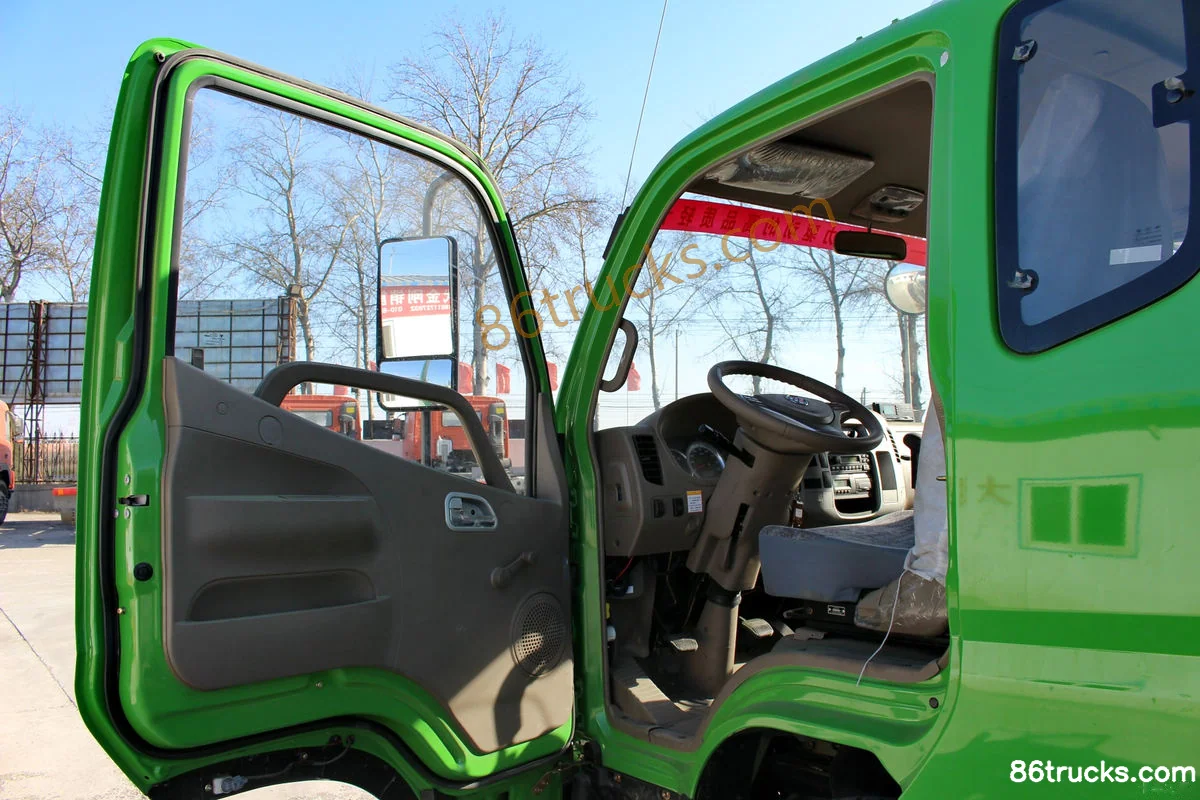

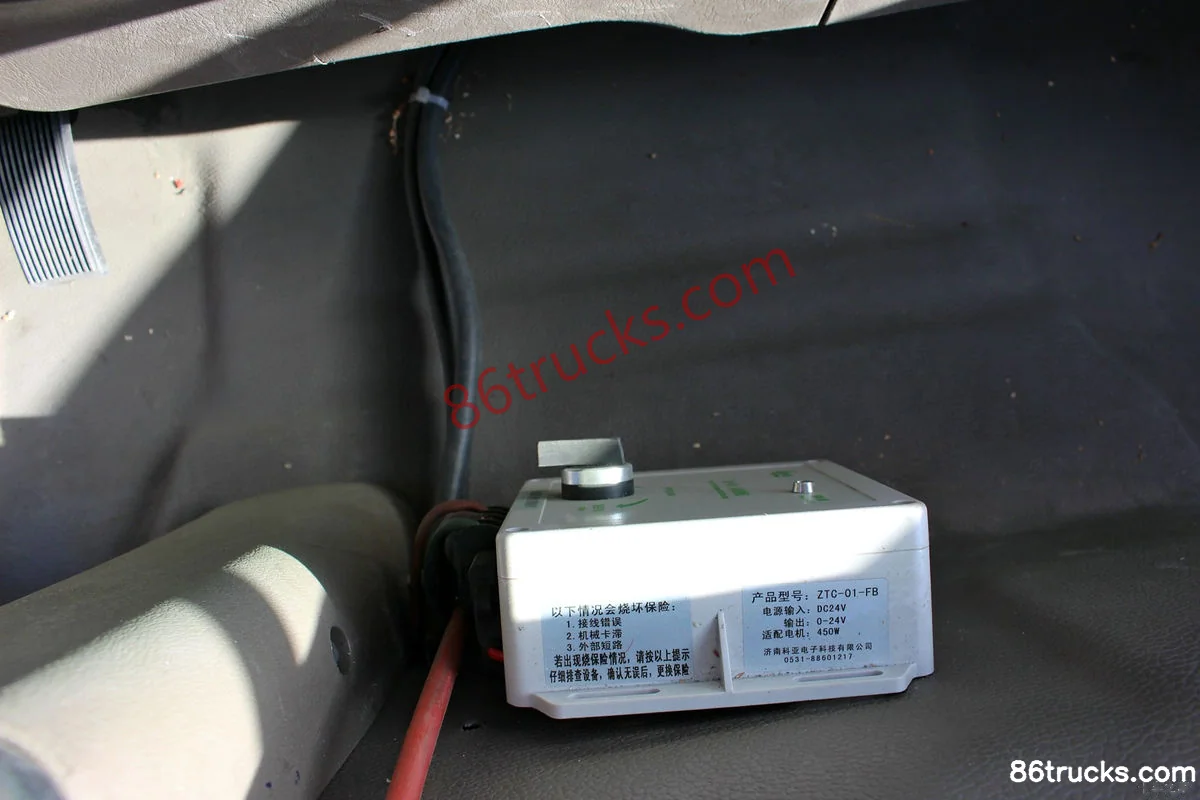

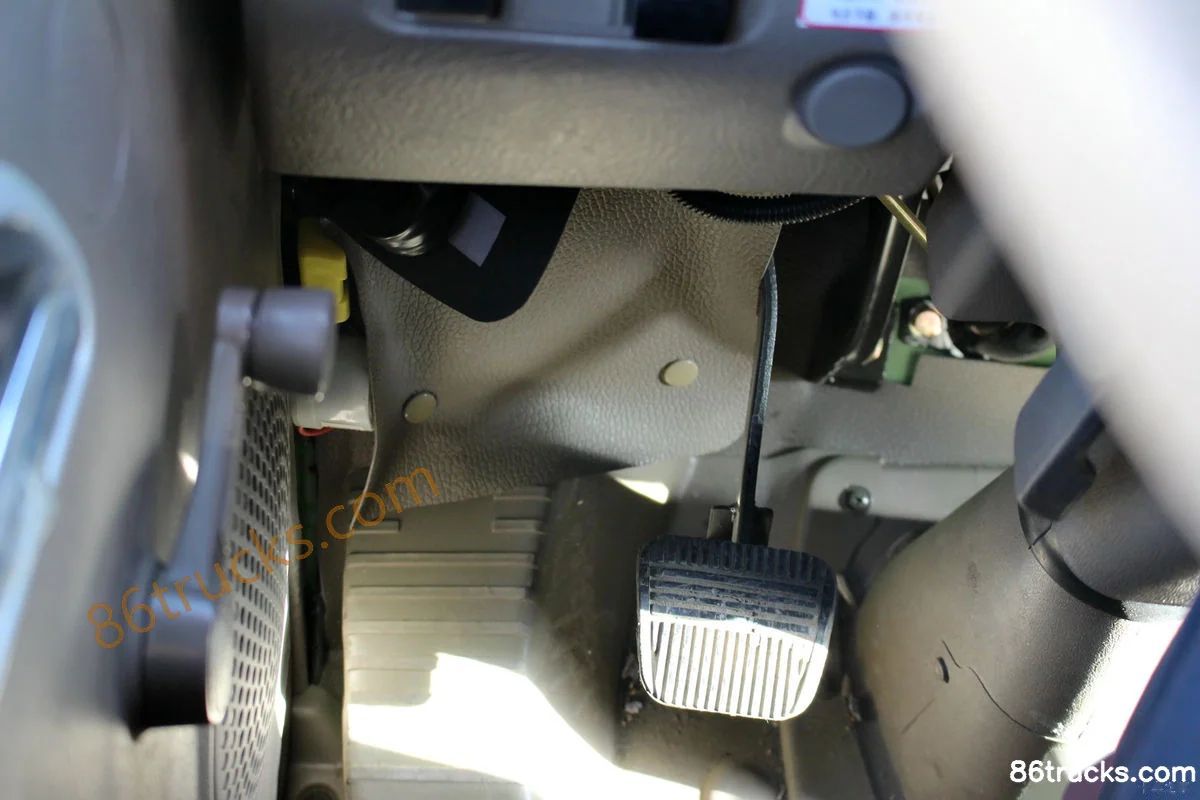

Cab3

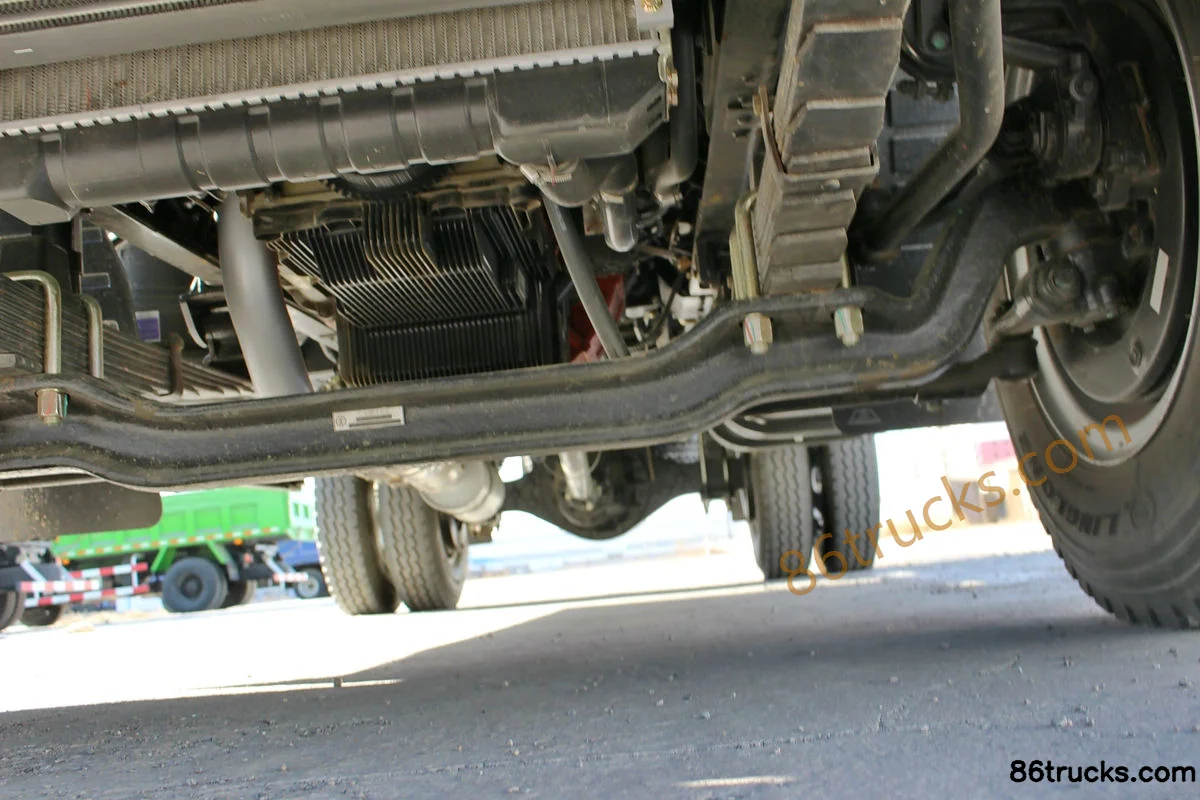

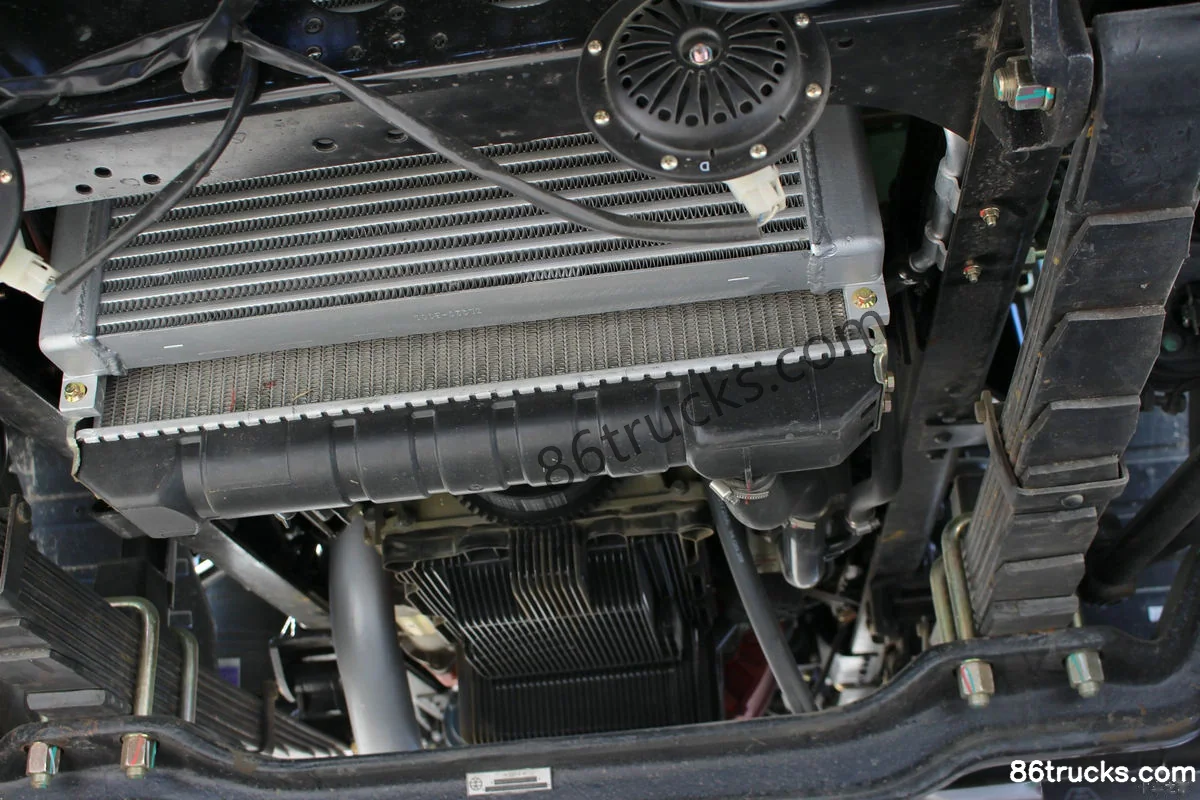

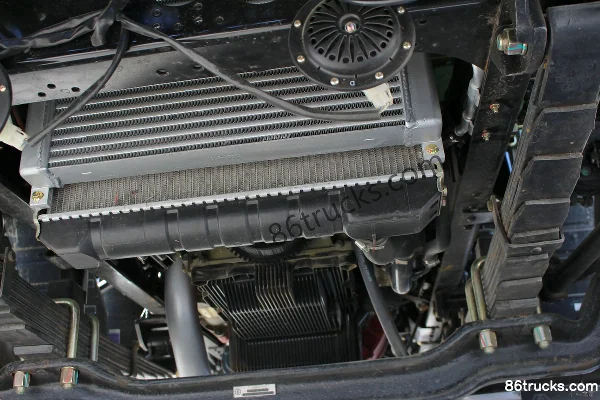

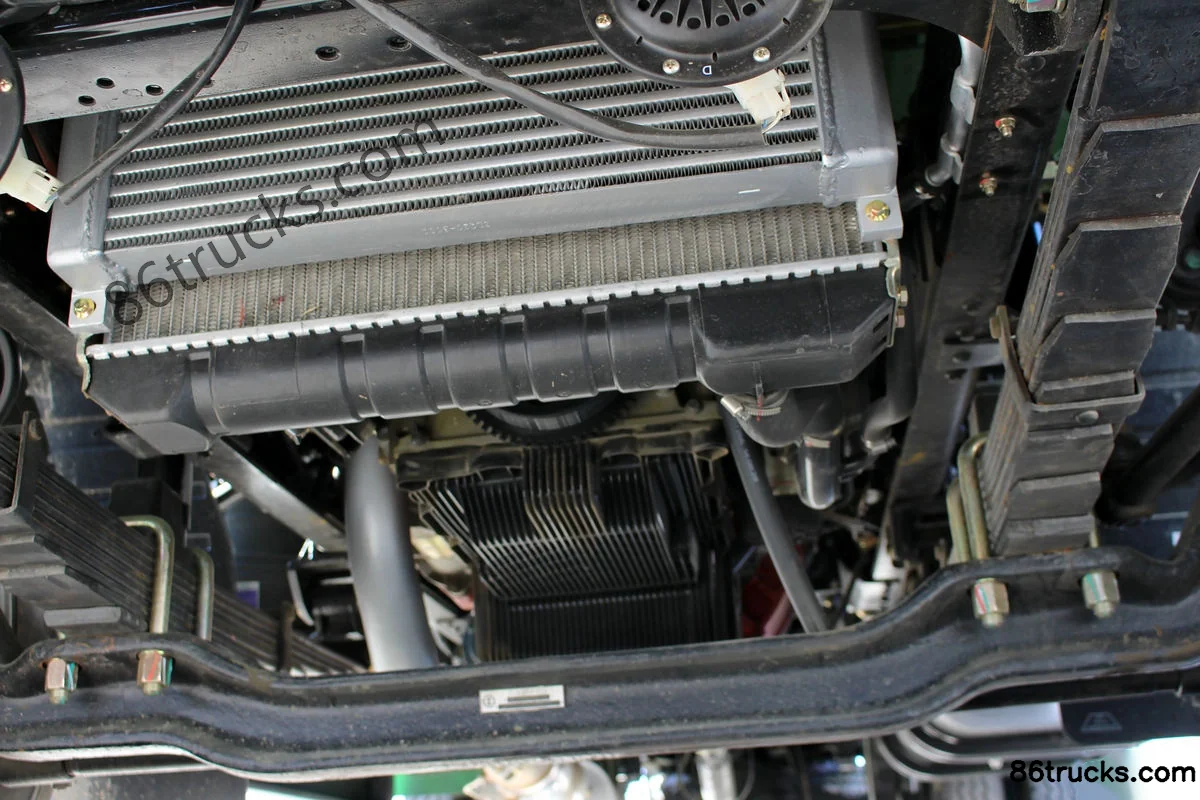

Chassis3

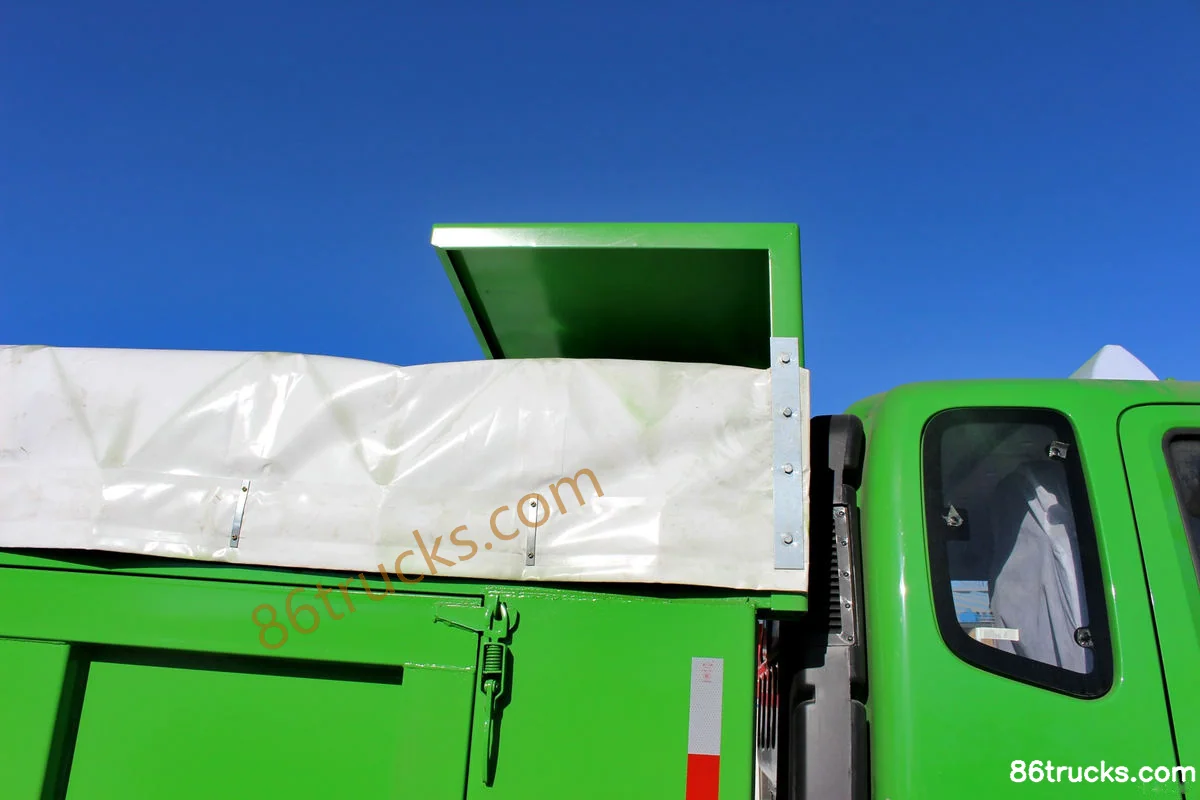

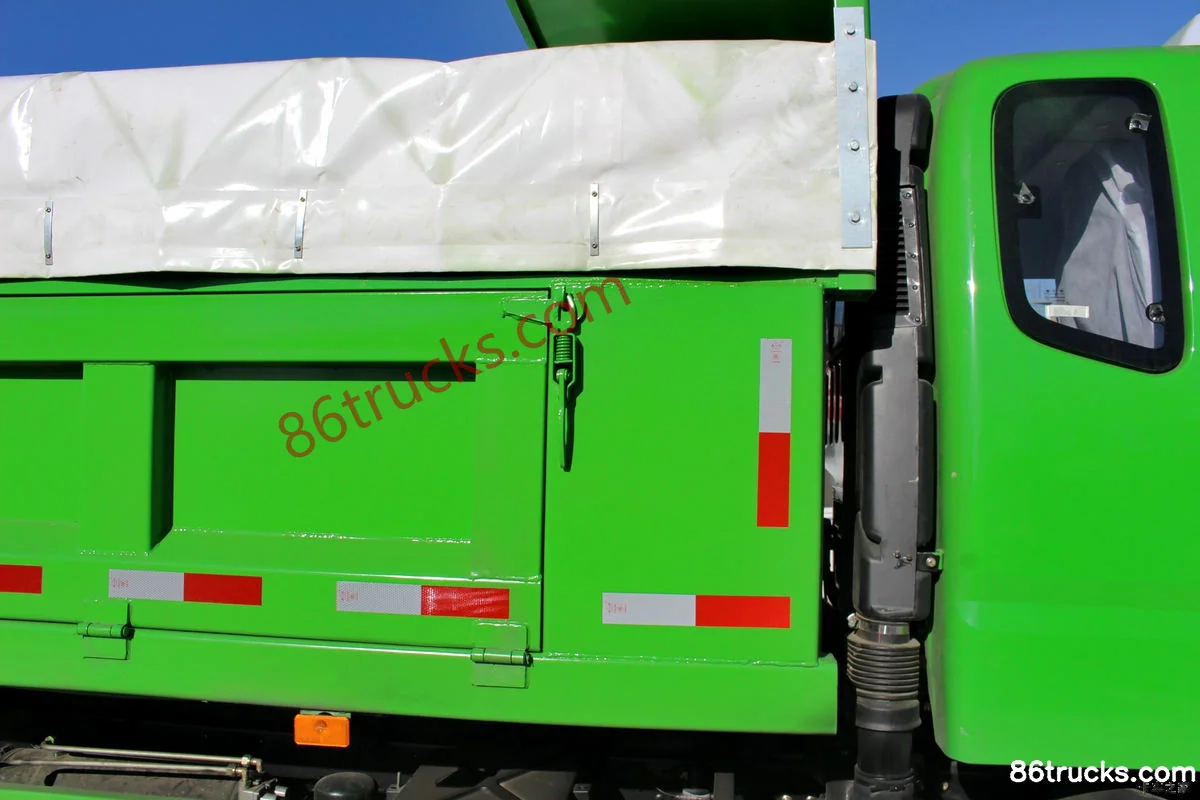

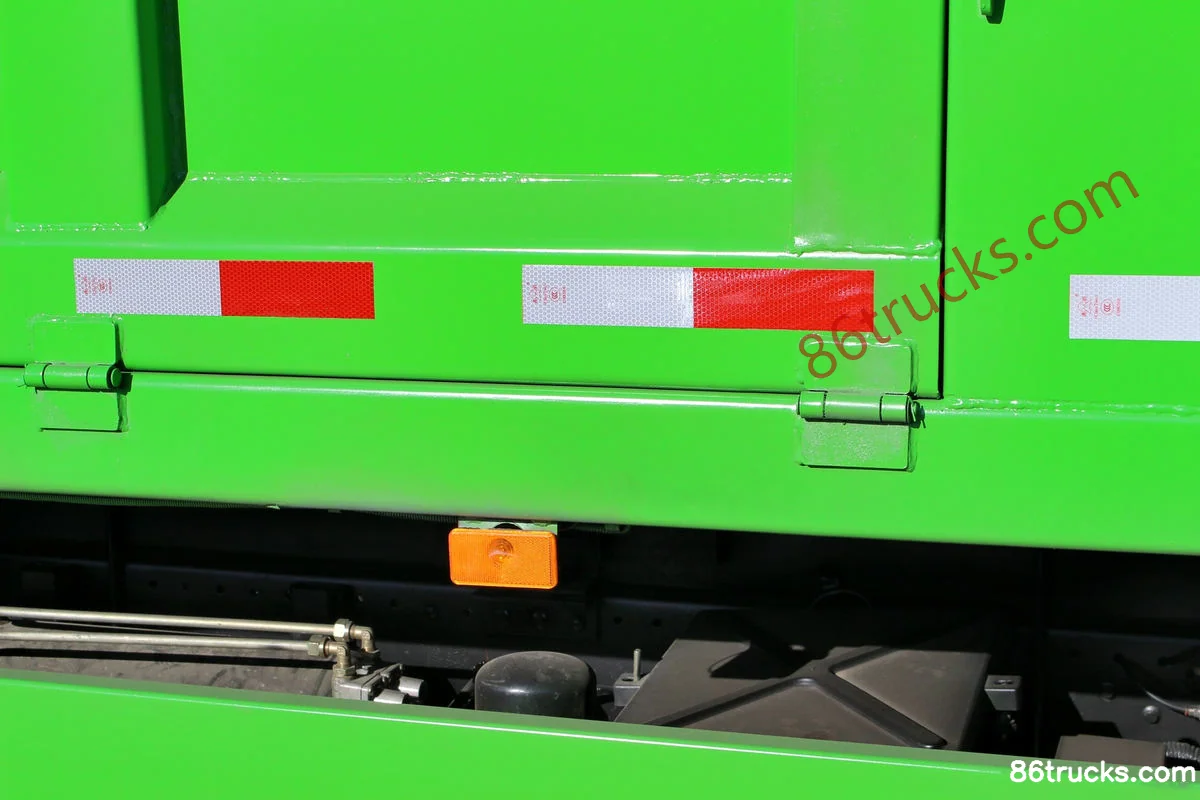

Body3

12 photos

FAQ

What is the export price of Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck), and what does it include?

Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) export reference is about From $25,000; MSRP is ¥18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck)?

Key specs of Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck): Drive: 4x2; Horsepower: 154 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) suited for?

Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) differ from other variants in the same series?

Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck) belongs to Foton CTX Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman CTX 156 hp 4X2(6 wheels) 4.5m Dump Truck (New Type Muck Truck)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
