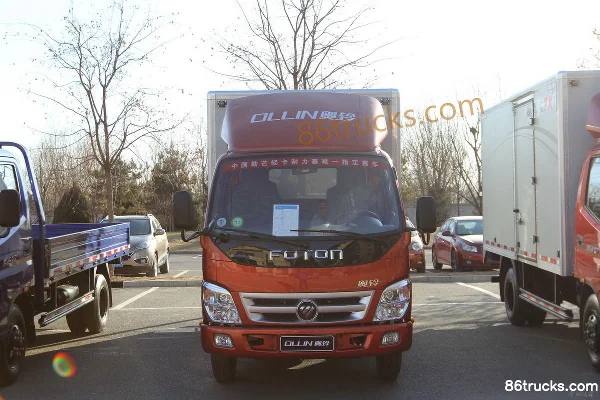

Foton Aoling CTX 131 hp 4X2(6 wheels) 3.8m semi-row stake truck (with air brake)

Export reference
From $16,458
MSRP ¥11.85M CNY
Horsepower: 129
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling CTX 131 hp 4X2(6 wheels) 3.8m semi-row stake truck (with air brake) is a Light Truck featuring 3.8m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 2.8 engine, 129 hp, 4X2 (6 wheels) drive and China V emissions.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5043CCY-FE
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonISF2.8s5129T
transmission: WLYWLY5G40
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.15m
Cab height: 3m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: Base ratio/manual tilt/MP3/knit standard seat
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5129T
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 96kW
Max hp: 129Horsepower
Max torque: 300N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY5G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 2.05m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: Flat roof
Cab width: 1995mm
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 170×60×5mm
rear axle description: 5T
rear axle allowable load: 2695kg
Axle ratio: 5.375
Leaf spring count: 3+1/6+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
