JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.92ton
Wheelbase:: 2850mm
Cargo box type:: Van body
Model code (announced):: HFC5031XXYEV2
Type:: enclosed cargo truck
Box length class:: 3.5m
JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 325km
Motor 1 Brand: Anhui JEE
Curb Weight: 2.07ton

Overview

The JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) is a mini truck featuring 325km battery/range, Anhui JEE motor, 4X2 (6 wheels) drive and 0.92t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5031XXYEV2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.5m
Cab length: 5.605m
Cab width: 1.66m
Cab height: 2.65m
CLTC range: 325km
Curb Weight: 2.07ton
Rated payload: 0.92ton
GVWR: 3.12ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Anhui JEE
Motor 1 Model: TZ200XSJHC
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 36kW
Peak power: 80kW
total rated torque: 115N·m
total peak torque: 270N·m
Battery/Charging
Battery Brand: Jiangxi Hengdong
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 163.2V
fast charge time: 1.5h
Battery capacity: 58.752kWh
Battery total voltage: 313.6V
Battery Model: DFE1631802A0
Slow charge time: 10h
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.5m
Cargo box width: 1.61m
Cargo box height: 1.75m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1363kg
rear axle allowable load: 1757kg
Tire
Tire Size: 175/75R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

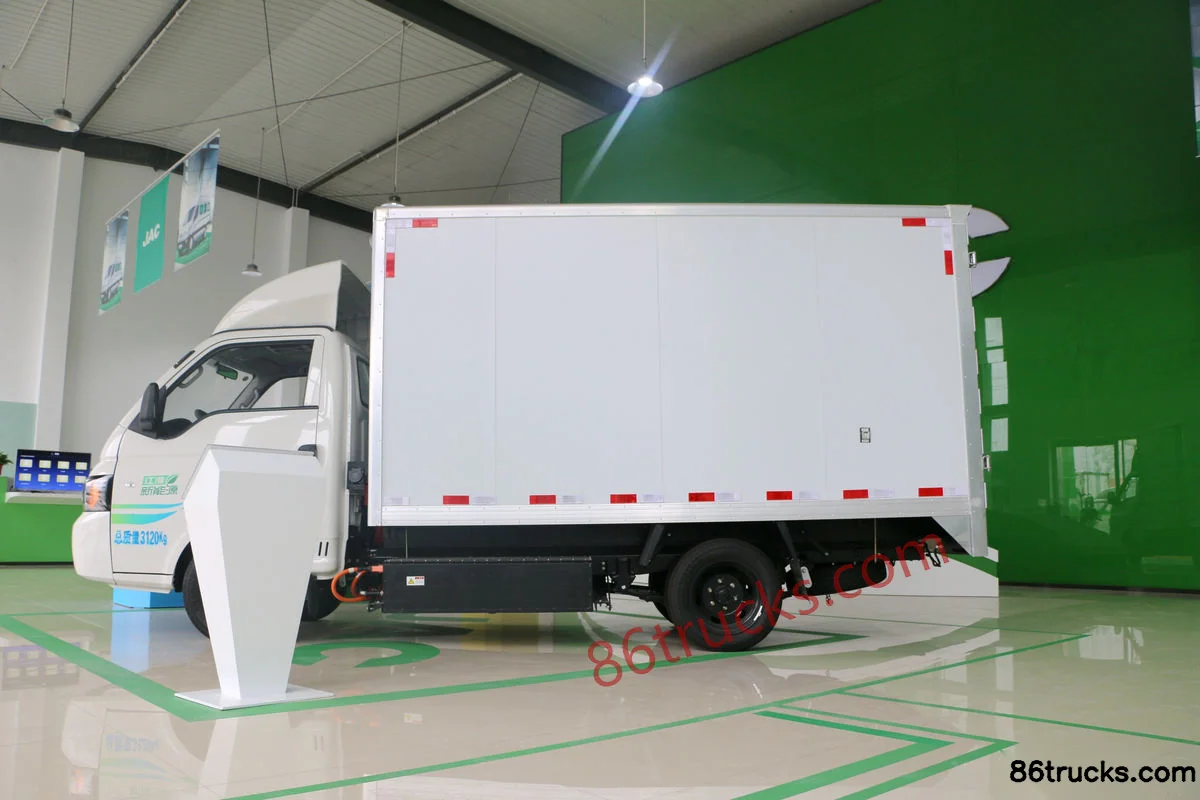

Exterior3

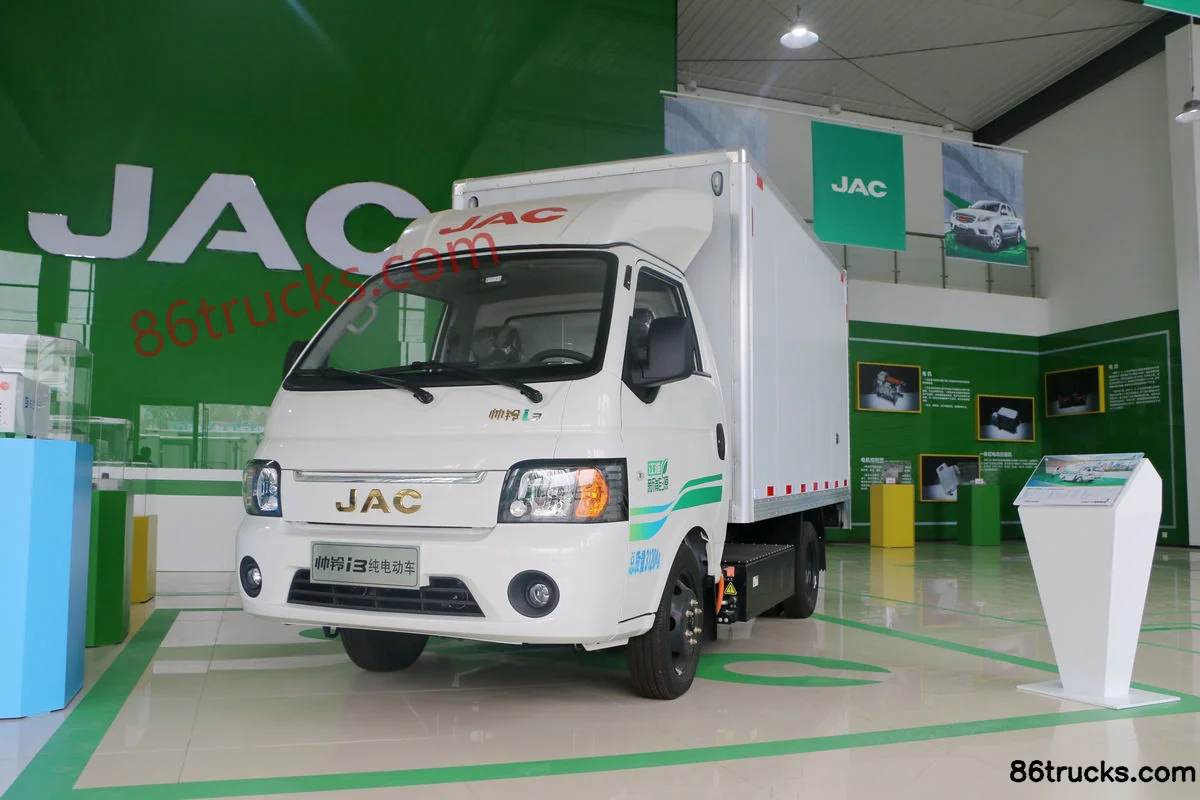

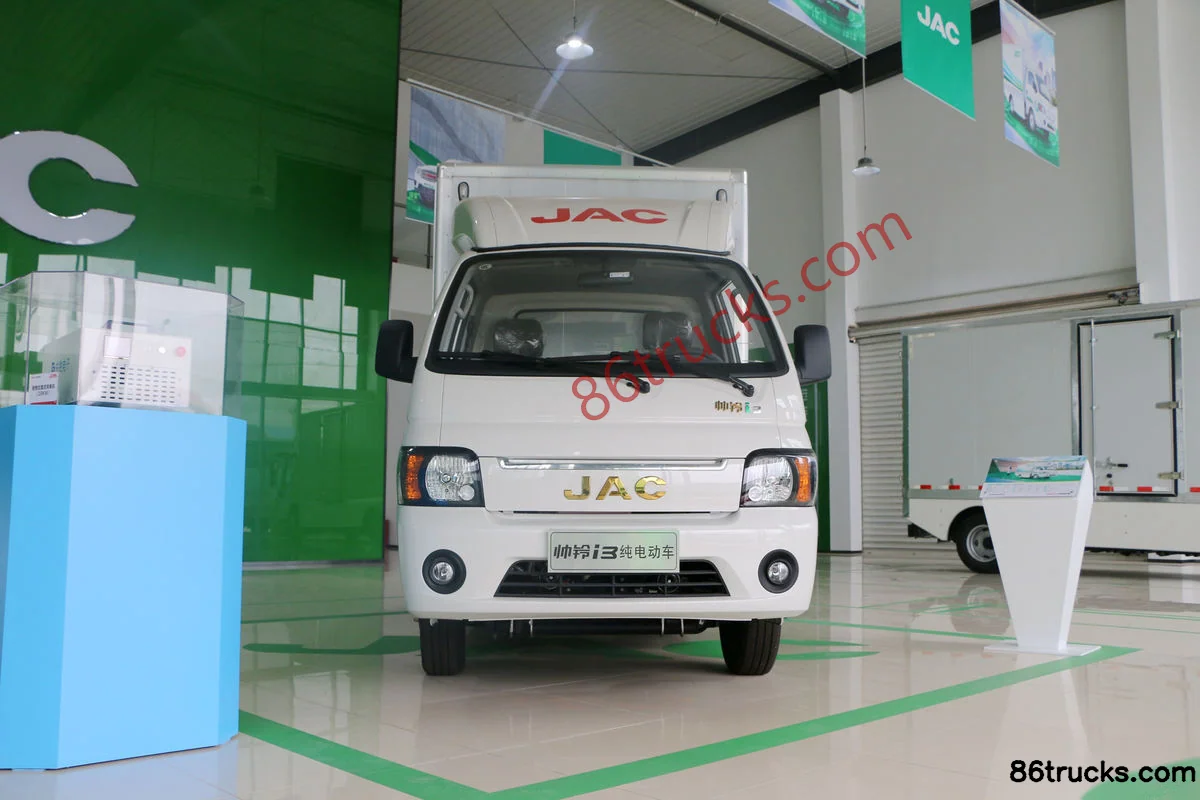

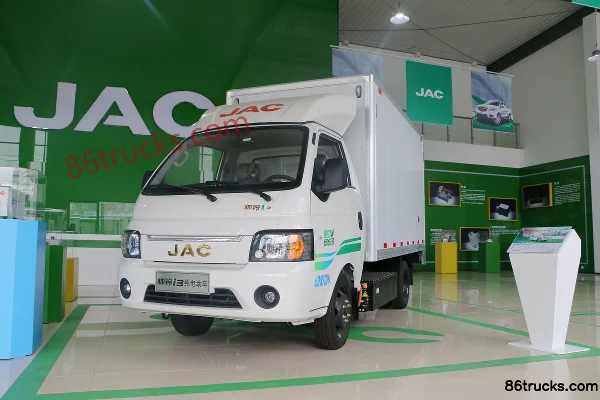

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Exterior (1) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Exterior (2) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Exterior (3) | 86Trucks

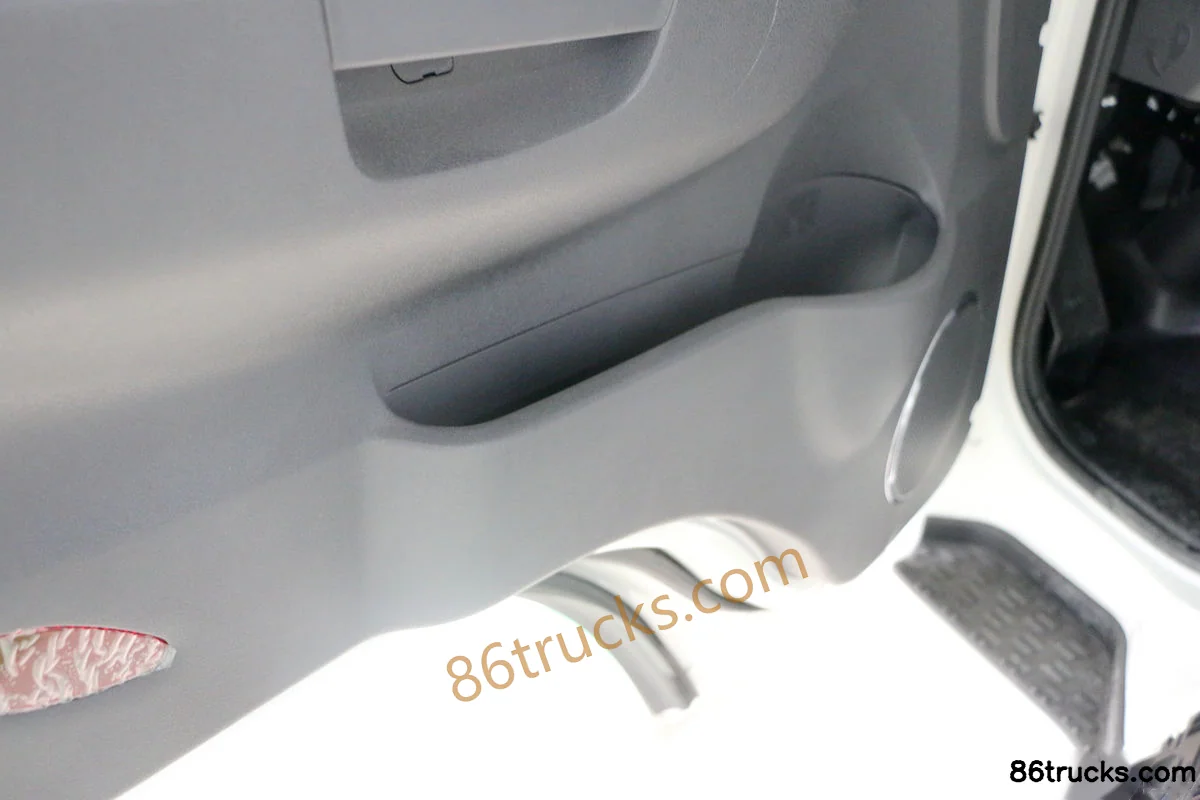

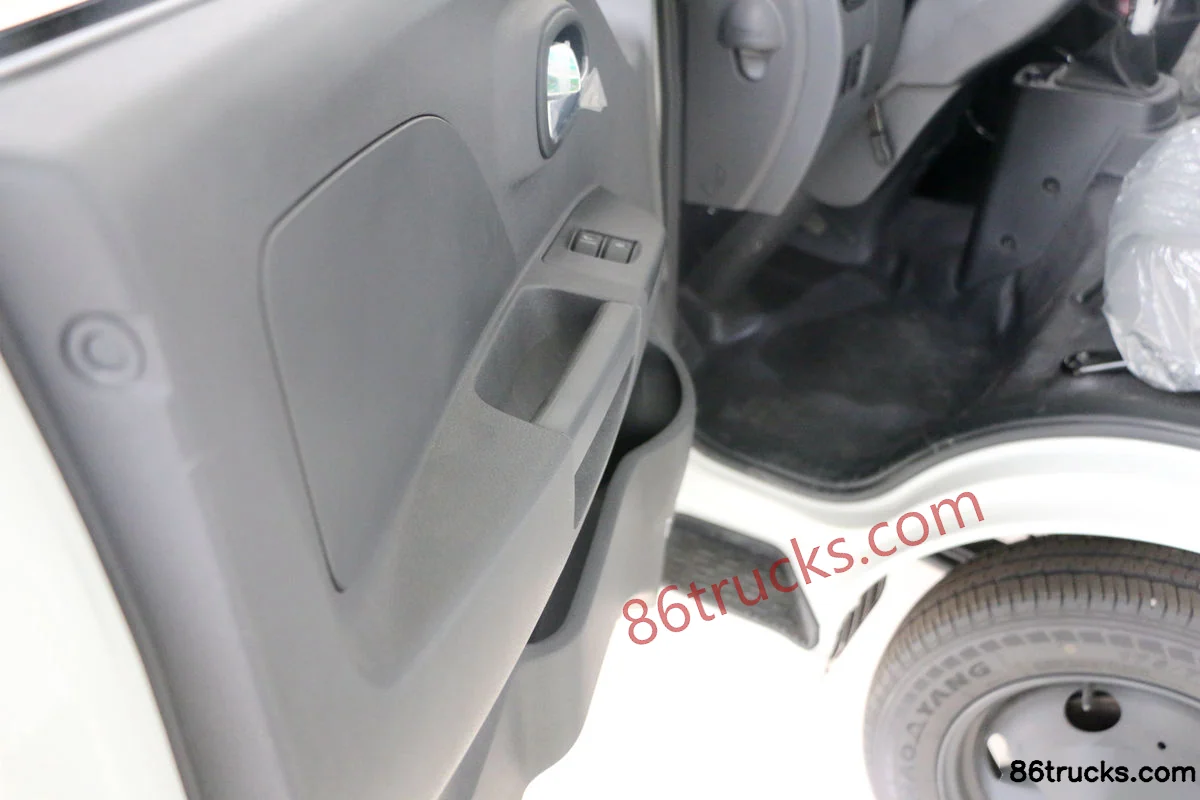

Interior3

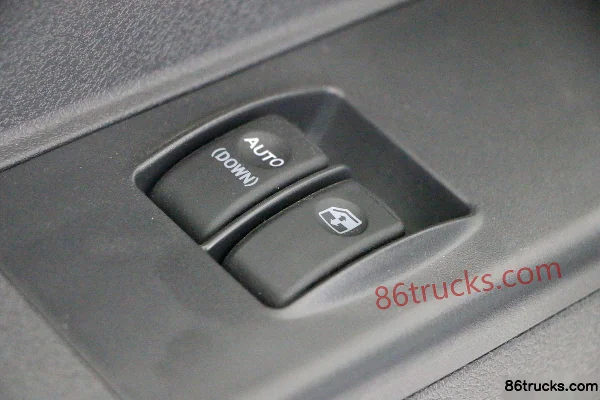

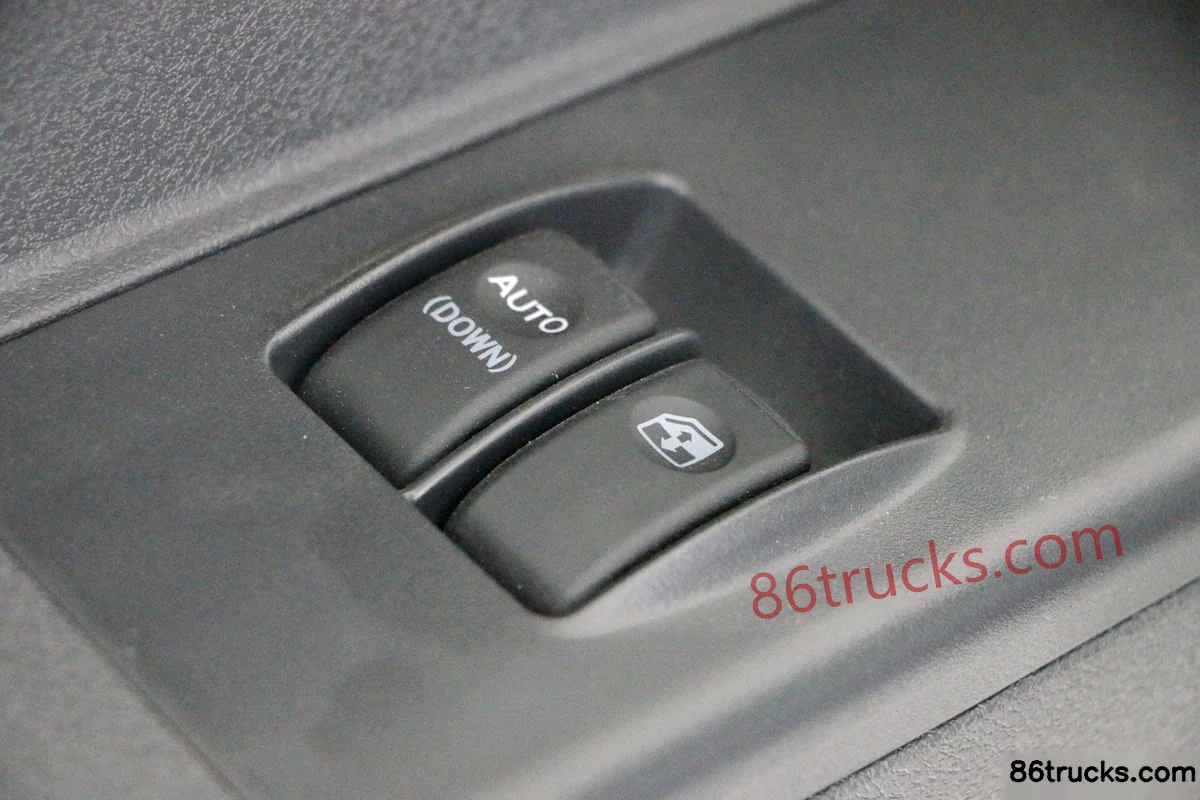

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Interior (1) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Interior (2) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Interior (3) | 86Trucks

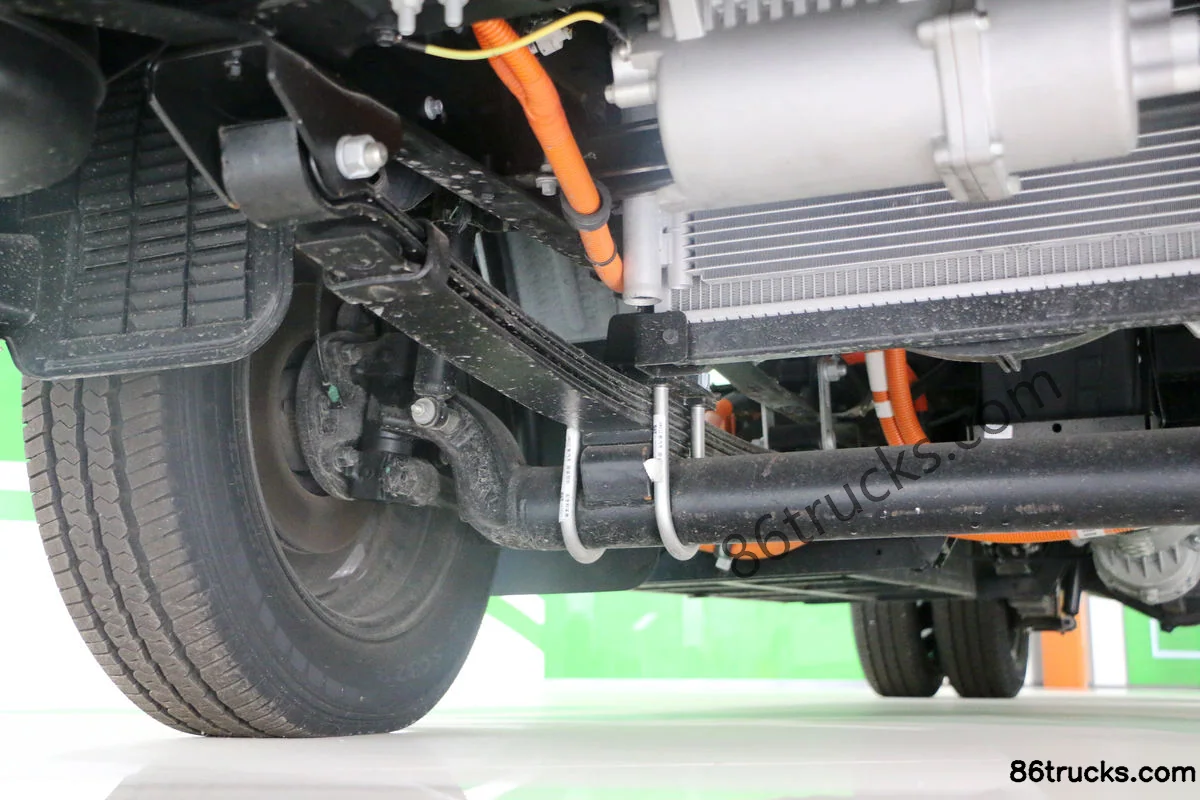

Chassis3

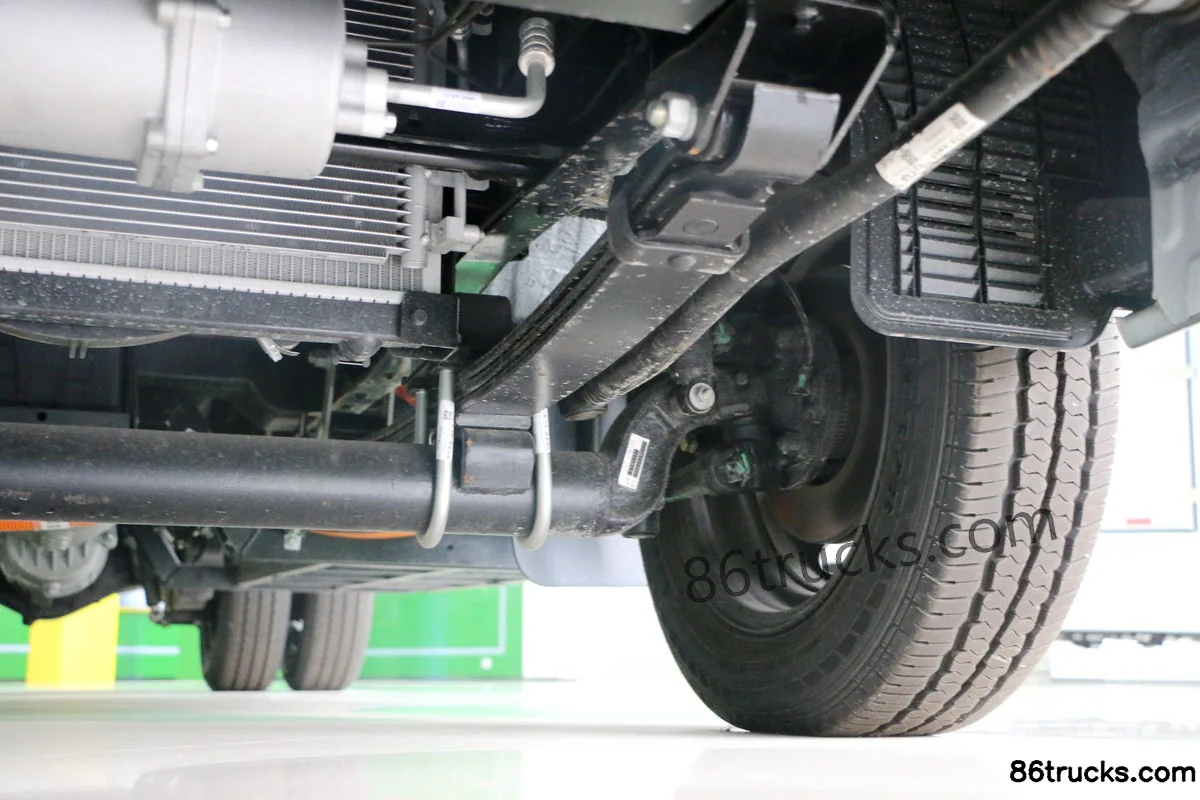

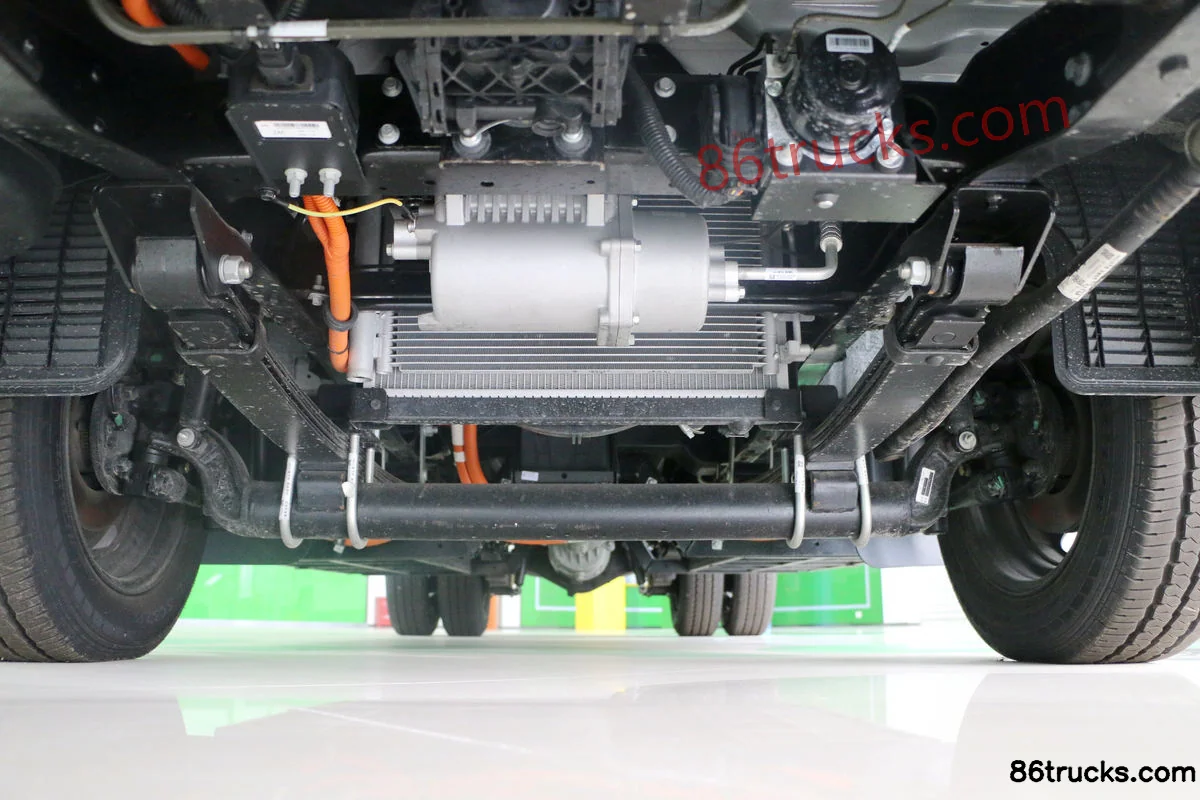

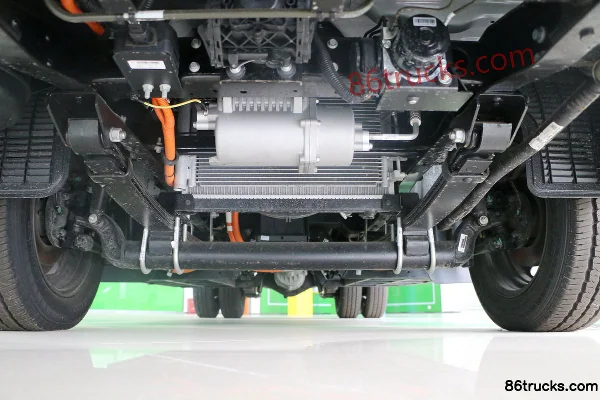

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Chassis (1) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Chassis (2) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Chassis (3) | 86Trucks

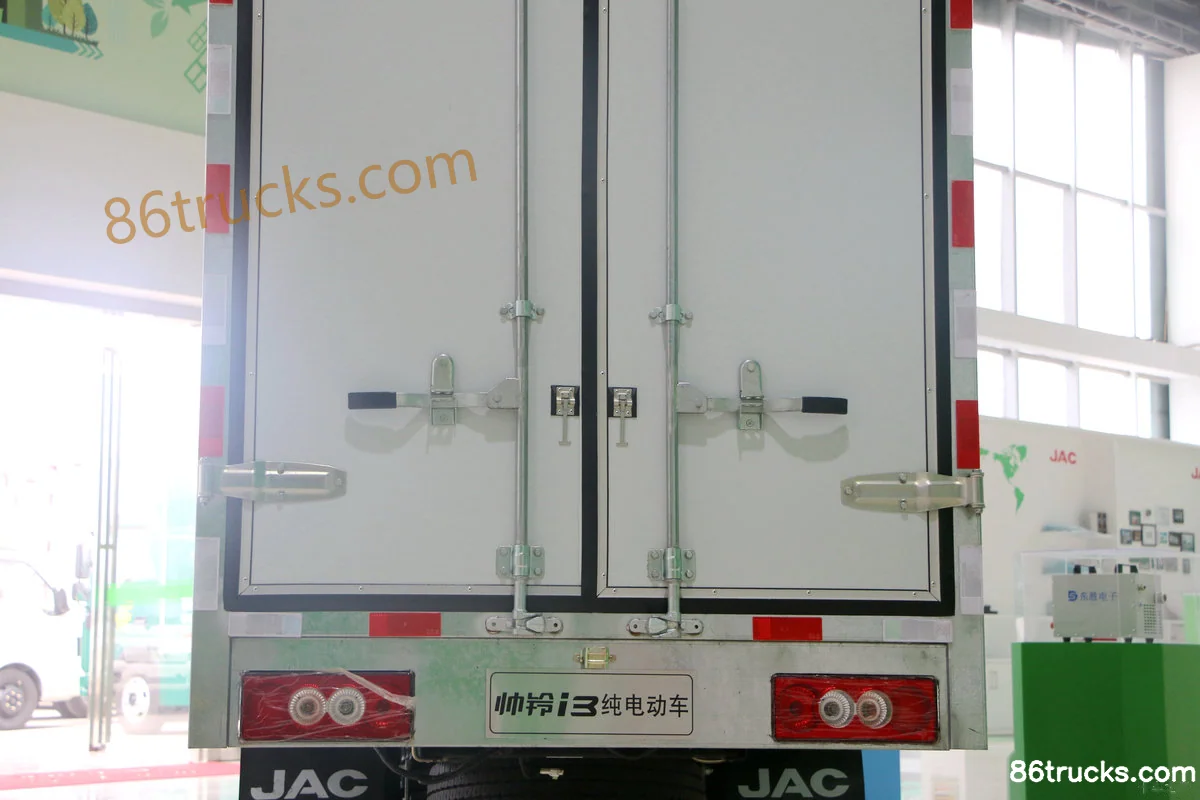

Body3

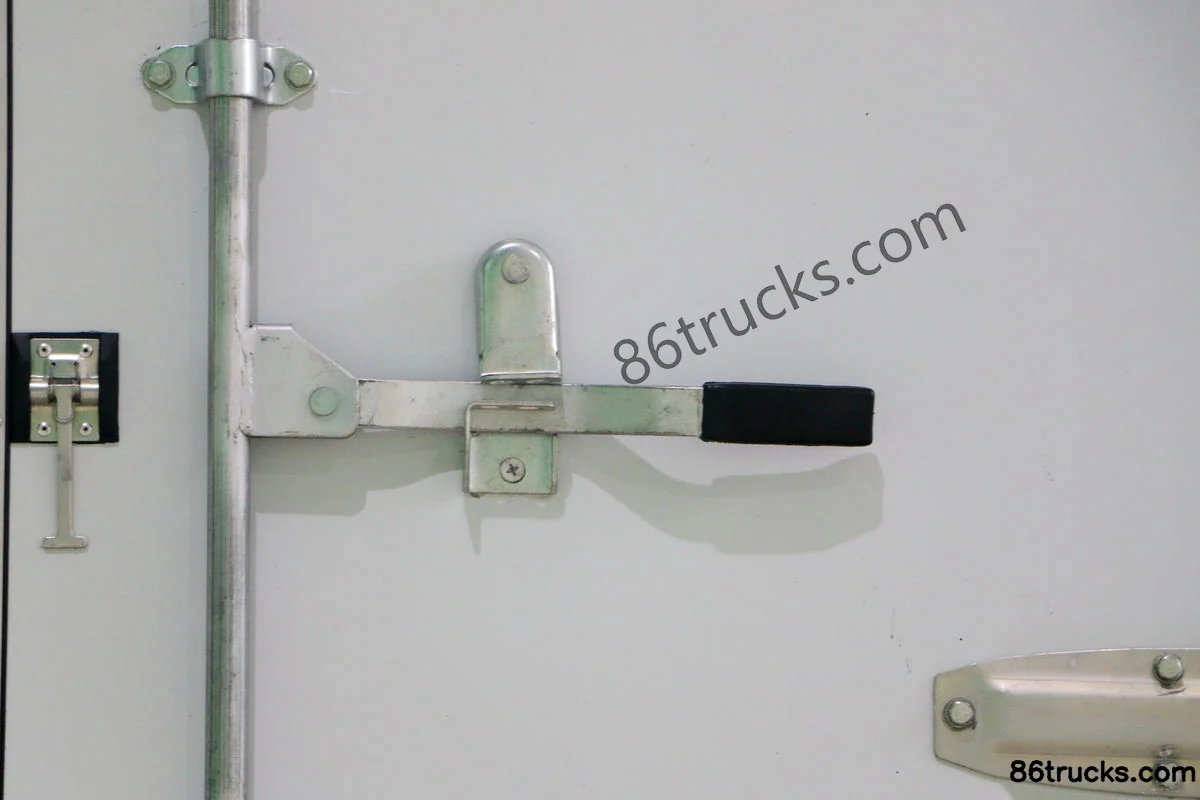

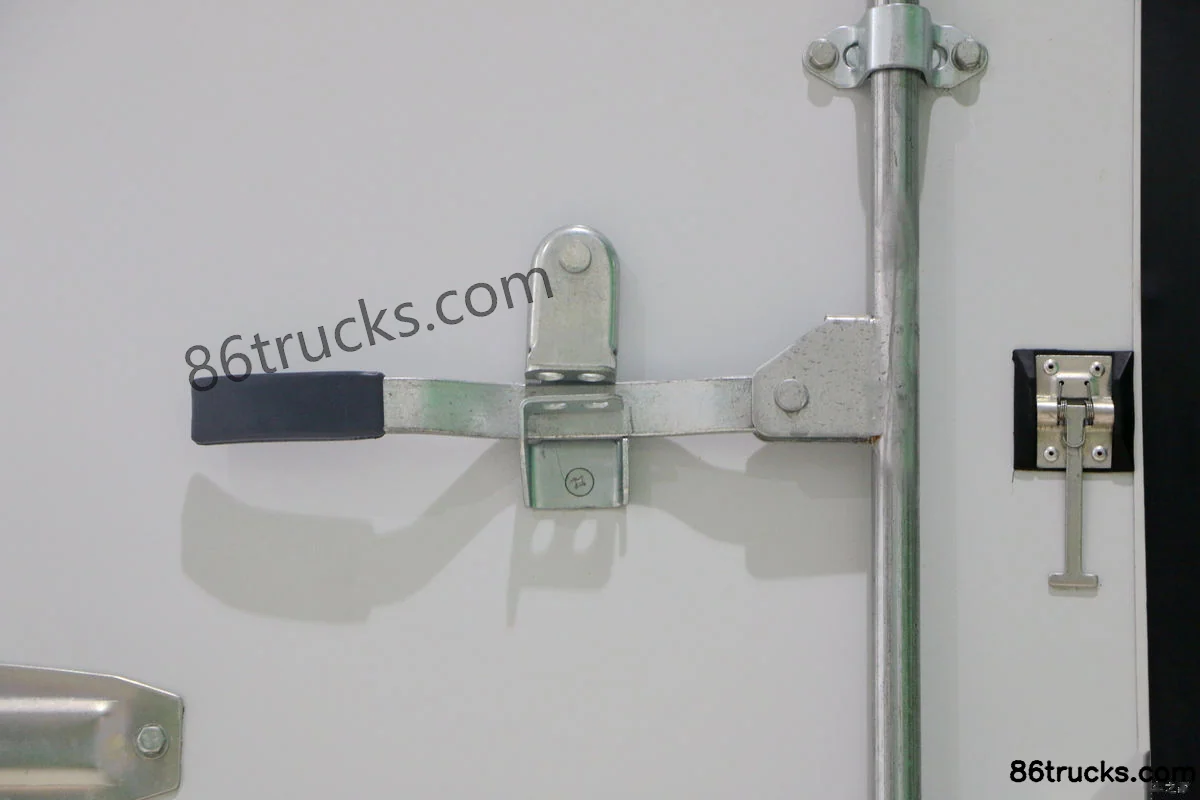

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Body (1) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Body (2) | 86Trucks JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) suited for?

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels) belongs to JACEX5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i3 3.12T 3.5m Single Row Electric Van Micro Truck 58.752kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
