Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels)

Export reference
From $27,750
MSRP ¥19.98M CNY
Rated payload:: 1.72ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: QL5040XXYBEVJWFW
Type:: enclosed cargo truck
Box length class:: 3.2m

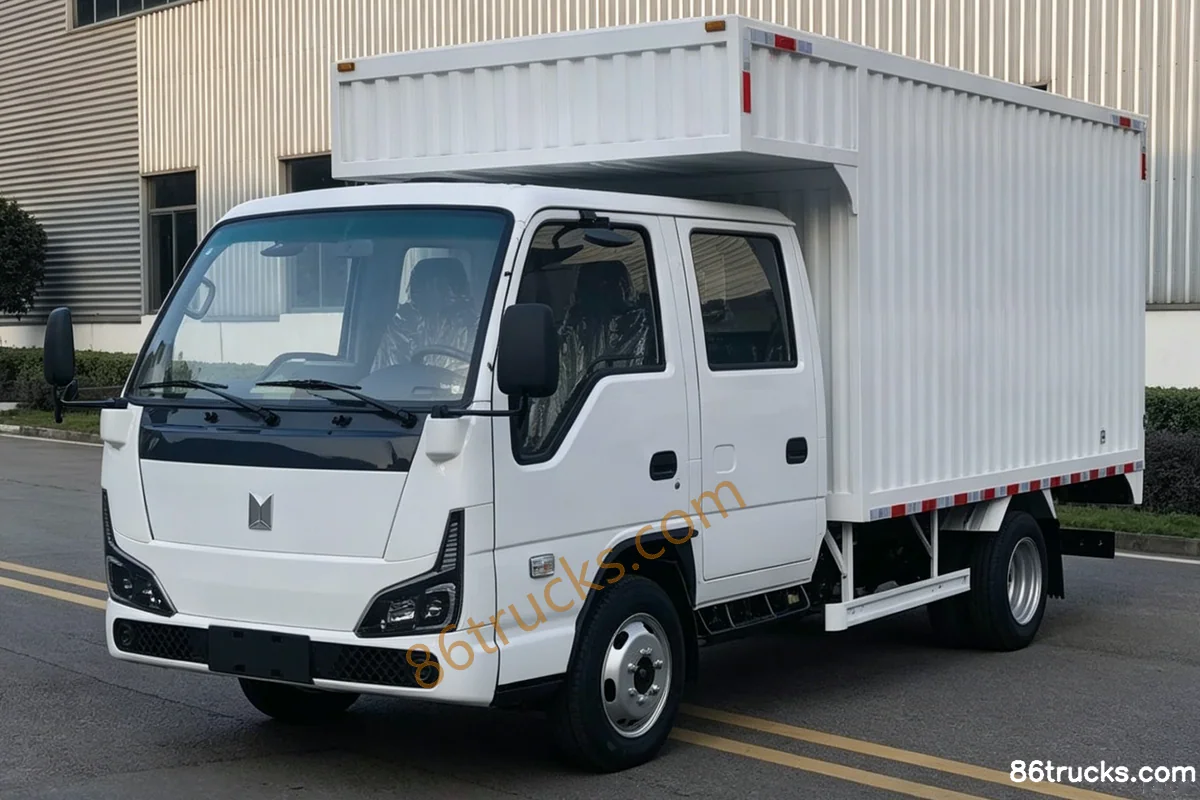

Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) exterior
View more photos (1)
Drive 4X2 (6 wheels)
CLTC range: 377km
Motor 1 Brand: Qingling
Curb Weight: 2.45ton

Overview

The Qingling Isuzu Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) is a Light Truck featuring 377km battery/range, Qingling motor, 4X2 (6 wheels) drive and 1.72t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL5040XXYBEVJWFW
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
Cab length: 5.86m
Cab width: 1.92m
Cab height: 2.835m
CLTC range: 377km
Curb Weight: 2.45ton
Rated payload: 1.72ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Chongqing
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Qingling
Motor 1 Model: TZ180XS133
Motor Type: Permanent magnet synchronous motor
total rated power: 55kW
Peak power: 110kW
total peak torque: 260N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 70.59kWh
Energy Density: 154.59
Battery Model: CB220
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.245m
Cargo box width: 1.85m
Cargo box height: 1.81m
Cab parameters
Cab width: 1695mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1670kg
rear axle allowable load: 2825kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

Exterior1

Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels), and what does it include?

Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) export reference is about From $27,750; MSRP is ¥19.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels)?

Key specs of Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) suited for?

Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) differ from other variants in the same series?

Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels) belongs to Qingling Isuzu EV100 Lingjuli Micro Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Isuzu EV100 Lingjuli Air Brake 3.245m Double-row Pure Electric Van Light Truck CATL 70.59kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
