JAC Kala 2.0T 2.615m Single Row Pure Electric Flatbed Mini Truck 23.96kWh 4X2(6 wheels)
EXW
From $10,833
Export quote
JAC Kala electric cargo truck
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kala 2.0T 2.615m Single Row Pure Electric Flatbed Mini Truck 23.96kWh 4X2(6 wheels) | 4x2 | From $10,833 | |
| JAC Kala 2.0T 2.65m Single Row Pure Electric Van Mini Truck 23.96kWh 4X2(6 wheels) | 4x2 | From $11,250 | |
| JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) | 4x2 | From $12,056 |

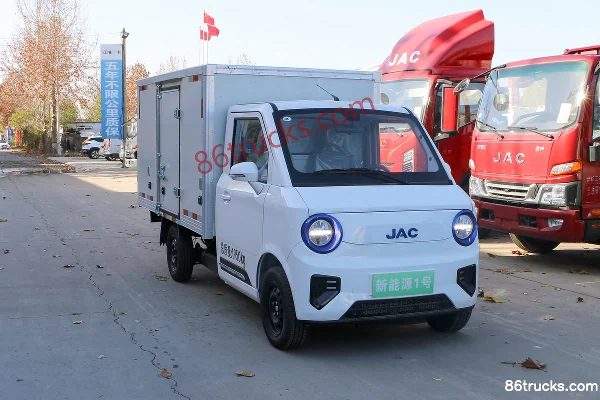

JAC Kala 2.0T 2.65m Single Row Pure Electric Van Mini Truck 23.96kWh 4X2(6 wheels)
EXW
From $11,250
Export quote

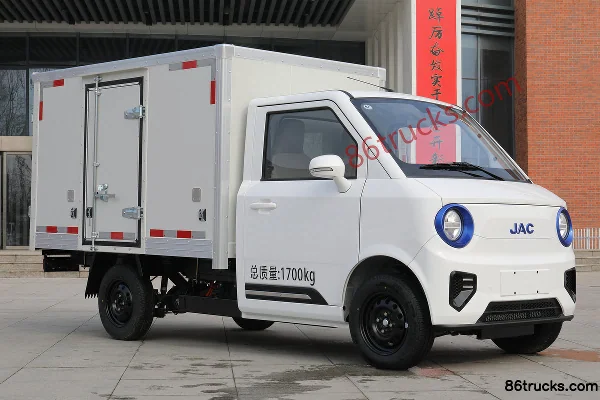

JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels)
EXW
From $12,056
Export quote
Series Specs
Basic Info
Model code (announced): HFC1020EV2 / HFC5020XXYEV2 / HFC5020XXYEV1
Type: Cargo Trucks / enclosed cargo truck
Drive type: 4X2
Wheelbase: 2800 / 2600mm
Box length class: 2.6 / 2.7 / 2.3m
Cab length: 4.53 / 4.2m
Cab width: 1.57 / 1500m
Cab height: 1.71 / 2.04m
CLTC range: 215 / 180km
Curb Weight: 1.05 / 1.08 / 1.04ton
Rated payload: 0.77 / 0.74 / 0.53ton
GVWR: 1.95 / 1.7ton
Max. speed: 71km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: JAC Motors / Jinba Intelligent
Motor 1 Model: TZ160XJ000 / Guangdong Jinba TZ155H002
Motor Type: Permanent magnet synchronous motor
total rated power: 15 / 10kW
Peak power: 30 / 20kW
total peak torque: 115 / 120N·m
Electronic Control
ECU Brand: Anhui JAC
Battery/Charging
Battery Brand: Guoxuan High-Tech / Ganfeng
Charging method: slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 2.6 / 8h
Battery capacity: 23.96 / 20.72kWh
Battery rated voltage: 115.2 / 77V
Energy Density: 126.087 / 126.607
Battery Model: GX-MDWL-01 / GFL-MF39-3P24S
Cargo box parameters
Cargo box volume: 5.1 / 4.4m³
Cargo box type: stake body / Van body
Cargo box length: 2.615 / 2.65 / 2.3m
Cargo box width: 1.48 / 1.51 / 1.49m
Cargo box height: 0.37 / 1.28m
Cab parameters
Cab: Single Row
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 755 / 550kg
FAQ
What kind of truck is JAC JAC Kala electric cargo truck?
JAC JAC Kala is an export-oriented electric cargo truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Kala electric cargo truck?
JAC Kala electric cargo truck export reference is about $10,833 – $12,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Kala electric cargo truck cover?
JAC Kala electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Kala electric cargo truck?
For JAC Kala electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JAC Kala electric cargo truck include?
JAC Kala electric cargo truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Kala electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
