JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels)

Export reference
From $12,056
MSRP ¥8.68M CNY
Rated payload:: 0.53ton
Wheelbase:: 2600mm
Cargo box volume:: 4.4m³
Model code (announced):: HFC5020XXYEV1
Type:: enclosed cargo truck
Box length class:: 2.3m
Drive 4X2 (6 wheels)
CLTC range: 180km
Motor 1 Brand: Jinba Intelligent
Curb Weight: 1.04ton

Overview

The JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) is a mini truck featuring 180km battery/range, Jinba Intelligent motor, 4X2 (6 wheels) drive and 0.53t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5020XXYEV1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 2.3m
Cab length: 4.2m
Cab width: 1.57m
Cab height: 2.04m
CLTC range: 180km
Curb Weight: 1.04ton
Rated payload: 0.53ton
GVWR: 1.7ton
Max. speed: 71km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jinba Intelligent
Motor 1 Model: Guangdong Jinba TZ155H002
Motor Type: Permanent magnet synchronous motor
total rated power: 10kW
Peak power: 20kW
total peak torque: 120N·m
Electronic Control
ECU Brand: Anhui JAC
Battery/Charging
Battery Brand: Ganfeng
Charging method: slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 8h
Battery capacity: 20.72kWh
Battery rated voltage: 77V
Energy Density: 126.607
Battery Model: GFL-MF39-3P24S
Cargo box parameters
Cargo box volume: 4.4m³
Cargo box type: Van body
Cargo box length: 2.3m
Cargo box width: 1.49m
Cargo box height: 1.28m
Cab parameters
Cab width: 1500mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 550kg
rear axle allowable load: 1150kg
Tire
Tire Size: 165/70 R13/155R13LT
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

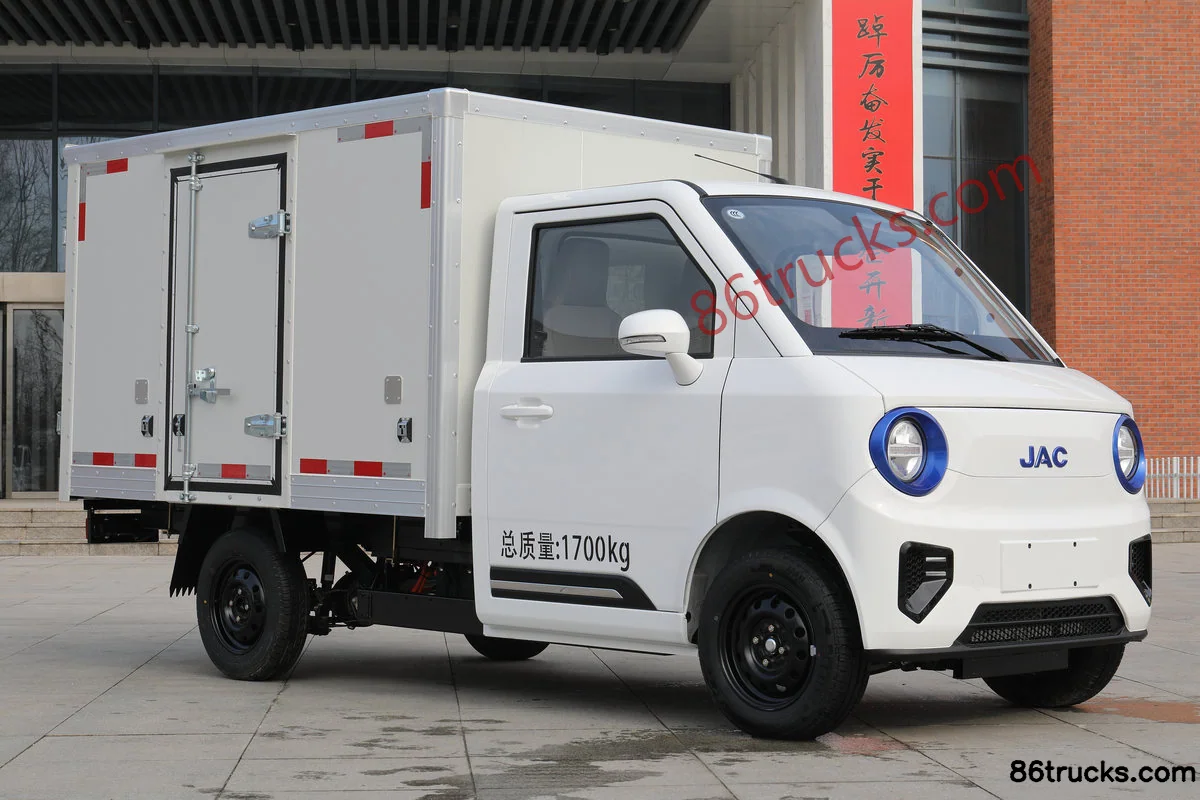

Exterior1

1 photos

FAQ

What is the export price of JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels), and what does it include?

JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) export reference is about From $12,056; MSRP is ¥8.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels)?

Key specs of JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) suited for?

JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels) belongs to JAC Kala (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kala 1.7T 2.3m single-row pure electric van micro truck 20.72kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
