SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck

Export reference
MSRP N/A
Fuel: Diesel
Tire Size:: 275/80R22.5
Cab dimensions:: 9.41×2.6×3.995m
Truck Type:: Refrigerated Truck
Engine Model:: YuchaiYCK05240-60
Number of cylinders:: 4cylinder
Drive 4X2 (6 wheels)
Cargo box dimensions: 6.8×2.43×2.55m
Horsepower 240
Emission China VI

Overview

The SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck is a Refrigerated Truck featuring 6.8×2.43×2.55m cargo body and 9.41×2.6×3.995m cab. On the powertrain side, it comes with a YuchaiYCK05240-60 engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.41×2.6×3.995m
Drive type: 4X2
Truck Type: Refrigerated Truck
Energy Type: Diesel
Engine parameters
Engine Model: YuchaiYCK05240-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Cargo box parameters
Cargo box dimensions: 6.8×2.43×2.55m
Cargo box width: 2.43m
Cargo box height: 2.55m
Body Parameters
Vehicle certification code: CQ5187XLCEY05501
Chassis Specs
Chassis Brand: SAIC Hongyan
Chassis Series: Jiebao H6
Frame Dimensions: 250×7mm
rear axle description: Hande9T
Axle ratio: 4.111
Leaf spring count: 3/3+1
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS95TE-C
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs

Photos

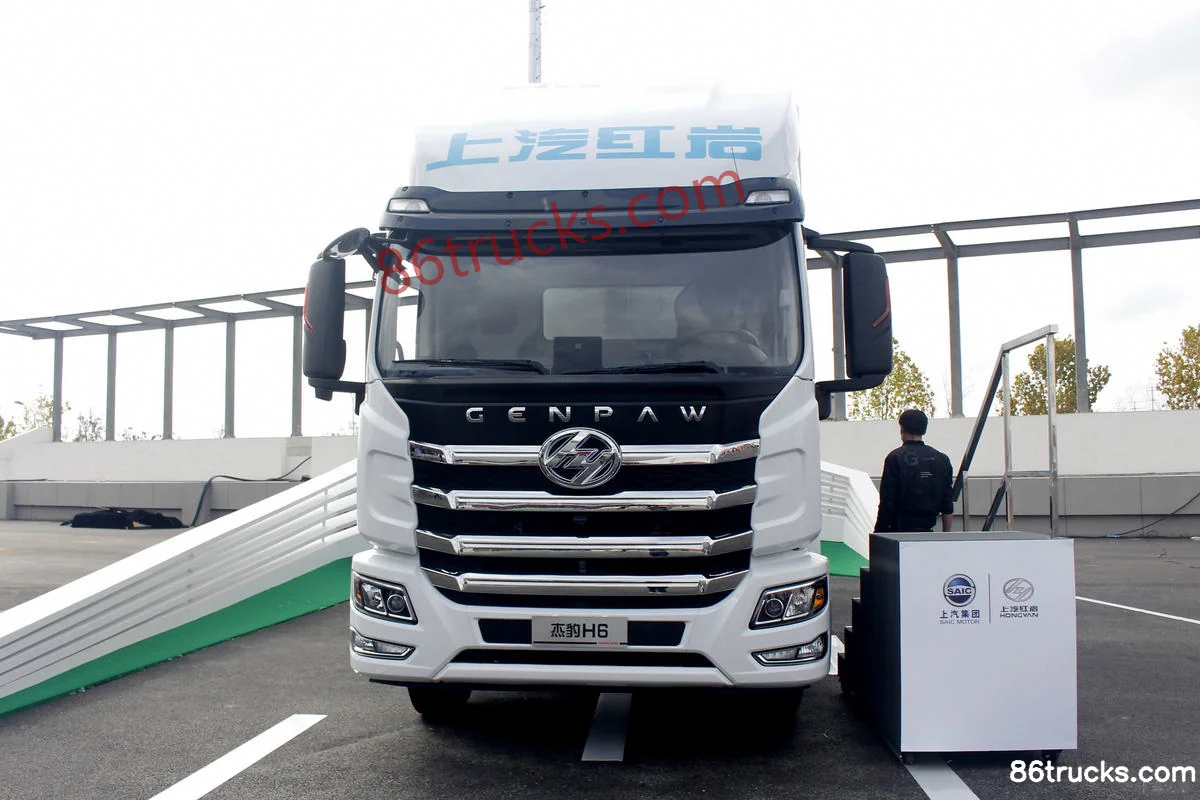

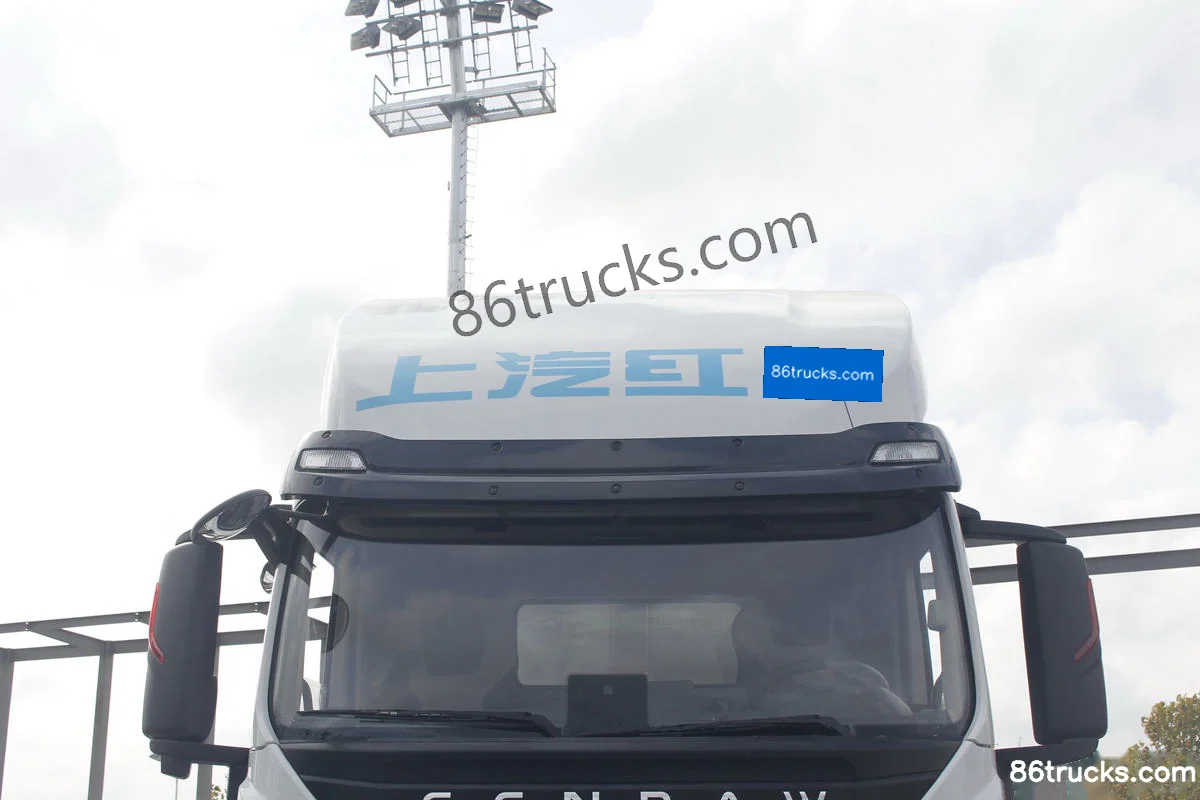

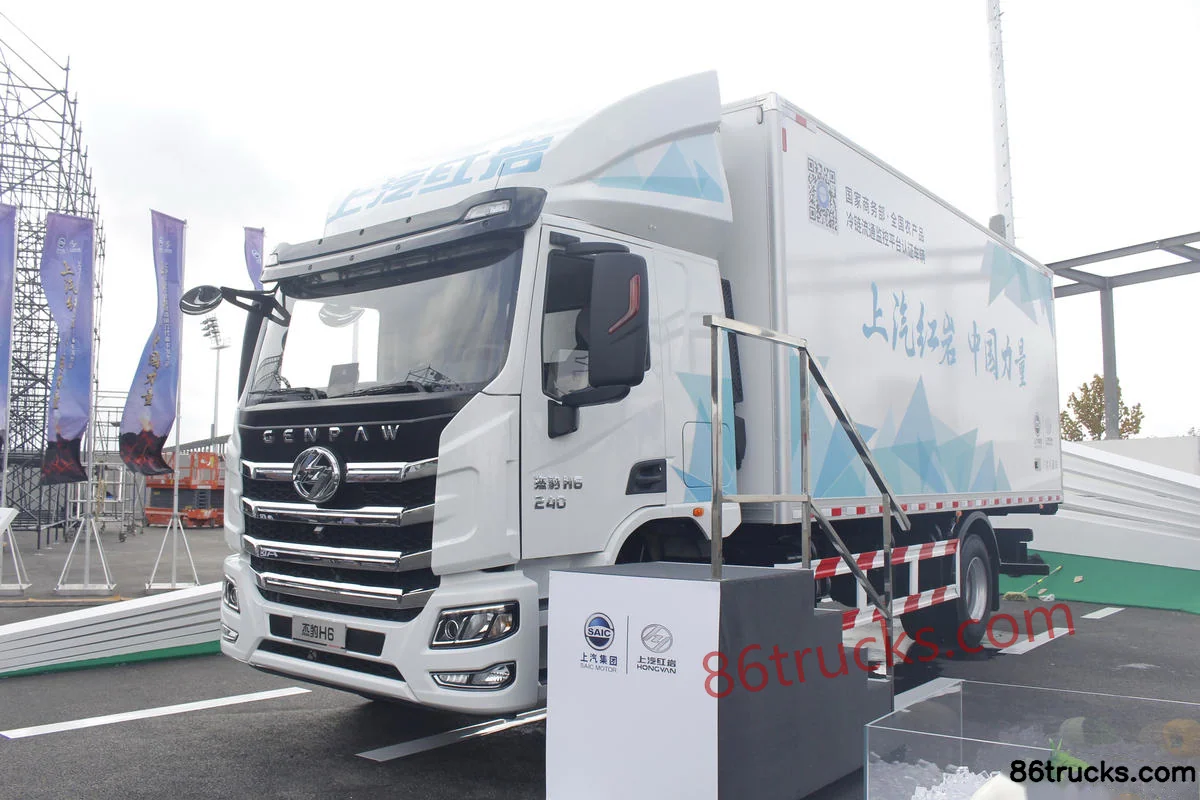

Exterior3

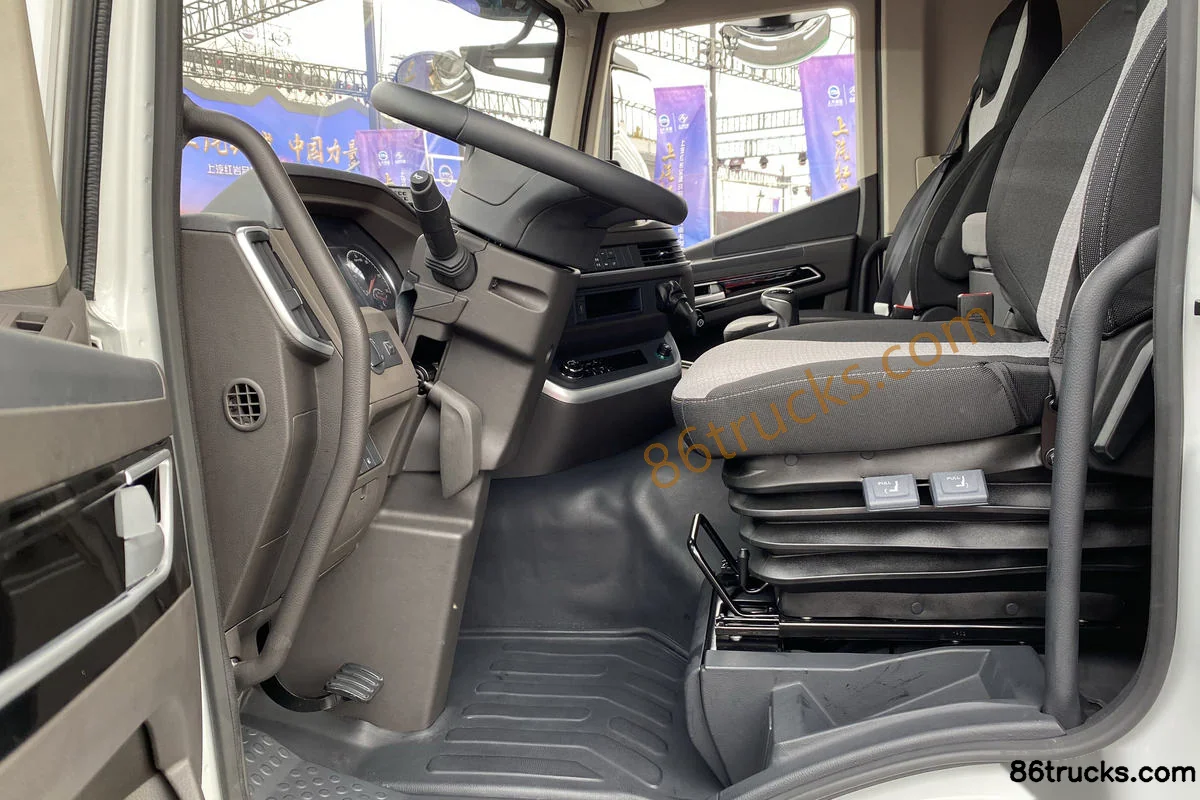

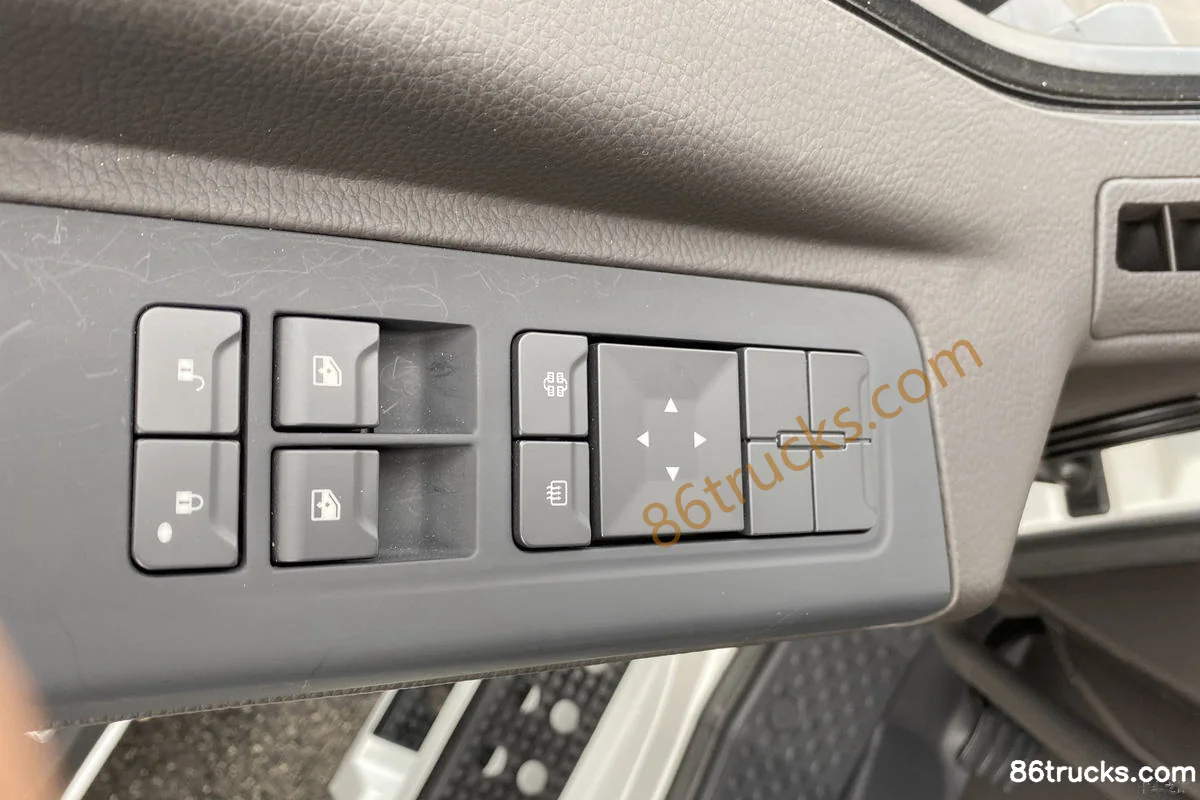

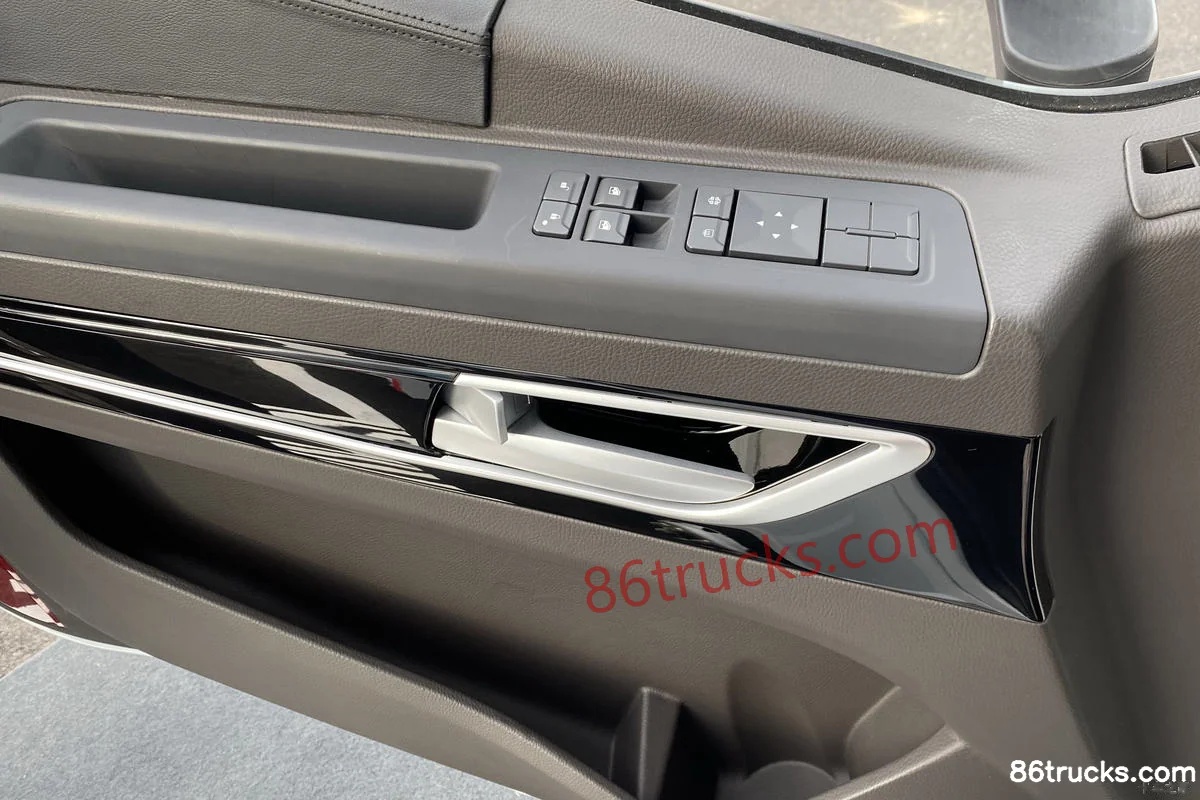

Cab3

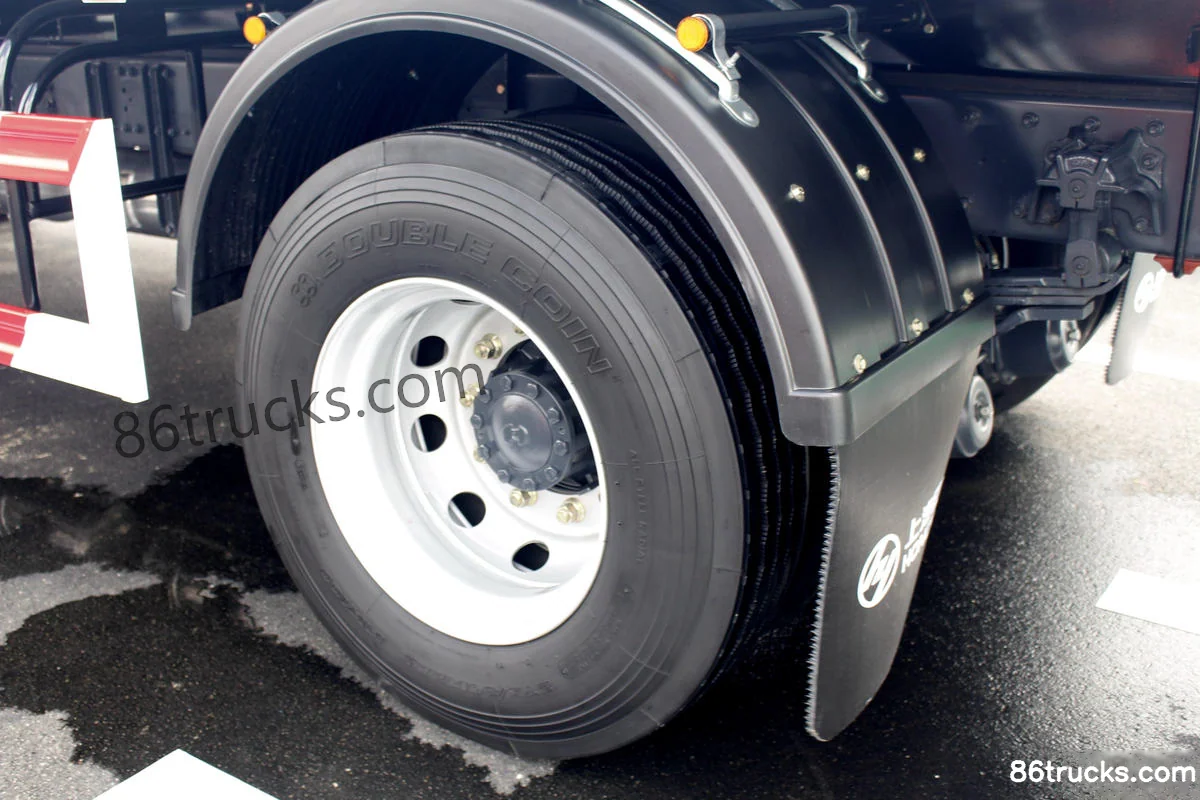

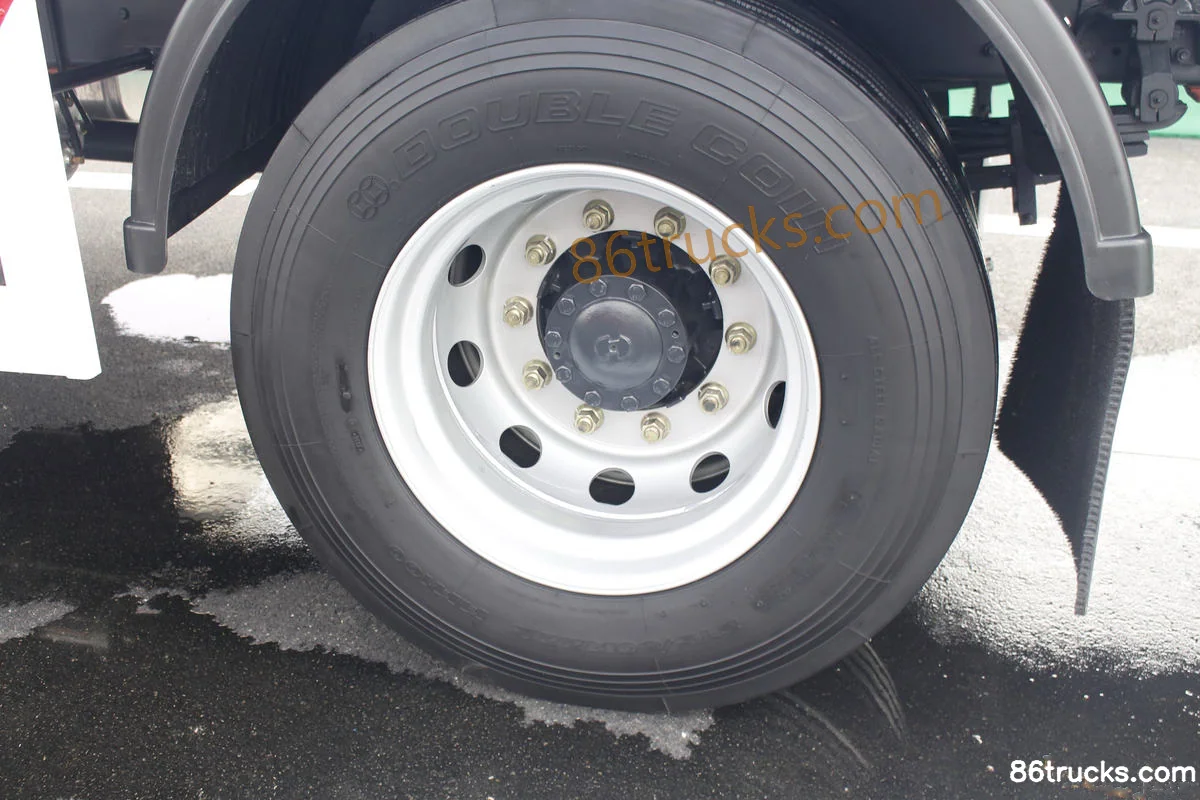

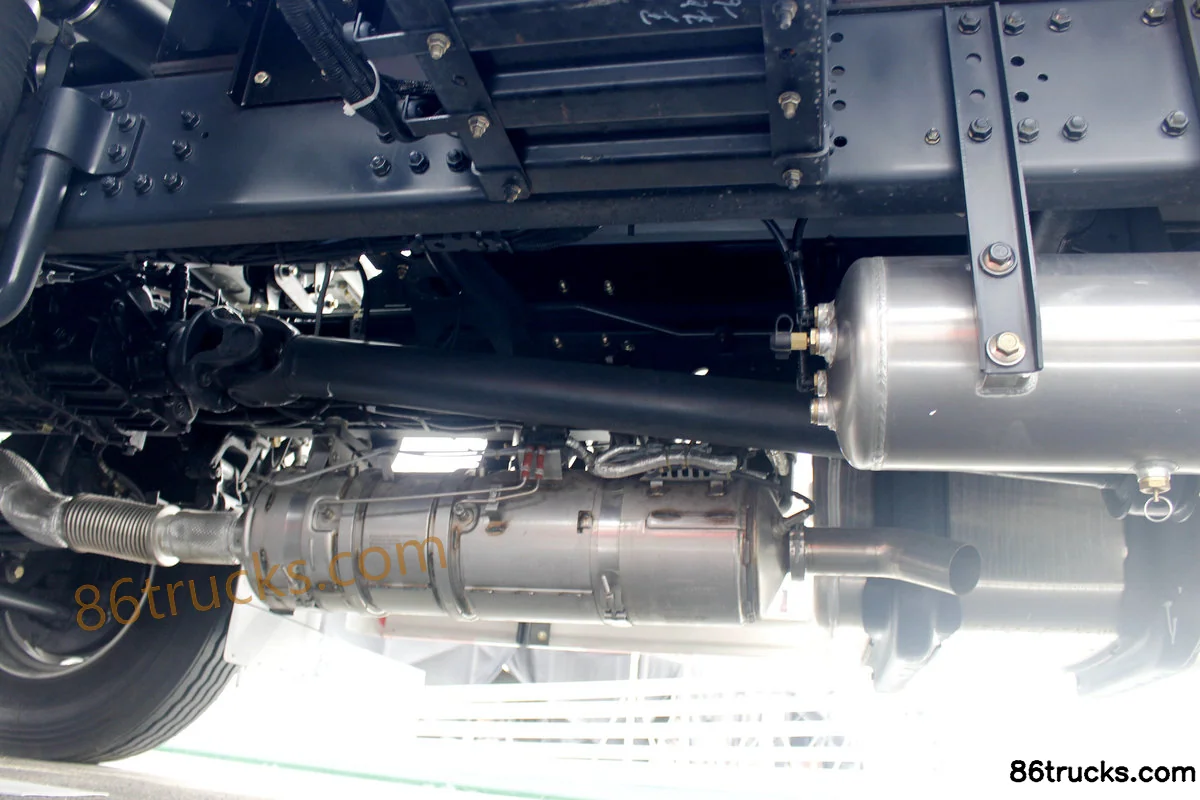

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck?

Key specs of SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck suited for?

SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck differ from other variants in the same series?

SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck belongs to SAIC Hongyan Jiebao Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Jiebao H6 240 hp 4X2(6 wheels) 6.8m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
