Foton Ruivo Q5 185hp 4X2(6 wheels) 7.8m Refrigerated Truck
EXW
From $20,208
Export quote
FotonQ5 Refrigerated Truck
Main model photos
491 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruivo Q5 185hp 4X2(6 wheels) 7.8m Refrigerated Truck | 4x2 / 185hp / China V | From $20,208 | |
| Foton Ruifu Q5 180hp 4X2(6 wheels) 7.8m refrigerated truck | 4x2 / 180hp / China V | ||
| Foton Ruifu Q5 180hp 4X2(6 wheels) 7.6m refrigerated truck | 4x2 / 180hp / China V | ||
| Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck | 4x2 / 170hp / China V | ||
| Foton Ruivo Q5 170hp 4X2(6 wheels) 7.6m refrigerated truck | 4x2 / 170hp / China V |
Foton Ruifu Q5 180hp 4X2(6 wheels) 7.8m refrigerated truck
EXW
Export quote

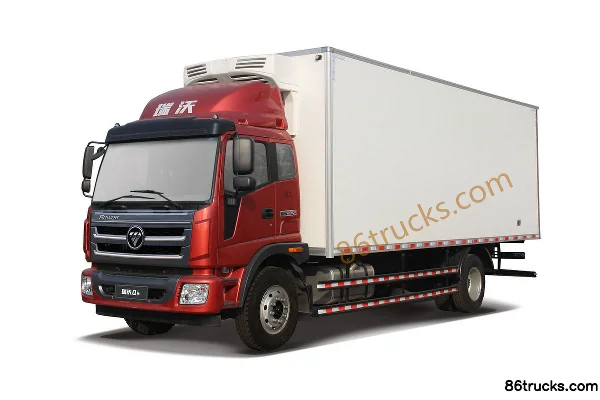

Foton Ruifu Q5 180hp 4X2(6 wheels) 7.6m refrigerated truck
EXW
Export quote
Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck
EXW
Export quote
Foton Ruivo Q5 170hp 4X2(6 wheels) 7.6m refrigerated truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.3×2.6×3.995 / 10.1×2.6×3.995 / 9.115×2.49×3.765m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5700 / 5250mm
Vehicle origin: Shandong Zhucheng / Beijing
Front track width: 1904 / 1907 / 1810mm
rear track: 1860 / 1810 / 1907mm
Curb Weight: 8 / 7.26ton
Rated payload: 9.805 / 8.34ton
Max. speed: 90km/h
Front/rear suspension: 1.35/3.25 / 1.35/2.76m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF4.5S5185 / YuchaiYC6J180-52 / YuchaiYC4S170-50 / FotonISF3.8s5168
Number of cylinders: 4 / 6cylinder
Displacement: 4.46 / 6.494 / 3.76L
Emission standard: China V / China V (Beijing)
Max output power: 136 / 132 / 125kW
Max hp: 185 / 180 / 170 / 168Horsepower
Max torque: 700 / 600 / 592N·m
Rated speed: 2300 / 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / Vertical, inline, water-cooled, four-stroke / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Cargo box parameters
Cargo box dimensions: 7.8×2.4×2.52 / 7.6×2.4×2.52 / 6.72×2.32×2.315m
Cargo box width: 2.4 / 2.32m
Cargo box height: 2.52 / 2.315m
Body Parameters
Vehicle certification code: BJ5185XLC-FA / BJ5166XLC-1
Body Brand: Foton
Refrigeration unit: Jinda MK858
Others: Optional ratio: 5.286
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ1185VLPEN-FA / BJ1166VJPEN-1
Frame Dimensions: 250x70x8 / 250x70x（8+5）-865mm
rear axle description: 1093Z / 8T / 1098Z-X / 1153
Axle ratio: 4.875 / 5.833
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85C / Fast Gear8JS75TB
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 10.00R20 18PR / 9.00R20 16PR / 9.00R20
FAQ
What kind of truck is Foton FotonQ5 Refrigerated Truck?
Foton FotonQ5 is an export-oriented Refrigerated Truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FotonQ5 Refrigerated Truck?
FotonQ5 Refrigerated Truck export reference is about $20,208 – $40,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FotonQ5 Refrigerated Truck cover?
FotonQ5 Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 170 hp / 180 hp / 185 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FotonQ5 Refrigerated Truck?
For FotonQ5 Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does FotonQ5 Refrigerated Truck include?
FotonQ5 Refrigerated Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FotonQ5 Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
