Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 8ton
Wheelbase:: 5700mm
Tire Size:: 10.00R20 18PR
Cab dimensions:: 10.3×2.6×3.995m
Rated payload: 9.805ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.8×2.4×2.52m
Horsepower 170

Overview

The Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck is a Refrigerated Truck featuring 7.8×2.4×2.52m cargo body, 9.805t payload, Sleeper cab cab and 5700mm wheelbase. On the powertrain side, it comes with 170 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.6×3.995m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Beijing
Wheelbase: 5700mm
Front track width: 1904mm
rear track: 1860mm
Curb Weight: 8ton
Rated payload: 9.805ton
Max. speed: 90km/h
Front/rear suspension: 1.35/3.25m
Energy Type: Diesel
Engine parameters
Engine Model: YuchaiYC4S170-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Cargo box parameters
Cargo box dimensions: 7.8×2.4×2.52m
Cargo box width: 2.4m
Cargo box height: 2.52m
Body Parameters
Vehicle certification code: BJ5185XLC-FA
Body Brand: Foton
Others: Optional ratio: 5.286
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ1185VLPEN-FA
rear axle description: 8T
Axle ratio: 4.875
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85C
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs

Photos

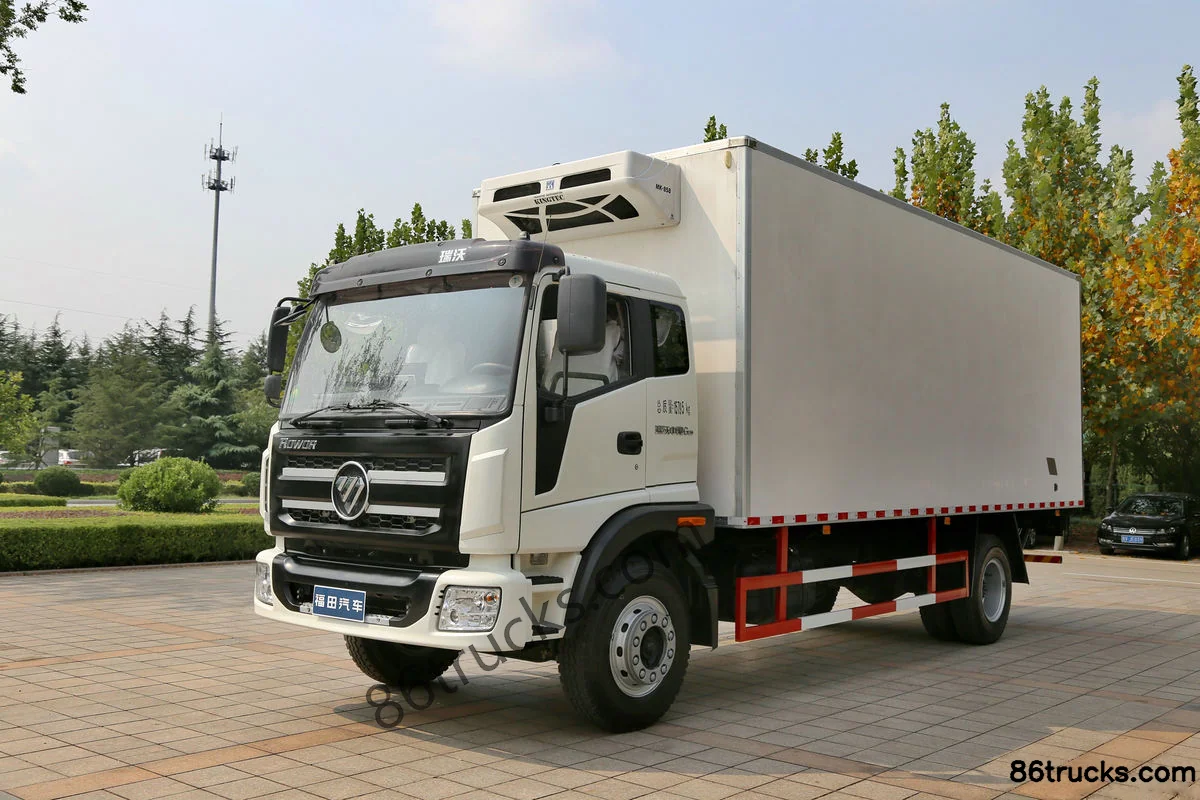

Exterior1

1 photos

FAQ

What emission standard does Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck?

Key specs of Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck suited for?

Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck differ from other variants in the same series?

Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck belongs to FotonQ5 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Q5 170hp 4X2(6 wheels) 7.8m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
