SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Tire Size:: 295/80R22.5
engine:: WeichaiWP9H336E50
tonnage class:: Heavy truck
Number of cylinders:: 6cylinder
Drive 8X4 (12 wheels)
Horsepower 336
Cargo box type: Dump type
Emission China V

Overview

The SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck is a Heavy truck featuring Dump type cargo body, 8X4 (12 wheels) drive and Narrow medium-long flat roof cab. On the powertrain side, it comes with a WeichaiWP9H336E50 engine, 336 hp, China V emissions and Fast Gear transmission.

China V 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
engine: WeichaiWP9H336E50
transmission: Fast Gear10J180TA-QH50
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP9H336E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.8L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear10J180TA-QH50
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
Cab: Narrow medium-long flat roof
fuel tank
Fuel tank capacity: 200L
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake

Photos

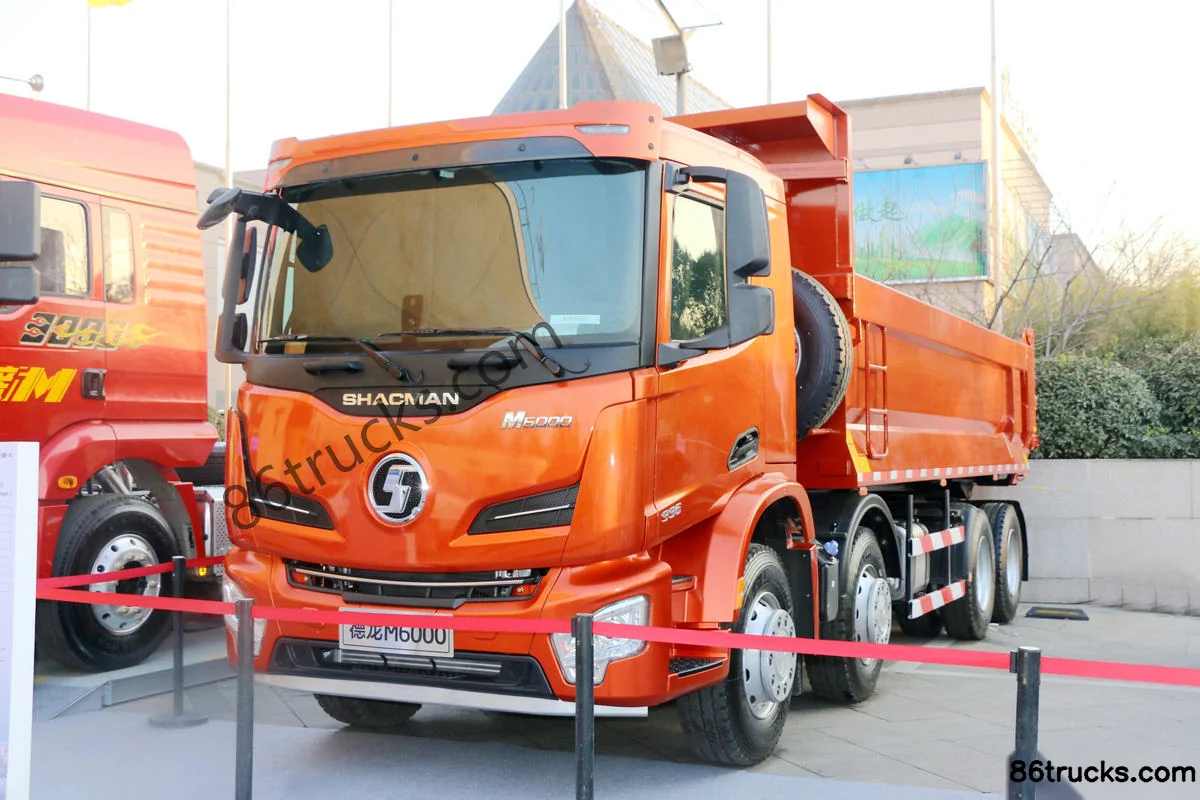

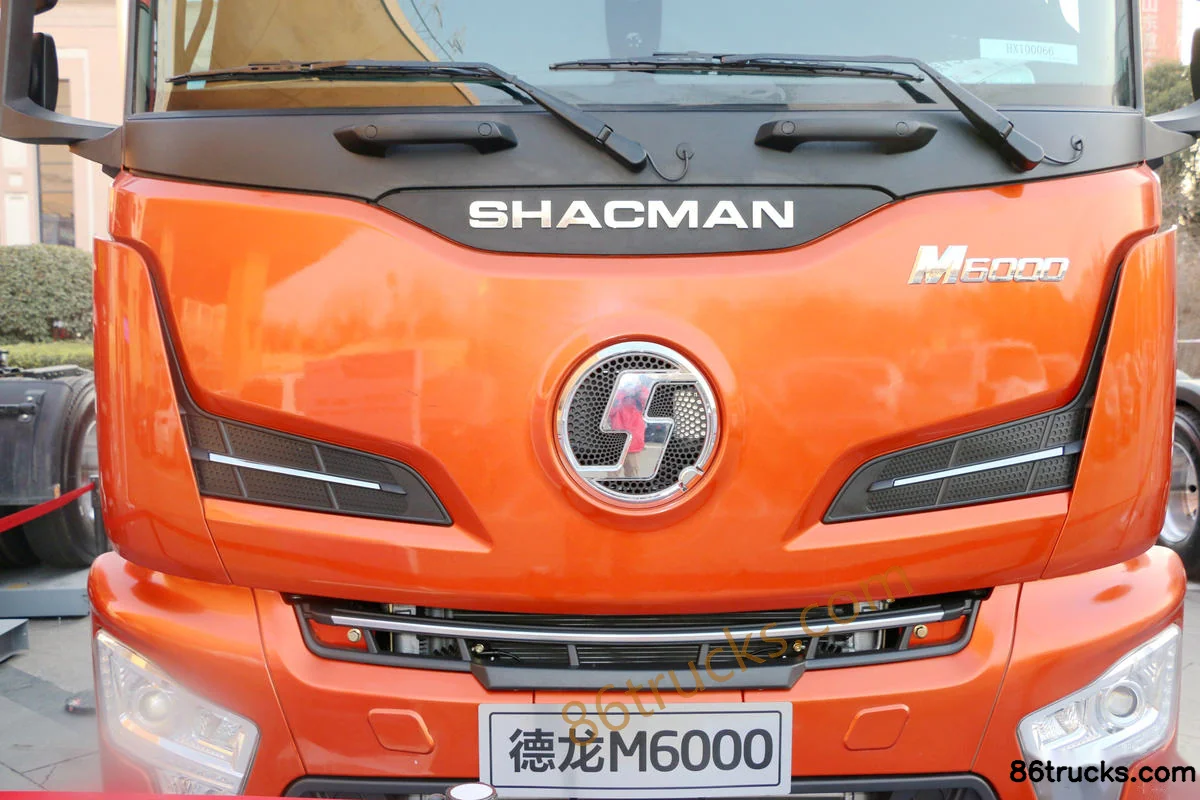

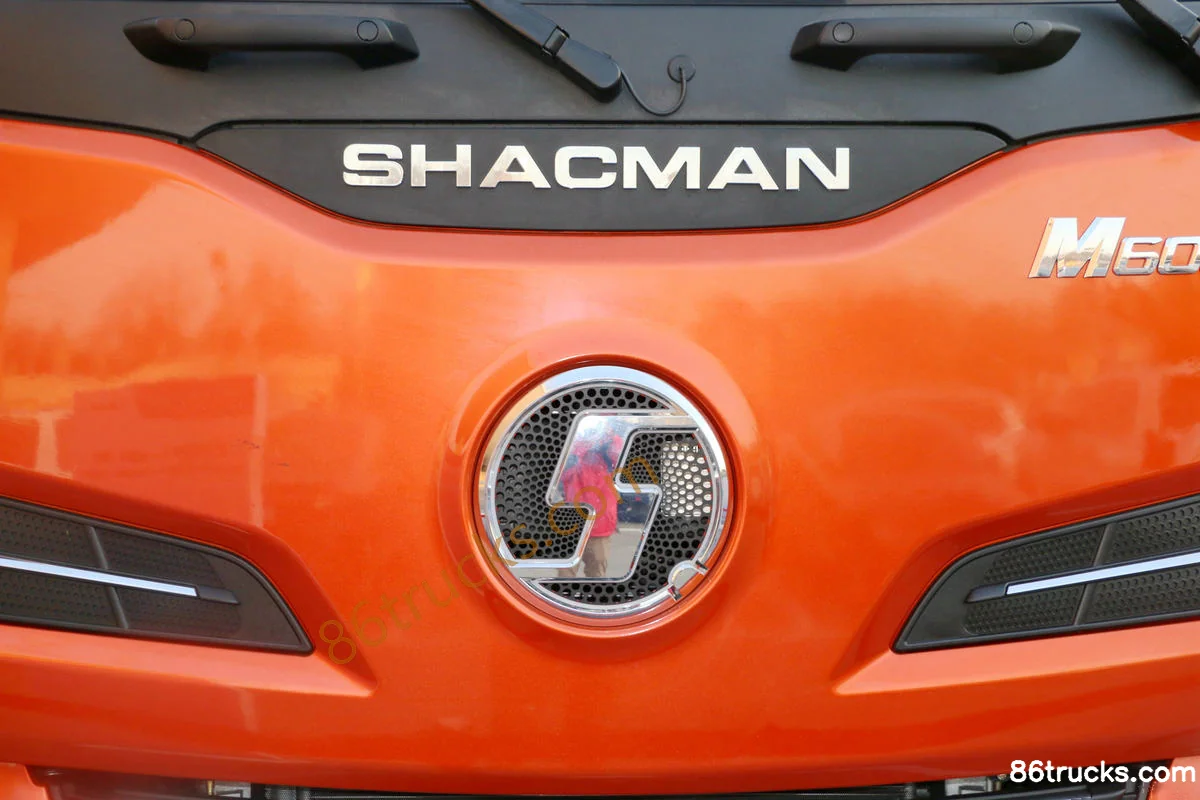

Exterior3

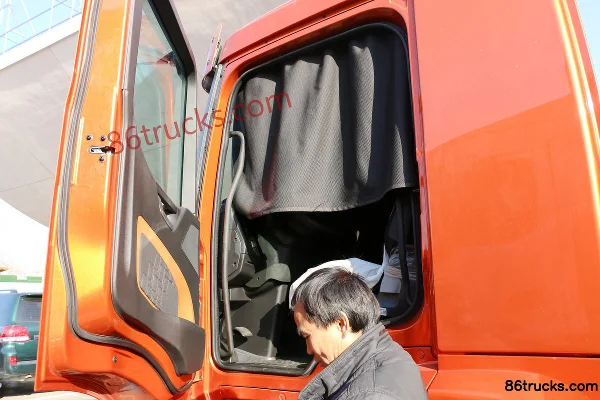

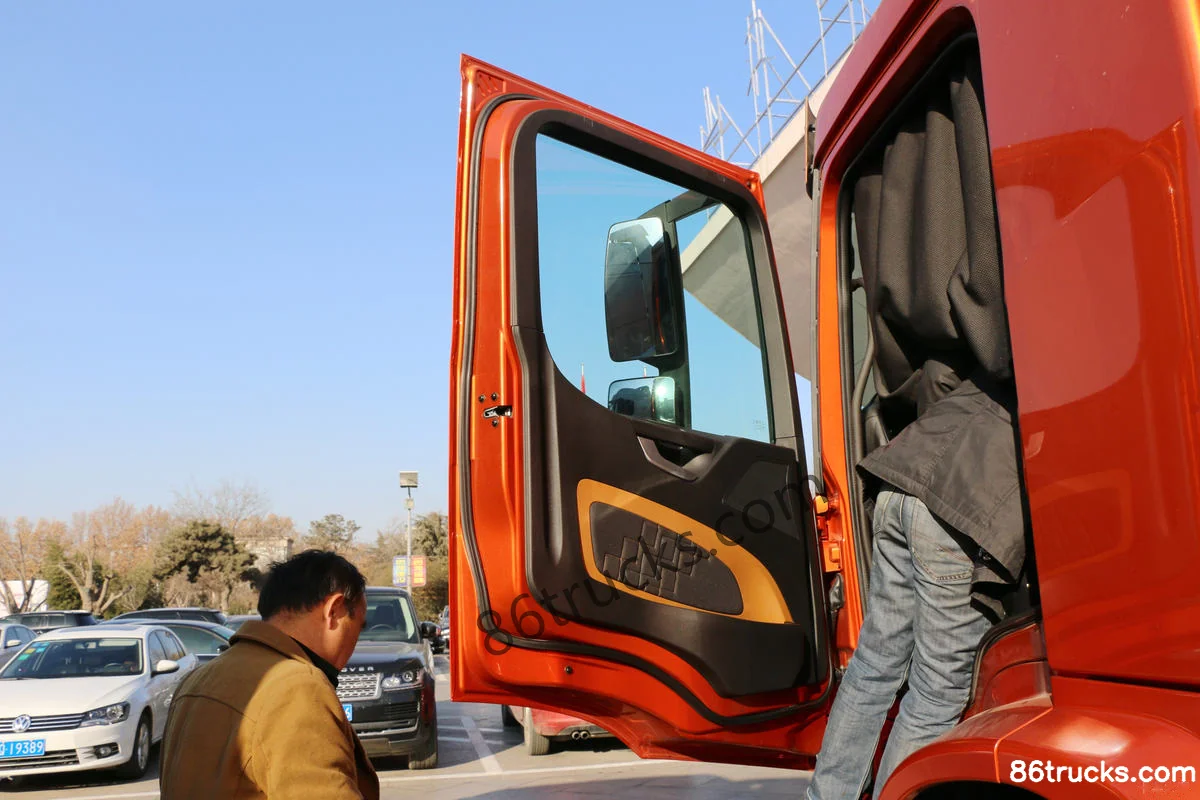

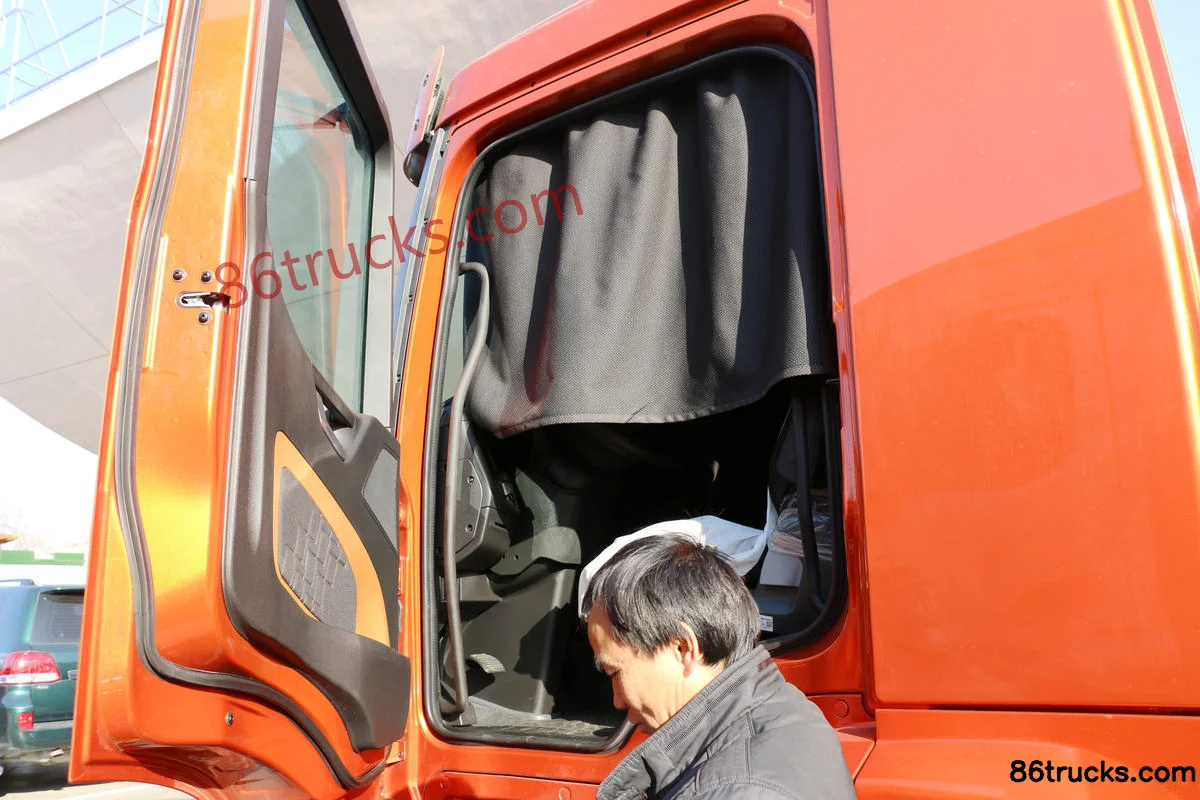

Cab2

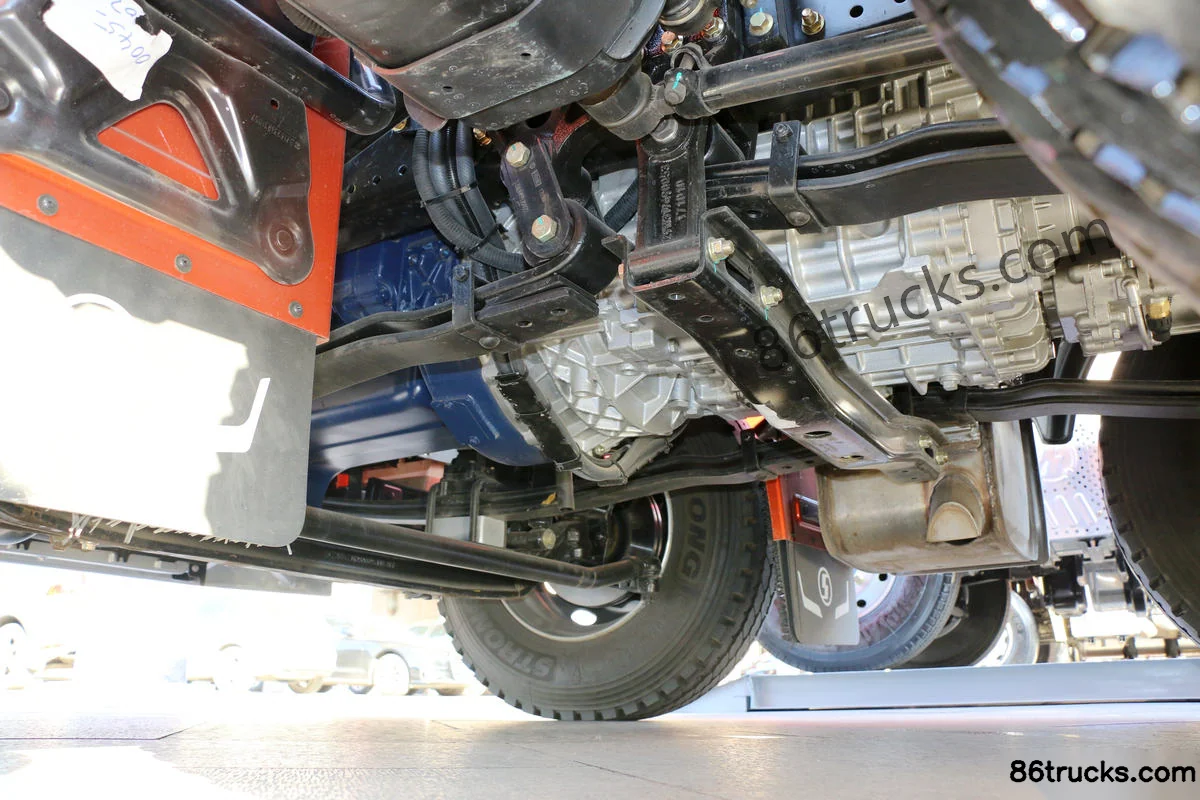

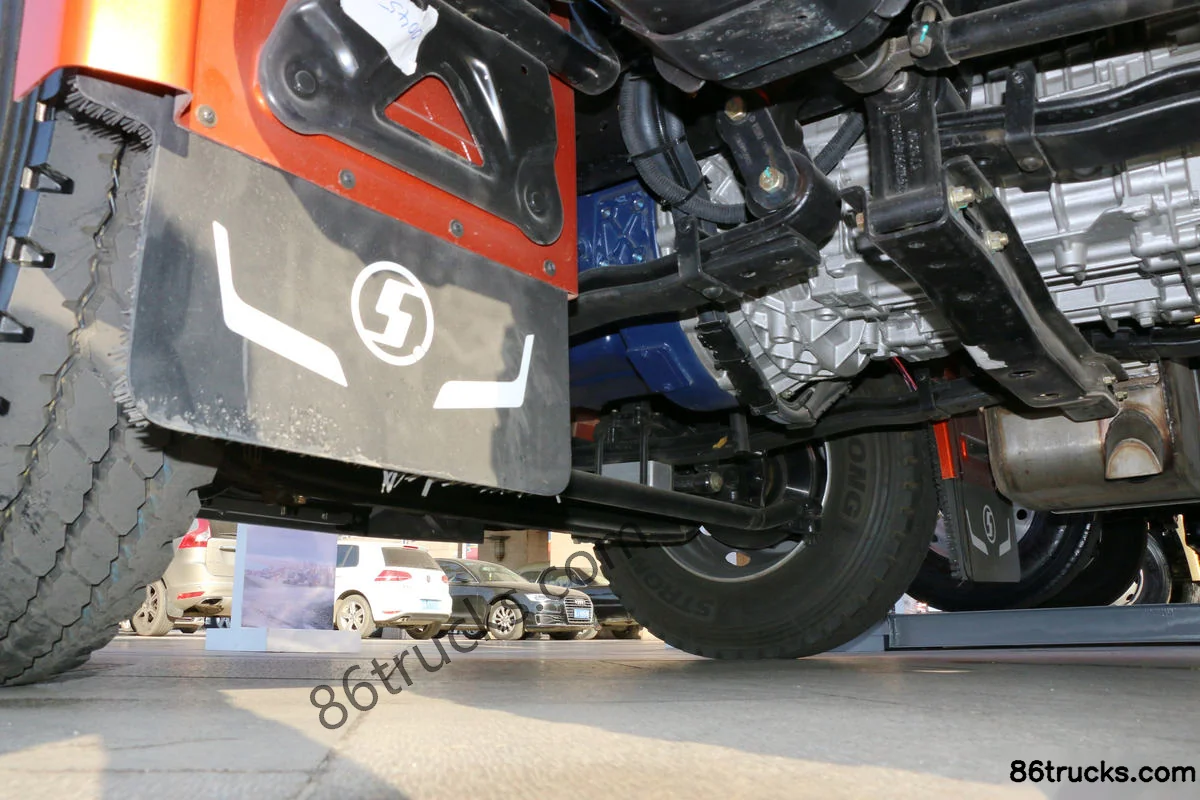

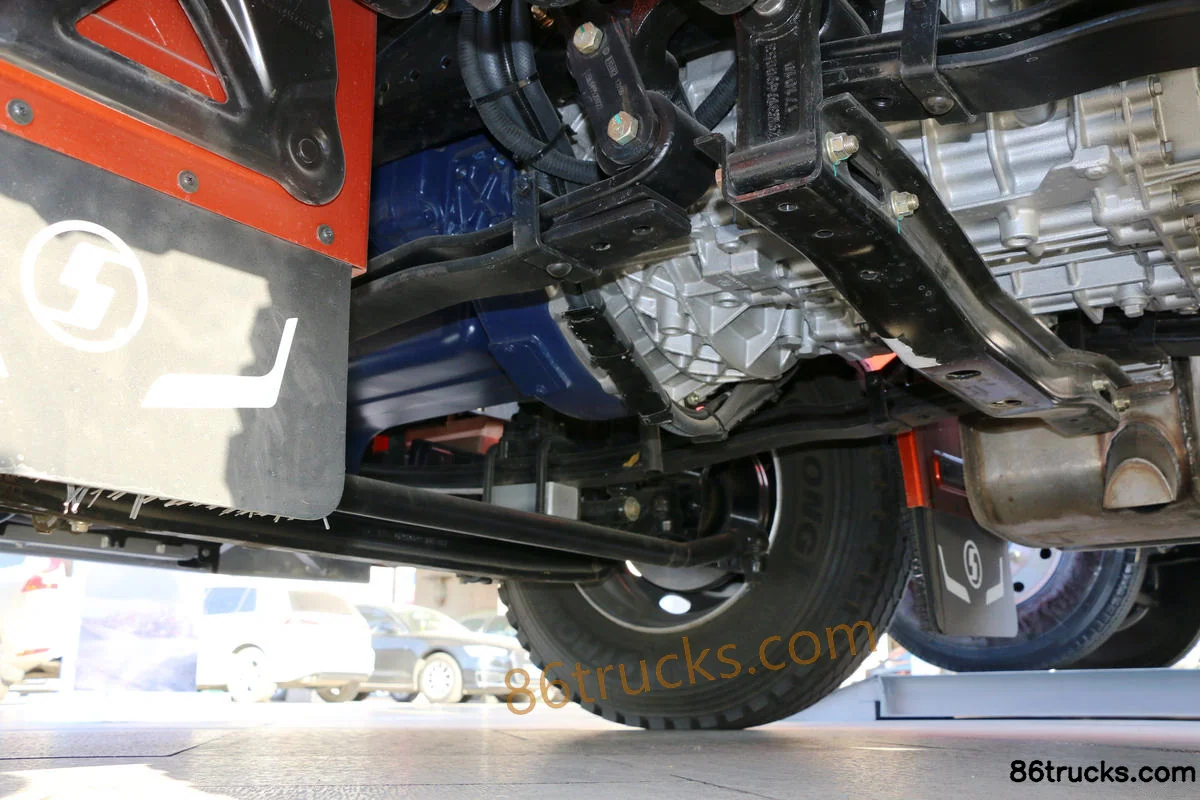

Chassis3

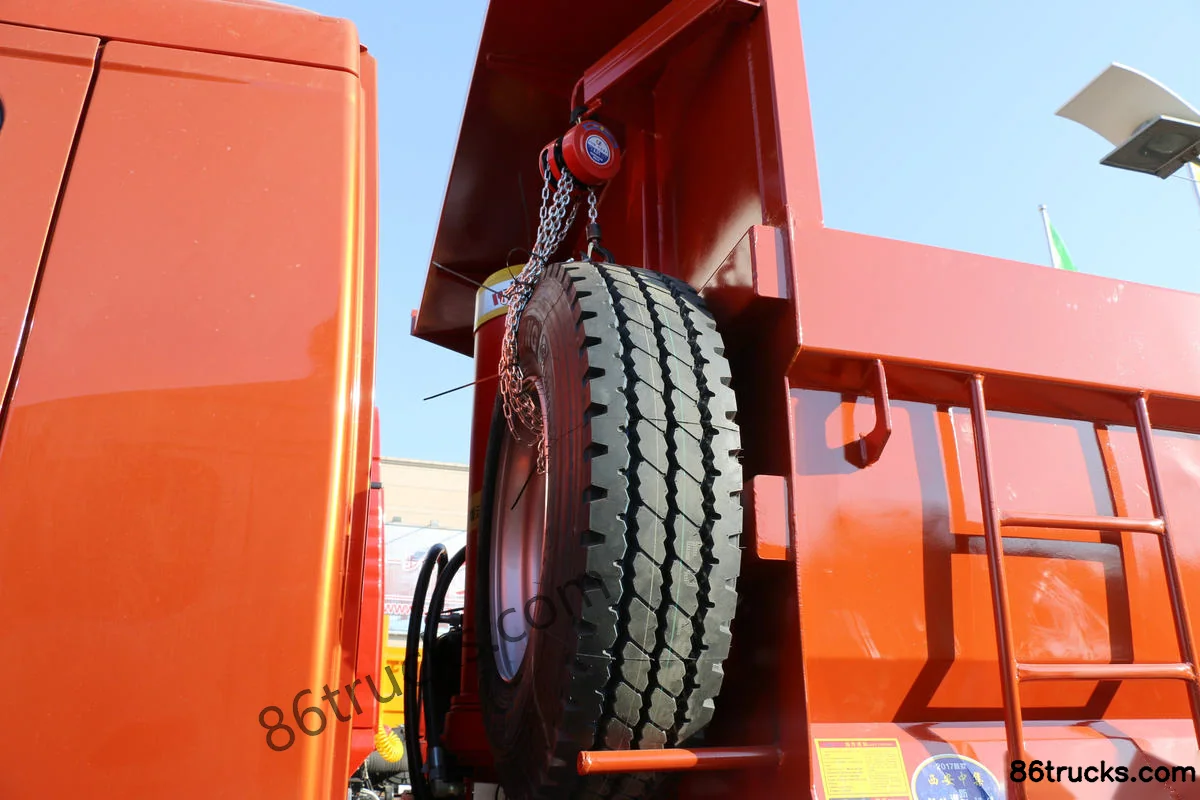

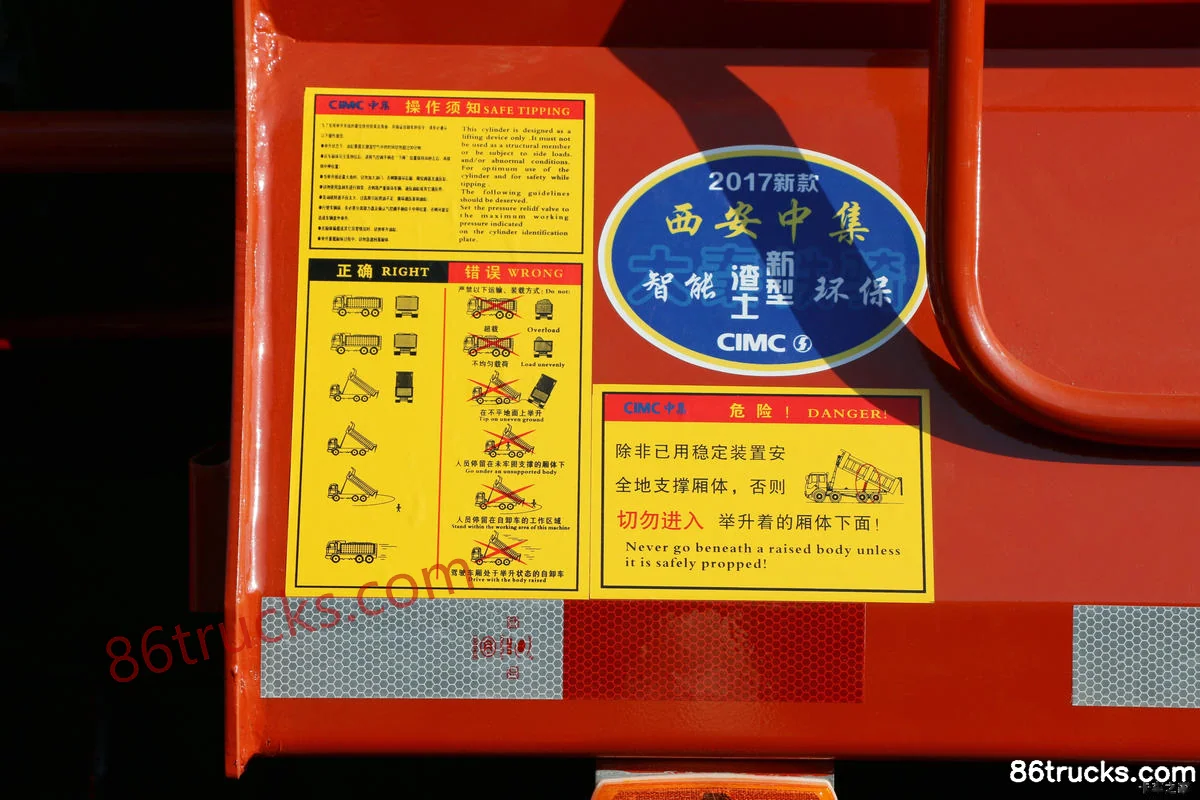

Body2

10 photos

FAQ

What emission standard does SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck?

Key specs of SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck suited for?

SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck differ from other variants in the same series?

SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck belongs to SHACMAN Delong M6000 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M6000 336hp 8X4(12 wheels) 6.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
