Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof)

Export reference
MSRP N/A
Horsepower: 470
Emission: China VI
Fuel: Diesel
Engine: Fukang 12L
Transmission: Fast Gear
Curb Weight:: 11.8ton
seating capacity: 2Personnel
Rated payload: 19.07ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) is a Heavy-duty cargo trucks featuring 9.53m cargo length, stake body cargo body, 2Personnel volume and 19.07t payload. On the powertrain side, it comes with a Fukang 12L engine, 470 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 470 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1319Y6GRL-01
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 2100+4400+1350mm
Box length class: 9.5m
engine: FotonX12NS6B470
transmission: Fast Gear 12-speed
Cab length: 12m
Cab width: 2.55m
Cab height: 3.725m
Front track width: 2020/2020mm
rear track: 1830/1830mm
Curb Weight: 11.8ton
Rated payload: 19.07ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
Front/rear suspension: 1.46/2.69m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX12NS6B470
Engine info: Fukang 12L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China VI
Max output power: 346kW
Max hp: 470Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.53m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: EST high roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 2/2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

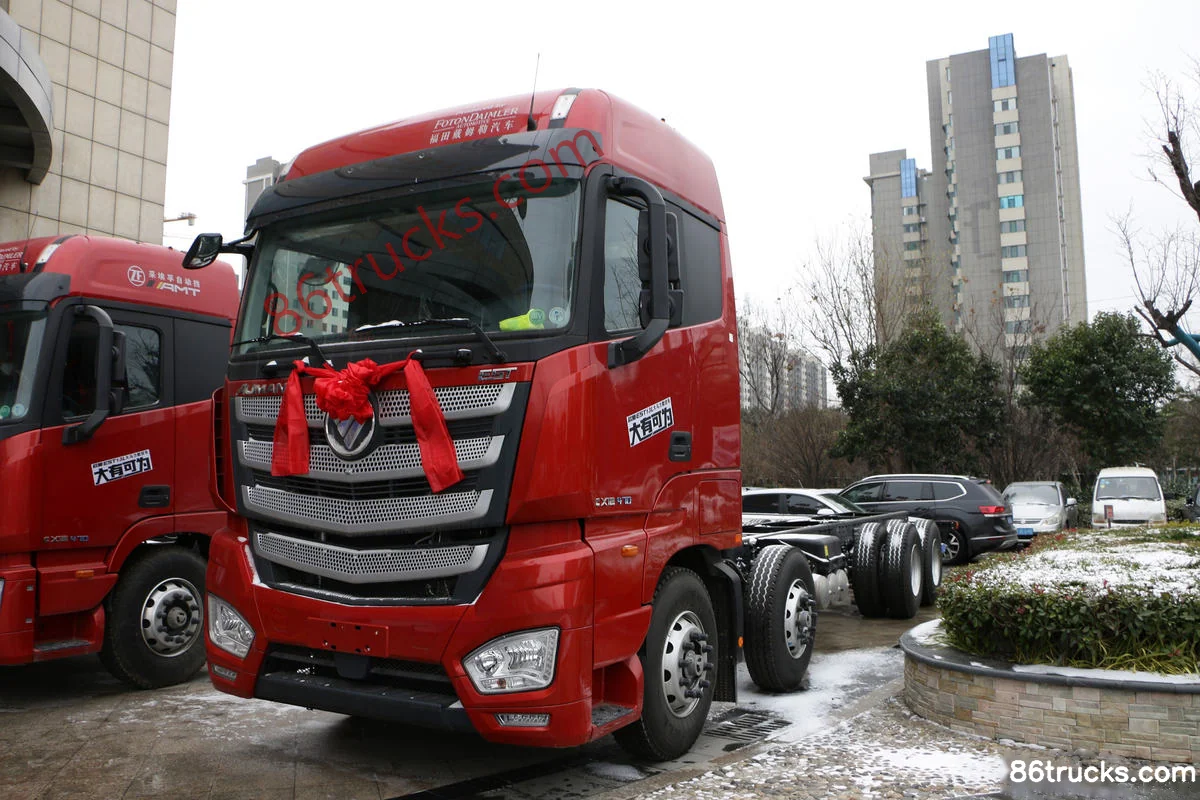

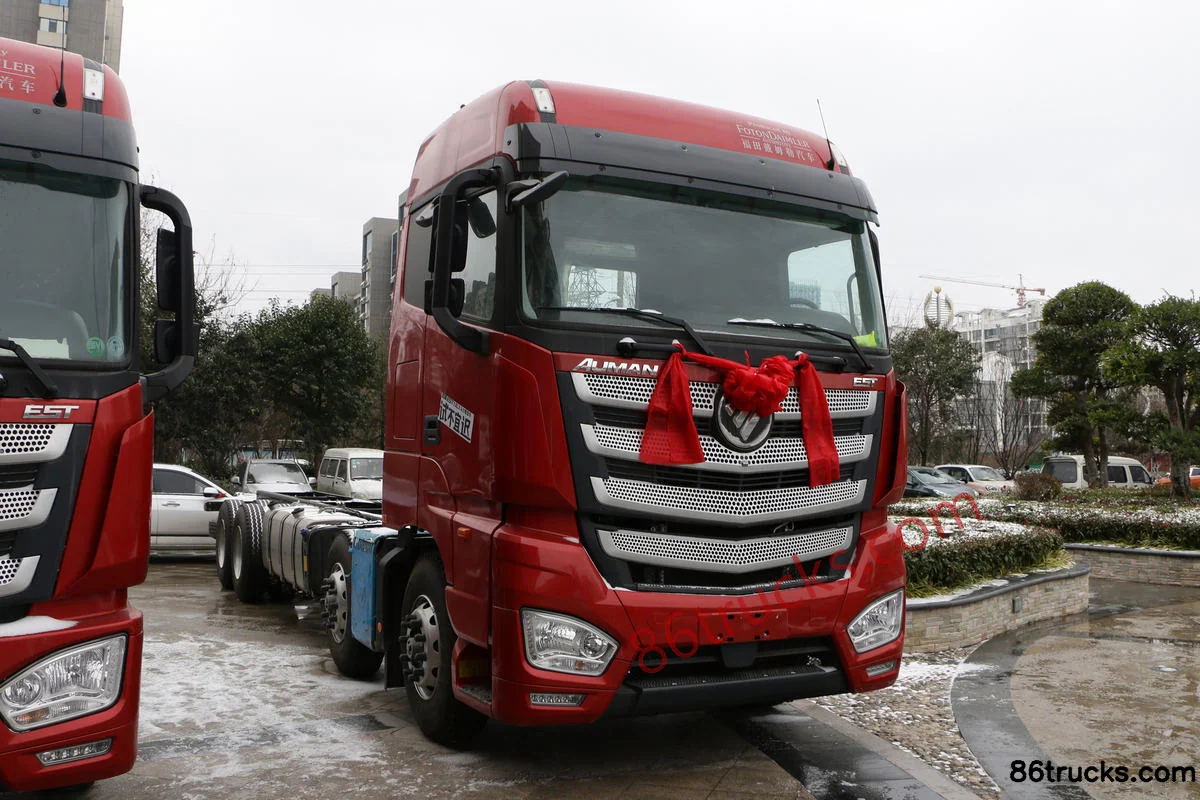

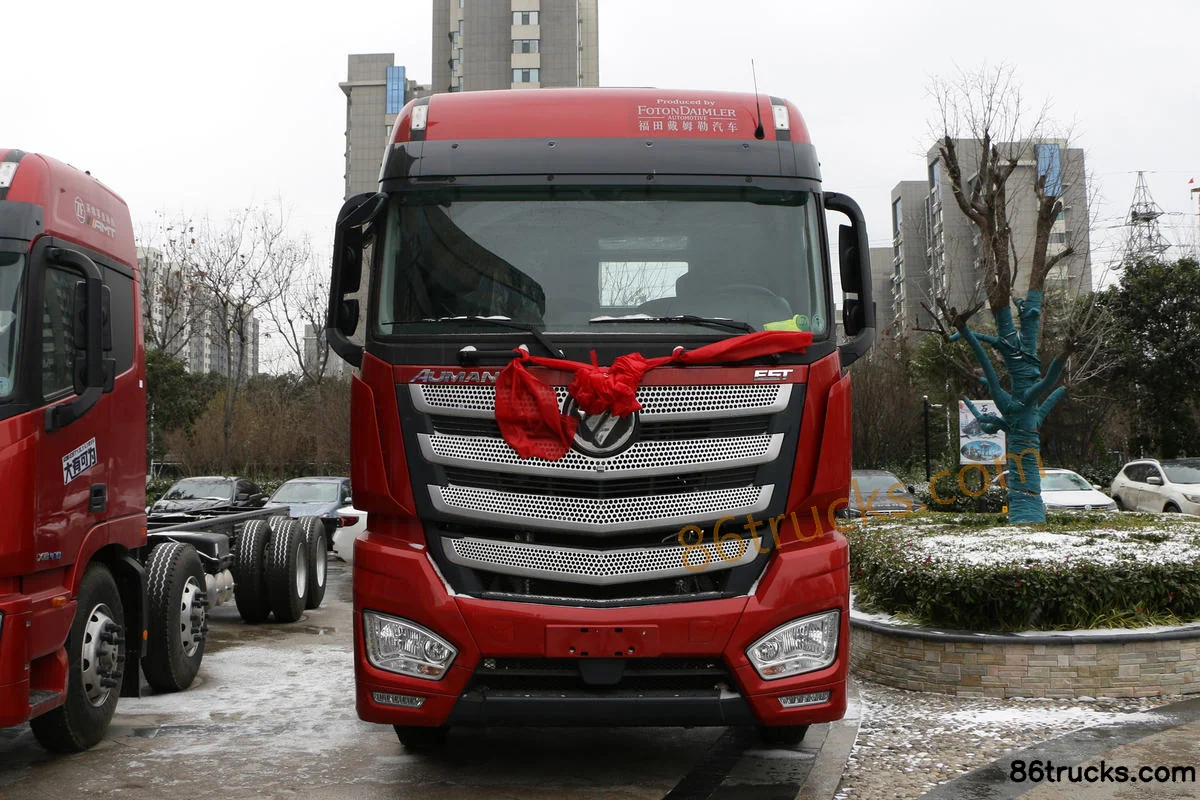

Exterior3

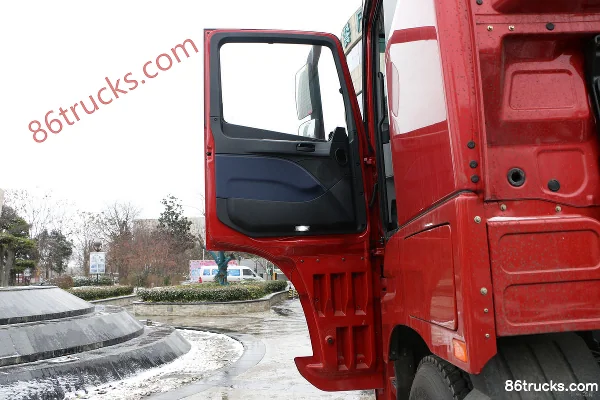

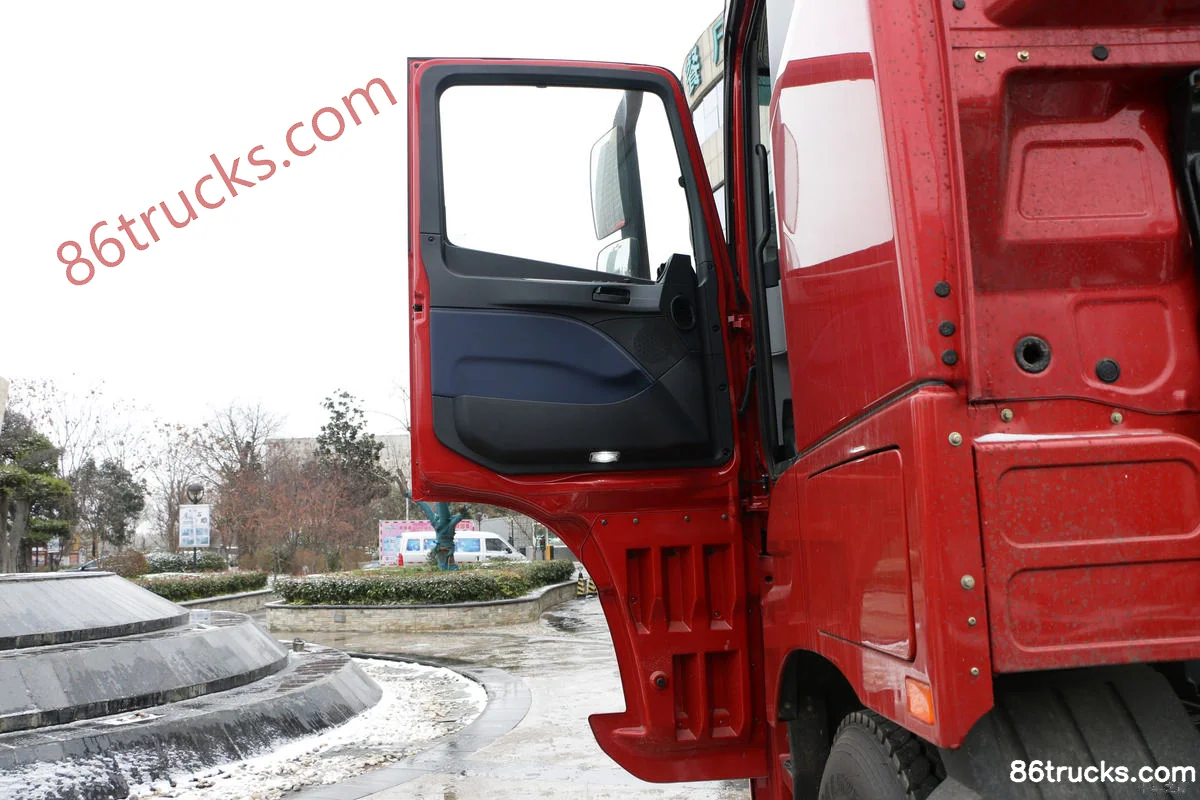

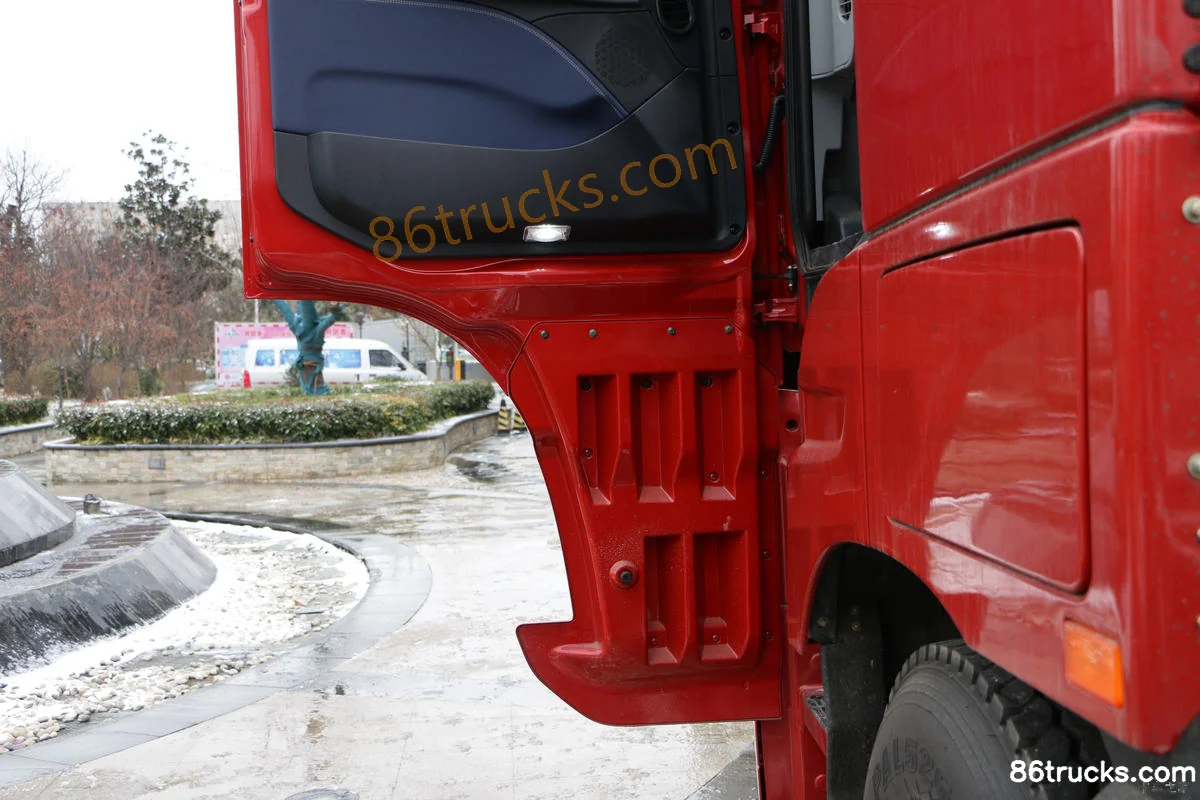

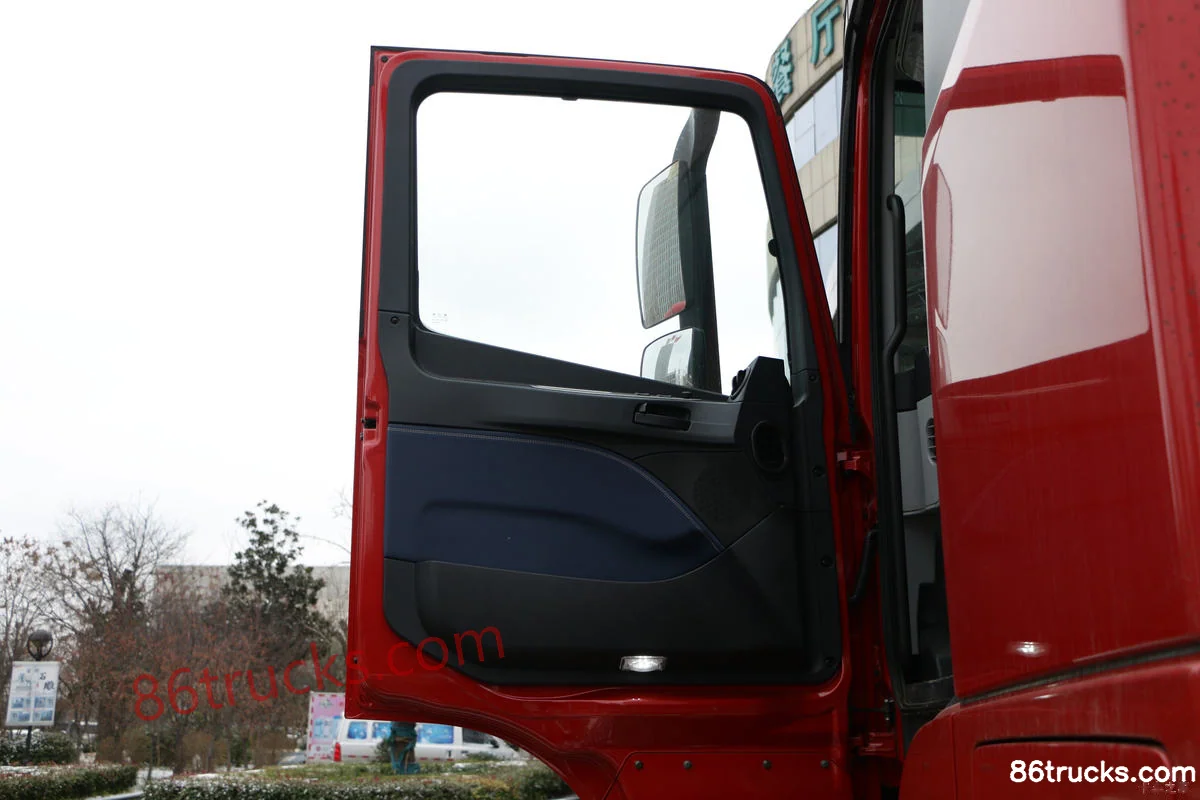

Cab3

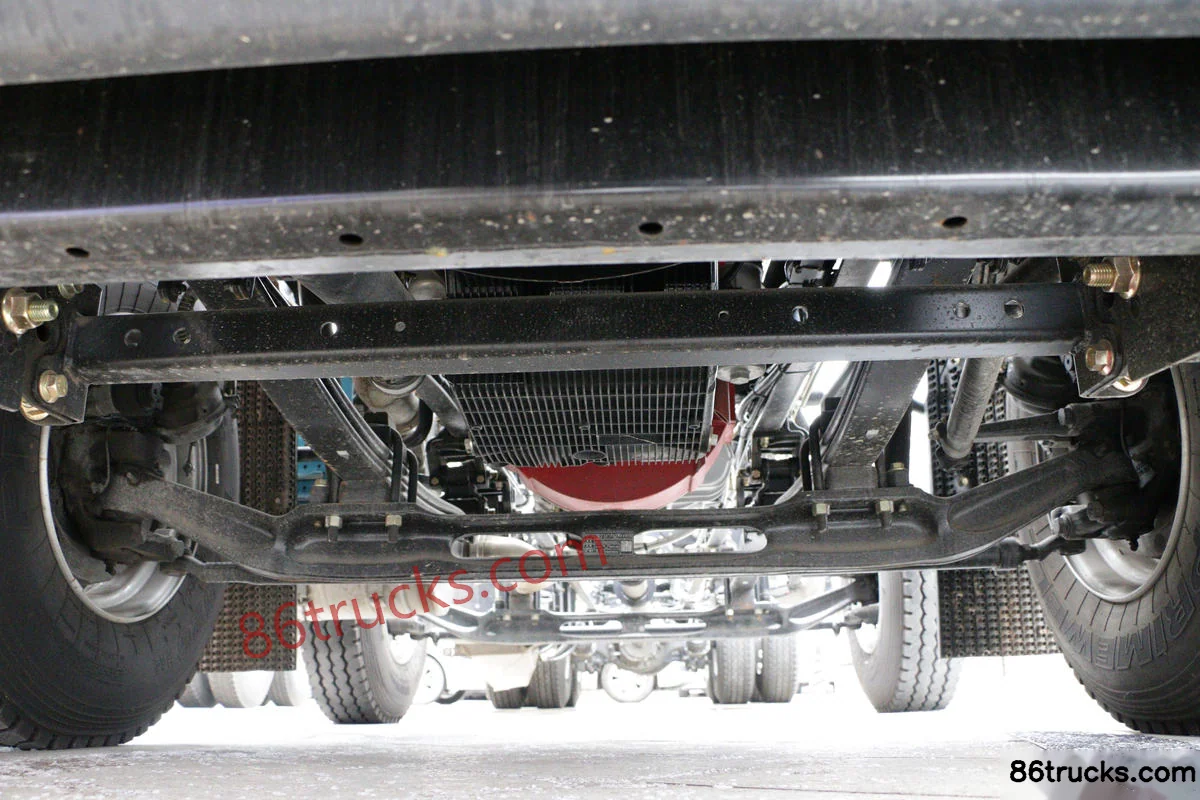

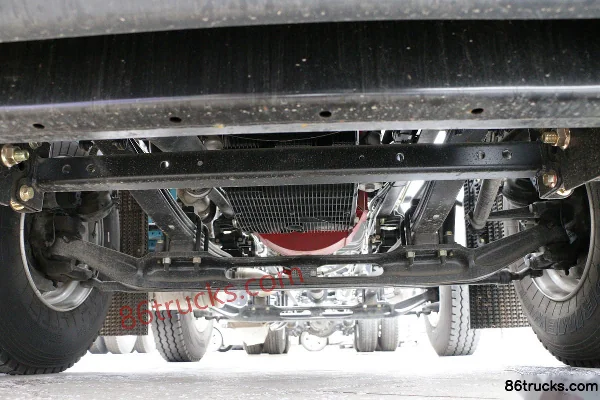

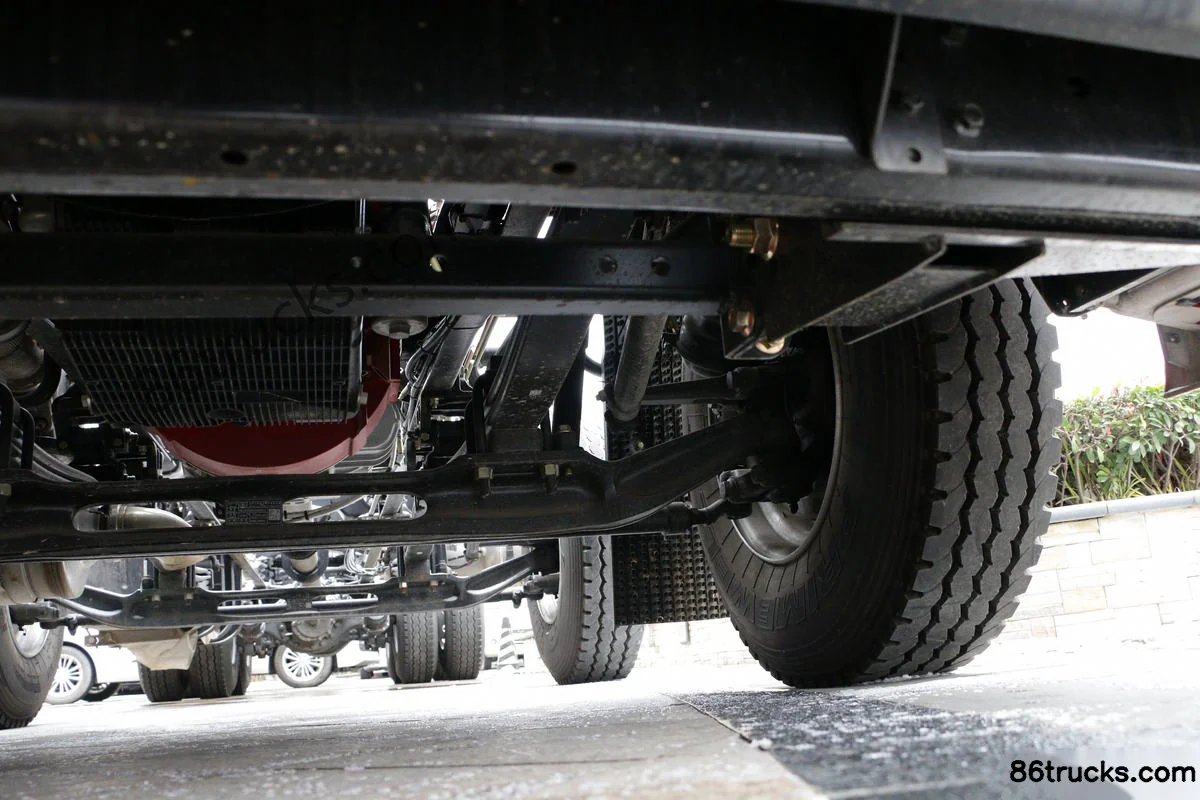

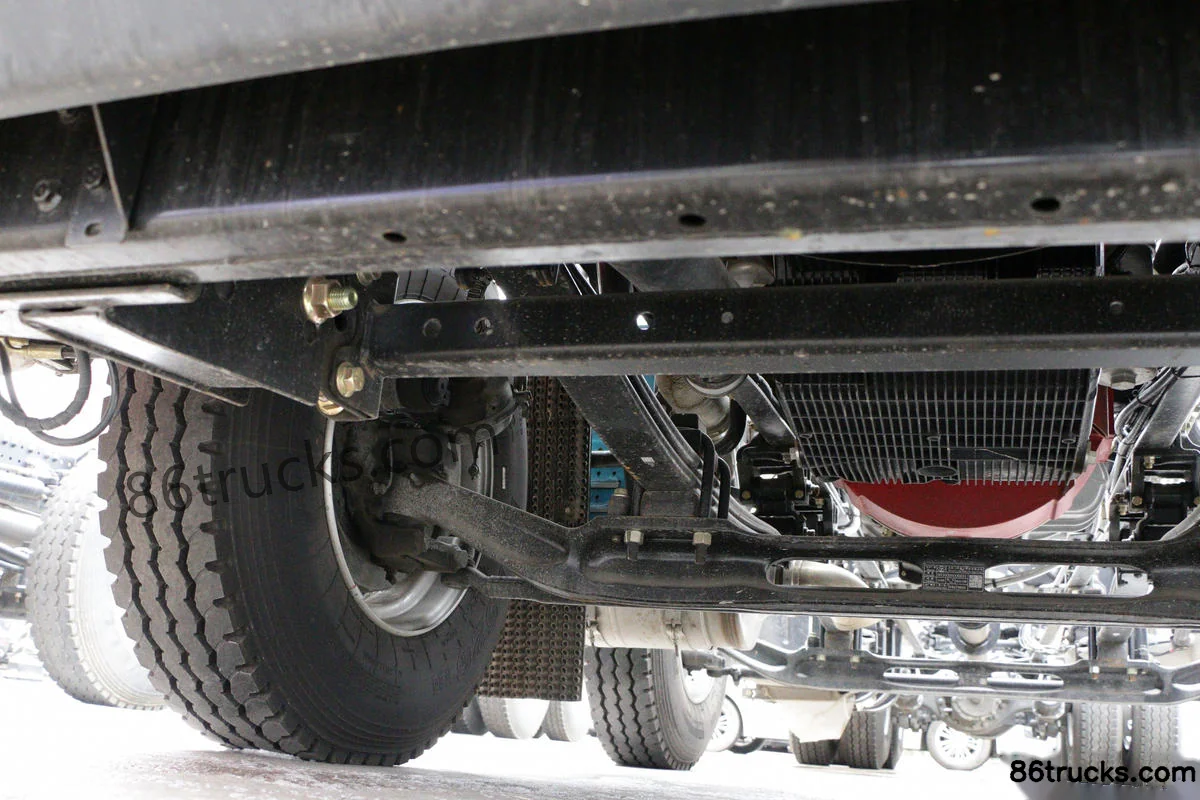

Chassis3

9 photos

FAQ

What emission standard does Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof)?

Key specs of Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof): Drive: 8x4; Horsepower: 470 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 12L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) suited for?

Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) differ from other variants in the same series?

Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof) belongs to Foton Auman EST Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman EST 470 hp 8X4(12 wheels) 9.53m panel cargo truck (high roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
