JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.37m Semi-row Stake Light Truck
EXW
From $13,444
Export quote
JAC K3 light truck Cargo Trucks
Main model photos
57 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.37m Semi-row Stake Light Truck | 4x2 / 137hp / China VI | From $13,444 | |
| JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.7m Single Row Stake Light Truck | 4x2 / 137hp / China VI | From $13,306 | |
| JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.37m Semi-row Van Light Truck | 4x2 / 137hp / China VI | From $13,444 | |
| JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.7m Single Row Van Light Truck | 4x2 / 137hp / China VI | From $13,306 | |
| JAC K3 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed Air Brake 3.37m Semi-Sleeper Stake Light Truck | 4x2 / 137hp / China VI | From $12,611 |

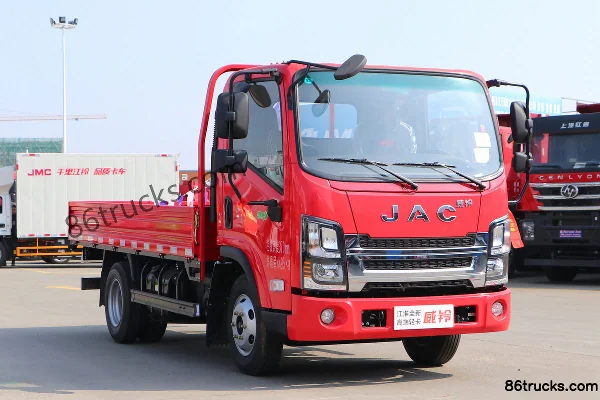

JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.7m Single Row Stake Light Truck
EXW
From $13,306
Export quote
JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.37m Semi-row Van Light Truck
EXW
From $13,444
Export quote
JAC K3 2.5L Diesel 137 hp 4X2(6 wheels) WLY 8-speed Air Brake 3.7m Single Row Van Light Truck
EXW
From $13,306
Export quote
JAC K3 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed Air Brake 3.37m Semi-Sleeper Stake Light Truck
EXW
From $12,611
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck | 4x2 / 127hp / China VI | ||
| JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row van light truck | 4x2 / 127hp / China VI | ||
| JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row flatbed light truck | 4x2 / 127hp / China VI | ||
| JAC Weilíng K3 127 hp 4X2(6 wheels) 3.7m single-row flatbed light truck | 4x2 / 127hp / China VI | ||
| JAC Weiling K3 115 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck | 4x2 / 115hp / China VI | From $13,167 |
JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck
EXW
Export quote
JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row van light truck
EXW
Export quote
JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row flatbed light truck
EXW
Export quote
JAC Weilíng K3 127 hp 4X2(6 wheels) 3.7m single-row flatbed light truck
EXW
Export quote
JAC Weiling K3 115 hp 4X2(6 wheels) 3.7m Single Row Van Light Truck
EXW
From $13,167
Export quote
Series Specs
Basic Info
Model code (announced): HFC5045CCYP32K1C7NS / HFC5045XXYP32K1C7NS / HFC1045P32K1C7NS / HFC5041CCYP13K1B4NS / HFC5041XXYP13K1B4NS / HFC1041P13K1B4NS / HFC5031CCYP23N3C1QS / HFC5031XXYP23N3C1QS / HFC1031P23N3C1QS / HFC2041P33K1C7NS
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2850 / 3100mm
Box length class: 3.4 / 3.7 / 4.1m
Engine Model: Yunnei PowerYN25PLUS160C / Yunnei PowerD20TCIF16 / DonganDAN20CL / Yunnei PowerD20TCIF1 / Yunnei PowerYN25PLUS2 / QuanchaiQ23-95E60 / YN25PLUS160C
Transmission Model: WLYWLY8GS46 / Xingrui ML532C9 / DonganDAT25R / WLYWLY5G32C / Xingrui ML540A / Lu'an LC5T28B / WLYWLY10H35 / WLY8GS46 / ML532C9
Rear Axle Ratio: 4.875 / 5.375 / 4.33
Cab length: 5.52 / 5.46 / 5.89 / 5.905 / 5.43m
Cab width: 1.91 / 1.916 / 1735m
Cab height: 2.8 / 2.45 / 2.9 / 2.25 / 3.05 / 2.85 / 2.19 / 2.49 / 3.15 / 2.75 / 2.18m
Front track width: 1470 / 1420mm
rear track: 1560 / 1395 / 1475mm
Curb Weight: 2.715 / 2.8 / 2.56 / 2.62 / 2.705 / 2.29 / 2.18 / 2.25 / 1.9 / 2.81ton
Rated payload: 1.575 / 1.49 / 1.73 / 1.58 / 1.495 / 1.91 / 1.185 / 1.115 / 1.165 / 0.995 / 1.64 / 1.555 / 1.795ton
GVWR: 4.485 / 4.33 / 3.495 / 3.195 / 3.935ton
Max. speed: 90 / 110 / 100km/h
Origin: Suining, Sichuan / Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20 / 18 / 21 / 15°
departure angle: 15 / 14 / 14.5°
Remarks: Optional: 4.33 ratio.
Front/rear suspension: 1.075/1.545 / 1.09/1.58 / 1.09/1.52 / 1.075/1.535 / 1.11/1.515 / 1.075/1.555 / 1.075/1.595m
Version: Underground Garage Version
Energy Type: Diesel / Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Yunnei Power / Dongan / Quanchai
Engine info: Yunnei Power2.5L / Yunnei Power2L / Dongan2L / Yunnei Dewei D20 / Yunnei 4-cylinder / QuanchaiQ23
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.499 / 1.999 / 1.998 / 2 / 2.3L
Emission standard: China VI
Max output power: 101 / 103 / 93 / 70kW
Max hp: 137 / 140 / 127 / 95Horsepower
Max torque: 320 / 350 / 240N·m
Max torque speed: 1400-2400 / 2000rpm
Rated speed: 3200 / 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: WLY / Xingrui (formerly Liu'an) / Dongan / Xingrui / Lu'an
shift method: Manual
Forward gears: 8 / 5Gear
FAQ
What kind of truck is JAC JAC K3 light truck Cargo Trucks?
JAC JAC K3 light truck is an export-oriented Cargo Trucks lineup with about 86 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC K3 light truck Cargo Trucks?
JAC K3 light truck Cargo Trucks export reference is about $11,208 – $14,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC K3 light truck Cargo Trucks cover?
JAC K3 light truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 115 hp / 127 hp / 137 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG) / Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC K3 light truck Cargo Trucks?
For JAC K3 light truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC K3 light truck Cargo Trucks include?
JAC K3 light truck Cargo Trucks currently lists about 86 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC K3 light truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
