JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck

Export reference
MSRP N/A
Horsepower: 127
Emission: China VI
Fuel: Compressed Natural Gas (CNG)
Engine: Dongan2L
Transmission: Dongan
Curb Weight:: 2.18ton
Air tank capacity: 180L
Rated payload: 1.185ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck is a Light Truck featuring 4.1m cargo length, Stake type cargo body, 180L volume and 1.185t payload. On the powertrain side, it comes with a Dongan2L engine, 127 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 127 Compressed Natural Gas (CNG) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5031CCYP23N3C1QS
Type: stake truck
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 4.1m
engine: DonganDAN20CL
transmission: DonganDAT25R
Rear Axle Ratio: 5.375
Cab length: 5.89m
Cab width: 1.91m
Cab height: 2.85m
Front track width: 1420mm
rear track: 1475mm
Curb Weight: 2.18ton
Rated payload: 1.185ton
GVWR: 3.495ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 15°
departure angle: 14°
Front/rear suspension: 1.11/1.515m
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAN20CL
Engine info: Dongan2L
Number of cylinders: 4cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 1.998L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Transmission Parameters
Transmission Model: DonganDAT25R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.1m
Cargo box width: 1.81m
*Cargo box interior width: 1.81
fuel tank
Air tank capacity: 180L
Fuel tank material: Steel
Cab parameters
Cab width: 1735mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 1.5T
Front axle allowable load: 1265kg
rear axle description: 2.5T
rear axle allowable load: 2230kg
Axle ratio: 5.375
Leaf spring count: 3/3+2
Aluminum wheels:
Tire
Tire Size: 175/75R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

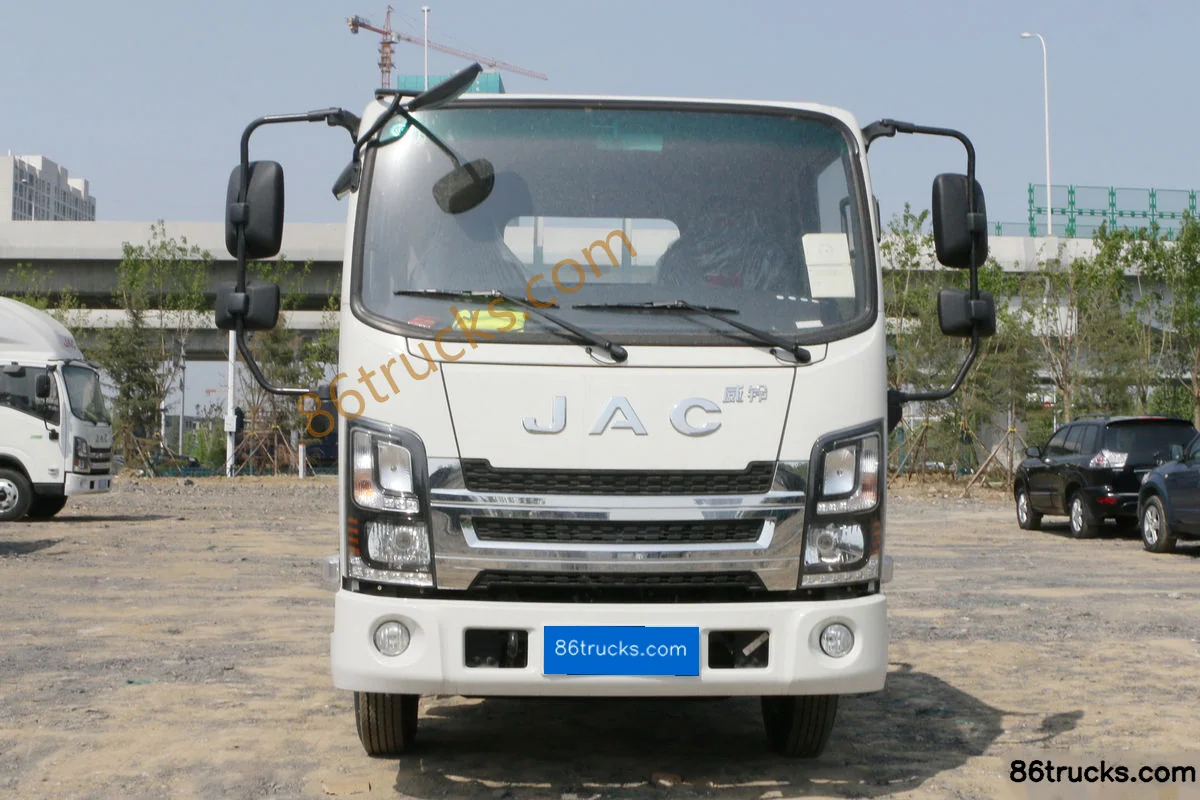

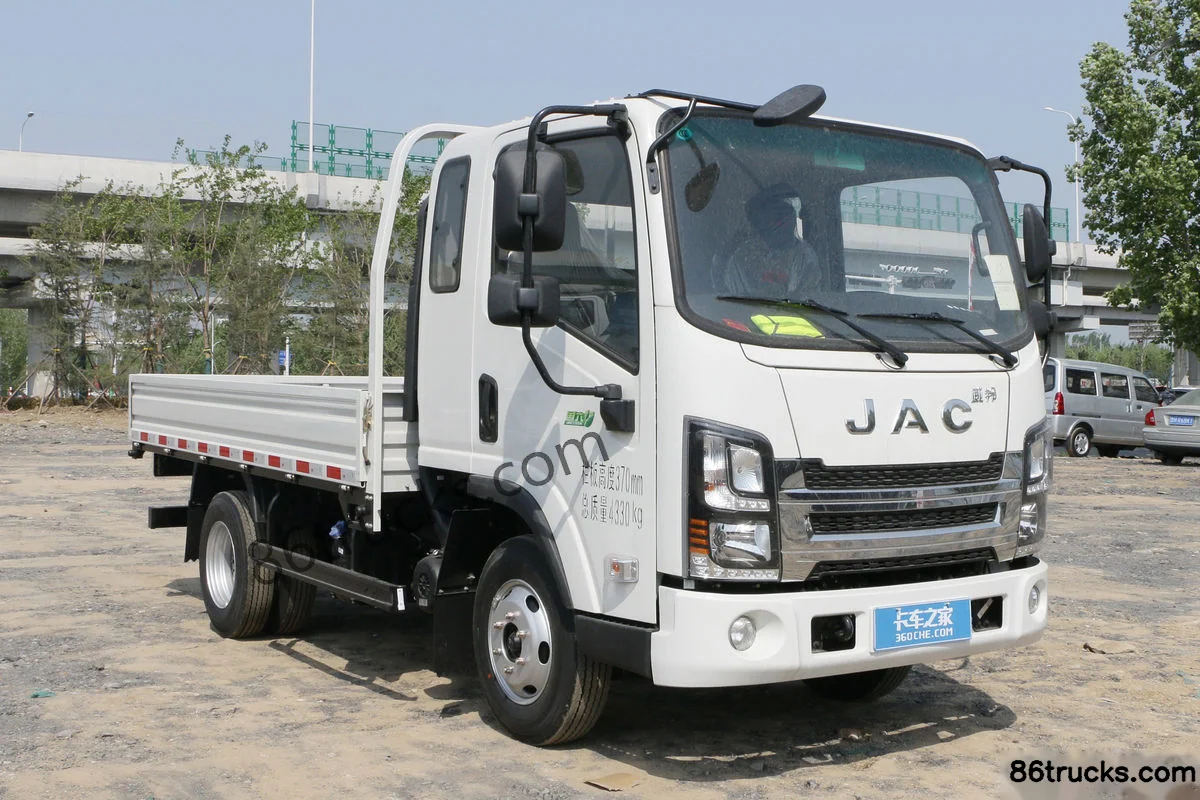

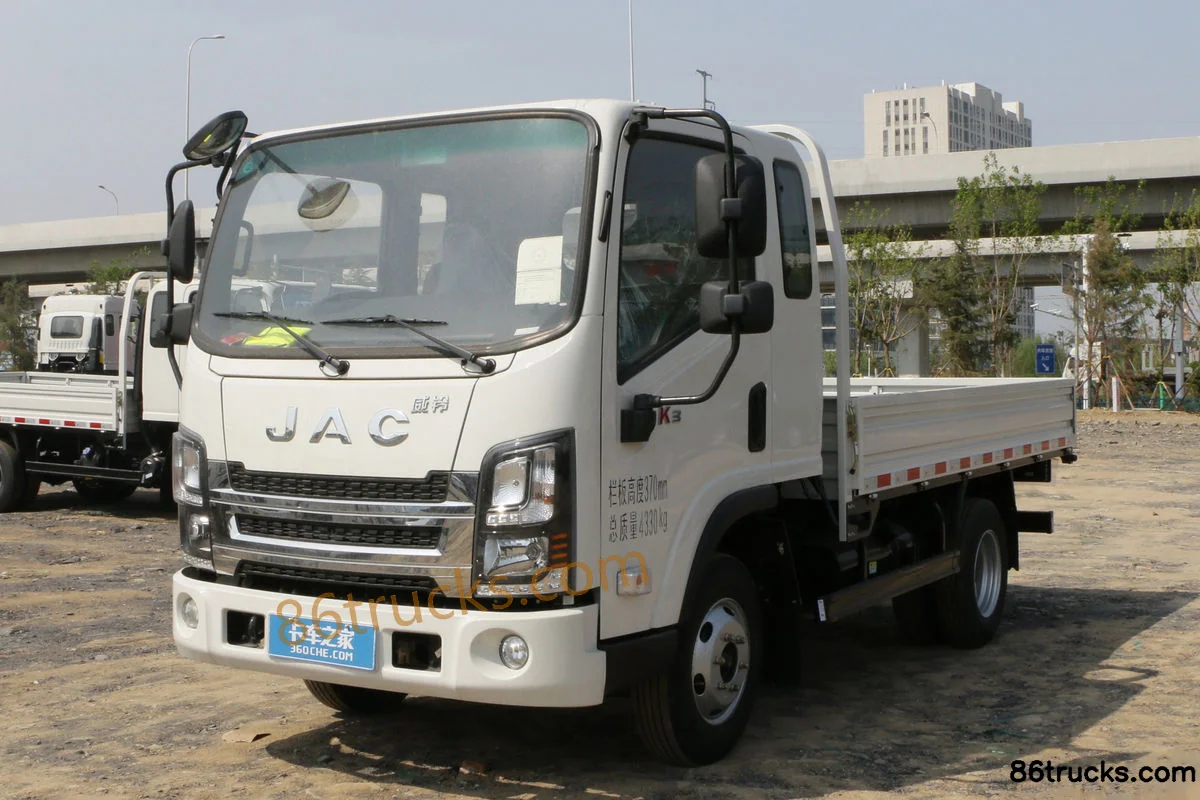

Exterior3

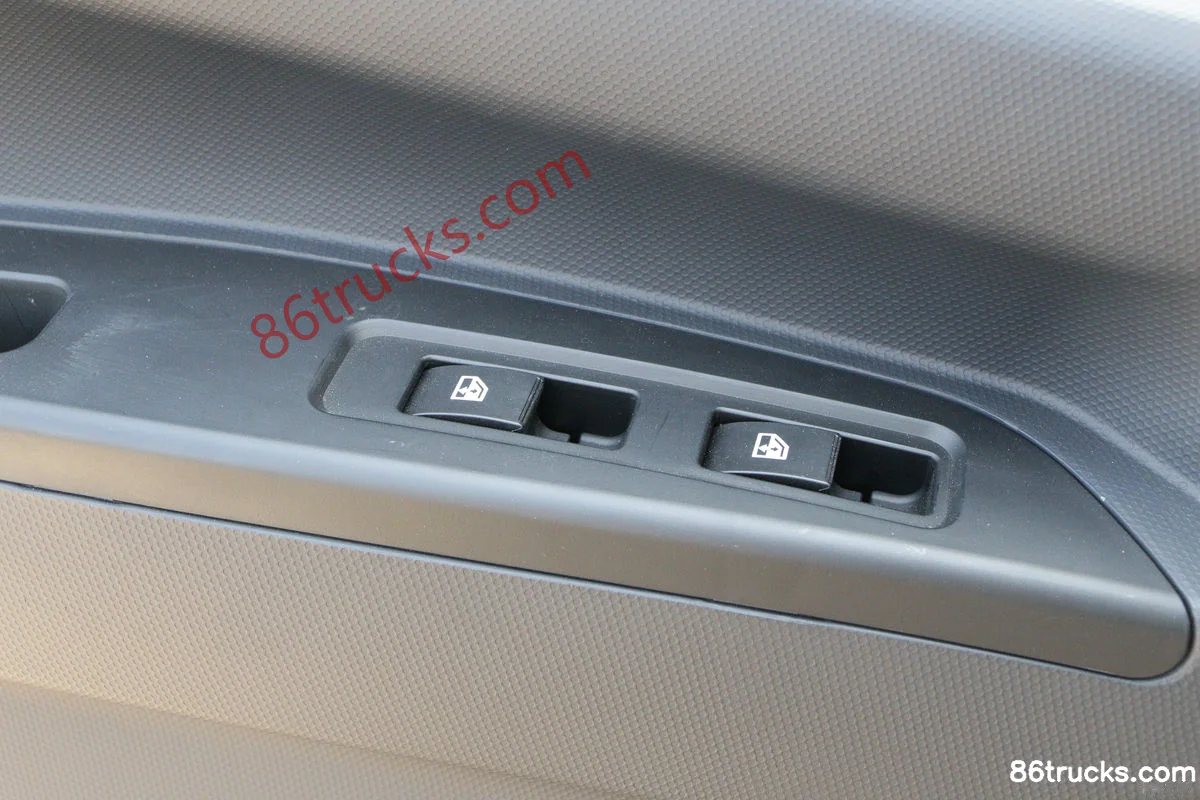

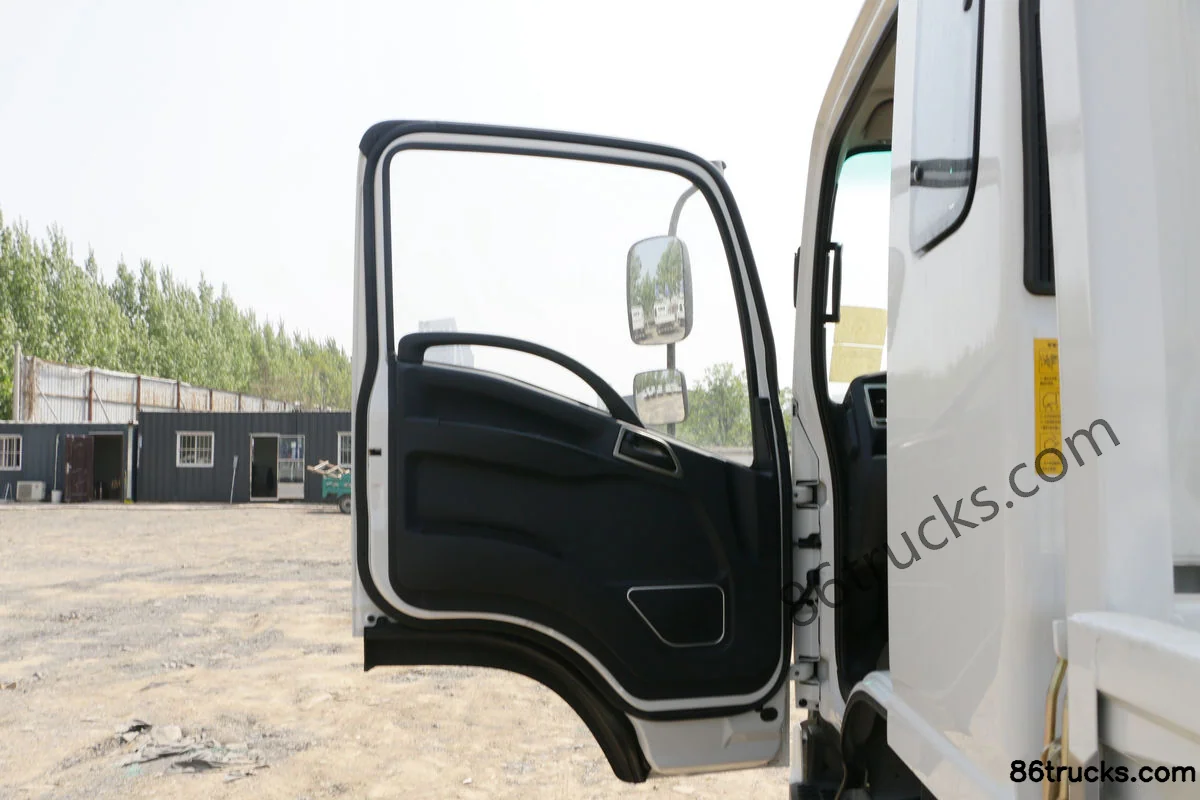

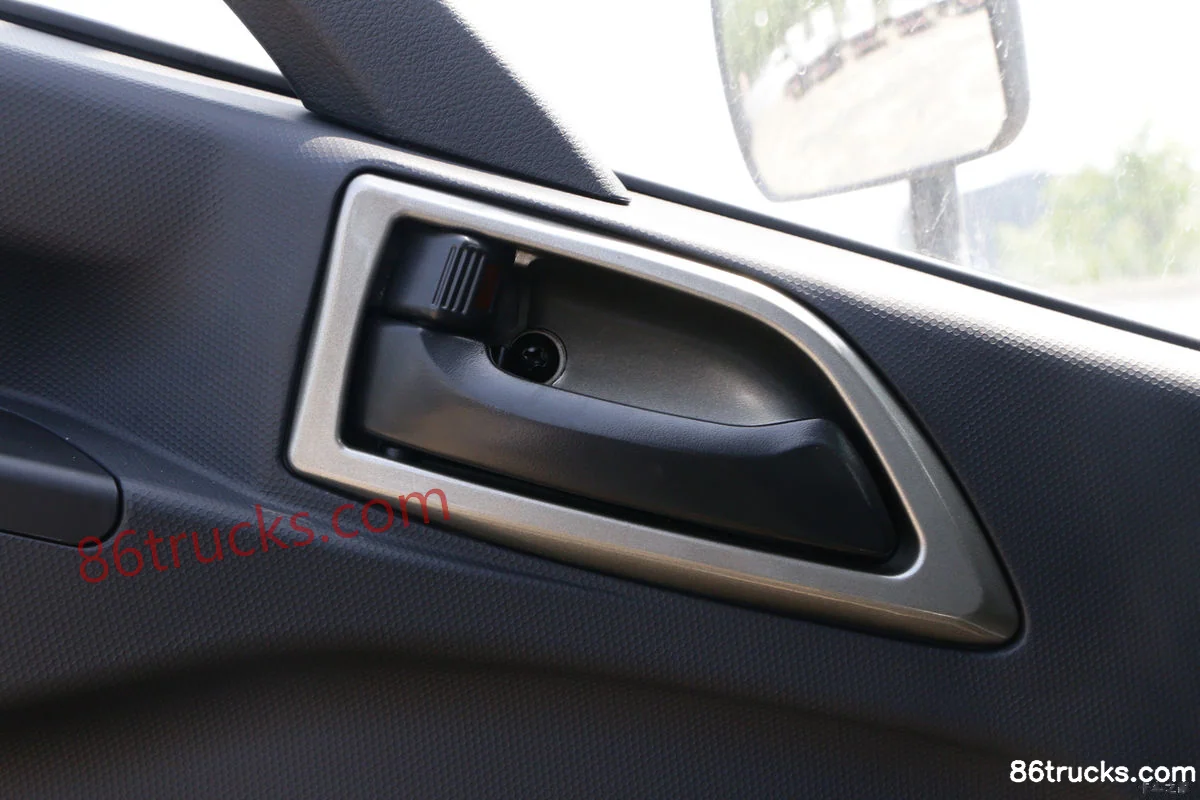

Cab3

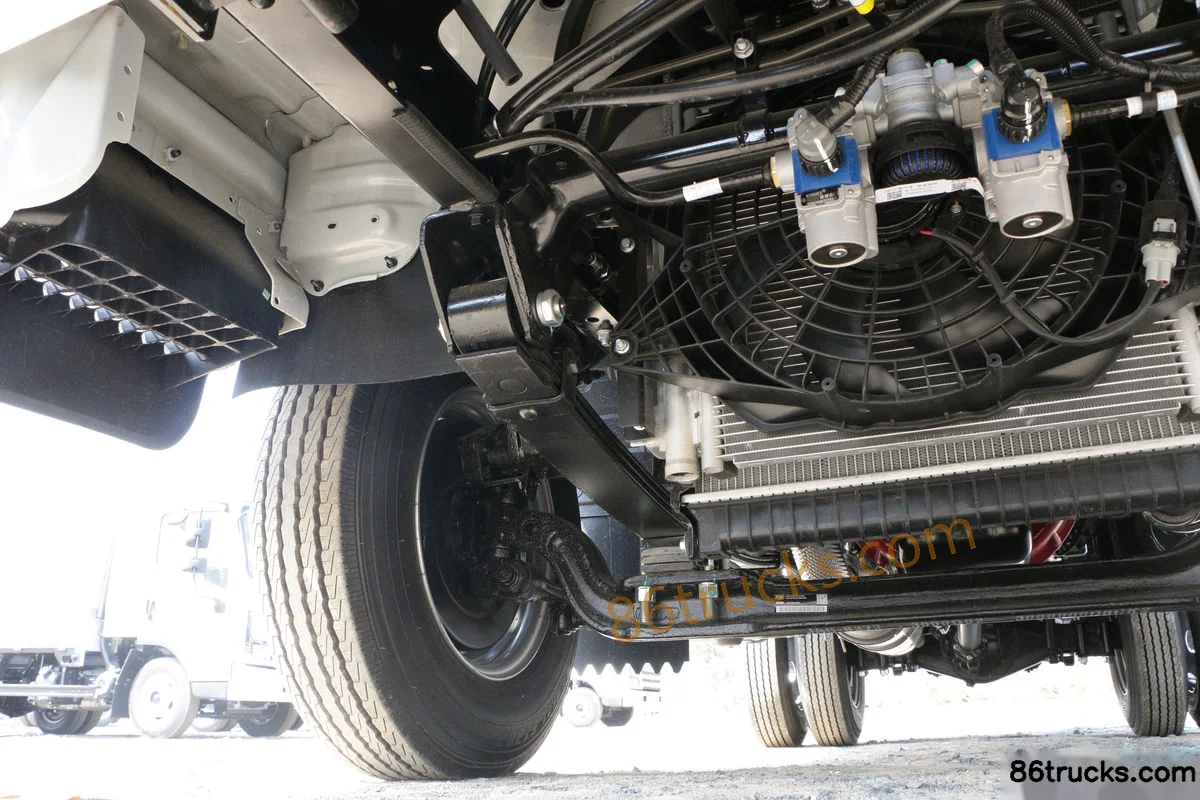

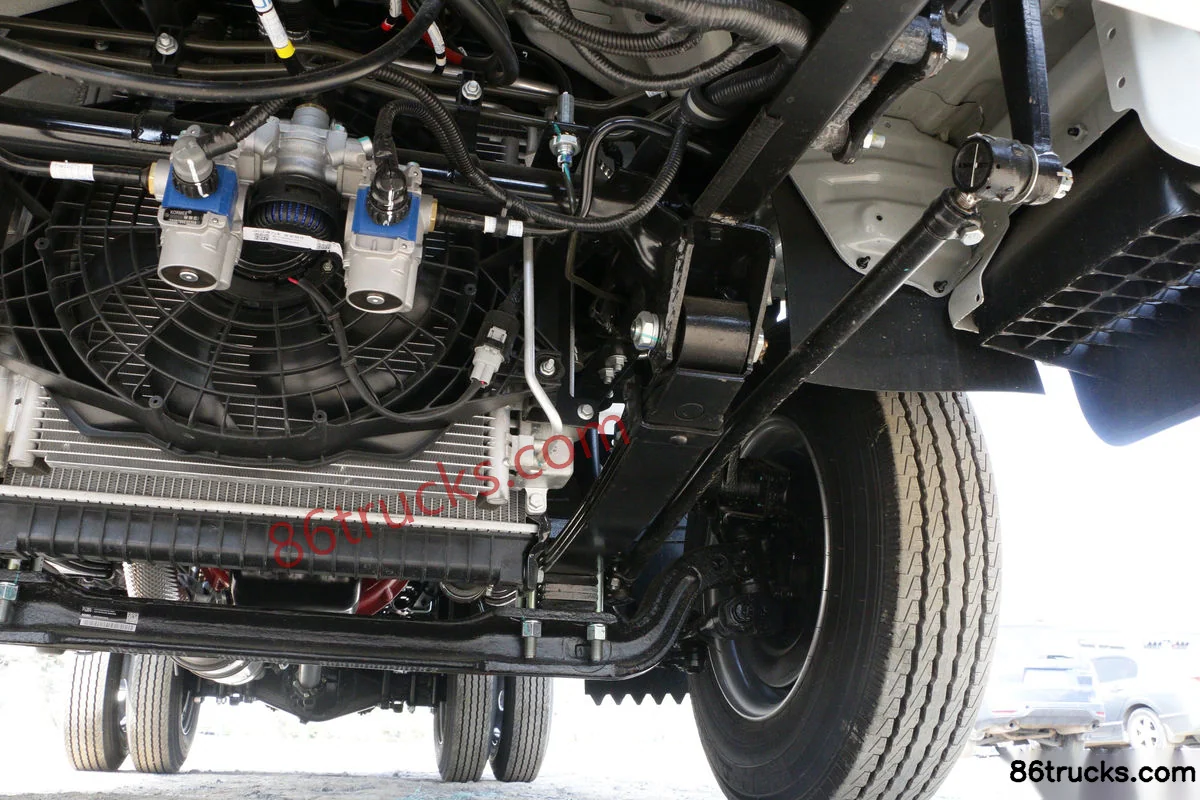

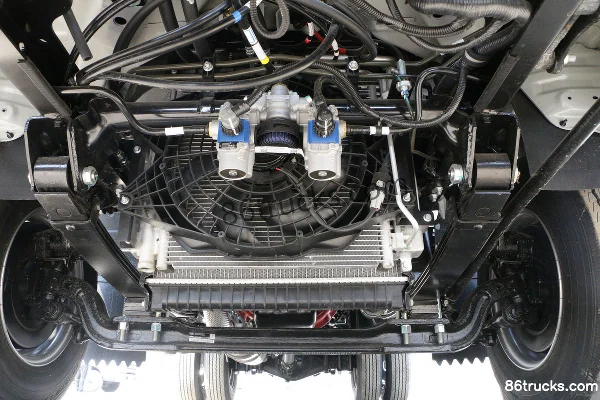

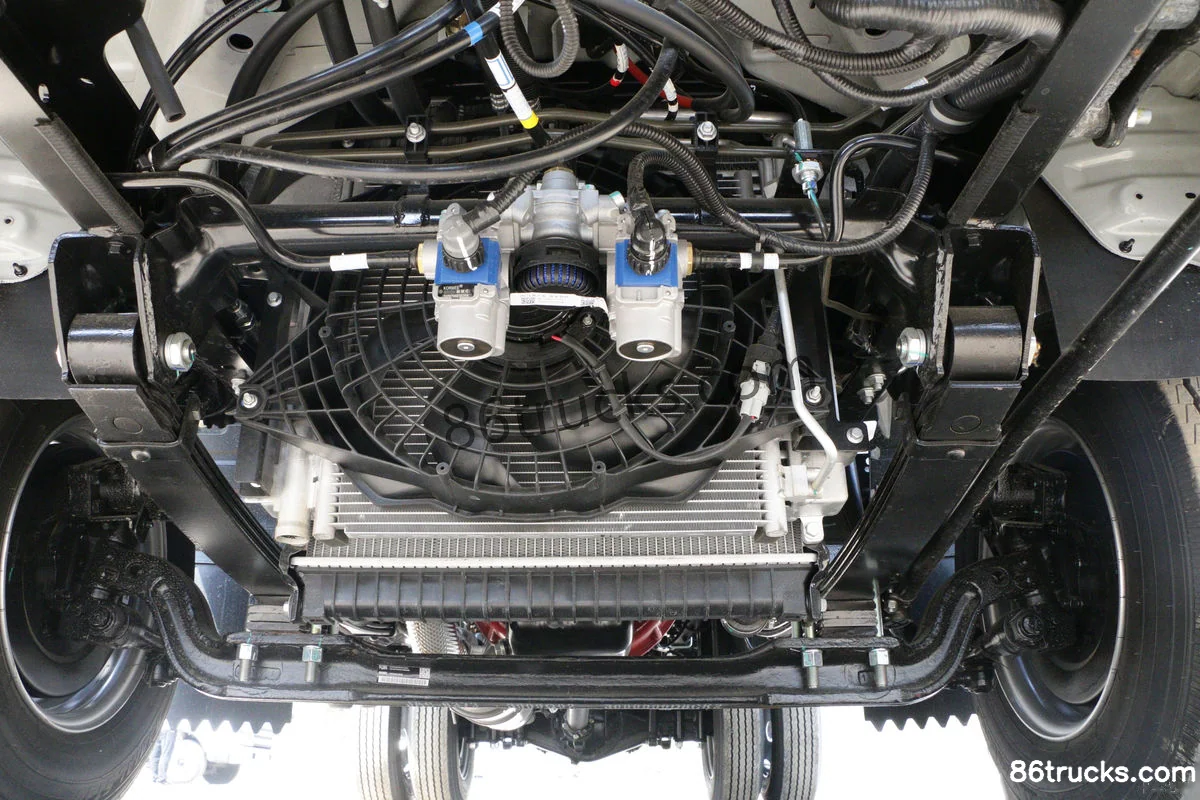

Chassis3

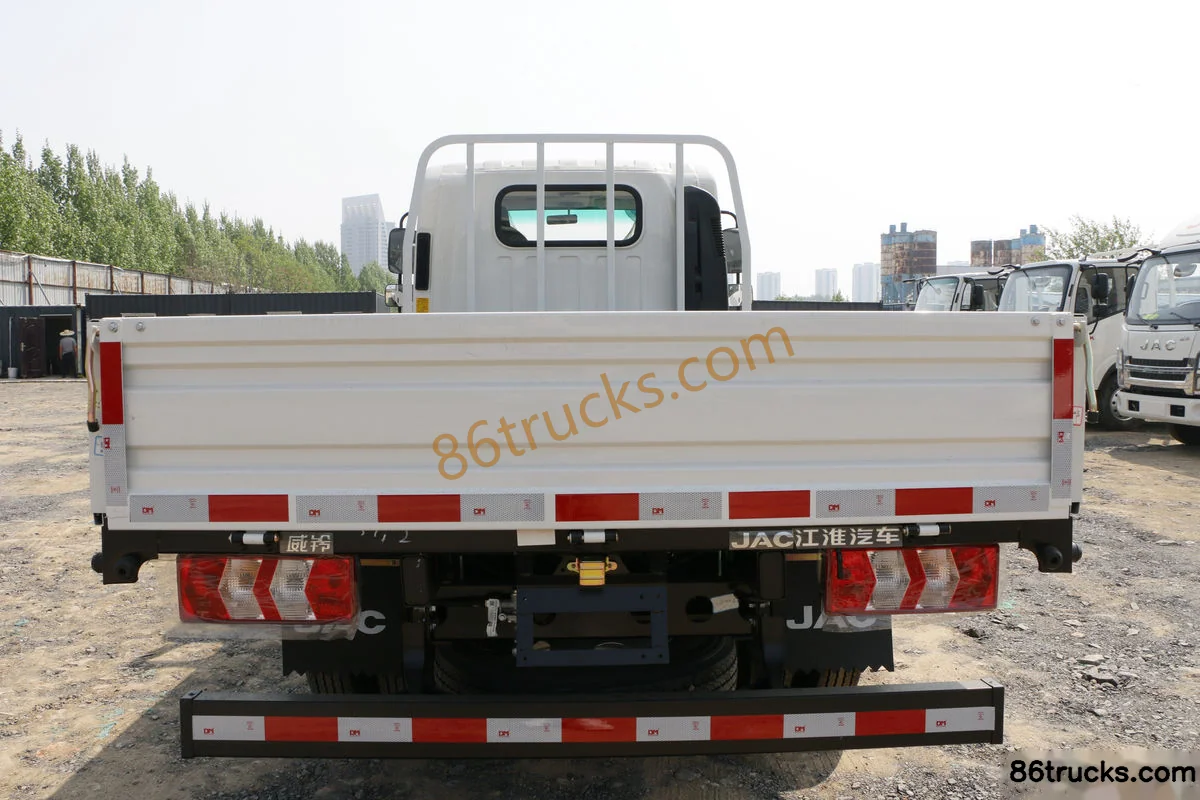

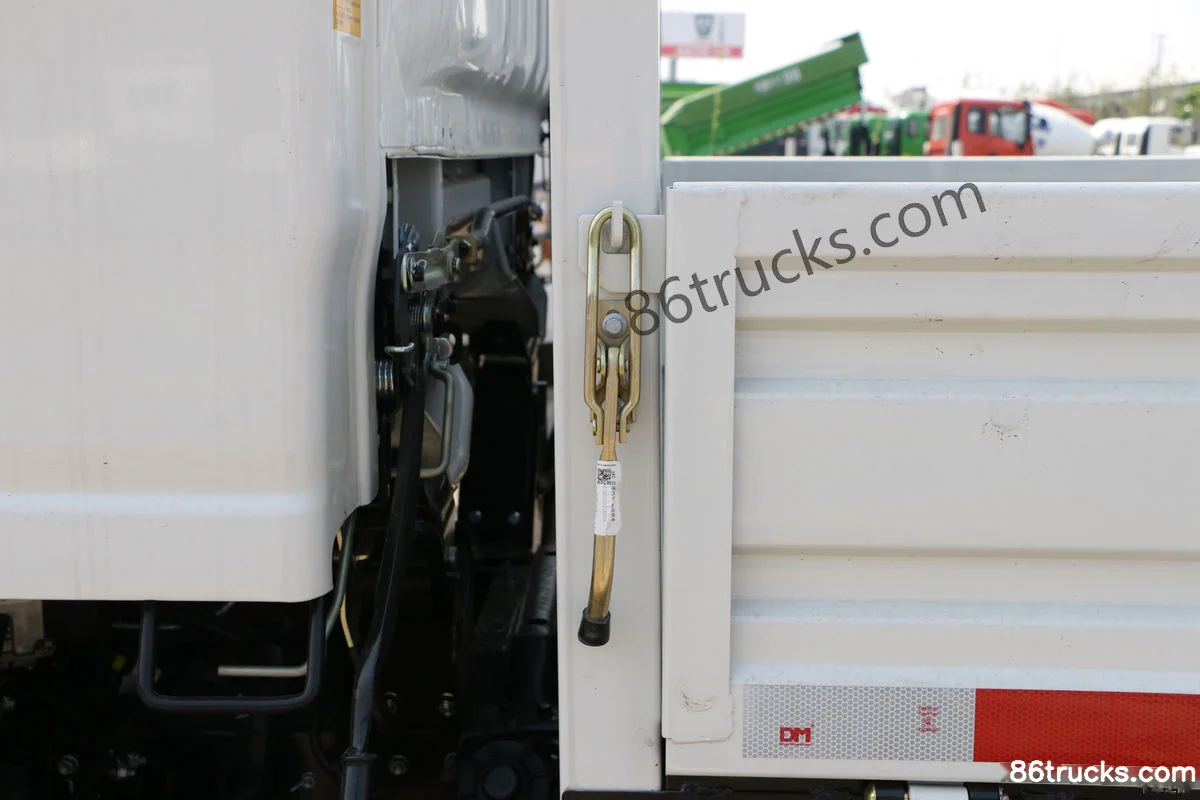

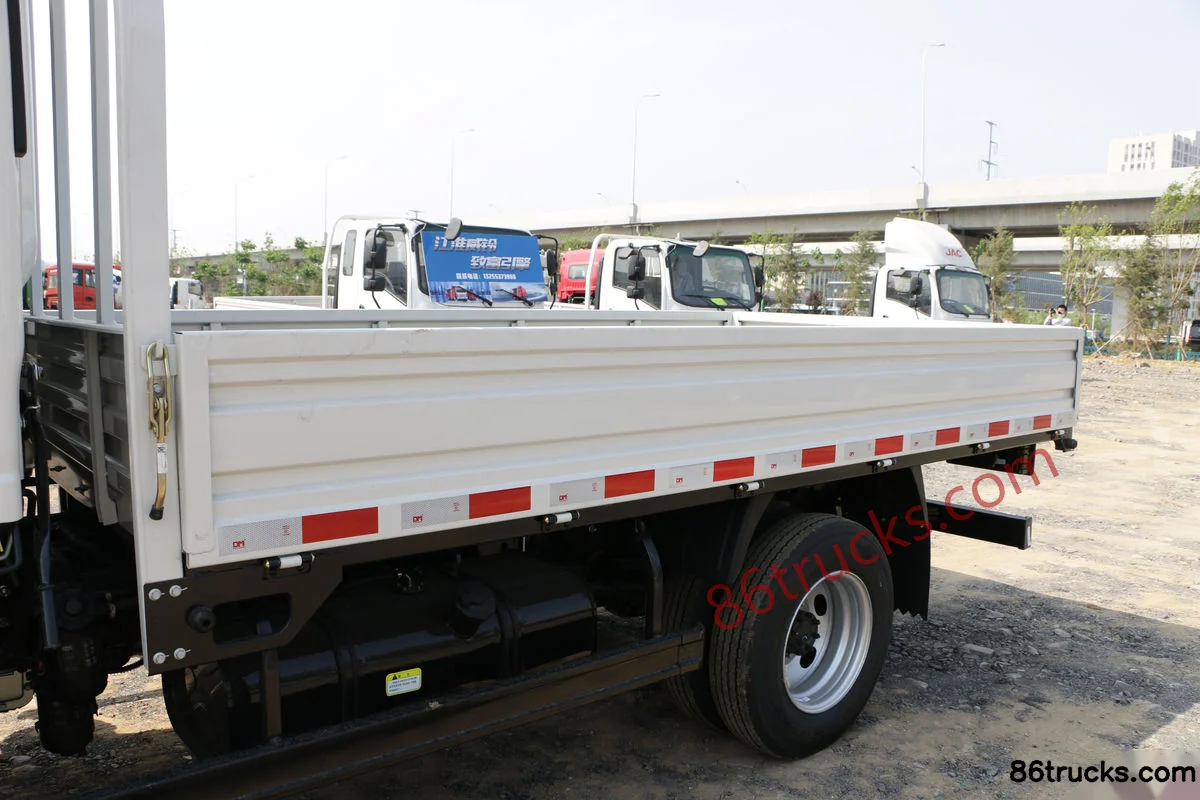

Body3

12 photos

FAQ

What emission standard does JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck?

Key specs of JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck: Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG); Engine: Dongan2L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck suited for?

JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck differ from other variants in the same series?

JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck belongs to JAC K3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weiling K3 127 hp 4X2(6 wheels) CNG 4.1m single-row stake truck light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
