Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane

Export reference
From $54,167
MSRP ¥39M CNY
Max travel speed:: 90km/h
Max gradeability:: 30%
Approach/departure angle:: 24/12°
Rated lifting moment:: 473KN.m
Max lift height - base boom:: 33.2m
Boom length - main boom:: 9.485m

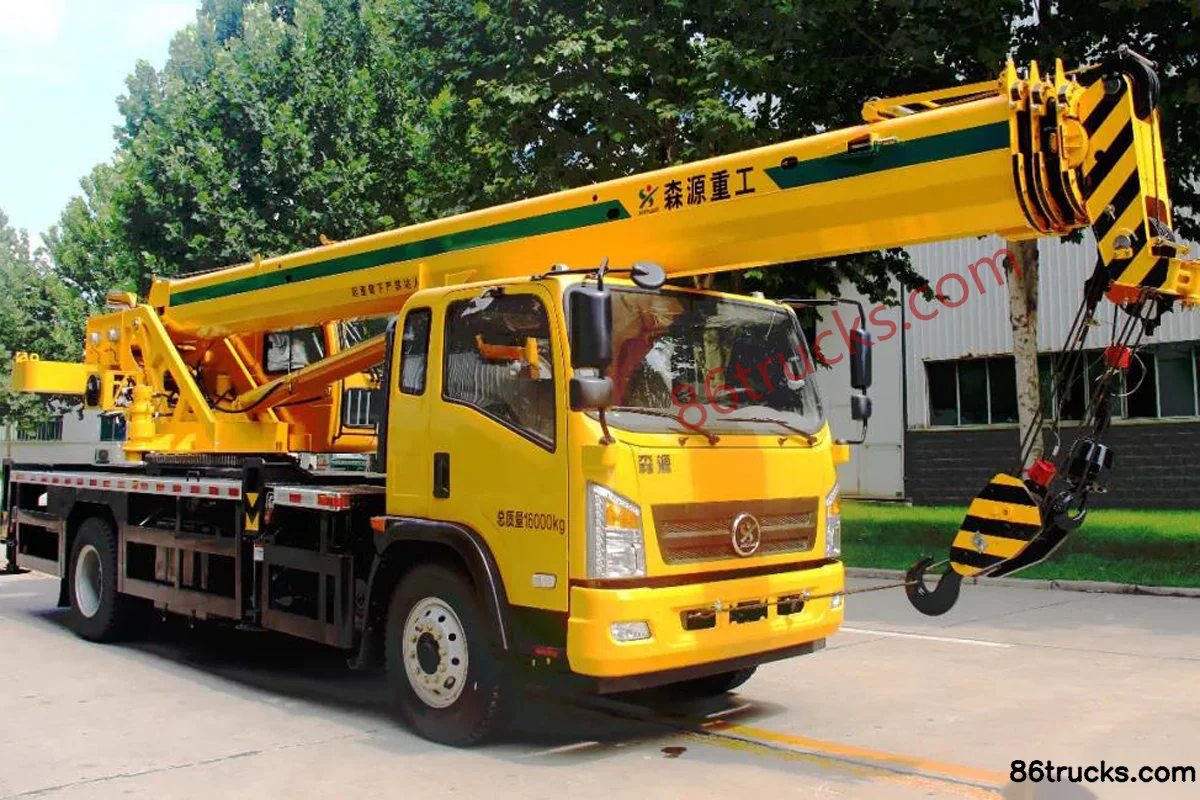

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane exterior
View more photos (8)
total counterweight: 16ton
Max output power: 125kW
Wheelbase: 4700mm
Machine dimensions: L×W×H: 11.29×2.5×3.46m

Overview

The Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane is a crane truck featuring 16ton GVW and 125kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 11.29×2.5×3.46m
Wheelbase: 4700mm
total counterweight: 16ton
Max travel speed: 90km/h
Max gradeability: 30%
Approach/departure angle: 24/12°
Lifting capacity
Rated lifting moment: 473KN.m
Max lift height - base boom: 33.2m
Max lifting height - main boom + jib: 33.2m
Boom length - main boom: 9.485m
Boom length - fully extended: 30.535m
Operating Parameters
Max hoisting speed of main winch: 125m/min
Auxiliary winch max lift speed: 130m/min
Outrigger span: longitudinal × lateral: 5.1×5.5m
Engine parameters
Engine Model: ChaochaiCY4SK151
Max output power: 125kW
Rated speed: 2600rpm
Chassis Specs
Chassis Model: YBM1160DCF1

Photos

Exterior3

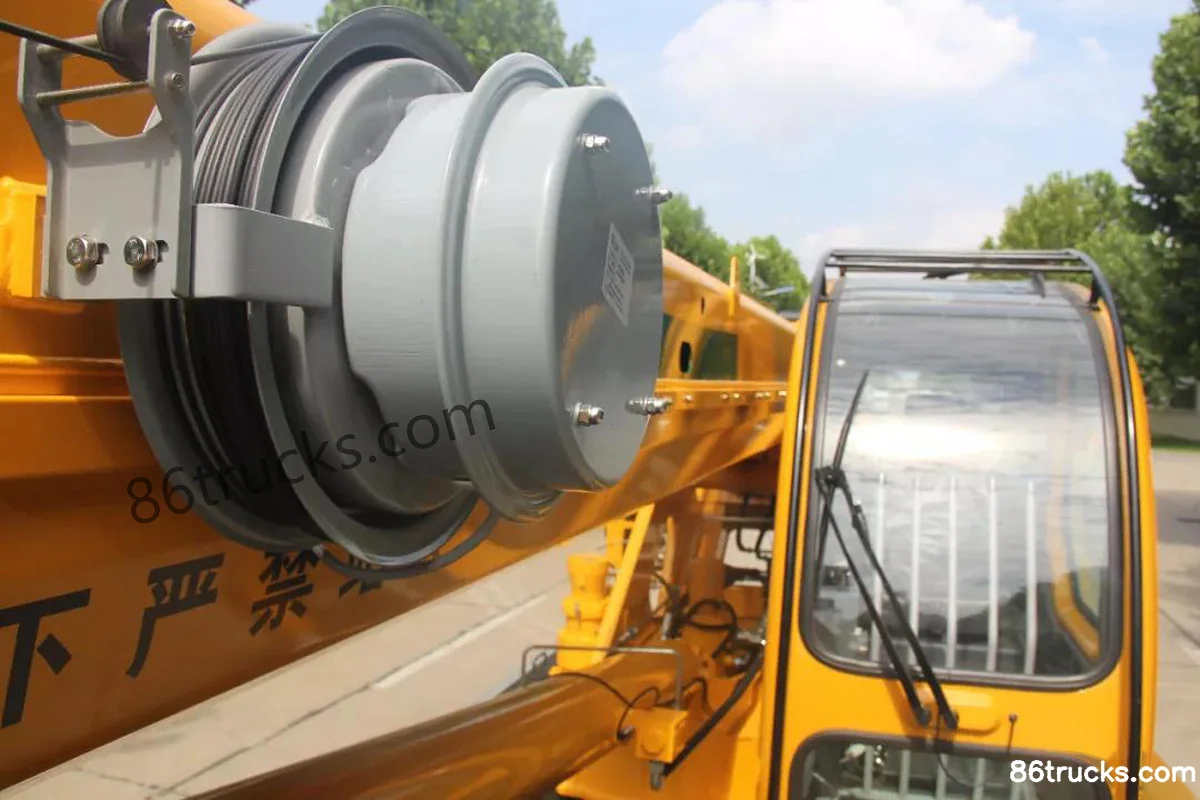

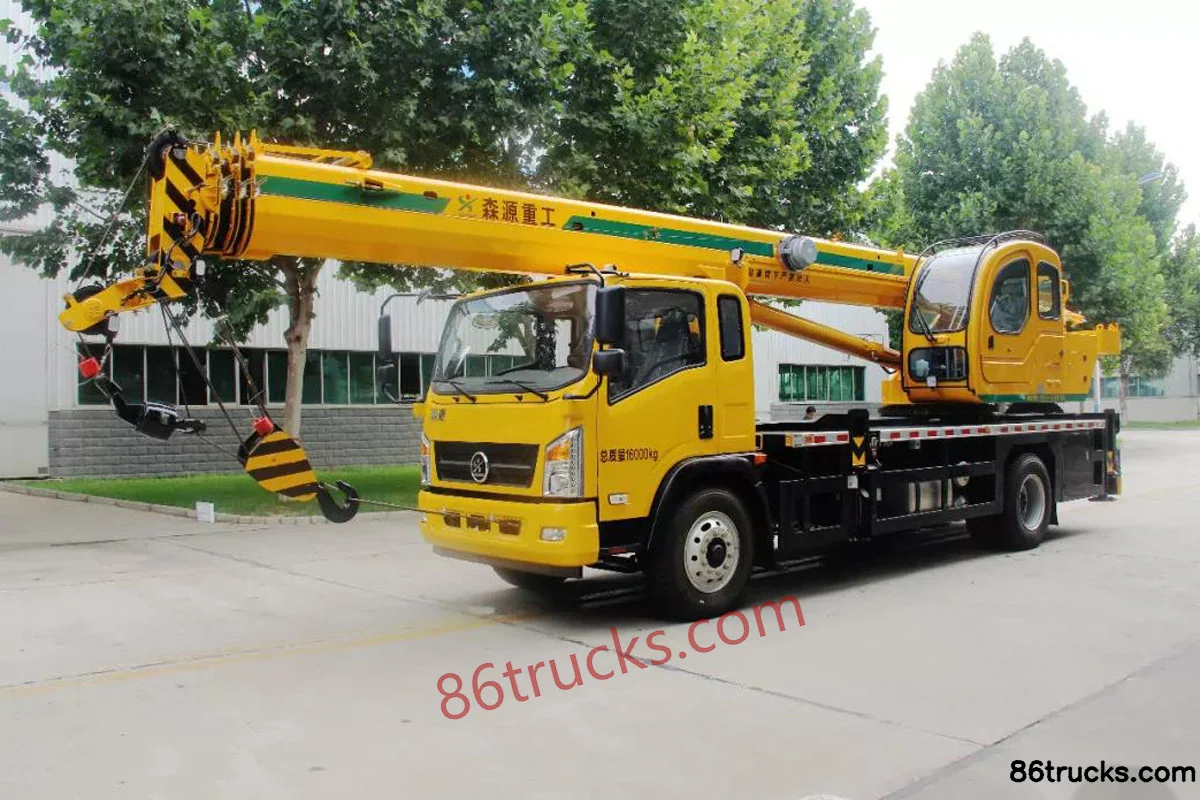

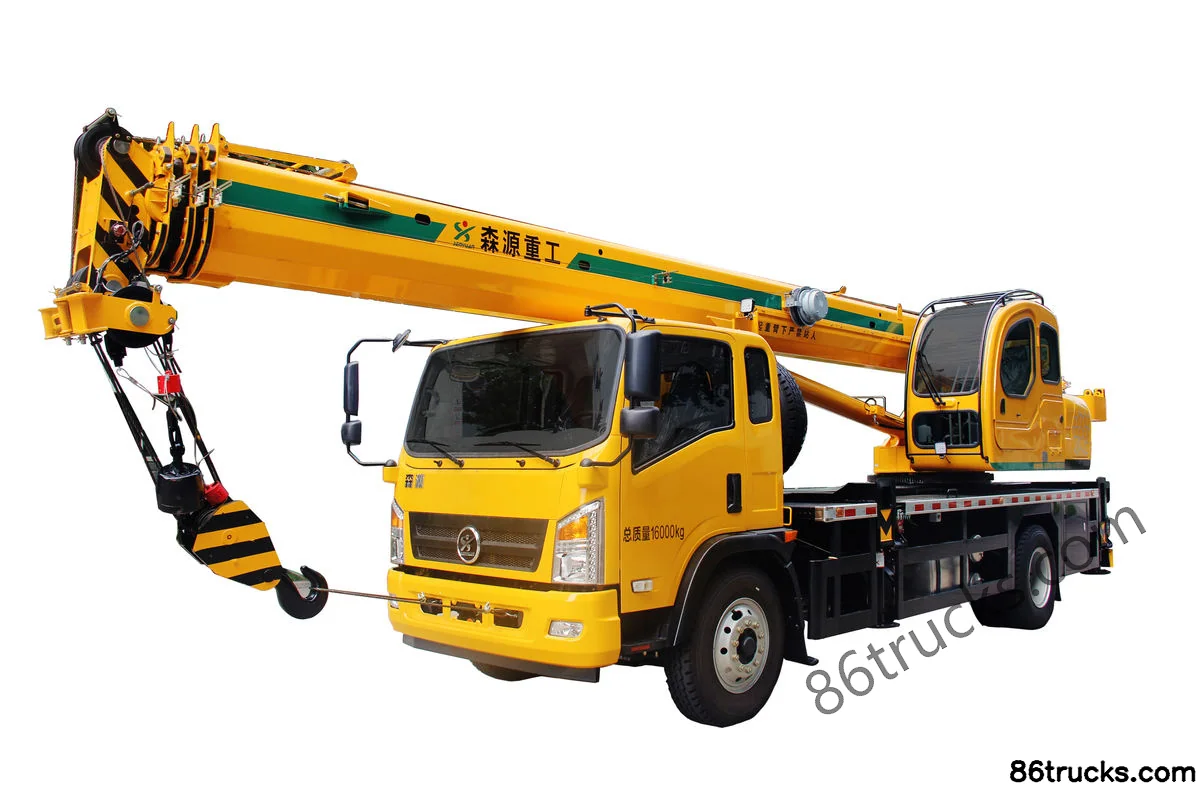

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Exterior (1) | 86Trucks Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Exterior (2) | 86Trucks Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Exterior (3) | 86Trucks

Cab2

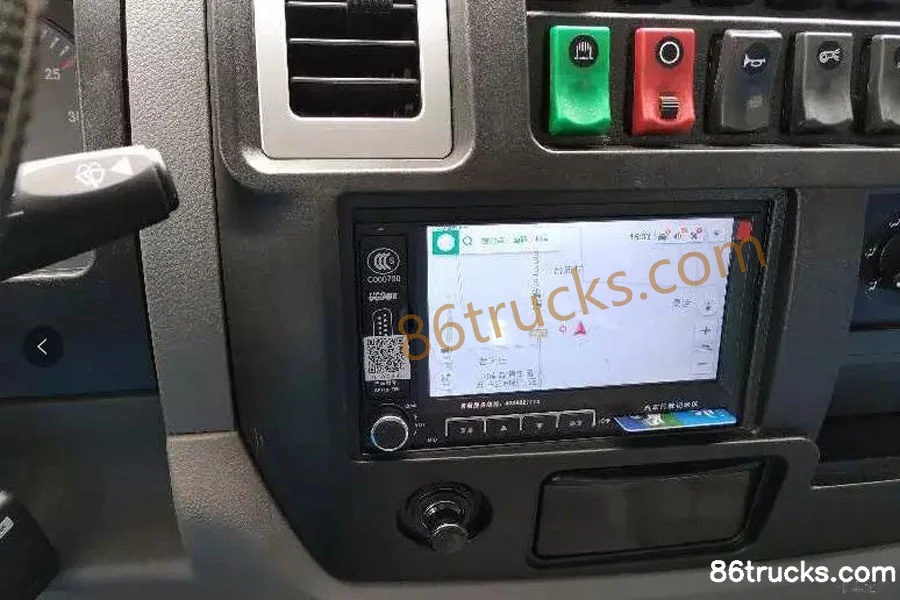

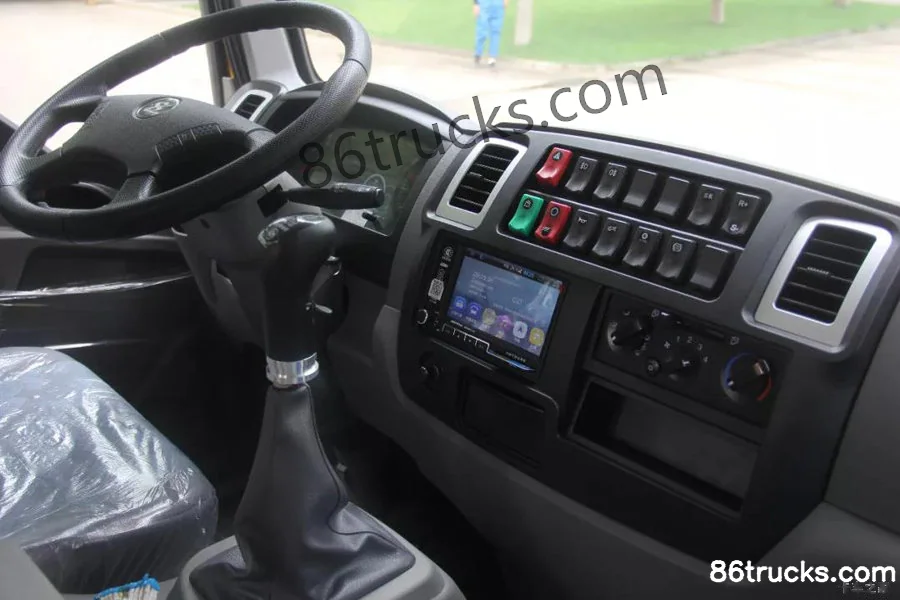

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Cab (1) | 86Trucks Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Cab (2) | 86Trucks

Chassis3

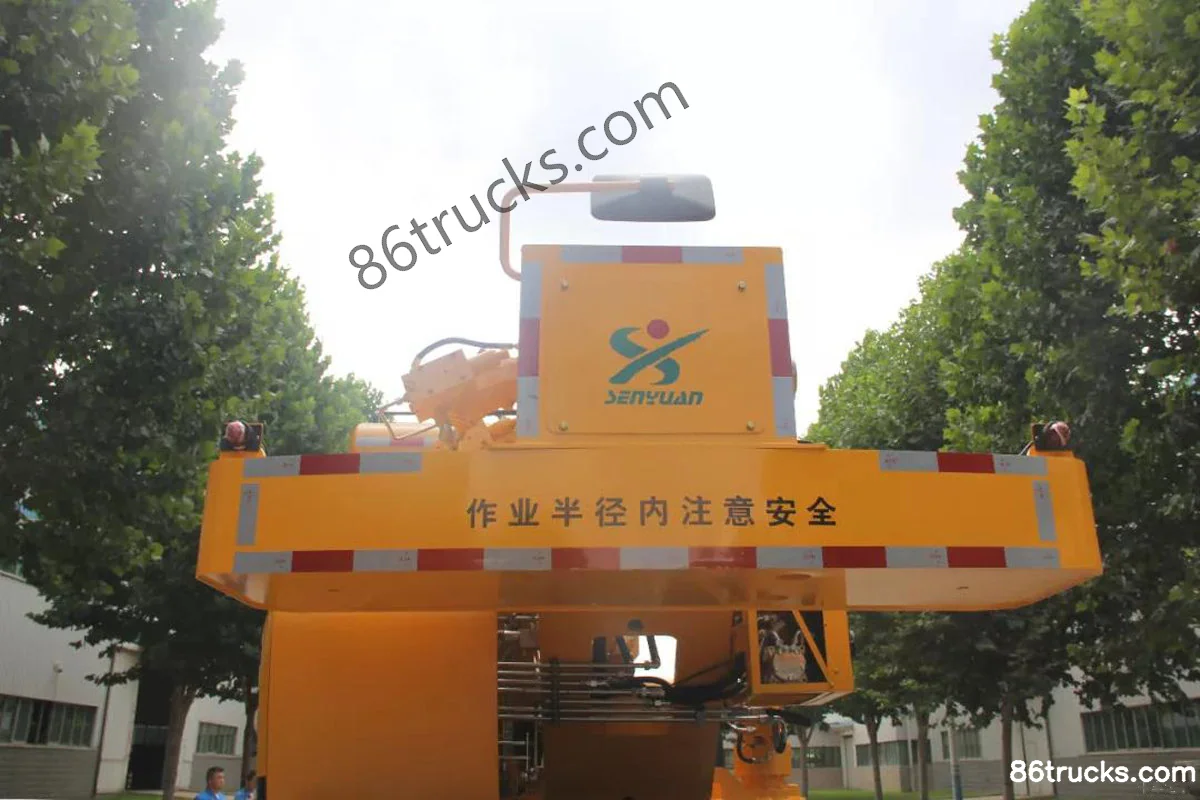

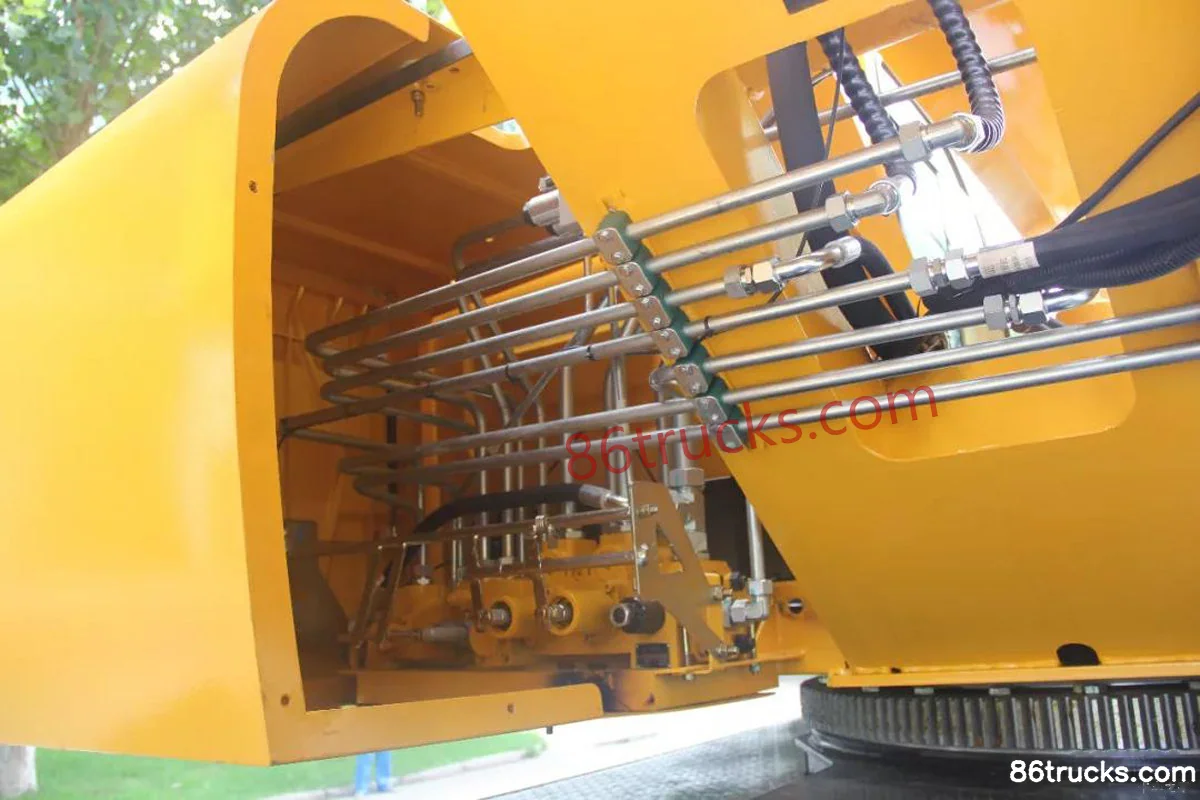

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Chassis (1) | 86Trucks Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Chassis (2) | 86Trucks Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane Chassis (3) | 86Trucks

8 photos

FAQ

What is the export price of Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane, and what does it include?

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane export reference is about From $54,167; MSRP is ¥39M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane suited for?

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane differ from other variants in the same series?

Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane belongs to Senyuan Heavy Industry Senyuan (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Senyuan Heavy Industry 170hp 4X2(6 wheels) 12-ton Four-Section Boom Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
