Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand)
EXW
From $54,167
Export quote
Senyuan Heavy Industry Dongfeng chassis crane truck
Main model photos
45 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) | — | From $54,167 | |
| Dongfeng T5 160 hp 4X2(6 wheels) 10-ton Five-Section Boom Crane (Senyuan Brand) | — | From $47,222 | |
| Dongfeng T5 140 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane (Senyuan Brand) | — | From $40,972 | |
| Senyuan Heavy Industry 12-ton Dongfeng Yulong Chassis Crane Truck | — | From $54,861 | |
| Senyuan Heavy Industry 12-ton Dongfeng Yuhu Chassis Crane Truck | — | From $48,056 |

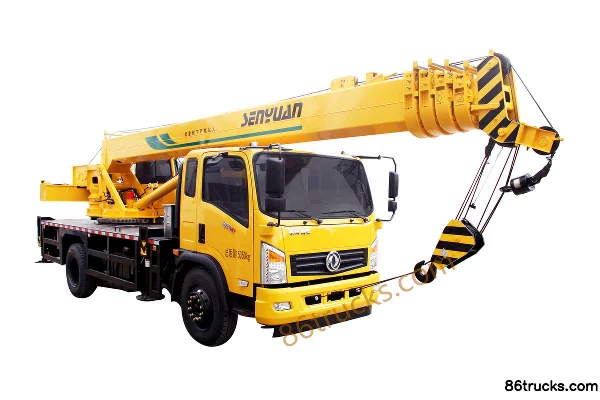

Dongfeng T5 160 hp 4X2(6 wheels) 10-ton Five-Section Boom Crane (Senyuan Brand)
EXW
From $47,222
Export quote

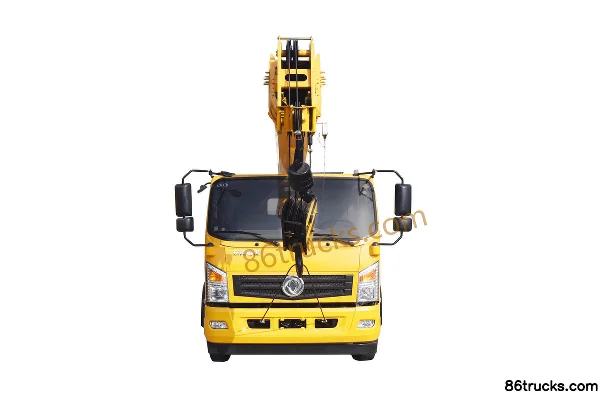

Dongfeng T5 140 hp 4X2(6 wheels) 8-ton Four-Section Boom Crane (Senyuan Brand)
EXW
From $40,972
Export quote

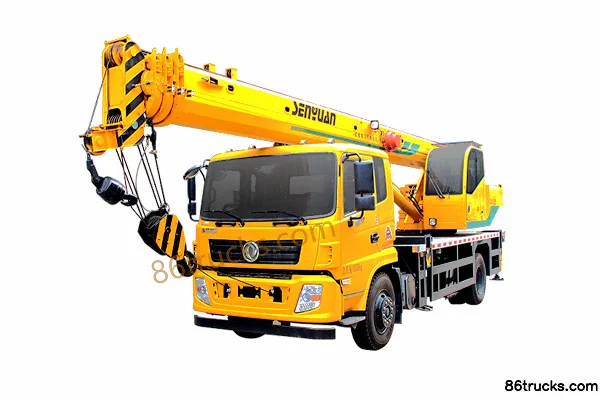

Senyuan Heavy Industry 12-ton Dongfeng Yulong Chassis Crane Truck
EXW
From $54,861
Export quote
Senyuan Heavy Industry 12-ton Dongfeng Yuhu Chassis Crane Truck
EXW
From $48,056
Export quote
Series Specs
Basic Info
Model: SMQ5180JQZ / SMQ5152JQZ / SMQ5127JQZ
Machine dimensions: L×W×H: 11.29×2.5×3.46 / 10.745×2.4×3.25 / 9.87×2.4×3.28m
total counterweight: 16 / 15.35 / 12.495 / 18ton
Wheelbase: 3650 / 4700 / 4200 / 3950mm
Max travel speed: 90 / 80km/h
Max gradeability: 30%
Approach/departure angle: 24/12 / 24/11 / 26/13.5°
Lifting capacity
Rated lifting moment: 318.5 / 267KN.m
Max lift height - base boom: 31.2 / 25.5 / 32 / 30.5 / 30.3 / 8m
Max lift height: 31.2 / 30.3 / 30.5m
Max lifting height - main boom + jib: 31.2 / 8 / 30.3m
Boom length - main boom: 8.4 / 8 / 8.5m
Boom length - fully extended: 30.65 / 24.9 / 28.3m
Operating Parameters
Max hoisting speed of main winch: 75 / 110m/min
Auxiliary winch max lift speed: 120 / 140m/min
Outrigger span: longitudinal × lateral: 5×5.1 / 4.2×4.8 / 5.1×5.5 / 5×4.9 / 4.2×5m
Engine parameters
Engine Model: YuchaiYC4E160-56 / Xichai4DX23-140E5 / YuchaiYC6JA180-50 / ChaochaiCY4BK251
Max output power: 118 / 105 / 132 / 96kW
Rated speed: 2600 / 2800 / 2500rpm
Chassis Specs
Chassis Model: EQ1168GLJ4 / EQ1128GLJ2
FAQ
What kind of truck is Senyuan Heavy Industry Senyuan Heavy Industry Dongfeng chassis crane truck?
Senyuan Heavy Industry Senyuan Heavy Industry Dongfeng chassis is an export-oriented crane truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Senyuan Heavy Industry Dongfeng chassis crane truck?
Senyuan Heavy Industry Dongfeng chassis crane truck export reference is about $40,972 – $54,861. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What is crane truck typically used for?
crane truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Senyuan Heavy Industry Dongfeng chassis crane truck include?
Senyuan Heavy Industry Dongfeng chassis crane truck currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Senyuan Heavy Industry Dongfeng chassis crane truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
