Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand)

Export reference
From $54,167
MSRP ¥39M CNY
Max travel speed:: 90km/h
Max gradeability:: 30%
Approach/departure angle:: 24/12°
Max lift height - base boom:: 31.2m
Boom length - main boom:: 8.4m
Boom length - fully extended:: 30.65m

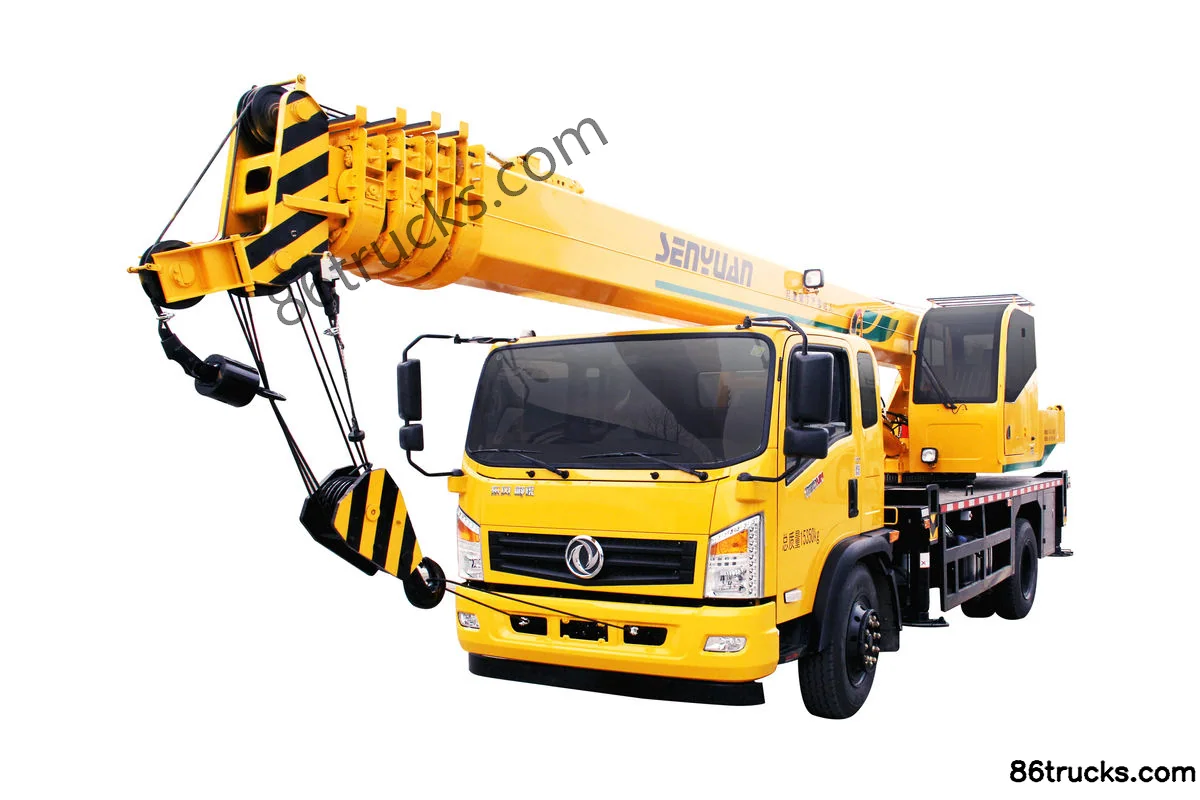

Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) exterior
View more photos (1)
total counterweight: 16ton
Max output power: 118kW
Wheelbase: 3650mm
Machine dimensions: L×W×H: 11.29×2.5×3.46m

Overview

The Senyuan Heavy Industry Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) is a crane truck featuring 16ton GVW and 118kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 11.29×2.5×3.46m
Wheelbase: 3650mm
total counterweight: 16ton
Max travel speed: 90km/h
Max gradeability: 30%
Approach/departure angle: 24/12°
Lifting capacity
Max lift height - base boom: 31.2m
Boom length - main boom: 8.4m
Boom length - fully extended: 30.65m
Operating Parameters
Max hoisting speed of main winch: 75m/min
Auxiliary winch max lift speed: 120m/min
Outrigger span: longitudinal × lateral: 5×5.1m
Engine parameters
Engine Model: YuchaiYC4E160-56
Max output power: 118kW
Rated speed: 2600rpm
Chassis Specs
Chassis Model: EQ1168GLJ4

Photos

Exterior1

Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand), and what does it include?

Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) export reference is about From $54,167; MSRP is ¥39M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) suited for?

Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) differ from other variants in the same series?

Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand) belongs to Senyuan Heavy Industry Dongfeng chassis (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T5 170 hp 4X2(6 wheels) 12-ton Four-Section Boom Crane (Senyuan Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
