Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 7.955ton
Wheelbase:: 3900mm
Tire Size:: 10.00-20 16PR,10.00R20 16PR,11.00-20 16PR,11.00R20 16PR,9.00-20 16PR,9.00R20 16PR
Cab dimensions:: 7.05×2.38×3.38m
Truck Type:: concrete mixer truck
Rated payload: 7.85ton
Drive 4X2 (6 wheels)
Horsepower 160
Emission China IV

Overview

The Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.85t payload, 7.955ton GVW, 4X2 (6 wheels) drive and Flat roof cab. On the powertrain side, it comes with 160 hp, China IV emissions and Diesel fuel.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.05×2.38×3.38m
Drive type: 4X2
Truck Type: concrete mixer truck
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front track: 1940mm; Rear track: 1860mm
Wheelbase: 3900mm
Curb Weight: 7.955ton
Rated payload: 7.85ton
Max. speed: 85km/h
Front/rear suspension: 1.5/1.95m
Body Parameters
Mixing drum capacity: 3.57m³
Vehicle certification code: DYQ5169GJB1
Body Brand: Dayun
Engine parameters
Engine Model: YuchaiYC4E160-42
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Chassis Specs
Chassis Series: Yuntu
Axle ratio: 6.333
Leaf spring count: 9/10+8,9/11+9
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Fast Gear5JS145
Cab parameters
Cab: Flat roof
Tire
Tire Size: 10.00-20 16PR,10.00R20 16PR,11.00-20 16PR,11.00R20 16PR,9.00-20 16PR,9.00R20 16PR
Number of tires: 6pcs

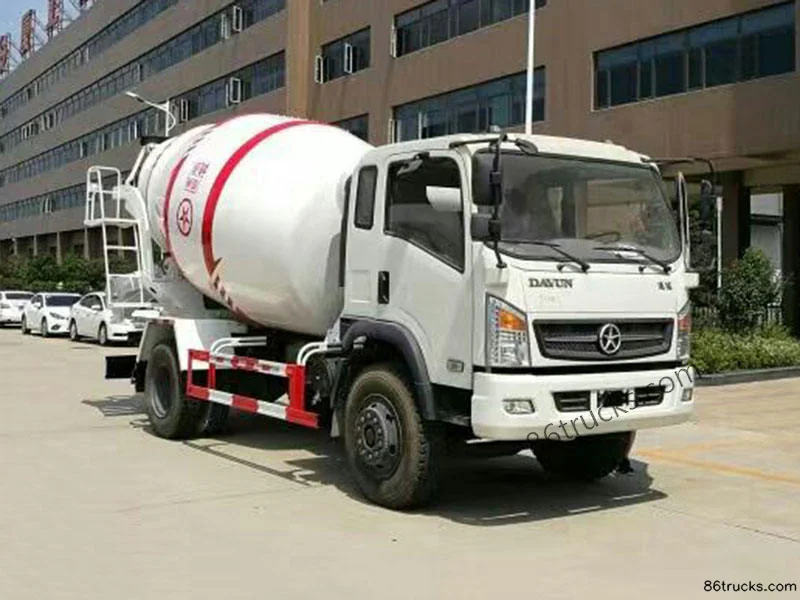

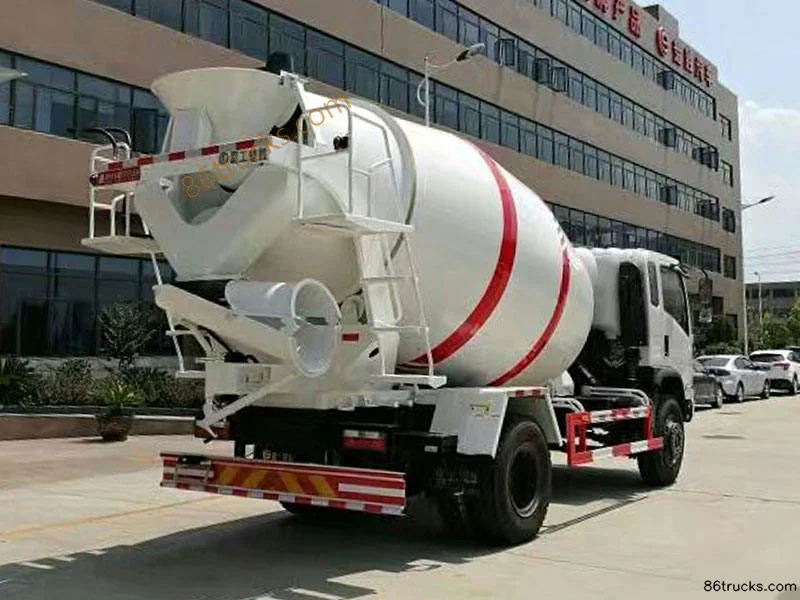

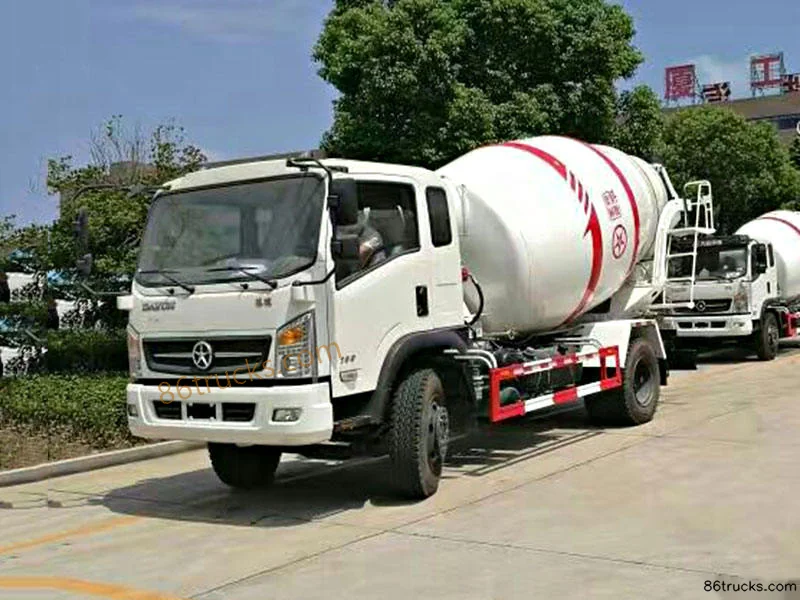

Photos

Exterior3

3 photos

FAQ

What emission standard does Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck?

Key specs of Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck suited for?

Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck differ from other variants in the same series?

Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck belongs to Dayun Yuntu medium-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
