Dayun Yuntu 200hp 4X2(6 wheels) 3.98m³ concrete mixer truck (3.6t front axle)
EXW
Export quote

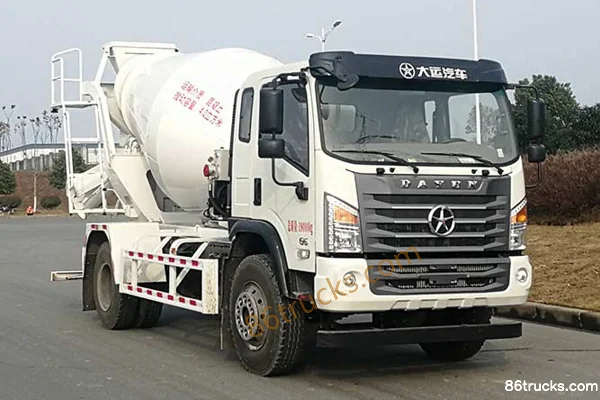

Dayun Yuntu medium-duty truck concrete mixer truck
Main model photos
179 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun Yuntu 200hp 4X2(6 wheels) 3.98m³ concrete mixer truck (3.6t front axle) | 4x2 / 200hp / China VI | ||
| Dayun Yuntu 200hp 4X2(6 wheels) 3.8m³ concrete mixer truck (3.6t front axle) | 4x2 / 200hp / China VI | ||
| Dayun Yuntu 200hp 4X2(6 wheels) 3.98m³ concrete mixer truck | 4x2 / 200hp / China VI | ||
| Dayun Yuntu 200hp 4X2(6 wheels) 3.8m³ concrete mixer truck | 4x2 / 200hp / China VI | ||
| Dayun Yuntu 180 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck (China VI) | 4x2 / 180hp / China VI |
Dayun Yuntu 200hp 4X2(6 wheels) 3.8m³ concrete mixer truck (3.6t front axle)
EXW
Export quote
Dayun Yuntu 200hp 4X2(6 wheels) 3.98m³ concrete mixer truck
EXW
Export quote
Dayun Yuntu 200hp 4X2(6 wheels) 3.8m³ concrete mixer truck
EXW
Export quote
Dayun Yuntu 180 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck (China VI)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck | 4x2 / 160hp / China IV |
Dayun Yuntu 160hp 4X2(6 wheels) 3.57m³ Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.235X2.4X3.58 / 6.95X2.4X3.55 / 7.73x2.38x3.75 / 7.25x2.5x3.62 / 7.65X2.38X3.63 / 7.35×2.48×3.63 / 7.05×2.38×3.38m
Truck Type: concrete mixer truck
Drive type: 4X2
Front/rear track width: Front track: 1840mm; Rear track: 1700 / 1825；1750 / 1840；1700 / Front: 1940; Rear: 1860 / Front: 1810mm; Rear: 1800 / Front track: 1810mm; Rear track: 1800 / Front track: 1940mm; Rear track: 1860mm
Vehicle origin: Shiyan, Hubei / Chengdu, Sichuan
Wheelbase: 3600 / 3900 / 3700mm
Curb Weight: 8.27 / 7.315 / 7.955ton
Rated payload: 9.535 / 8.69 / 9.6 / 8.755 / 7.85ton
Max. speed: 80 / 90 / 85km/h
Front/rear suspension: 1.3/2.335 / 1.3/2.05 / 1.3/2.53 / 1.24/2.51 / 1.24/2.21 / 1.5/1.95m
Body Parameters
Drum geometric volume: 8m³
Slump: 140-220mm
Mixing drum capacity: 3.98 / 3.8 / 4 / 3.57m³
Vehicle certification code: DYQ5181GJBD6AB / DYQ5161GJBD6AB / DYZ5181GJBD6AC / DYQ5161GJBD5AC / DYQ5161GJBD5AB / DYQ5169GJB1
Body Brand: Dayun
Engine parameters
Injection System: Common Rail (China IV)
Engine Model: YuchaiYCS04200-68 / YuchaiYCS04180-68 / YuchaiYC4S160-50 / YuchaiYC4S140-50 / YuchaiYC4E160-42
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16 / 3.767 / 4.26L
Emission standard: China VI / China V / China IV
Max output power: 147 / 132 / 118 / 103kW
Max hp: 200 / 180 / 160 / 140Horsepower
Rated speed: 2300 / 2600rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Vertical, inline, water-cooled, four-stroke / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Chassis Specs
Chassis Series: Yuntu
Chassis Model: DYQ3161D6AA / DYQ3181D6AA / DYQ1161D5AA
Front axle description: 1094 shortened axle/3.6t / 153 Shortened Axle/5t / 5T
Frame Dimensions: 800×250×(8+5) / 800×280×(8+5) / 800×280×(8+6) / 280 double-layer framemm
rear axle description: 153 Shortened Axle/10t / Heavy-duty rear axle
Axle ratio: 6.5 / 6.333
Leaf spring count: 9/10+8 / 9/10+8,9/11+9
Transmission Parameters
Number of gears: 8 / 5Gear
Transmission Model: Fast Gear8JS85E-C / Fast Gear 8-speed / Fast Gear5JS145
Cab parameters
Cab: Day cab standard roof / suspended cab / Flat roof
Tire
Tire Size: 10.00R20 18PR / 10.00-20 18PR,10.00R20 18PR,9.00R20 16PR / 9.00R20 16PR / 10.00-20 16PR,10.00R20 16PR,11.00-20 16PR,11.00R20 16PR,9.00-20 16PR,9.00R20 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Dayun Dayun Yuntu medium-duty truck concrete mixer truck?
Dayun Dayun Yuntu medium-duty truck is an export-oriented concrete mixer truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dayun Yuntu medium-duty truck concrete mixer truck?
Dayun Yuntu medium-duty truck concrete mixer truck export reference is about $22,847 – $26,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dayun Yuntu medium-duty truck concrete mixer truck cover?
Dayun Yuntu medium-duty truck concrete mixer truck mainly covers: Drive: 4x2; Horsepower: 160 hp / 180 hp / 200 hp; Emission: China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dayun Yuntu medium-duty truck concrete mixer truck?
For Dayun Yuntu medium-duty truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dayun Yuntu medium-duty truck concrete mixer truck include?
Dayun Yuntu medium-duty truck concrete mixer truck currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dayun Yuntu medium-duty truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
