SHACMAN Delong F3000 375 hp 6X4(10 wheels) 4.9 m³ concrete mixer truck
EXW
From $44,347
Export quote
SHACMAN Delong F3000 Heavy Truck concrete mixer
Main model photos
402 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong F3000 375 hp 6X4(10 wheels) 4.9 m³ concrete mixer truck | 6x4 / 375hp / China V | From $44,347 | |
| SHACMAN Delong F3000 Standard Edition 336 hp 8X4(12 wheels) 5.41 m³ concrete mixer truck | 8x4 / 336hp / China V | From $45,333 | |
| SHACMAN Delong F3000 Standard Edition 310 hp 8X4(12 wheels) 5.41 m³ concrete mixer truck | 8x4 / 310hp / China V | From $44,500 | |
| SHACMAN Delong F3000 Standard Edition 336hp 6X4(10 wheels) 4.5 m³ Concrete Mixer Truck (Long Wheelbase) | 6x4 / 336hp / China V | From $43,264 | |
| SHACMAN Delong F3000 Standard Edition 336hp 6X4(10 wheels) 4.5 m³ Concrete Mixer Truck | 6x4 / 336hp / China V | From $43,125 |
SHACMAN Delong F3000 Standard Edition 336 hp 8X4(12 wheels) 5.41 m³ concrete mixer truck
EXW
From $45,333
Export quote
SHACMAN Delong F3000 Standard Edition 310 hp 8X4(12 wheels) 5.41 m³ concrete mixer truck
EXW
From $44,500
Export quote
SHACMAN Delong F3000 Standard Edition 336hp 6X4(10 wheels) 4.5 m³ Concrete Mixer Truck (Long Wheelbase)
EXW
From $43,264
Export quote

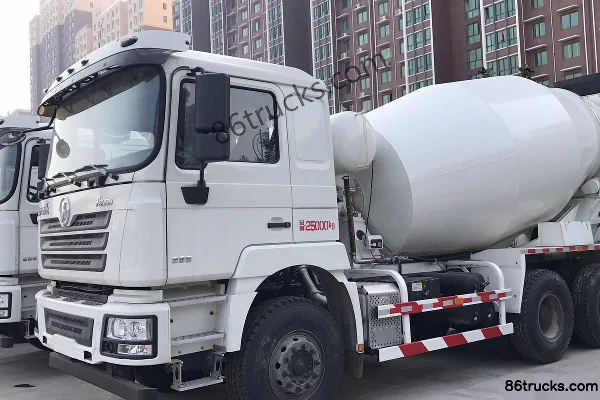

SHACMAN Delong F3000 Standard Edition 336hp 6X4(10 wheels) 4.5 m³ Concrete Mixer Truck
EXW
From $43,125
Export quote
Series Specs
Basic Info
Cab dimensions: 9.505×2.495×3.95 / 11.42×2.49×3.98 / 9.85×2.495×3.95 / 10.65×2.495×3.95 / 10.45×2.495×3.95 / 11.82×2.49×3.98 / 10.82x2.49x3.98 / 9.85×2.55×3.95 / 11.8×2.49×3.98 / 11.4×2.55×3.98m
Drive type: 6X4 / 8X4
Truck Type: concrete mixer truck
Vehicle origin: Xi'an, Shaanxi
Front/rear track width: Front track: 2036mm; Rear track: 1860/1860 / Front: 2036/2036mm; Rear: 1860/1860 / Front: 2036mm; Rear: 1860/1860 / Front track: 2036/2036mm; Rear track: 1860/1860
Wheelbase: 3975+1400 / 1800+3575+1400 / 4975+1400 / 4375+1400 / 1800+3775+1400 / 2100+4575+1400 / 4000 / 3775+1400mm
Curb Weight: 14.1 / 19 / 15 / 16 / 17.5 / 17ton
Rated payload: 10.77 / 11.87 / 9.87 / 8.87 / 13.37 / 13.87 / 10.705ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.805 / 1.525/3.12 / 1.525/2.95 / 1.525/3.35 / 1.525/3.15 / 1.525/3.32 / 1.525/3.3 / 1.525/3.1m
Body Parameters
Mixing drum capacity: 4.9 / 5.41 / 4.5 / 4.05 / 6.3 / 6m³
Vehicle certification code: SX5250GJBFB384 / SX5310GJBFB386 / SX5250GJBFB404 / SX5250GJBFB434 / SX5258GJBDR404 / SX5310GJBFB366
Body Brand: SHACMAN
Others: Mid-length flat roof cab (D), cab hydraulic suspension, air driver seat, manual tilt, metal bumper, electronically controlled automatic constant temperature AC, power windows, engine PTO, standard air filter, domestic steering gear, domestic clutch, spare tire carrier, Tianxingjian Zhiya BD onboard terminal, 165Ah maintenance-free battery, domestic 4-channel ABS, reserved QF60 PTO switch and solenoid valve (normally closed) without QF60 PTO, engine PTO, aluminum alloy fuel tank, cruise control (i.e. local PTO engine constant speed control) / Mid-length flat roof cab (D), cab hydraulic suspension, air driver seat, manual tilt, metal bumper, electronically controlled automatic constant temperature AC, power windows, engine PTO, standard air filter, domestic steering gear, domestic clutch, spare tire carrier, Tianxingjian Zhiya BD onboard terminal, 165Ah maintenance-free battery, domestic 4-channel ABS, reserved QF60 PTO switch and solenoid valve (normally closed) without QF60 PTO, aluminum alloy fuel tank, cruise control (i.e. local PTO engine constant speed control) / Optional ratio 4.8 / Axle ratio optional 5.73
Engine parameters
Engine Model: WeichaiWP12.375E50 / WeichaiWP10.336E53 / WeichaiWP10.310E53 / Xi’an CumminsISM11E5 385 / Xi’an CumminsISM11E5 345
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596 / 9.726 / 10.8L
Emission standard: China V
Max output power: 276 / 247 / 228 / 283 / 254kW
Max hp: 375 / 336 / 310 / 385 / 345Horsepower
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / Full electronic control / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline, water-cooled, six-cylinder, air-to-air intercooled / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronically controlled high-pressure common rail + SCR
Chassis Specs
Chassis Series: Delong F3000
Chassis Model: SX1250FB / SX1310FB
Front axle description: 7.5T / MAN7.5T / MAN 7.5T disc brake front axle / Hande 7.5T MAN technology front axle
Frame Dimensions: 866×308(8+7+8) / 850×300(8+5) / 866x308x(8+7+8) / 850×300(8+7) / 850×300×(8+7)mm
rear axle description: MAN 16T dual-reduction / STR16T dual-stage / 16T MAN cast double reduction axle / MAN 16T dual-stage axle / MAN 16T double reduction axle / Hande 16t MAN drive axle / 16T STR/MAN cast double reduction axle / 16T STR cast double reduction axle
Steering gear: Domestic
Axle ratio: 4.769 / 5.262 / 4.8
Leaf spring count: 9/12,10/12 / 13/13/12, left 14 right 13/left 14 right 13/12 / 9/12,10/12,4/12,4/5,3/12,3/5 / 10/12 / 13/13/12
clutch: Φ430
Transmission Parameters
Number of gears: 12 / 9 / 10Gear
Transmission Model: Fast Gear12JSD180T / Fast Gear9JSD150 / Fast GearRTO-11909ALL / Fast Gear9JS135 / 12JSD180T / Fast GearRTD-11509C / Fast Gear10JSD160 / Fast Gear12JSD180TA
Cab parameters
Cab: Mid-length flat roof cab (D) / Standard Cab (M) / F3000 extended flat roof cab / Medium-length flat roof cab / F3000 medium-long flat roof cab / Delong F3000 medium-length flat roof cab
Tire
Tire Size: 12.00R20 / 12.00R20 14PR / 12.00R20 16PR / 11.00-20 18PR / 11.00R20 16PR,12.00R20 14PR / 11.00R20 18PR,12.00R20 16PR / 11.00R20,12.00R20 16PR,295/80R22.5 / 11.00-20,11.00R20
Number of tires: 10 / 12pcs
FAQ
What kind of truck is SHACMAN SHACMAN Delong F3000 Heavy Truck concrete mixer truck?
SHACMAN SHACMAN Delong F3000 Heavy Truck is an export-oriented concrete mixer truck lineup with about 24 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong F3000 Heavy Truck concrete mixer?
SHACMAN Delong F3000 Heavy Truck concrete mixer export reference is about $42,569 – $66,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong F3000 Heavy Truck concrete mixer cover?
SHACMAN Delong F3000 Heavy Truck concrete mixer mainly covers: Drive: 6x4 / 8x4; Horsepower: 310 hp / 336 hp / 375 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong F3000 Heavy Truck concrete mixer?
For SHACMAN Delong F3000 Heavy Truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong F3000 Heavy Truck concrete mixer include?
SHACMAN Delong F3000 Heavy Truck concrete mixer currently lists about 24 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong F3000 Heavy Truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
