SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck

Export reference
From $58,333
MSRP ¥42M CNY
Fuel: Diesel
Curb Weight:: 16ton
Wheelbase:: 4375+1400mm
Tire Size:: 11.00R20 16PR,12.00R20 14PR
Cab dimensions:: 10.45×2.495×3.95m
Truck Type:: concrete mixer truck
Rated payload: 8.87ton
Drive 6X4 (10 wheels)
Horsepower 375
Emission China V

Overview

The SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck is a concrete mixer truck featuring 8.87t payload, 16ton GVW, 6X4 (10 wheels) drive and 10.45×2.495×3.95m cab. On the powertrain side, it comes with 375 hp, China V emissions and Diesel fuel.

China V 375 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.45×2.495×3.95m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4375+1400mm
Vehicle origin: Xi'an, Shaanxi
Front/rear track width: Front: 2036mm; Rear: 1860/1860
Curb Weight: 16ton
Rated payload: 8.87ton
Max. speed: 80km/h
Front/rear suspension: 1.525/3.15m
Body Parameters

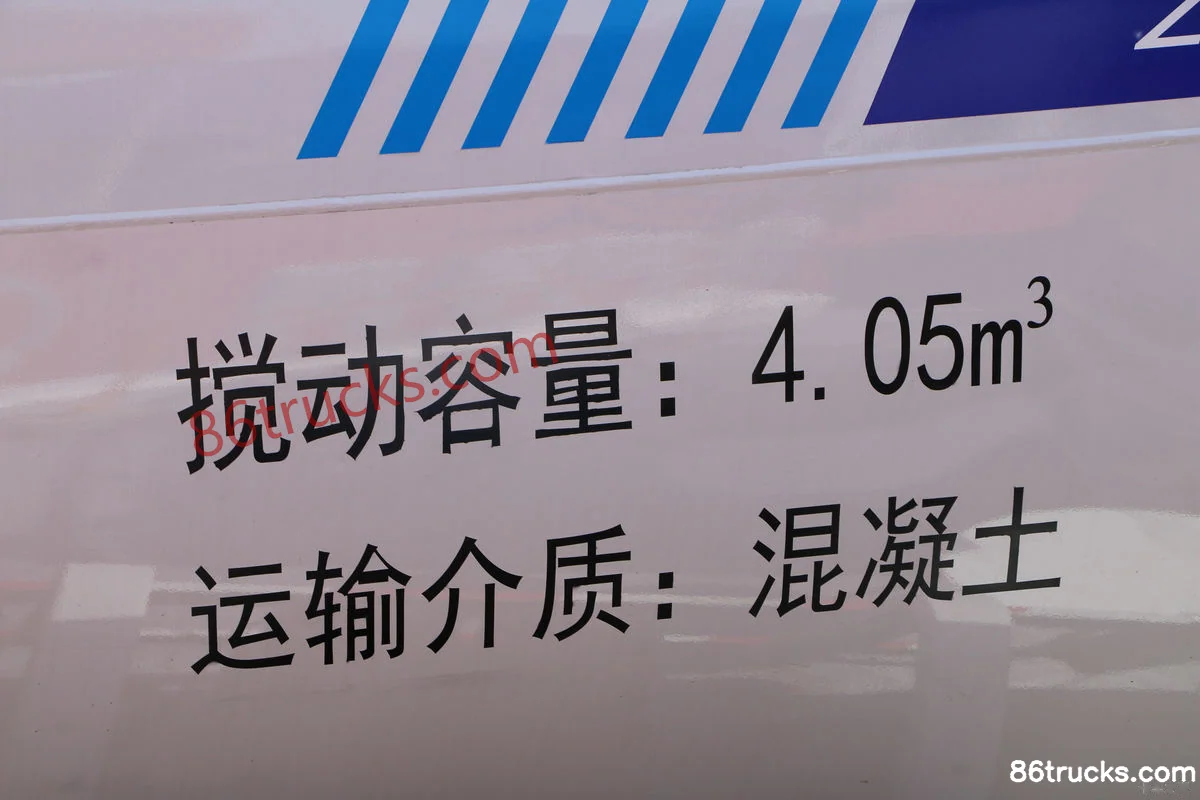

Mixing drum capacity: 4.05m³
Vehicle certification code: SX5250GJBFB434
Body Brand: SHACMAN
Engine parameters
Engine Model: WeichaiWP12.375E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 276kW
Max hp: 375Horsepower
Rated speed: 1900rpm
Engine Type: Full electronic control
Chassis Specs
Chassis Series: Delong F3000
Chassis Model: SX1250FB
Front axle description: MAN 7.5T disc brake front axle
Frame Dimensions: 866x308x(8+7+8)mm
rear axle description: MAN 16T dual-reduction
Axle ratio: 4.769
Leaf spring count: 9/12,10/12,4/12,4/5,3/12,3/5
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180T
Tire
Tire Size: 11.00R20 16PR,12.00R20 14PR
Number of tires: 10pcs

Photos

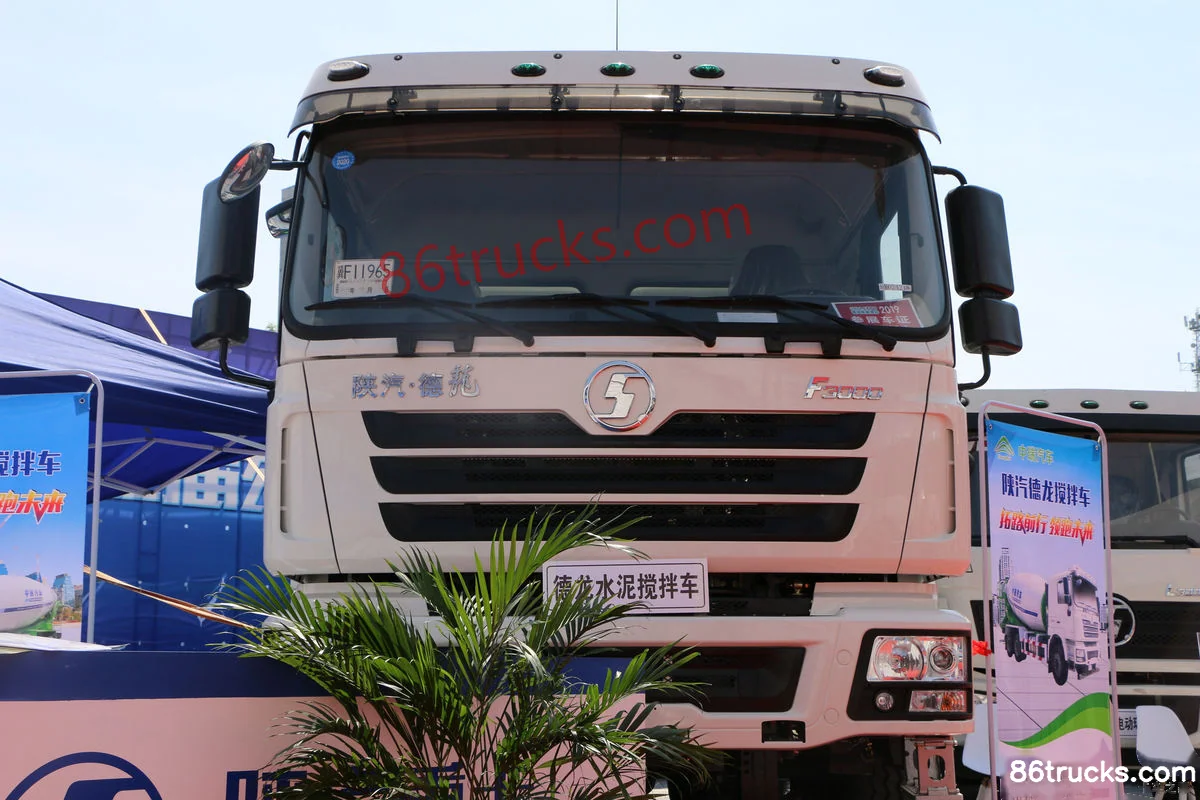

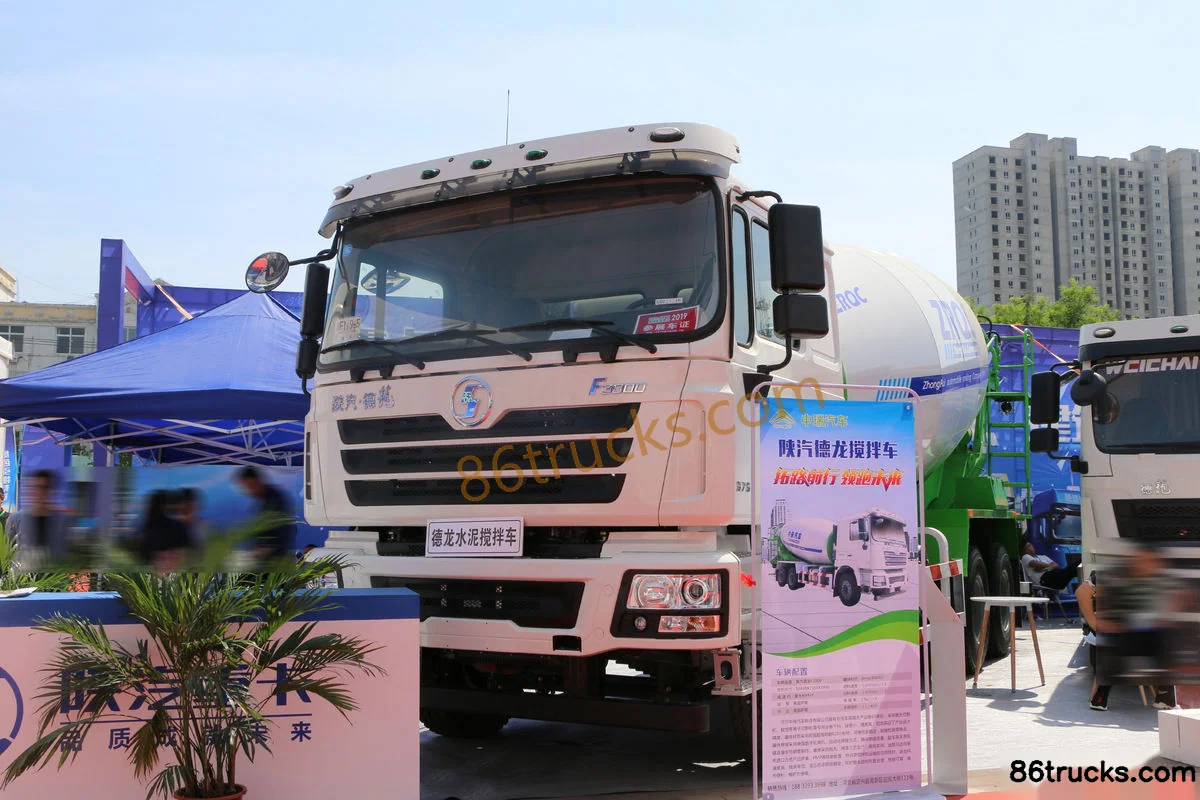

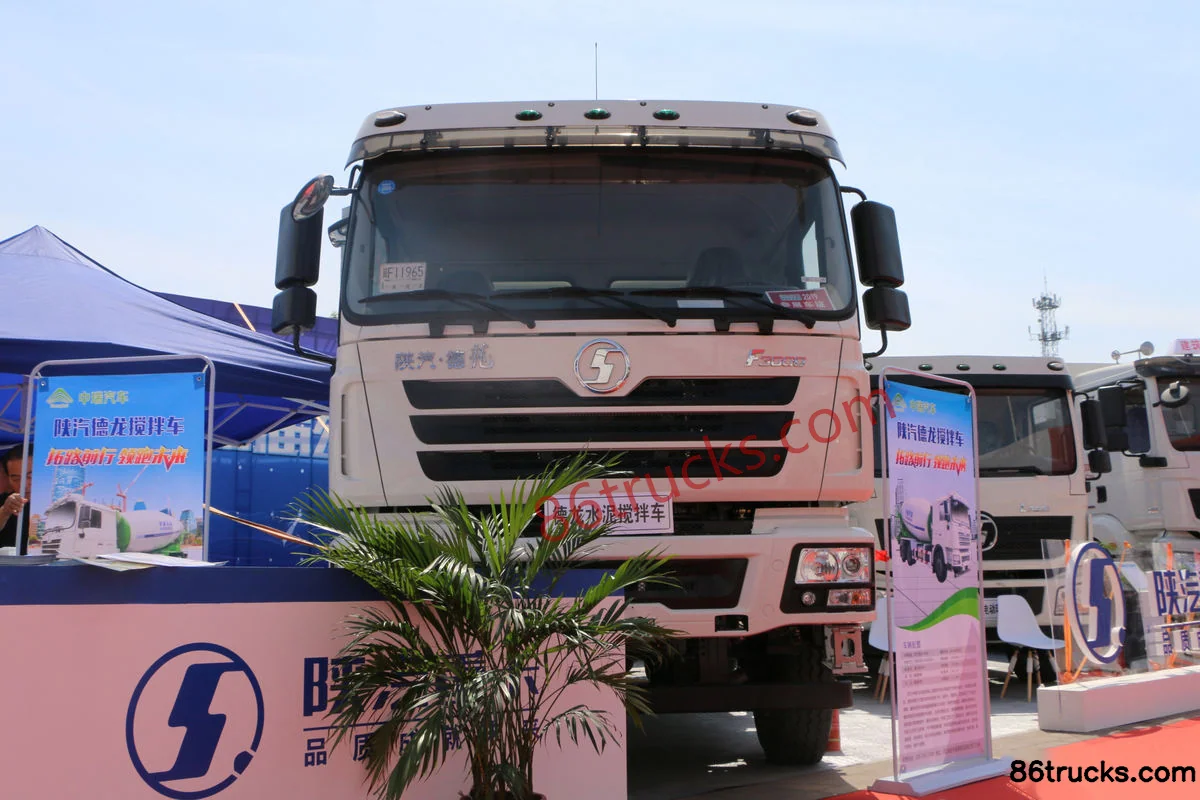

Exterior3

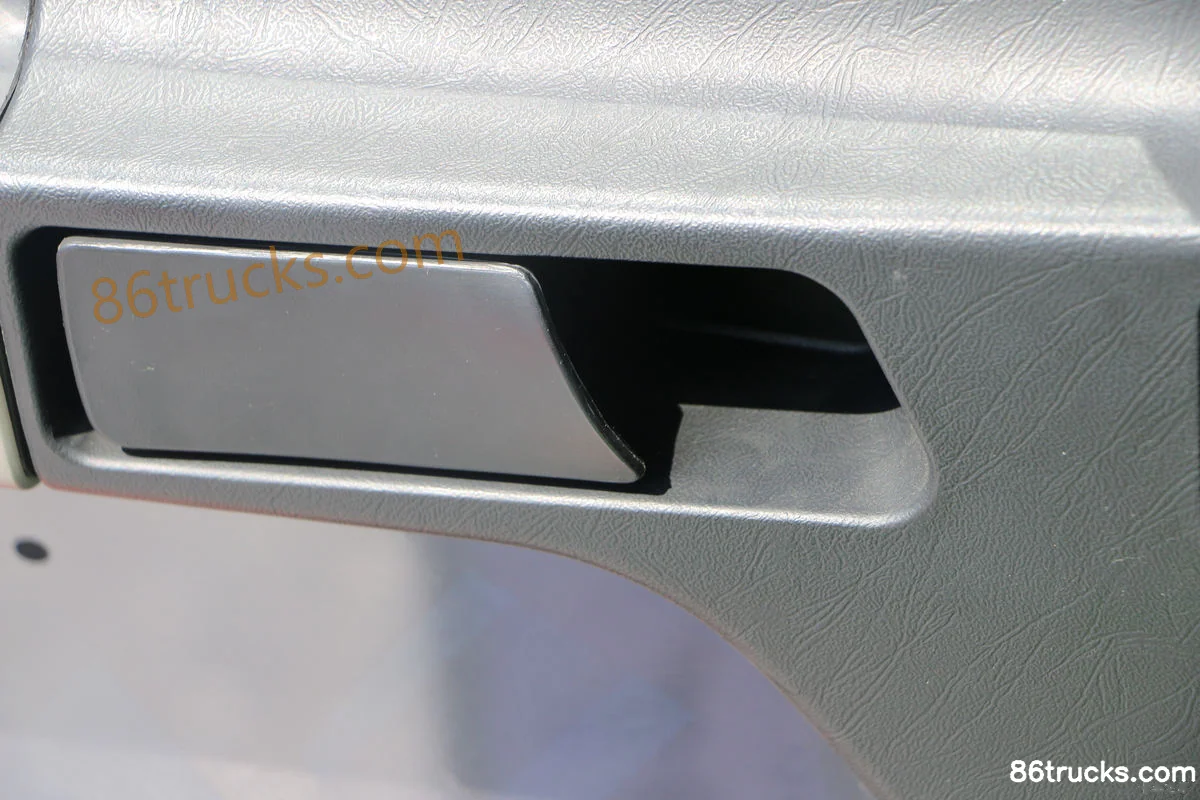

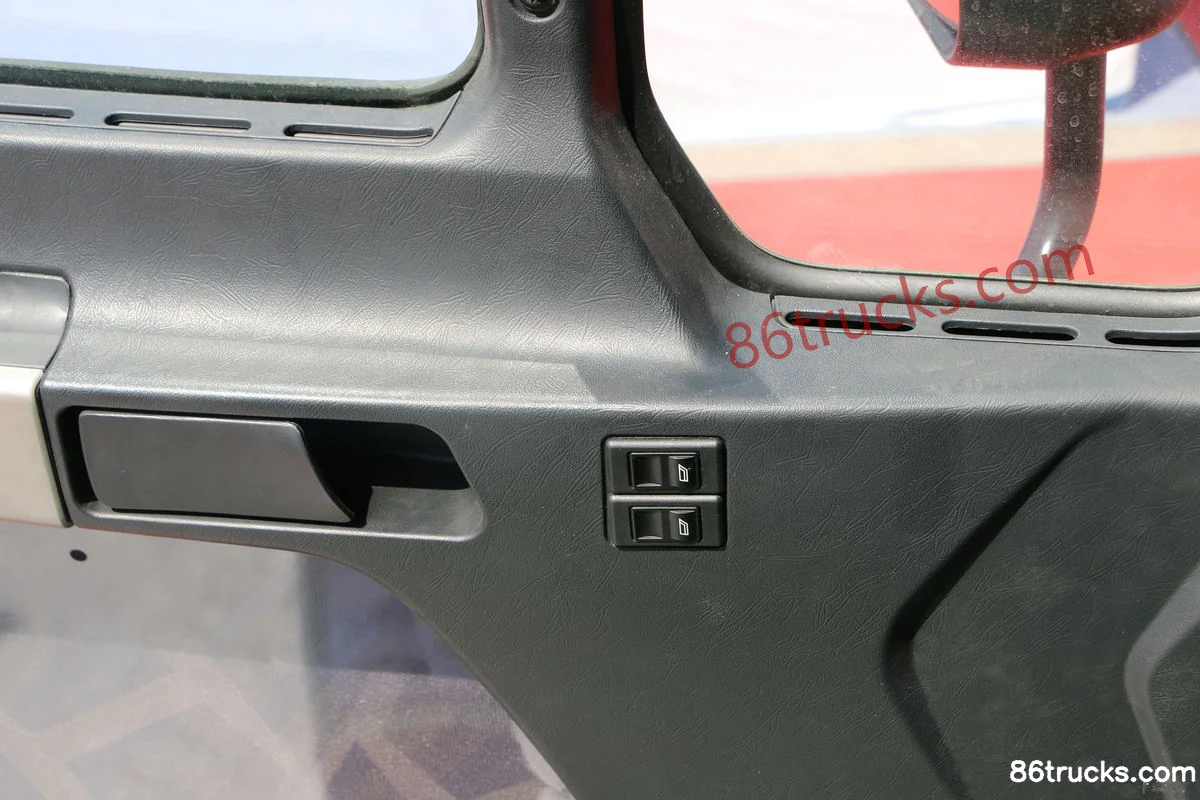

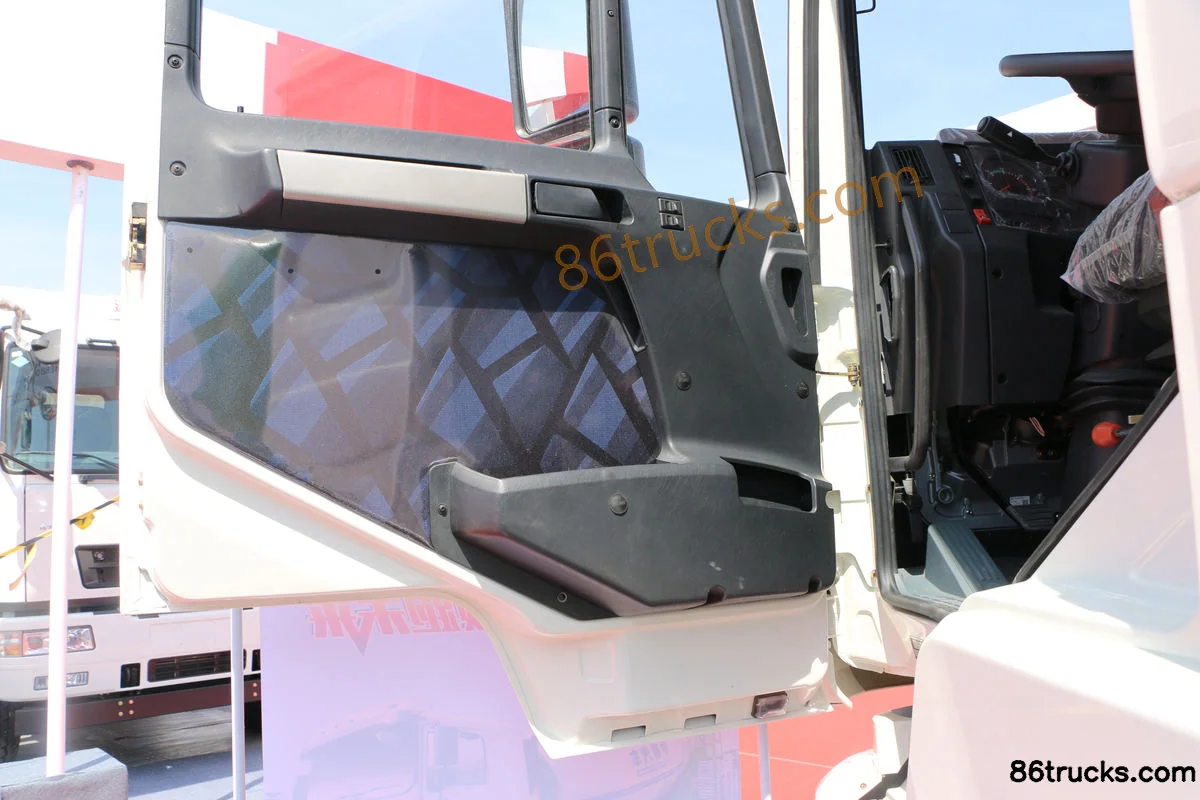

Cab3

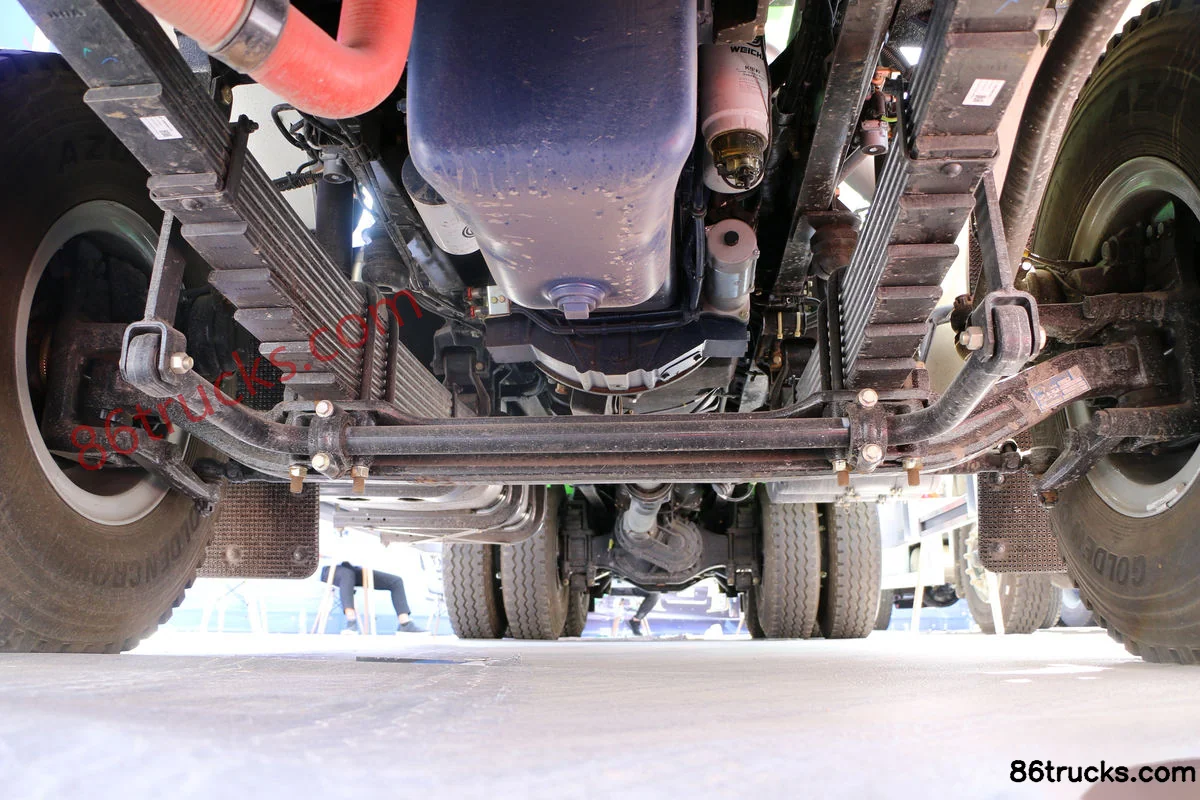

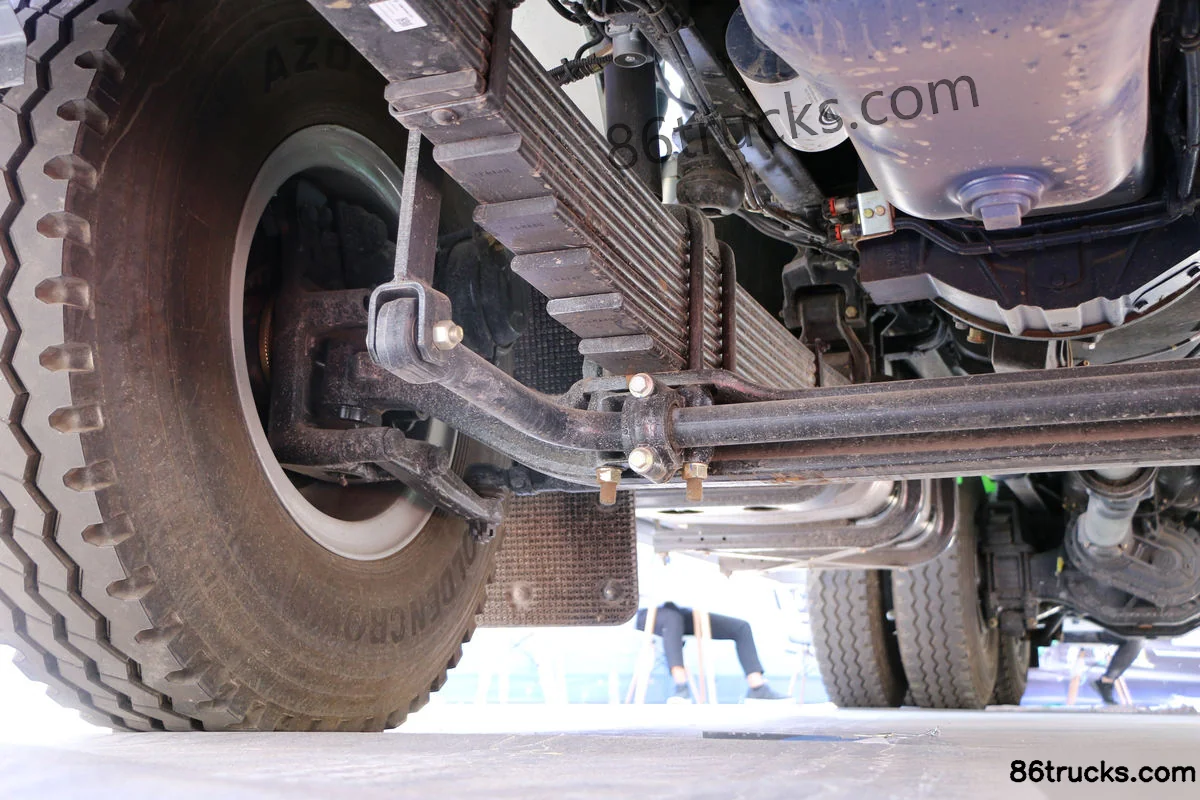

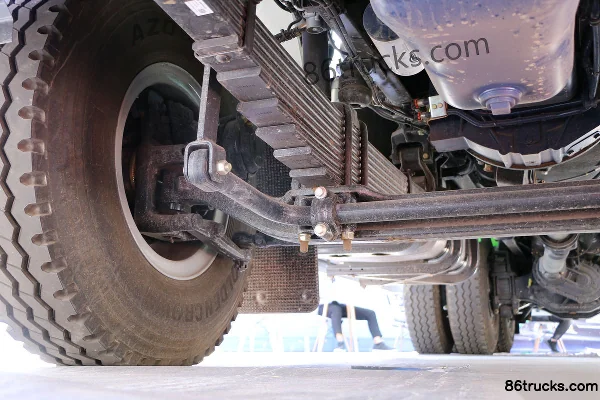

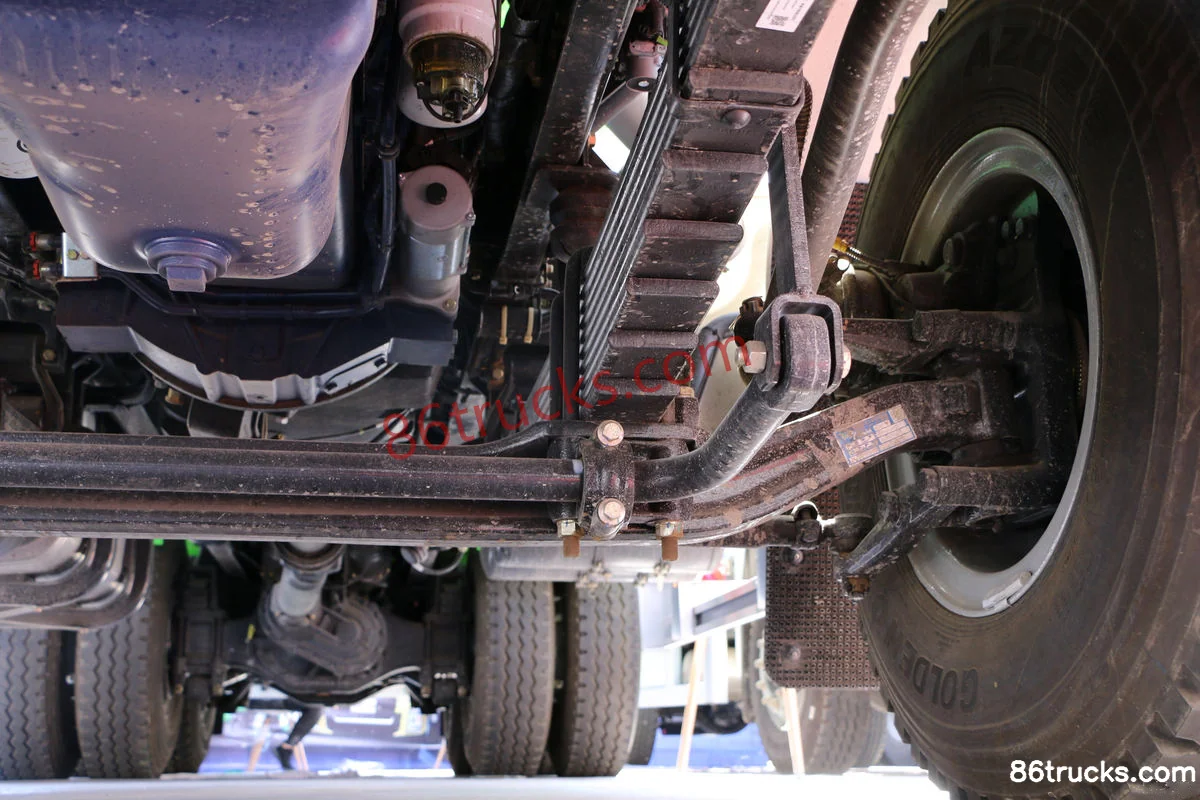

Chassis3

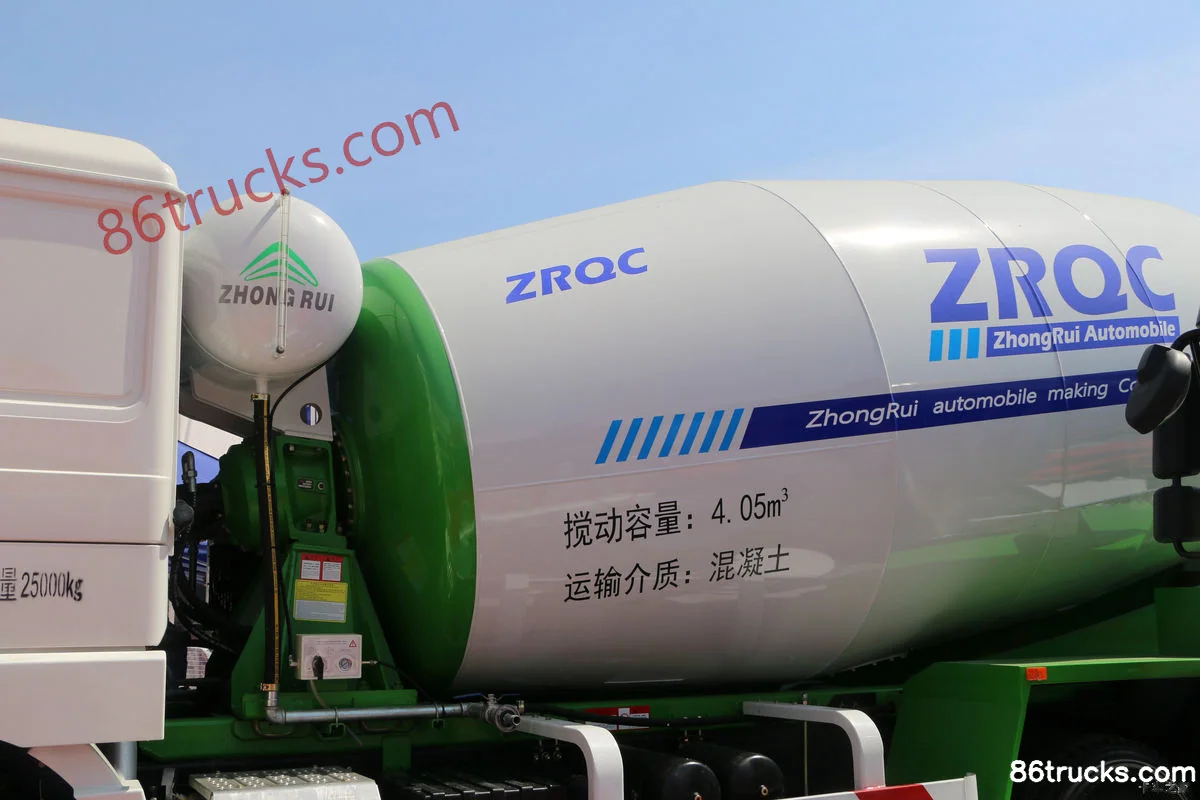

Body3

12 photos

FAQ

What is the export price of SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck, and what does it include?

SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck export reference is about From $58,333; MSRP is ¥42M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck?

Key specs of SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck: Drive: 6x4; Horsepower: 375 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck suited for?

SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck differ from other variants in the same series?

SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck belongs to SHACMAN Delong F3000 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 375hp 6X4(10 wheels) 4.05m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
