Sinotruk Haohan N7G 380 hp 6X4(10 wheels) Concrete Mixer Truck Chassis
EXW
Export quote
Sinotruk HOWO NX Heavy Truck concrete mixer truck
Main model photos
587 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Haohan N7G 380 hp 6X4(10 wheels) Concrete Mixer Truck Chassis | 6x4 / 380hp / China IV | ||
| Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck | 8x4 / 340hp / China V | From $48,611 |

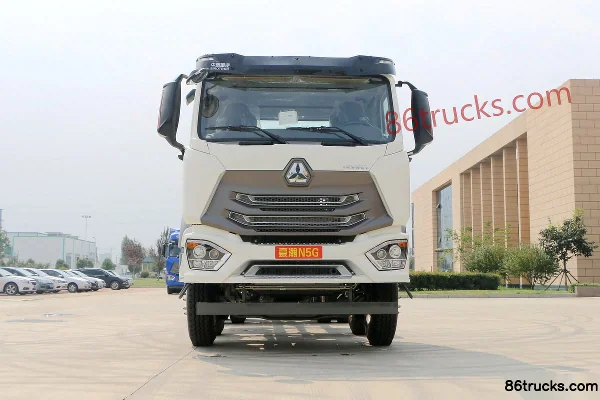

Sinotruk Haohan N5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck
EXW
From $48,611
Export quote
Series Specs
Basic Info
Cab dimensions: 8.125×2.496×3.13 / 9.95×2.496×3.9m
Drive type: 6X4 / 8X4
Truck Type: concrete mixer truck
Wheelbase: 3825+1350 / 1800+3050+1350mm
Vehicle origin: Jining, Shandong
Front/rear track width: Front track: 2022mm; Rear track: 1830/1830 / Front: 2022/2022mm; Rear: 1850/1850
Curb Weight: 8.76 / 13.42ton
Rated payload: 17.45ton
Max. speed: 82km/h
Front/rear suspension: 1.55/1.4 / 1.55/1.325m
Body Parameters
Mixing drum capacity: 5.4 / 7.99m³
Vehicle certification code: ZZ1255N3846D1 / ZZ5315GJBN3063E1
Body Brand: Sinotruk
Engine parameters
Engine Model: SinotrukD10.38-40 / SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726 / 6.87L
Emission standard: China IV / China V
Max output power: 279 / 250kW
Max hp: 380 / 340Horsepower
Rated speed: 2000rpm / 2300
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: Hohan N7G / Hohan N5G
Chassis Model: ZZ1255N3846D1 / ZZ1315N3063E1
Front axle description: HF9 (drum)
Frame Dimensions: 850×300×80×(8+8)mm
rear axle description: HC16
Axle ratio: 4.42
Leaf spring count: 4/-，4/5，4/12，9/-，9/12 / 4/4/5
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW19710 / SinotrukHW13710L
Tire
Tire Size: 12.00R20(11.00R20) / 11.00R20 18PR
Number of tires: 10 / 12pcs
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO NX Heavy Truck concrete mixer truck?
Sinotruk HOWO Sinotruk HOWO NX Heavy Truck is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO NX Heavy Truck concrete mixer truck?
Sinotruk HOWO NX Heavy Truck concrete mixer truck export reference is about From $48,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO NX Heavy Truck concrete mixer truck cover?
Sinotruk HOWO NX Heavy Truck concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 380 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO NX Heavy Truck concrete mixer truck?
For Sinotruk HOWO NX Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO NX Heavy Truck concrete mixer truck include?
Sinotruk HOWO NX Heavy Truck concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO NX Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
