Sinotruk HOWO N5G 340hp 6X4(10 wheels) 6m³ Concrete Mixer Truck (China VI) (Zoomlion Brand)
EXW
Export quote
ZOOMLION Sinotruk HOWO chassis concrete mixer truck
Main model photos
32 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO N5G 340hp 6X4(10 wheels) 6m³ Concrete Mixer Truck (China VI) (Zoomlion Brand) | 6x4 / 340hp / China VI | ||
| Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI) | 8x4 / 350hp / China VI | ||
| Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI) | 8x4 / 350hp / China VI | ||

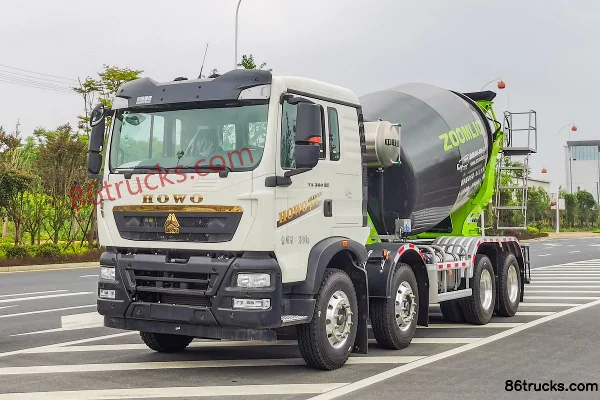

| Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 7.76 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI) | 8x4 / 350hp / China VI | ||

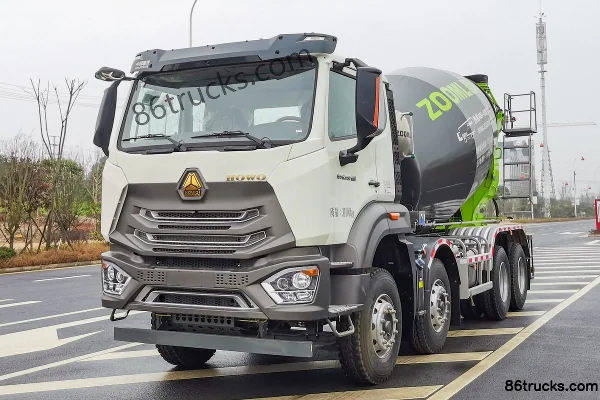

| Sinotruk HOWO N5G 350 hp 8X4(12 wheels) 7.97 m³ Concrete Mixer Truck (China VI) (Zoomlion Brand) (Weichai) | 8x4 / 350hp / China VI |
Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI)
EXW
Export quote
Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI)
EXW
Export quote
Sinotruk HOWO TX Pro 350 hp 8X4(12 wheels) 7.76 m³ Concrete Mixer Truck (Zoomlion Brand) (China VI)
EXW
Export quote
Sinotruk HOWO N5G 350 hp 8X4(12 wheels) 7.97 m³ Concrete Mixer Truck (China VI) (Zoomlion Brand) (Weichai)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO 336hp 6X4(10 wheels) Concrete Mixer Truck (Zoomlion) | 8x4 / 336hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 8.75×2.5×3.9 / 9.59×2.5×3.85 / 9.75×2.5×3.96 / 9.83×2.5×3.96 / 9.85×2.53×3.96 / 9.925×2.53×3.96 / 9.73×2.5×3.96 / 9.785×2.5×3.96 / 10.15×2.496×3.96 / 9.7×2.5×3.92 / 9.8×2.5×3.96 / 10.1x2.496x3.96 / 10.8×2.5×3.96 / 9.76×2.5×3.96 / 10.36×2.5×3.95m
Truck Type: Concrete mixer truck
Drive type: 6X4 / 8X4
Wheelbase: 3225+1350 / 1800+3050+1350 / 1800+3050+1400 / 1800+3025+1350 / 1800+3025+1400 / 1800+3600+1350 / 4025+1350 / 1800+3200+1350mm
Vehicle origin: Yuanjiang, Hunan / Changsha, Hunan / Changsha
Front/rear track width: Front: 2041mm; Rear: 1830/1830 / Front: 2060/2060mm; Rear: 1850/1850 / Front: 2015/2015mm; Rear: 1850/1850 / Front: 1930/1930mm; Rear: 1860/1860 / Front: 1930/1930mm, Rear: 1800/1800 / Front: 2035/2035mm; Rear: 1850/1850 / Front: 1950/1950mm, Rear: 1850/1850 / Front: 2022/2022mm; Rear: 1850/1850 / Front track: 2022/2022mm; Rear track: 1830/1830mm / Front track: 2022/2041mm; Rear track: 1830/1830mm / Front track: 2022/2022; Rear track: 1830/1830
Curb Weight: 11.74 / 12.35 / 13.4 / 13.935 / 13.48 / 13.69 / 13.9 / 13.63 / 13.58 / 13 / 12.9 / 13.98 / 18.5 / 16 / 16.2ton
Rated payload: 13.13 / 18.52 / 17.47 / 16.935 / 17.39 / 17.18 / 16.97 / 17.24 / 17.29 / 17.87 / 17.97 / 16.89 / 12.37 / 8.87 / 14.67ton
Max. speed: 82 / 80km/h
Front/rear suspension: 1.55/2.05 / 1.43/1.96 / 1.43/2..05 / 1.43/2.155 / 1.55/2.1 / 1.55/2.175 / 1.55/1.98 / 1.55/2.4 / 1.55/1.95 / 1.43/2.145 / 1.43/1.945 / 1.55/2.35 / 1.5/2.55 / 1.5/2.885 / 1.5/2.51m
Body Parameters
Water tank capacity: 450 / 13.5L
Mixing drum capacity: 8 / 7.76 / 7.97 / 7.87 / 7.78 / 7.9 / 7.92 / 7.74 / 5.6 / 4m³
Feed rate: ≥4 / ≥3m³/min
Discharge residue rate: ≤0.7 / ＜7%
Filling Rate: 7.92 / 61%
water supply method: air type
Vehicle certification code: ZLJ5256GJBAF / ZLJ5318GJBH8F / ZLJ5318GJBHT2F / ZLJ5311GJBHT5F / ZLJ5318GJBHNF / ZLJ5312GJBHN6F / ZLJ5310GJBAF / ZLJ5312GJBHT5F / ZLJ5312GJBA2E / ZLJ5318GJBAN1E / ZLJ5312GJBHT5E / ZLJ5310GJBHTE / ZLJ5312GJBA4E / ZLJ5315GJBHE / ZLJ5253GJBHE / ZLJ5310GJB
hydraulic system: Rexroth A4VTG090
Body Brand: ZOOMLION / ZOOMLION·
Others: ZF P7300 retarder
Engine parameters
Engine Model: SinotrukMC07.34-60 / SinotrukMC07H.35-60 / WeichaiWP8.350E61A / SinotrukMC11.44-60 / SinotrukMC11.40-60 / SinotrukMC07.31-60 / SinotrukMC09.35-60 / SinotrukMC09.38-60 / SinotrukMC11.46-61 / SinotrukMC11.40-61 / SinotrukMC07.31-50 / SinotrukMC07.35-50 / SinotrukMC07.34-50 / SinotrukMC07H.35-50 / SinotrukD10.38-50 / SinotrukD10.34-50 / Sinotruk WD615.95
Number of cylinders: 6 / 5cylinder
fuel type: Diesel
Displacement: 6.87 / 7.36 / 7.8 / 10.518 / 8.765 / 9.726L
Emission standard: China VI / China V / China III / Euro III
Max output power: 248 / 257 / 324 / 294 / 225 / 276 / 338 / 297 / 228 / 254 / 250 / 249 / 247kW
Max hp: 340 / 350 / 440 / 400 / 310 / 380 / 460 / 336Horsepower
Rated speed: 2200 / 2100 / 1900 / 2300 / 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / High-pressure common rail + EGR + SCR / High-pressure common rail + EGR + DOC + DPF + SCR / Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline 6-cylinder, water-cooled, 4-stroke / 4-stroke, turbocharged intercooled, electronic common-rail direct injection diesel engine
Chassis Specs
Chassis Series: HOWO N-series / HOWOTX / N5G / HOWON5G / SinotrukHOWO-7 / Sinotruk HOWO
Chassis Model: ZZ1255V4146F1 / ZZ1317N306GF1B / ZZ1317N306GF1 / ZZ1317V306JF1 / ZZ1315V3666F1 / ZZ1315N3063E1 / ZZ1317N306GE1 / ZZ1317N3667E1 / ZZ1257N4347E1 / ZZ1317N3267C
rear axle description: MAT16ZG double reduction axle / MAT16ZG two-speed reduction axle
Axle ratio: 5.73 / 4.8
Leaf spring count: 10/12 / 11/11/12 / 11/11/10 / 4/4/511/11/12 / 11/11/12，11/11/-，4/4/12，4/4/- / 10/12,9/12,9/- / L14/R13/L14/R13/12,4/4/-,11/11/12,11/11/-,4/4/12,L14/R13/L14/R13/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L / Sinotruk 10-speed / SinotrukHW13710L / SinotrukHW10
Cab parameters
Cab: HOWO N-series / Pro / HOWON5G / HOWOTX
Tire
Tire Size: 12.00R20 16PR / 11/11/12 / 12R22.5 18PR / 12.00R20 18PR / 12.00R20 / 11.00R20 / 11.00-20 18PR，11.00R20 18PR，12.00-20 16PR，12.00R20 18PR / 12.00-20 18PR，12.00R20 16PR/12.00R20 18PR，12.00R20 16PR / 11.00-2018PR，11.00R2018PR，12.00-2016PR，12.00R2016PR
Number of tires: 10 / 12pcs
FAQ
What kind of truck is ZOOMLION ZOOMLION Sinotruk HOWO chassis concrete mixer truck?
ZOOMLION ZOOMLION Sinotruk HOWO chassis is an export-oriented concrete mixer truck lineup with about 32 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for ZOOMLION Sinotruk HOWO chassis concrete mixer truck?
ZOOMLION Sinotruk HOWO chassis concrete mixer truck export reference is about From $62,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does ZOOMLION Sinotruk HOWO chassis concrete mixer truck cover?
ZOOMLION Sinotruk HOWO chassis concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 340 hp / 350 hp; Emission: China III / Euro III / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Sinotruk HOWO chassis concrete mixer truck?
For ZOOMLION Sinotruk HOWO chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ZOOMLION Sinotruk HOWO chassis concrete mixer truck include?
ZOOMLION Sinotruk HOWO chassis concrete mixer truck currently lists about 32 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Sinotruk HOWO chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
