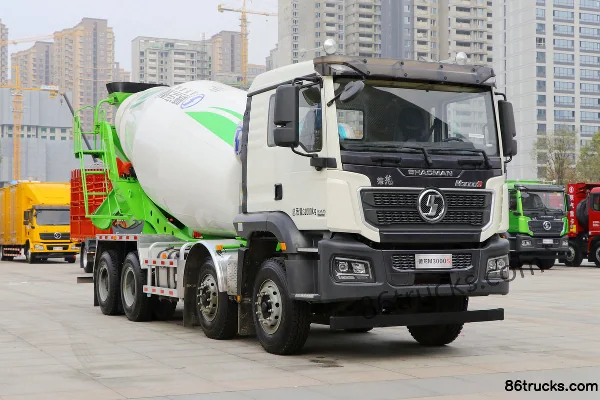

SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand)
EXW
Export quote
CIMC Lingyu SHACMAN Chassis concrete mixer truck
Main model photos
42 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand) | 8x4 / 340hp / China V | ||
| SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) | 8x4 / 350hp / China VI | ||
| SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand) | 8x4 / 340hp / China V | From $58,333 | |
| SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand) | 8x4 / 340hp / China V | ||
| SHACMAN Delong New M3000 350 hp 6X4(10 wheels) 7.3m³ LNG Concrete Mixer Truck (China VI) (Lingyu Brand) | 8x4 / 350hp / China VI | From $60,222 |

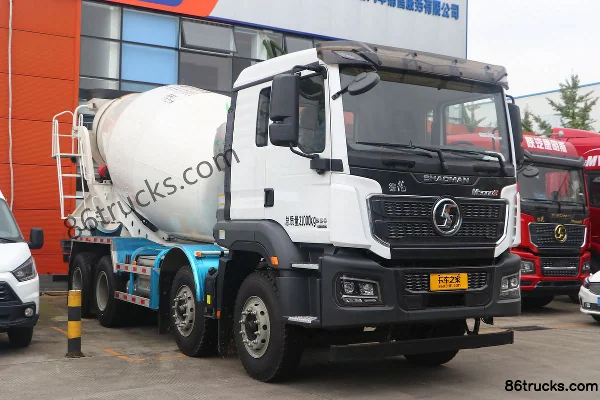

SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand)
EXW
Export quote
SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand)
EXW
From $58,333
Export quote
SHACMAN Delong M3000S 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu Brand)
EXW
Export quote
SHACMAN Delong New M3000 350 hp 6X4(10 wheels) 7.3m³ LNG Concrete Mixer Truck (China VI) (Lingyu Brand)
EXW
From $60,222
Export quote
Series Specs
Basic Info
Cab dimensions: 10.2×2.55×3.995 / 10.32×2.550×3.995 / 10.25×2.55×3.99 / 10.2×2.52×3.995 / 10.55×2.55×3.995 / 9.82×2.5×3.95 / 10.39×2.52×3.995m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Luoyang, Henan
Front/rear track width: Front: 2036/2036mm; Rear: 1860/18602036/2036 / Front: 2036/2036mm; Rear: 1860/1860 / Front: 2011/2011mm; Rear: 1860/1860
Wheelbase: 1800+3000+1400 / 1800+3100+1400mm
Curb Weight: 14.6 / 13.87 / 14.5 / 14.3 / 14.8 / 13.75 / 13.5ton
Rated payload: 16.27 / 17 / 16.37 / 16.57 / 16.07 / 17.12 / 17.37ton
Max. speed: 80 / 89km/h
Front/rear suspension: 1.525/2.475 / 1.525/2.595 / 1.525/2.525 / 1.525/2.65 / 1.525/2.095 / 1.525/2.665m
Body Parameters
Mixing drum capacity: 7.45 / 7.79 / 7.3 / 7.58 / 7.8 / 7.95m³
Vehicle certification code: CLY5314GJB30E57 / CLY5314GJB30E66 / CLY5314GJB30E5 / CLY5314GJB30E55 / CLY5314GJB32E6L / CLY5314GJB30E1 / CLY5314GJB30E53
Body Brand: Lingyu / CIMC Lingyu
Engine parameters
Engine Model: WeichaiWP8.340E51 / WeichaiWP8.350E61 / WeichaiWP10HNG350E60 / WeichaiWP10.336E55 / WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel / LNG (liquefied natural gas)
Displacement: 7.8 / 9.5 / 9.726 / 7.47L
Emission standard: China V / China VI
Max output power: 250 / 257 / 247kW
Max hp: 340 / 350 / 336Horsepower
Rated speed: 2100 / 1900rpm
Engine Type: High-pressure common rail+EGR / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / SPI+ER+EGR+TWC / High-pressure common rail+DOC+DPF+SCR / Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Series: M3000S / Delong M3000S / New M3000 / Delong New M3000
Chassis Model: SX5310GJBMB6 / SX1319MB6F1 / SX1319MC6TLF1
Frame Dimensions: （970-850）×300(8+5)mm
rear axle description: 16-ton Hande axle / HDS 16T dual reduction / 13T STR double reduction axle
Axle ratio: 5.73 / 4.8
Leaf spring count: 10/10/12 / 3/3/5 / 10/10/12,14/14/12,10/10/10 / 10/10/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120T / Fast Gear 10-Speed
Cab parameters
Cab: M3000S / New M3000
Tire
Tire Size: 11.00R20 16PR / 12R22.5 18PR / 11.00R20 / 295/80R22.5,11.00R20,12.00R20 18PR
Number of tires: 12pcs
FAQ
What kind of truck is CIMC Lingyu CIMC Lingyu SHACMAN Chassis concrete mixer truck?
CIMC Lingyu CIMC Lingyu SHACMAN Chassis is an export-oriented concrete mixer truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Lingyu SHACMAN Chassis concrete mixer truck?
CIMC Lingyu SHACMAN Chassis concrete mixer truck export reference is about $55,278 – $60,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Lingyu SHACMAN Chassis concrete mixer truck cover?
CIMC Lingyu SHACMAN Chassis concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 340 hp / 350 hp; Emission: China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Lingyu SHACMAN Chassis concrete mixer truck?
For CIMC Lingyu SHACMAN Chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CIMC Lingyu SHACMAN Chassis concrete mixer truck include?
CIMC Lingyu SHACMAN Chassis concrete mixer truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Lingyu SHACMAN Chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
