Sinotruk HOWO TX5 350hp 8X4(12 wheels) 7.8m³ concrete mixer truck (Hongchang Tianma brand)
EXW
From $72,222
Export quote
Hongchang Tianma Sinotruk HOWO Chassis concrete
Main model photos
126 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TX5 350hp 8X4(12 wheels) 7.8m³ concrete mixer truck (Hongchang Tianma brand) | 8x4 / 350hp / China VI | From $72,222 | |
| Sinotruk HOWO TX6 350 hp 8X4(12 wheels) 7.3 m³ Concrete Mixer Truck (Hongchang Tianma) | 8x4 / 350hp / China VI | From $58,333 | |
| Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.91 m³ Concrete Mixer Truck (Hongchang Tianma) | 8x4 / 340hp / China V | From $53,472 | |
| Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.17 m³ Concrete Mixer Truck (Hongchang Tianma) | 8x4 / 340hp / China V | From $53,472 | |
| Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.98 m³ Concrete Mixer Truck (Hongchang Tianma) | 8x4 / 340hp / China V | From $53,472 |
Sinotruk HOWO TX6 350 hp 8X4(12 wheels) 7.3 m³ Concrete Mixer Truck (Hongchang Tianma)
EXW
From $58,333
Export quote
Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.91 m³ Concrete Mixer Truck (Hongchang Tianma)
EXW
From $53,472
Export quote
Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.17 m³ Concrete Mixer Truck (Hongchang Tianma)
EXW
From $53,472
Export quote

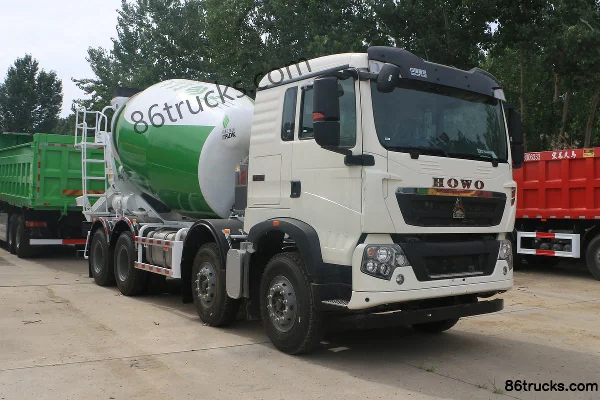

Sinotruk HOWO TX6 340 hp 8X4(12 wheels) 7.98 m³ Concrete Mixer Truck (Hongchang Tianma)
EXW
From $53,472
Export quote
Series Specs
Basic Info
Cab dimensions: 10.1×2.55×4 / 10.4×2.55×4 / 9.98×2.55×4 / 10.29×2.55×3.99 / 10.4×2.55×3.99 / 10.35×2.55×4 / 9.95×2.55×3.9 / 10.2×2.55×3.99 / 10.15×2.55×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Sanhe, Hebei
Front/rear track width: Front: 2015/2015mm; Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 13.85 / 14.93 / 13.61 / 15.22 / 14.77 / 13.45 / 14.28 / 13.7 / 14.47 / 13.76ton
Rated payload: 17.02 / 15.94 / 17.26 / 15.65 / 16.1 / 17.42 / 16.59 / 17.17 / 16.4 / 17.11ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.77 / 1.43/2.35 / 1.43/2.685 / 1.5/2.65 / 1.43/2.47 / 1.43/2.32 / 1.43/2.57 / 1.43/2.72m
Body Parameters
Mixing drum capacity: 7.8 / 7.3 / 7.98 / 7.17 / 7.37 / 7.6 / 7.86 / 7.74 / 7.5 / 7.91m³
Vehicle certification code: HCL5317GJBZZN30G67A / HCL5317GJBZZN31G64 / HCL5317GJBZZV30G54 / HCL5317GJBZZV30G53 / HCL5317GJBZZN30G5 / HCL5317GJBZZN30G66 / HCL5317GJBZZN30G56 / HCL5317GJBZZN30G51 / HCL5317GJBZZN30G52 / HCL5317GJBZZN30G55 / HCL5317GJBZZN30G6 / HCL5317GJBZZN30G61 / HCL5317GJBZZN30G62 / HCL5317GJBZZN30G63 / HCL5317GJBZZN30G65
Body Brand: Hongchang Tianma
Engine parameters
Engine Model: WeichaiWP8.350E61 / WeichaiWP8.340E51 / WeichaiWP9H350E62 / SinotrukMC07.35-50 / SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8 / 8.8 / 6.87L
Emission standard: China VI / China V
Max output power: 257 / 250 / 254 / 248kW
Max hp: 350 / 340Horsepower
Rated speed: 2100 / 1900 / 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / High-pressure common rail+EGR / CR+DOC+DPF+Hi_SCR / Inline 6-cylinder, water-cooled, 4-stroke / Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: HOWO TX5 / HOWO TX6 / SinotrukHOWO T5G
Chassis Model: ZZ1317N306GF1 / ZZ1317N306GE1
Front axle description: H653 self-adjusting arm front axle / H153 self-adjusting arm drum front axle
rear axle description: MAT16ZG self-adjusting arm dual rear axle / MAT16ZG self-adjusting arm dual rear axle (drum) / ST16 self-adjusting arm dual rear axle
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L / SinotrukHW13710L
Cab parameters
Cab: TX-W luxury edition / T5G-M
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
FAQ
What kind of truck is Hongchang Tianma Hongchang Tianma Sinotruk HOWO Chassis concrete mixer truck?
Hongchang Tianma Hongchang Tianma Sinotruk HOWO Chassis is an export-oriented concrete mixer truck lineup with about 21 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hongchang Tianma Sinotruk HOWO Chassis concrete?
Hongchang Tianma Sinotruk HOWO Chassis concrete export reference is about $53,472 – $72,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hongchang Tianma Sinotruk HOWO Chassis concrete cover?
Hongchang Tianma Sinotruk HOWO Chassis concrete mainly covers: Drive: 8x4; Horsepower: 340 hp / 350 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hongchang Tianma Sinotruk HOWO Chassis concrete?
For Hongchang Tianma Sinotruk HOWO Chassis concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hongchang Tianma Sinotruk HOWO Chassis concrete include?
Hongchang Tianma Sinotruk HOWO Chassis concrete currently lists about 21 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hongchang Tianma Sinotruk HOWO Chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
