Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck
EXW
Export quote
Loxa Heavy Machinery Loxa concrete mixer truck
Main model photos
223 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck | 6x4 / 350hp / China IV | ||
| Foton Leisa L9 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 350hp / China IV | ||
| Foton Leisa 336hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China IV | From $66,528 | |
| Foton L8 Series 385 hp 8X4(12 wheels) concrete mixer truck | 8x4 / 385hp / China IV |

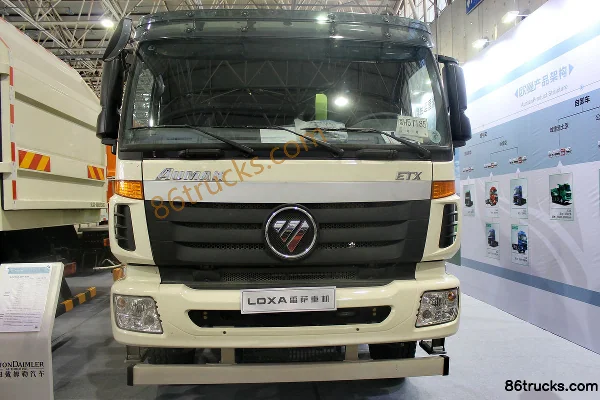

Foton Leisa L9 Series 350 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote

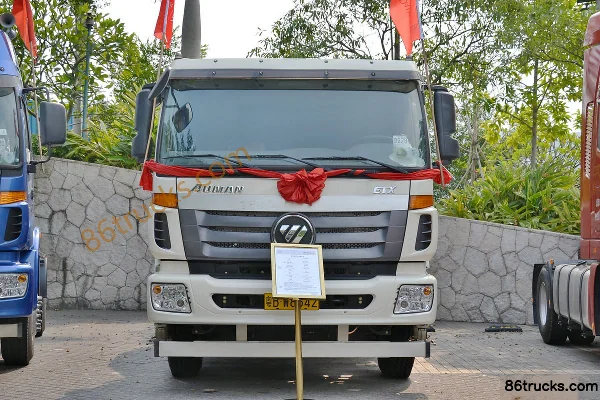

Foton Leisa 336hp 6X4(10 wheels) Concrete Mixer Truck
EXW
From $66,528
Export quote
Foton L8 Series 385 hp 8X4(12 wheels) concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.802×2.495×3.963 / 9.05/2.495/3.75 / 10.79×2.495×4m
Truck Type: concrete mixer truck
Drive type: 6X4 / 8X4
Front/rear track width: Front track: 2005mm; Rear track: 1880/1880mm / Front track: 2010/2010mm; Rear track: 1847/1847mm
Wheelbase: 4100+1350 / 3575+1350 / 1800+3450+1350mm
Curb Weight: 14.7 / 13.9ton
Rated payload: 10.17 / 10.905ton
Max. speed: 80 / 85km/h
Front/rear suspension: 1.532/2.82 / 1.532/2.593m
Engine parameters
Injection System: Common Rail (China IV)
Engine Model: FotonISGe4 350 / Weichai WP10.336E40 / Xi’an Cummins ISM11E4 385
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5 / 9.726 / 10.8L
Emission standard: China IV
Max output power: 257 / 247 / 283kW
Max hp: 350 / 336 / 385Horsepower
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR / Common Rail SCR / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Intercooled (turbocharged), direct injection, electronic control
Body Parameters
Slump: 80-220mm
Mixing drum capacity: 4.49m³
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.4 / 0.4 / 0.8%
water supply method: Air pressure water supply
Vehicle certification code: BJ5253GJB-XJ / BJ5253GJB-XB
Body Brand: Loxa Heavy Machinery
Chassis Specs
Chassis Series: Loxa L9 / Sachs L9 / AumanETX / AumanGTL
Steering gear: Domestic
rear axle description: 13T MAN dual-reduction
Axle ratio: 5.73
Leaf spring count: 9/12
clutch: Φ430
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD220T / Fast Gear 9JSD180
Cab parameters
Cab: Flat roof
Tire
Tire Size: 12.00R20 / 11.00 R20
Number of tires: 10 / 12pcs
FAQ
What kind of truck is Loxa Heavy Machinery Loxa Heavy Machinery Loxa concrete mixer truck?
Loxa Heavy Machinery Loxa Heavy Machinery Loxa is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Loxa Heavy Machinery Loxa concrete mixer truck?
Loxa Heavy Machinery Loxa concrete mixer truck export reference is about From $66,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Loxa Heavy Machinery Loxa concrete mixer truck cover?
Loxa Heavy Machinery Loxa concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 350 hp / 385 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Loxa Heavy Machinery Loxa concrete mixer truck?
For Loxa Heavy Machinery Loxa concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Loxa Heavy Machinery Loxa concrete mixer truck include?
Loxa Heavy Machinery Loxa concrete mixer truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Loxa Heavy Machinery Loxa concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
