Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.7ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 9.802×2.495×3.963m
Truck Type:: concrete mixer truck
Rated payload: 10.17ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China IV

Overview

The Loxa Heavy Machinery Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck is a concrete mixer truck featuring 10.17t payload, 14.7ton GVW, 6X4 (10 wheels) drive and Flat roof cab. On the powertrain side, it comes with 350 hp, China IV emissions and Diesel fuel.

China IV 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.802×2.495×3.963m
Truck Type: concrete mixer truck
Drive type: 6X4
Front/rear track width: Front track: 2005mm; Rear track: 1880/1880mm
Wheelbase: 4100+1350mm
Curb Weight: 14.7ton
Rated payload: 10.17ton
Max. speed: 80km/h
Front/rear suspension: 1.532/2.82m
Engine parameters
Injection System: Common Rail (China IV)
Engine Model: FotonISGe4 350
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Body Parameters
Slump: 80-220mm
Mixing drum capacity: 4.49m³
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.4%
water supply method: Air pressure water supply
Vehicle certification code: BJ5253GJB-XJ
Body Brand: Loxa Heavy Machinery
Chassis Specs
Chassis Series: Loxa L9
Chassis Model: BJ5253GJB-XJ
Steering gear: Domestic
rear axle description: 13T MAN dual-reduction
Axle ratio: 5.73
Leaf spring count: 9/12
clutch: Φ430
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD220T
Cab parameters
Cab: Flat roof
Tire

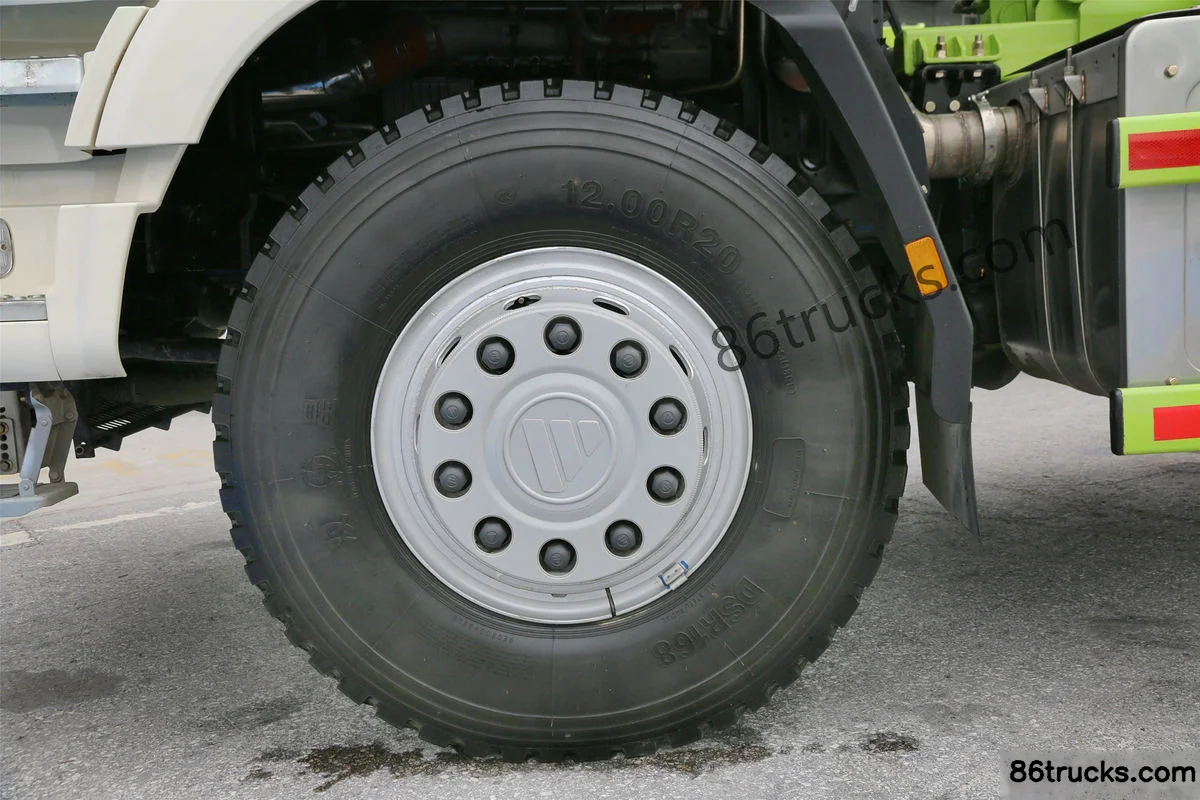

Tire Size: 12.00R20
Number of tires: 10pcs

Photos

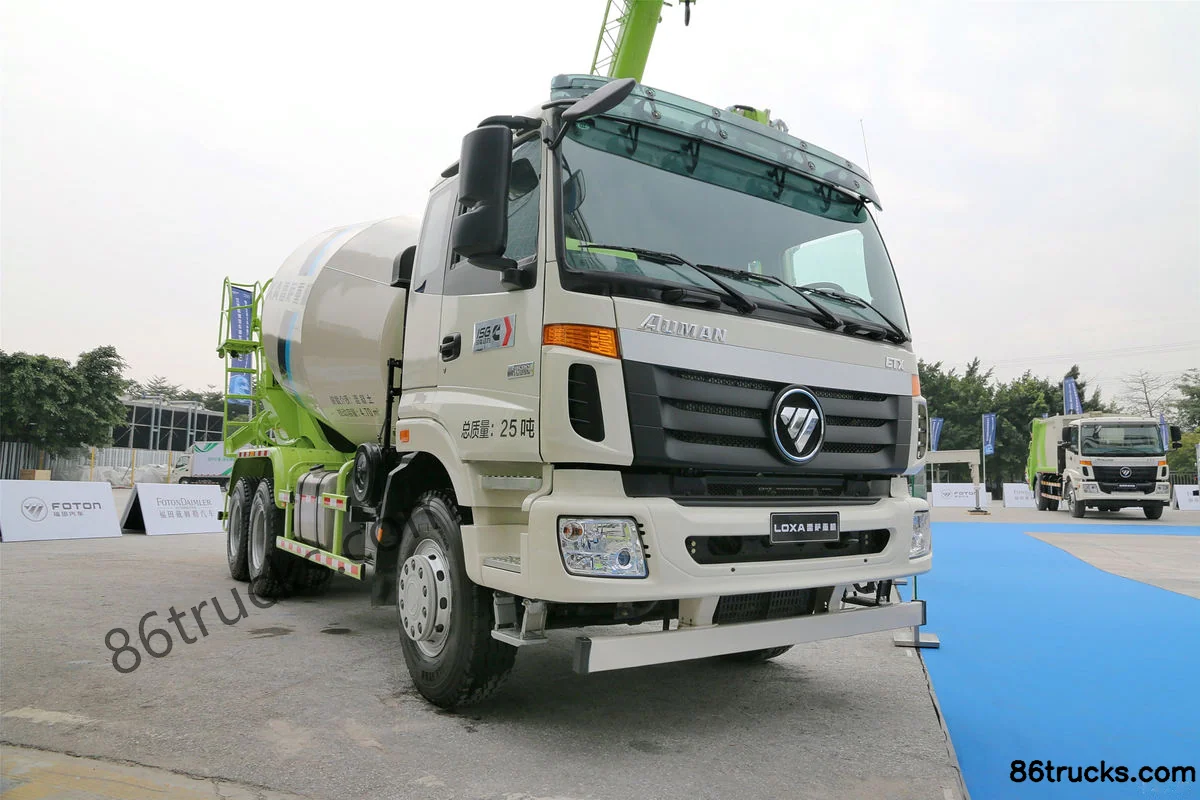

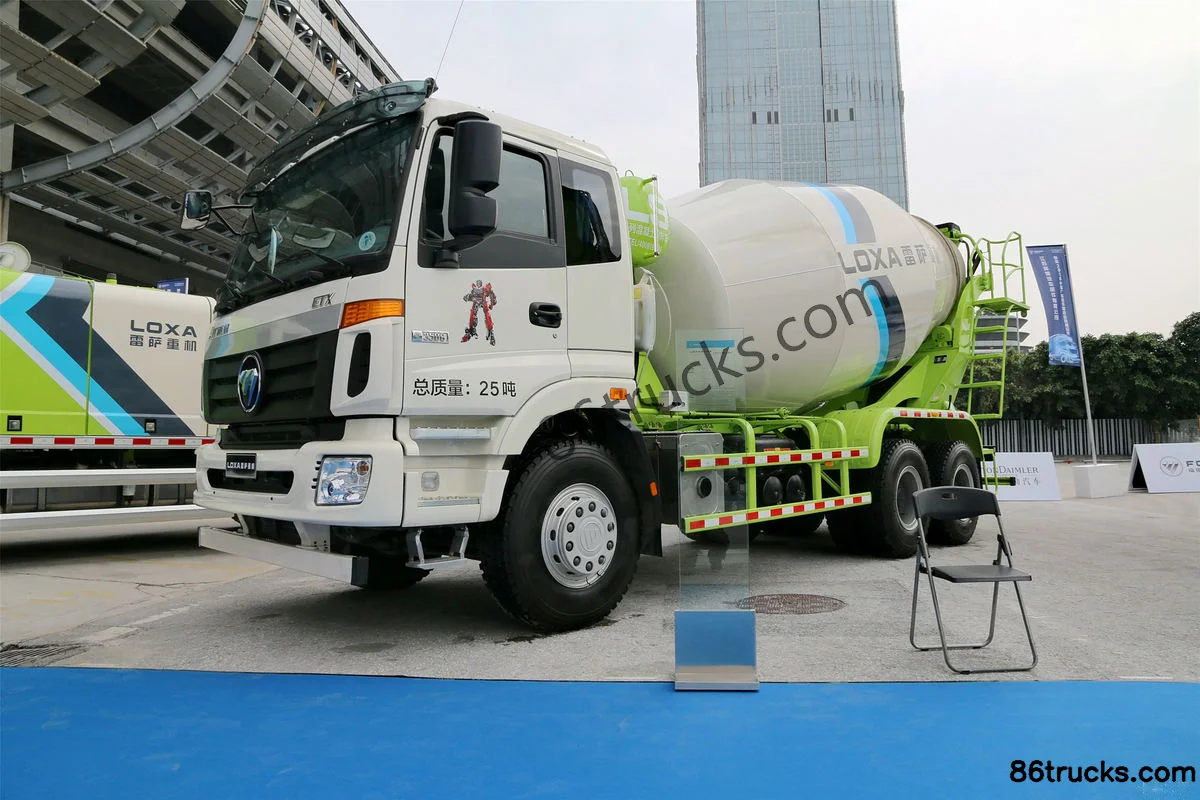

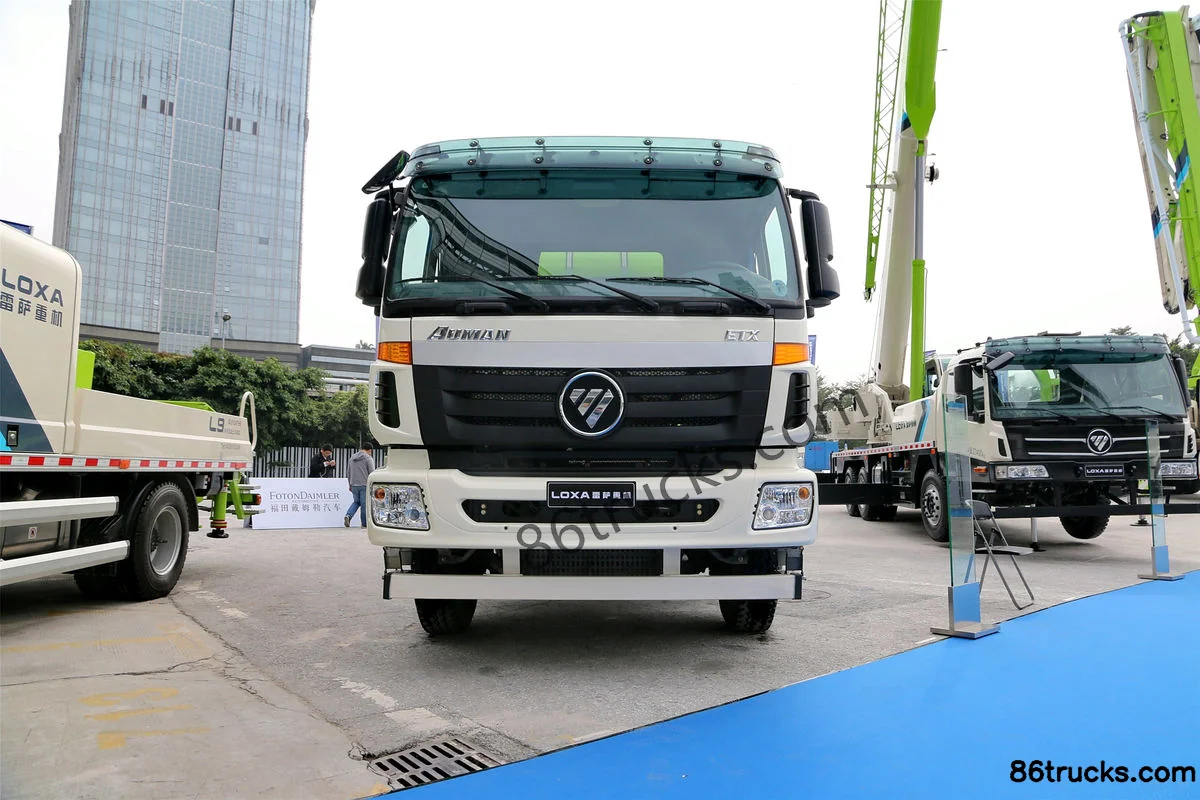

Exterior3

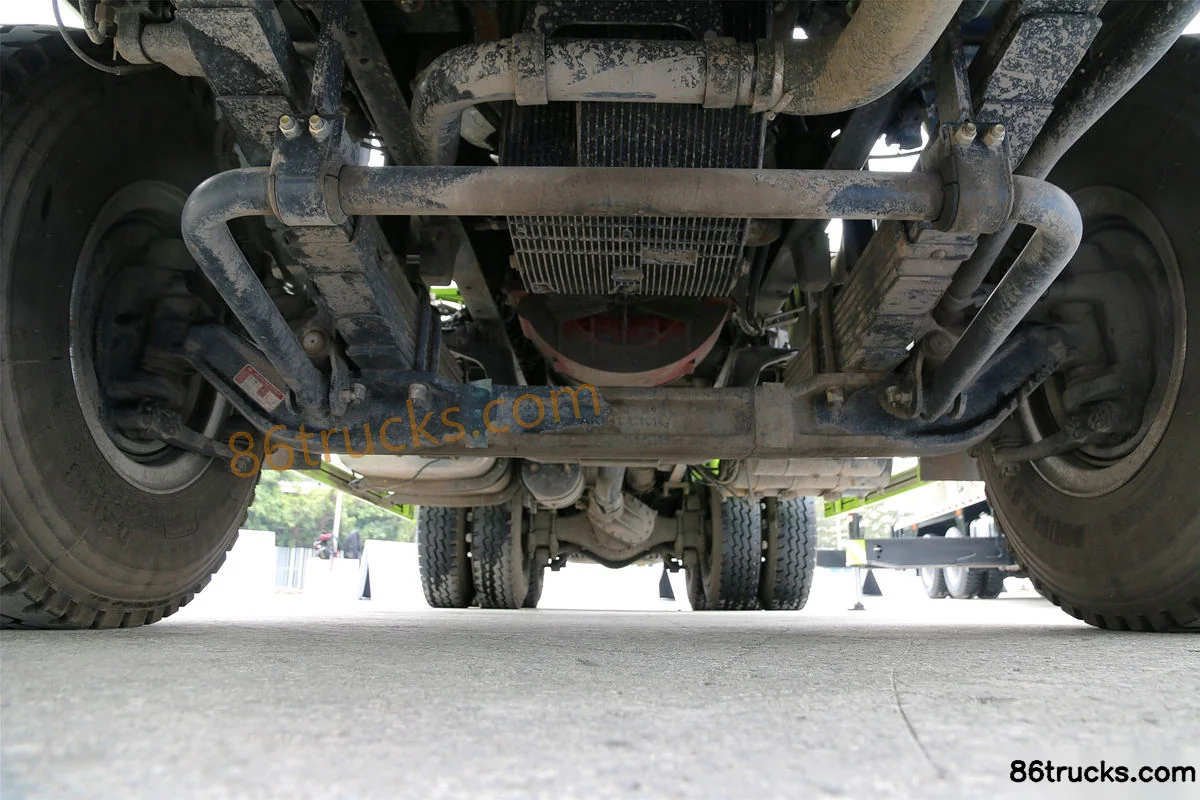

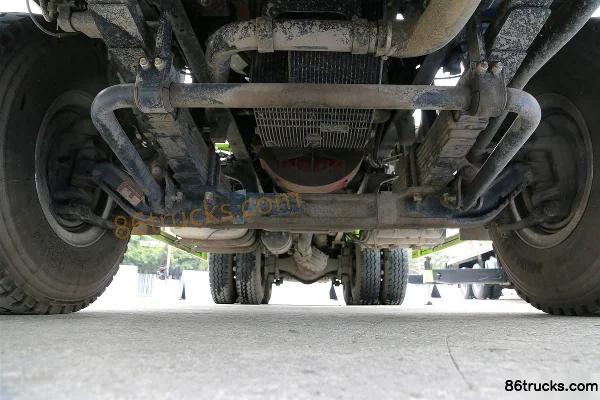

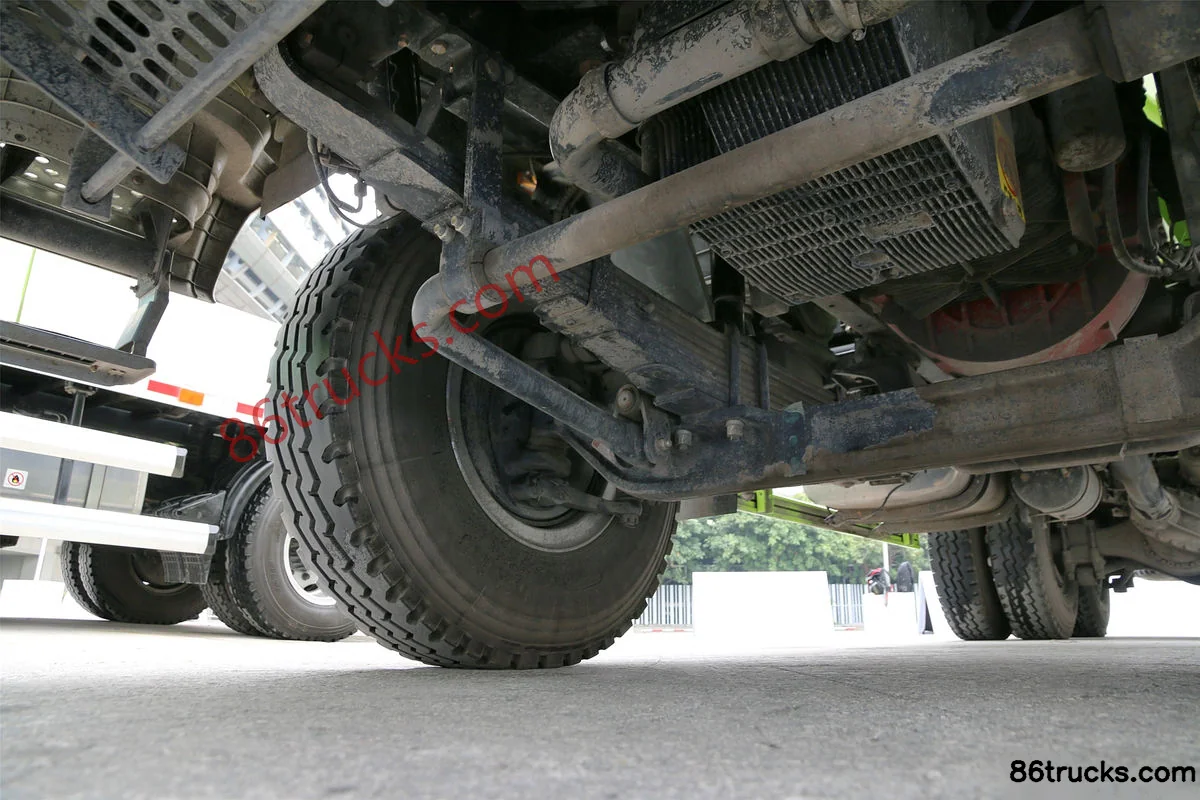

Chassis3

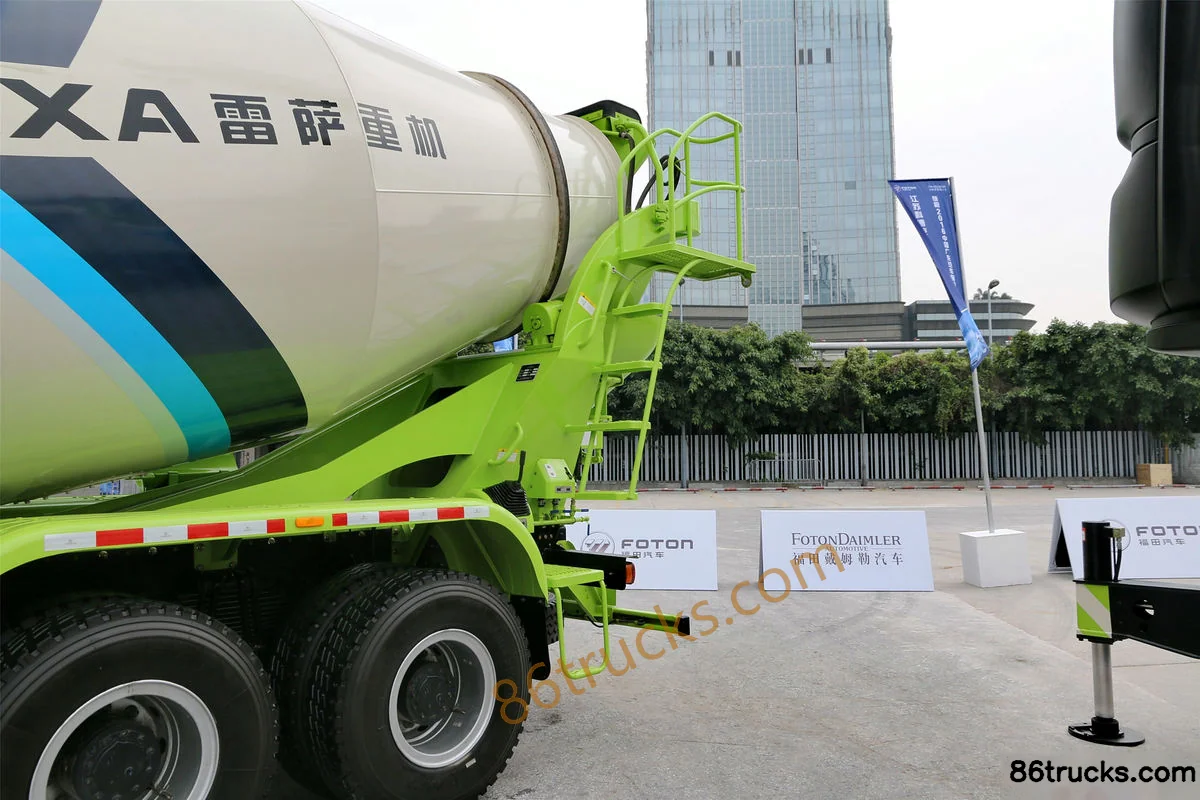

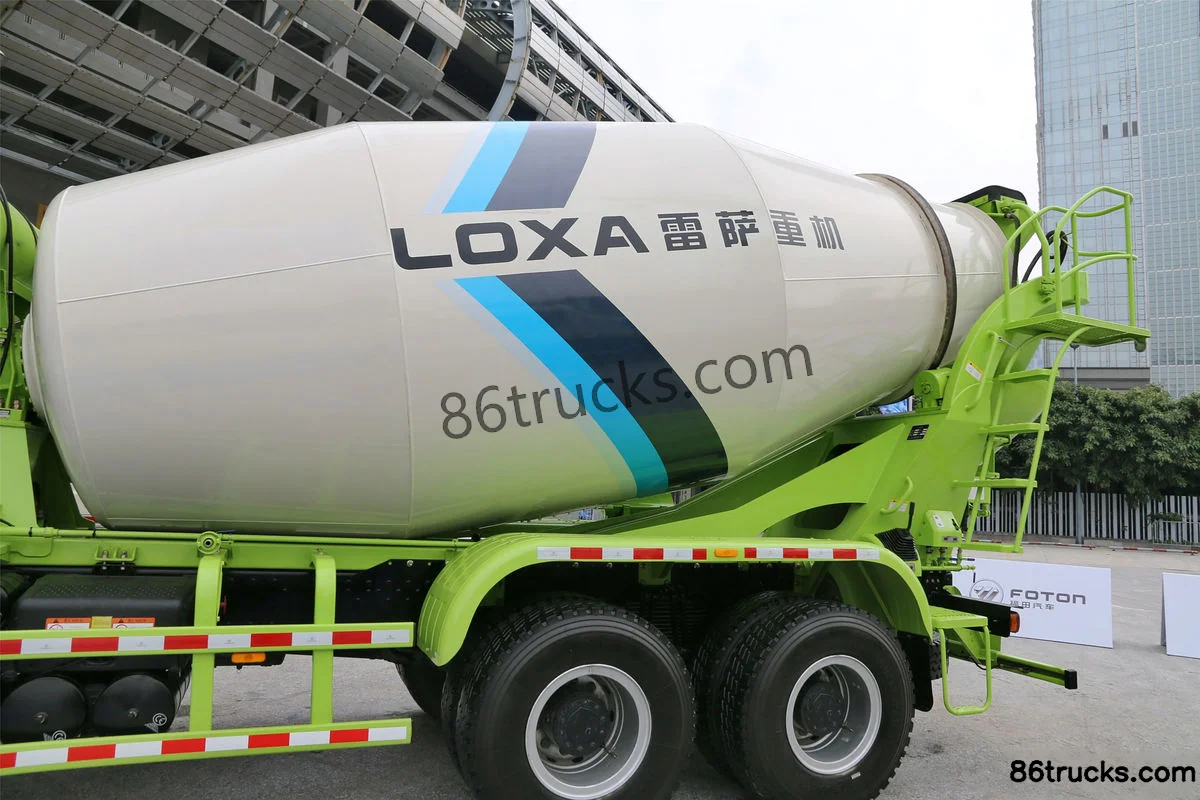

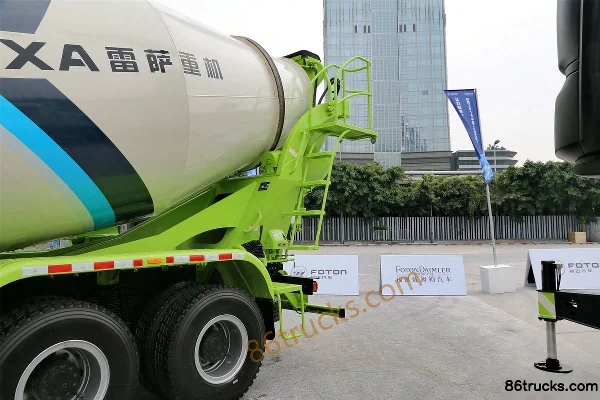

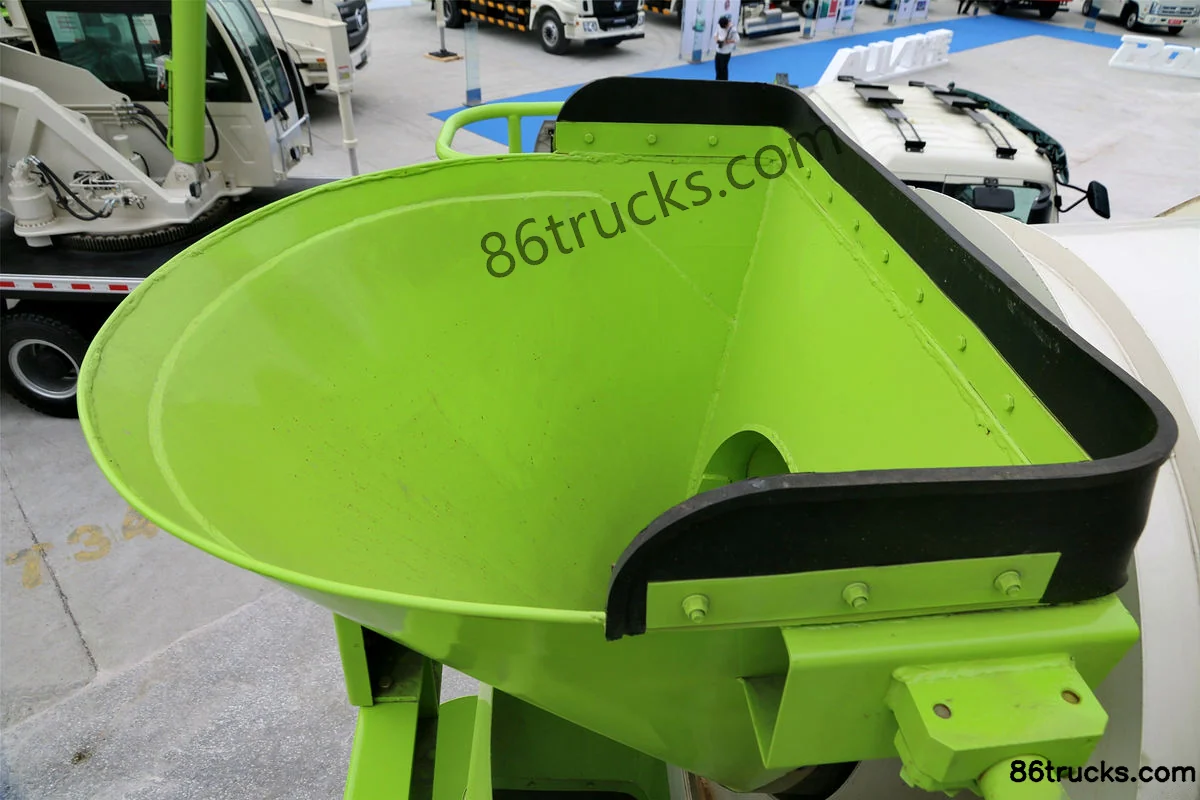

Body3

9 photos

FAQ

What emission standard does Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck?

Key specs of Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck suited for?

Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck differ from other variants in the same series?

Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck belongs to Loxa Heavy Machinery Loxa (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Leisa L9 350hp 6X4(10 wheels) 4.49m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
