SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
SHACMAN Delong F2000 Heavy Truck concrete mixer
Main model photos
112 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong F2000 340 hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 340hp / China III / Euro III | ||
| SHACMAN Delong F2000 336hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III | ||
| SHACMAN Delong F2000 385 hp 8X4(12 wheels) Concrete Mixer Truck | 8x4 / 385hp / China III / Euro III | ||
| SHACMAN Delong F2000 336hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III |

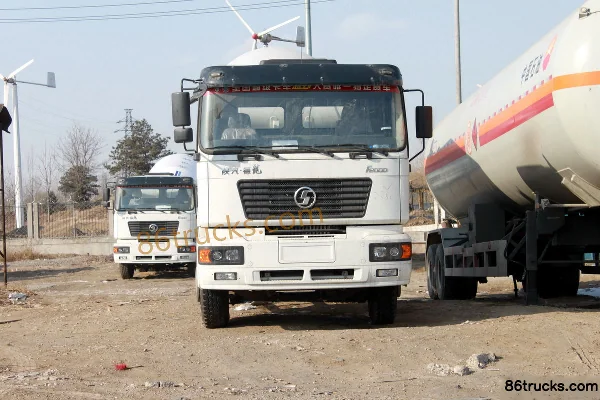

SHACMAN Delong F2000 336hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
SHACMAN Delong F2000 385 hp 8X4(12 wheels) Concrete Mixer Truck
EXW
Export quote
SHACMAN Delong F2000 336hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.48×2.49×3.81 / 9.135×2.49×3.81 / 10.45×2.49×3.87 / 9.13×2.5×3.9m
Drive type: 6X4 / 8X4
Truck Type: Concrete mixer truck
Front/rear track width: Front track: 1939mm; Rear track: 1850mm / Front track: 2058mm; Rear track: 1830mm / 1939/1939;2036/2036 / Front track: 2036mm; Rear track: 1850mm
Vehicle origin: Shaanxi / Xi'an
Wheelbase: 3800+1350,3775+1400 / 3800+1350 / 1800+3000+1350 / 3625+1350mm
Curb Weight: 25 / 13.017 / 14.925 / 13.24ton
Rated payload: 11.7 / 15.925 / 11.63ton
Max. speed: 77 / 85km/h
Front/rear suspension: 1525/2460 / 1.525/2.46 / 1.525/2.775 / 1.525/2.630m
Body Parameters
Water tank capacity: 550 / 400L
Mixing drum capacity: 5m³
Slump: 40.23mm
Drum rotation speed: 6-8 / 0~14.0~16 / 0~14r/min
Feed rate: 3m³/min
Discharge speed: 2 / 3m³/min
Discharge residue rate: <0.7 / 1%
Filling Rate: 58.7 / 80%
water supply method: Air pressure water supply / air type
hydraulic system: Closed hydraulic circuit
Vehicle certification code: SX5255GJBDR384 / SX5315GJBJT306XC / SX5255GJBJR364
Body Brand: SHACMAN
Others: Tank overall dimensions: total length 5047mm, max diameter φ2246mm, effective mixing volume 5 m³. Optional front mask and bumper. Overall length = front overhang + wheelbase + rear overhang (9380=1525+3800+1350+2705; 9480=1525+3800+1350+2805) / Optional Steyr 16-ton hub-reduction rear axle,
Engine parameters
Engine Model: WeichaiWP10.340E32 / WeichaiWP10.336 / Xi’an CumminsISME38530 / WeichaiWP10.336N
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726 / 10.8L
Emission standard: China III / Euro III
Max output power: 250 / 247 / 283kW
Max hp: 340 / 336 / 385Horsepower
Rated speed: 2200 / 1900rpm
Engine Type: Inline / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: Delong F2000
Front axle description: 7T / MAN technology 7.5T front axle / 6.5T grade front axle
rear axle description: 13T single-reduction dual rear axle / SHACMAN Hande 13-ton Steyr reinforced axle / 16T dual rear axle
Leaf spring count: 9/12,10/12 / L14 R13 / L14 R13 / 12,13/13/12 / 9/12
Transmission Parameters
Number of gears: 8 / 9 / 12Gear
Transmission Model: Fast Gear 8JS118 / Fast Gear 9JS135 / Fast Gear F9
Tire
Tire Size: 11.00-20 / 12.00-20,11.00-20,11.00R20,12.00R20 / 12.00-20
Number of tires: 10 / 12pcs
FAQ
What kind of truck is SHACMAN SHACMAN Delong F2000 Heavy Truck concrete mixer truck?
SHACMAN SHACMAN Delong F2000 Heavy Truck is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SHACMAN Delong F2000 Heavy Truck concrete mixer cover?
SHACMAN Delong F2000 Heavy Truck concrete mixer mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 340 hp / 385 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong F2000 Heavy Truck concrete mixer?
For SHACMAN Delong F2000 Heavy Truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong F2000 Heavy Truck concrete mixer include?
SHACMAN Delong F2000 Heavy Truck concrete mixer currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong F2000 Heavy Truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
